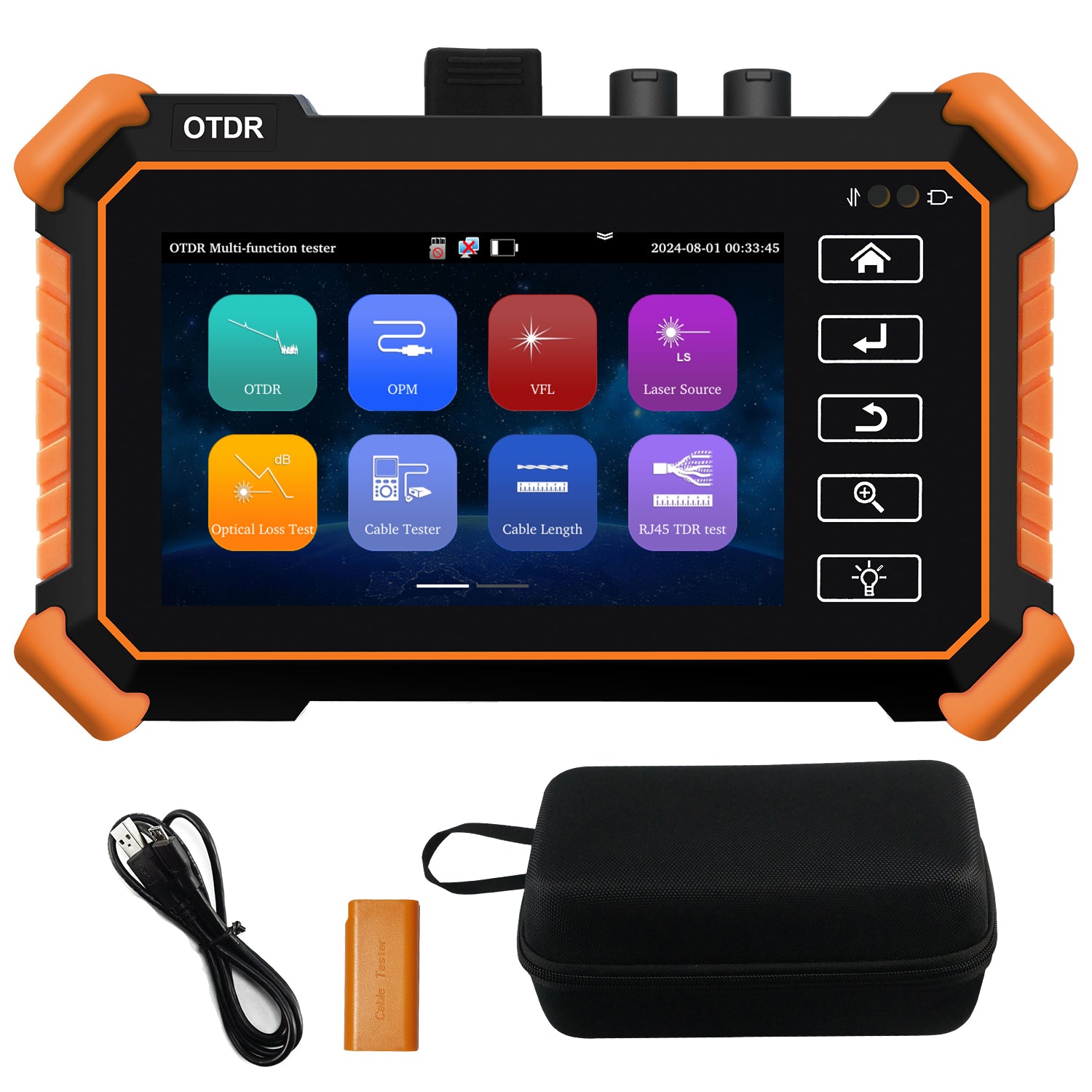

WANLUTECH Singlemode OTDR Fiber Optic Tester, MOT-31 1310/1550nm 26/24dB 4'' Touchscreen OTDR Test Built-in VFL OPM LS Event Map OLT (Optical Loss Test) Functions RJ45 Cable Test Network Tools SC/UPC

WANLUTECH Singlemode OTDR Fiber Optic Tester, MOT-31 1310/1550nm 26/24dB 4'' Touchscreen OTDR Test Built-in VFL OPM LS Event Map OLT (Optical Loss Test) Functions RJ45 Cable Test Network Tools SC/UPC

$229.99 USD
$275.99 USD $229.99 USD
Sale Sold out
Shipping calculated at checkout.
  • [ Singlemode OTDR Fiber Optic Tester ] OTDR test: wavelength 1310nm/1550nm, dynamic range 26dB/24dB. Quick Setup mode: quickly set wavelength, distance range, pulse width and measurement duration; Parameters Set mode: professional technicians can set the wavelength, distance range, pulse width, measurement mode, IOR, non-reflection threshold, end threshold and other parameters before testing, which will get more accurate curve results.(PLEASE NOTE: this 1310nm/1550nm model can not test live fiber)
  • [ OPM VFL LS OLS ] WANLUTECH MOT-31 combines necessary fiber optic testing in one handheld device. OPM (Optical Power Meter: Calibrated Wavelength 850/1300/1310/1490/1550/1625nm, measurement range ,-70 ～+6dBm, for optical power testing and fiber link loss relative measurement); VFL (Visual Fault Locator: 650nm wavelength, max test range 8 KM); LS (Light Source:mode CW/270 Hz/330 Hz/1 kHz/2 kHz); OLS(Optical Loss Test: It is used to test the insertion loss of optical passive devices)
  • [ Event Map & Data Storage ] Visualise the results of fibre optic link inspections. Information such as the length of the fibre optic link, type of connector, fusion point or break point is presented in a graphical form that is easier to understand. Save and view the testing curves, support zoom and move curves, view details. (Event Blind Zone <1.6 m, Attenuation Blind Zone<8 m.) Support create testing report, including curve trajectory graphs, parameter settings, fiber event information, and fiber link information. SOR standard file format PDF/EXCEL
  • [ RJ45 Cable Tester & Network Test Tools ] RJ45 CABLE TDR Test: it can test cable pair status(open or shortcuirt), length( max 600meters ); UTP Cable Tester: test UTP cable connection status and display on the screen, support detect the near-end, mid-end and far-end fault point of the RJ45 cable plug; Cable Length Test: Measure the breakpoint position of (open circuit status) BNC cables, RJ45 network cables, RJ11 cables, test length max 3000 meters. Network Test: IP address scan, PING test, PPPOE, LLDP, FTP, file management.

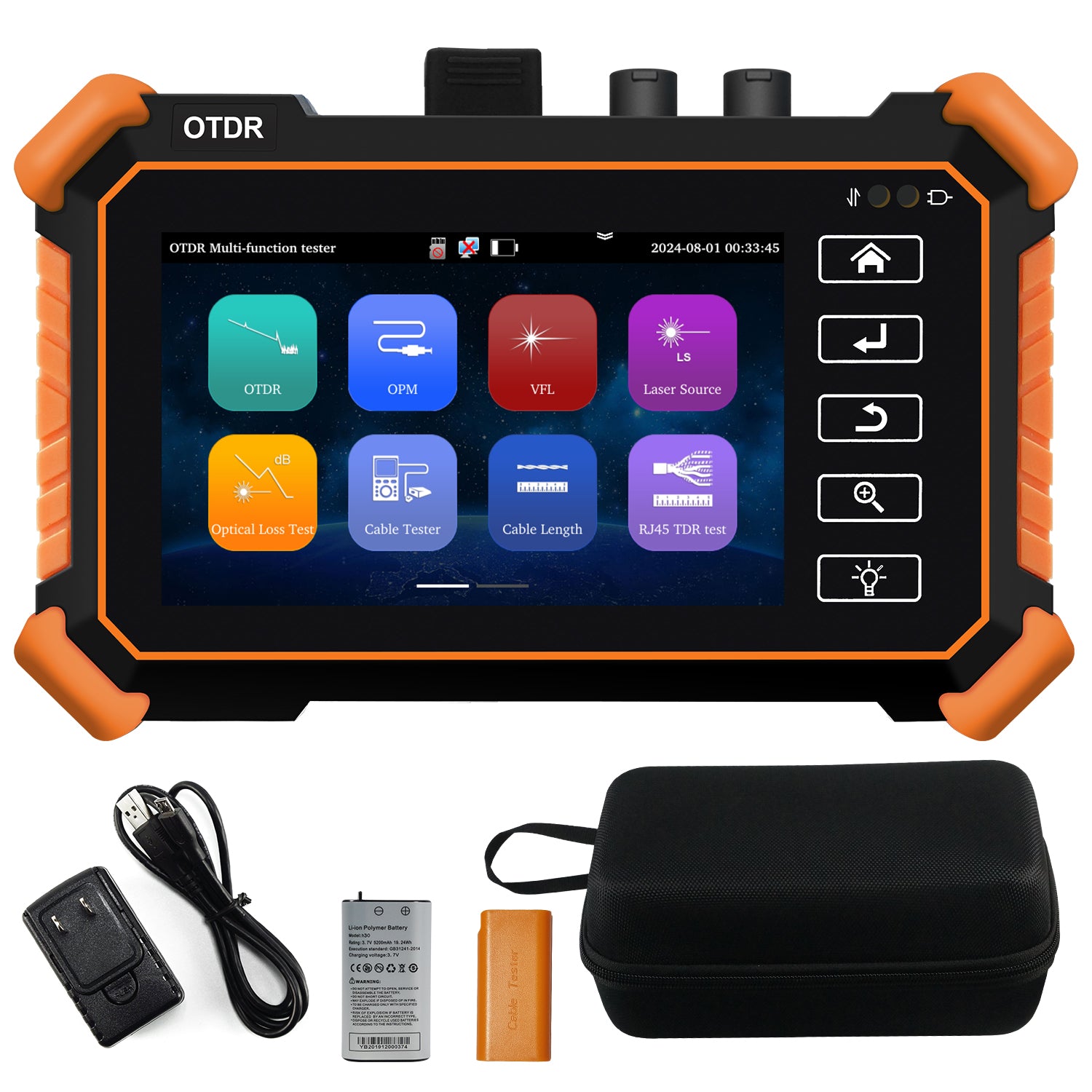

  • [ Basic Fiber Tester ] 4 inches touch screen; SC/UPC connector, packing included 1x romte kit,1x Charger 1x Type-C power cable; Built-in 3.7V/4000mAh battery, Single Gigabit Ethernet port, 10/100/1000Mbps adaptive; power input:DC5V/2A
  • [ PLEASE NOTE ] There is a paper piece isolating the battery. Before using the tester, open the battery cover and remove the paper sheet. We are the manufacturer. Any questions, please let us know, We'll get back to you within 12 hours.
View full details

Specification Details

Single Mode Fiber Tester MOT-31 Wavelength 1310/1550nm Dynamic Range 26/24dB

Specification

Details


Specification


Details

Wavelength

1310/1550nm

Loss resolution

0.01dB

Dynamic Range

26/24dB

Minimum distance resolution

0.05m

Pulse Width


5ns/10ns/20ns/30ns/

50ns/80ns/160ns/300ns/

500ns/800ns/1μs/2μs/

4μs/6μs/10μs/20μs

Sampling point

32K-128K

Testing Distance

<80Km

Distance uncertainty

±(1m+ Sampling interval +0.005％×Test distance)

Event Blind Zone

≤1.6m

Distance scope

5sec, 10sec, 15sec, 30sec, 1min, 2min, 3min

Attenuation Blind Zone

≤8m

Connector

SC-UPC

Linearity

±0.05 dB/ dB

File format

SOR Standard file format/PDF/EXCEL

Loss threshold

0.05dB

PLEASE NOTE


This mode only can detect optical signal, doesn't support to test live fiber.

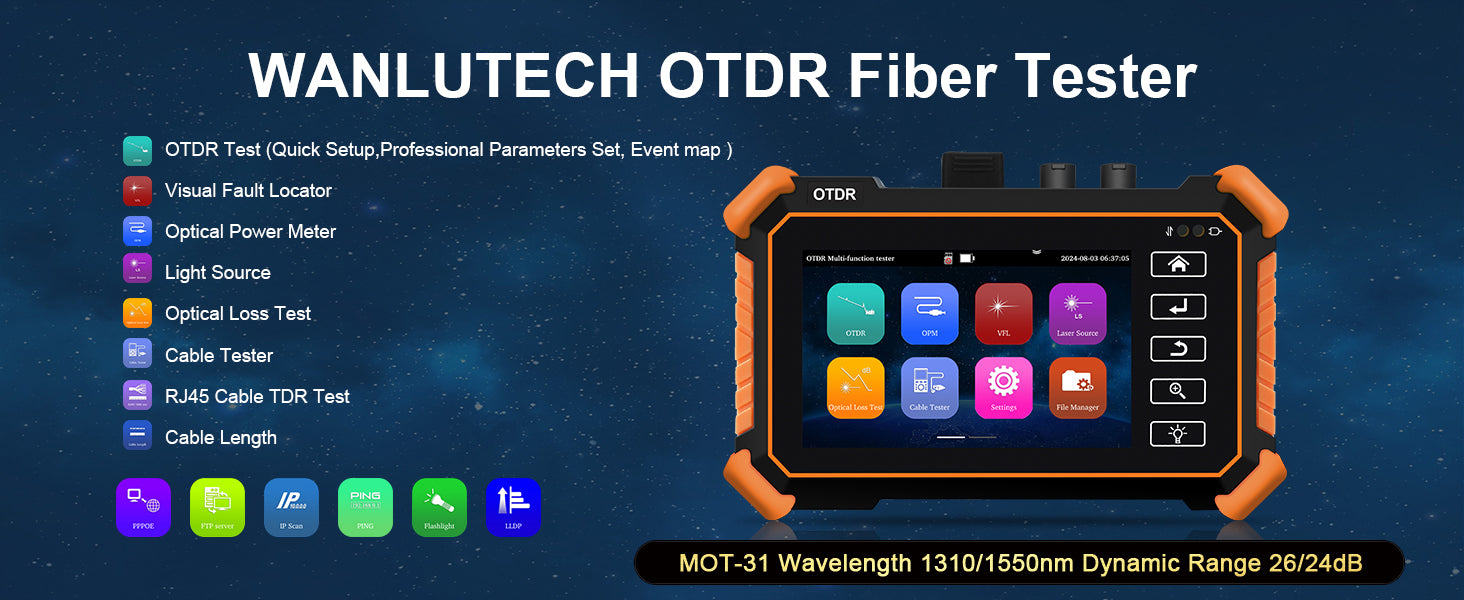

WANLUTECH Singlemode OTDR MOT-31

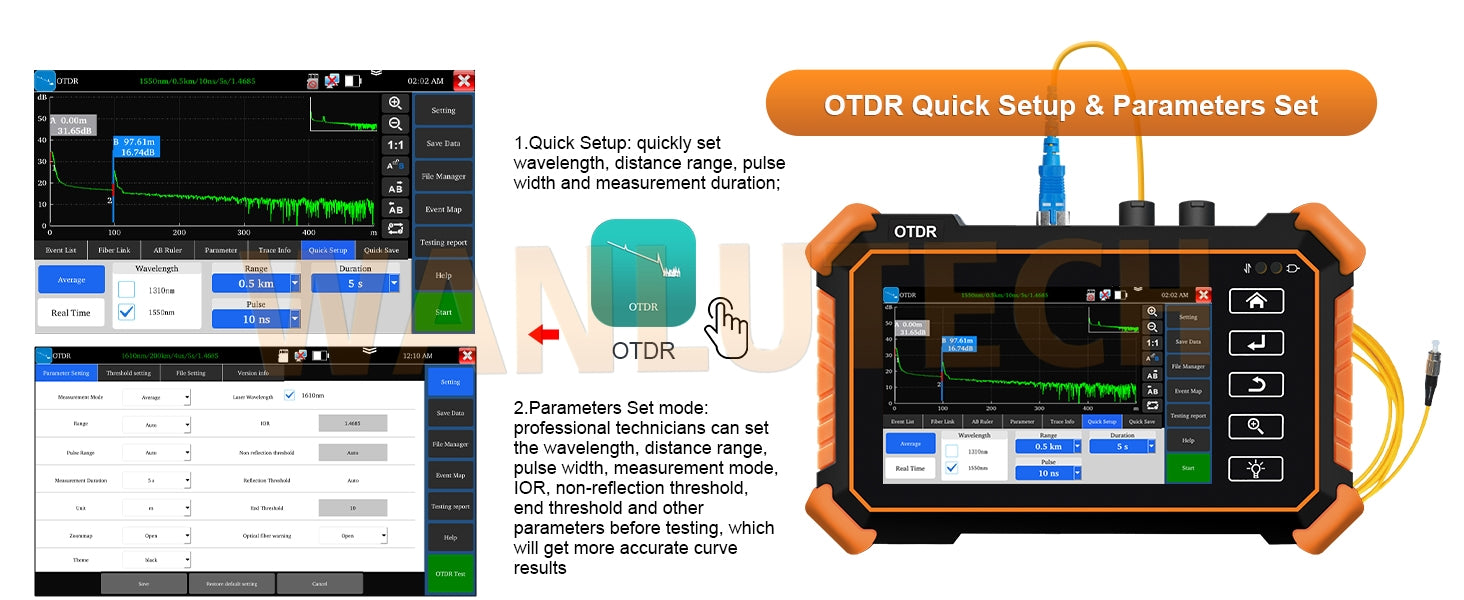

Auto OTDR Testing Mode & Expert Parameter Setting Mode

WANLUTECH OTDR Tester Optical Power Meter Visual Fault Locator Optical Loss Test Event map Essential Tool for Fiber Optical Cable Network Testing Ethernet Cable Testing MOT-31

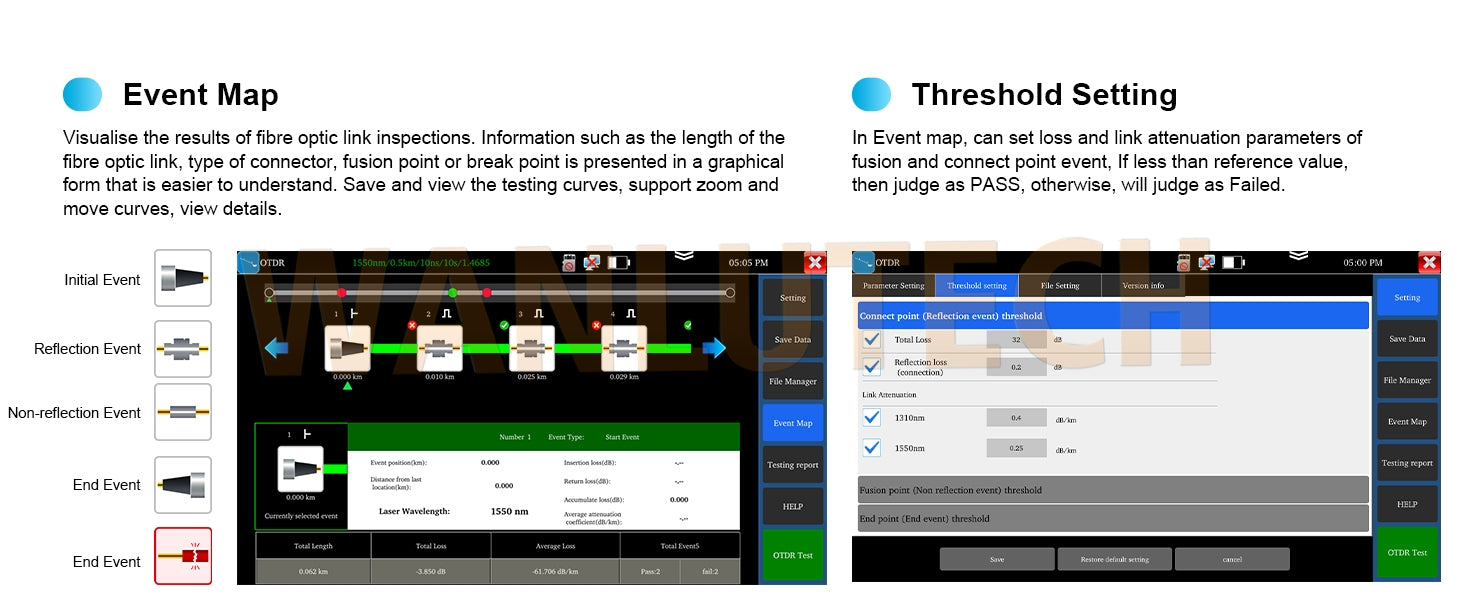

Event Map: Event Location, Loss (dB), Reflectance (dB), Event Type, Cumulative Loss

WANLUTECH OTDR Tester Optical Power Meter Visual Fault Locator Optical Loss Test Event map Essential Tool for Fiber Optical Cable Network Testing Ethernet Cable Testing MOT-31

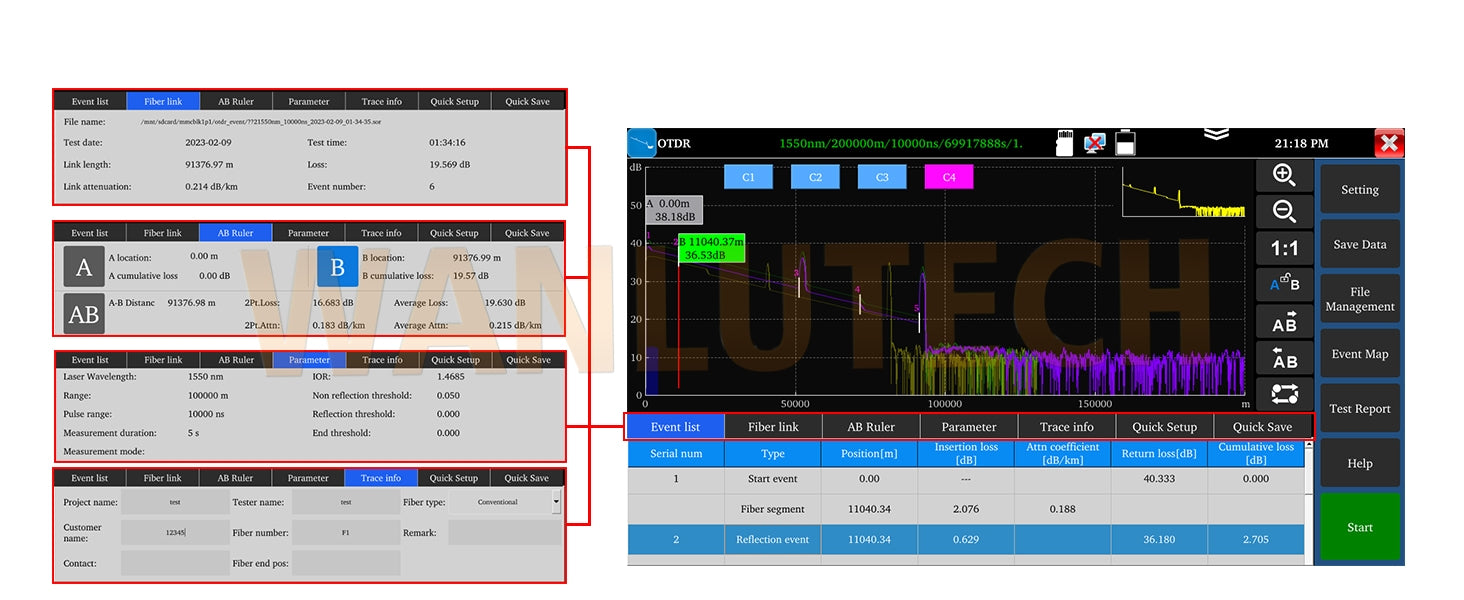

Test Results Window Area

WANLUTECH OTDR Tester Optical Power Meter Visual Fault Locator Optical Loss Test Event map Essential Tool for Fiber Optical Cable Network Testing Ethernet Cable Testing MOT-31

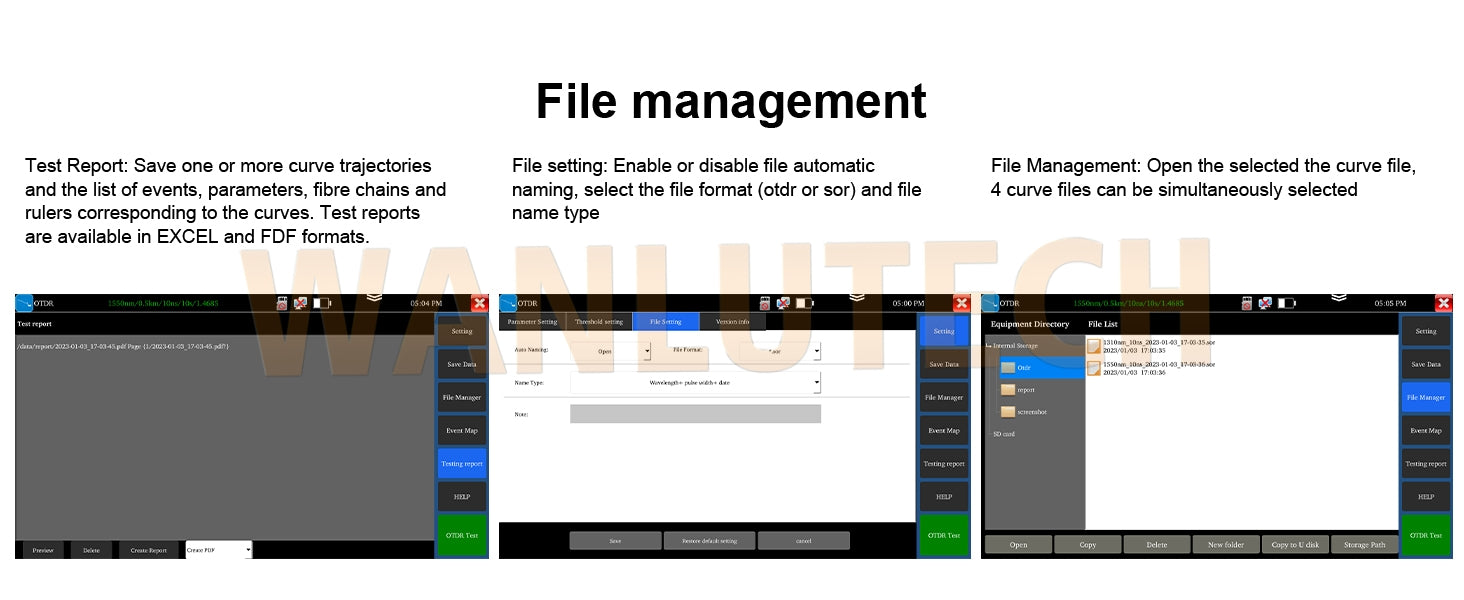

Create Test Reports

WANLUTECH OTDR Tester Optical Power Meter Visual Fault Locator Optical Loss Test Event map Essential Tool for Fiber Optical Cable Network Testing Ethernet Cable Testing MOT-31

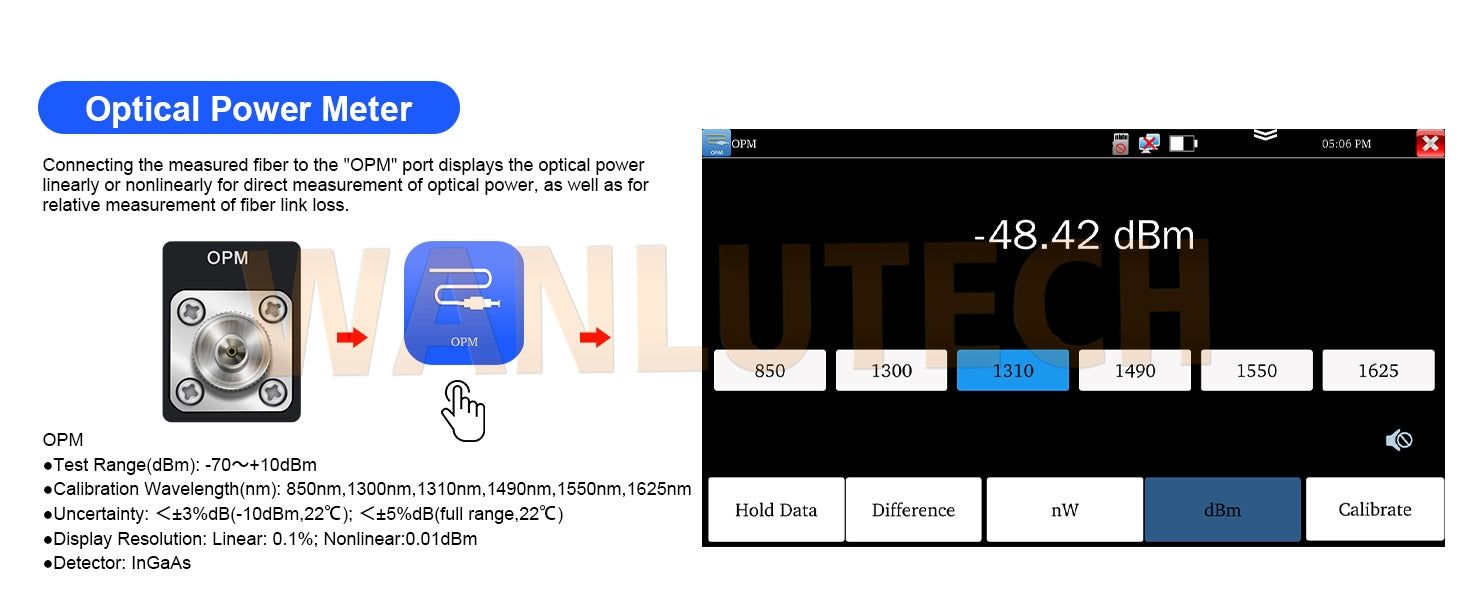

Optical Power Meter

WANLUTECH OTDR Tester Optical Power Meter Visual Fault Locator Optical Loss Test Event map Essential Tool for Fiber Optical Cable Network Testing Ethernet Cable Testing MOT-31

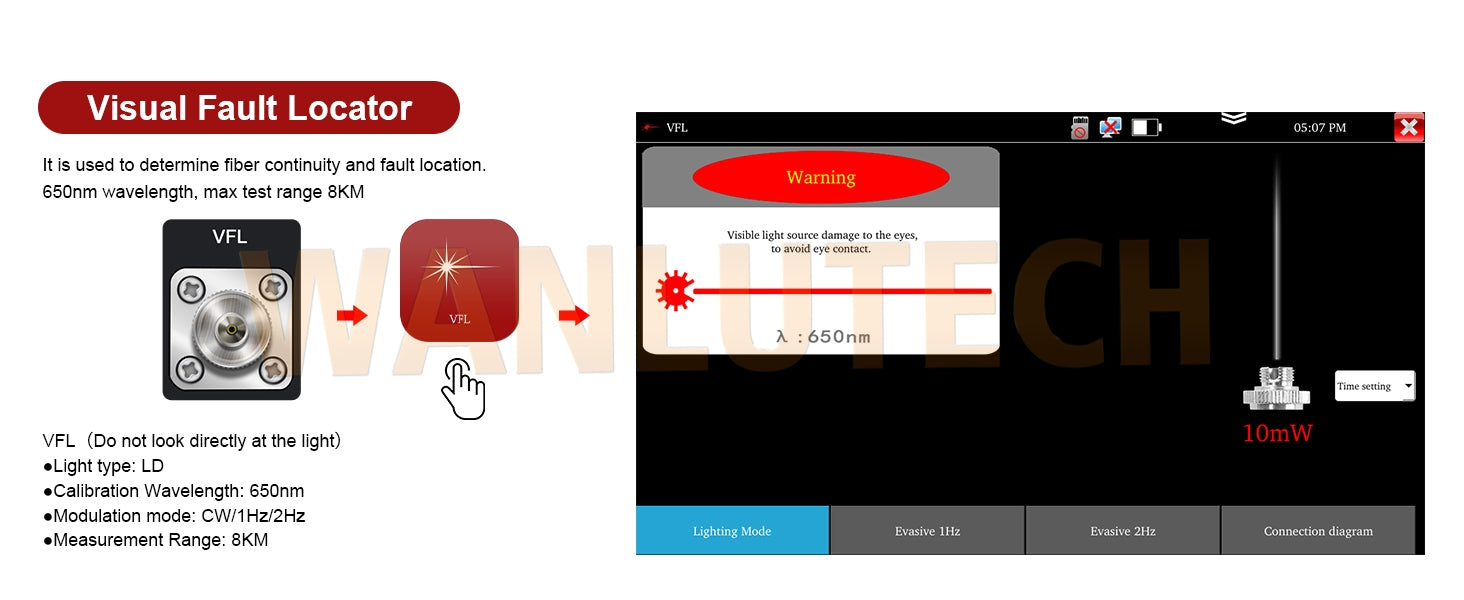

Visual Fault Locator

WANLUTECH OTDR Tester Optical Power Meter Visual Fault Locator Optical Loss Test Event map Essential Tool for Fiber Optical Cable Network Testing Ethernet Cable Testing MOT-31

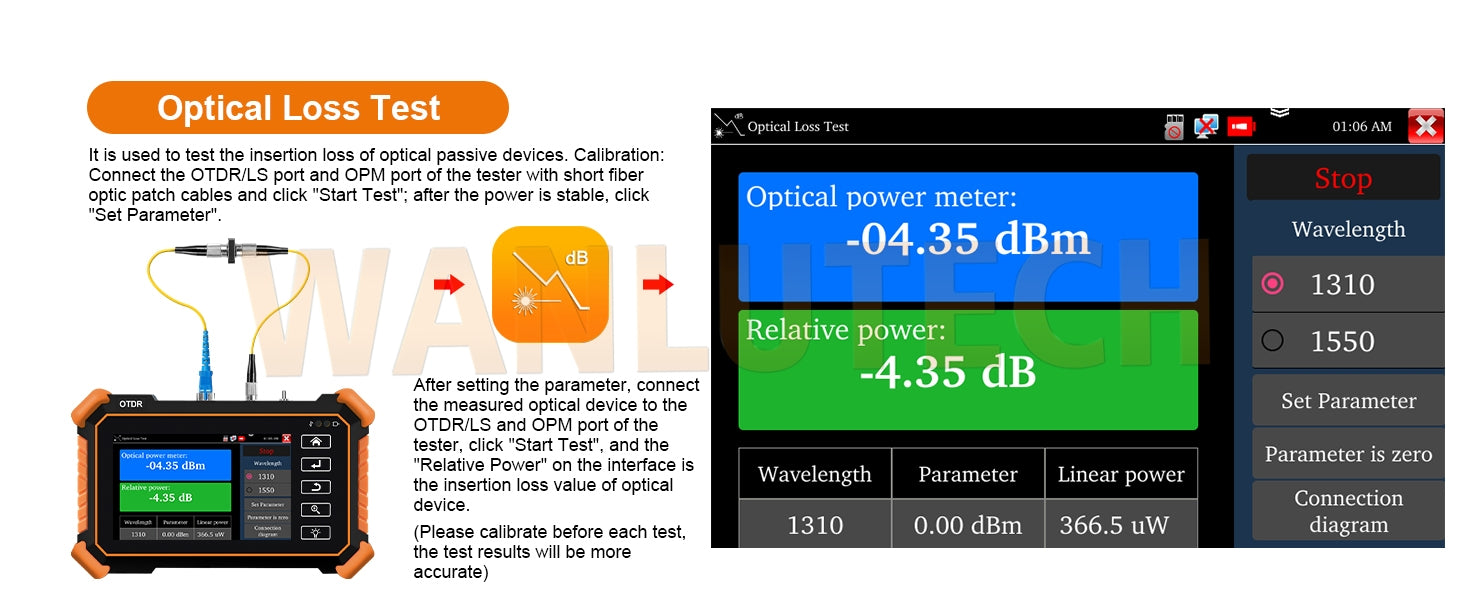

Optical Loss Test

WANLUTECH OTDR Tester Optical Power Meter Visual Fault Locator Optical Loss Test Event map Essential Tool for Fiber Optical Cable Network Testing Ethernet Cable Testing MOT-31

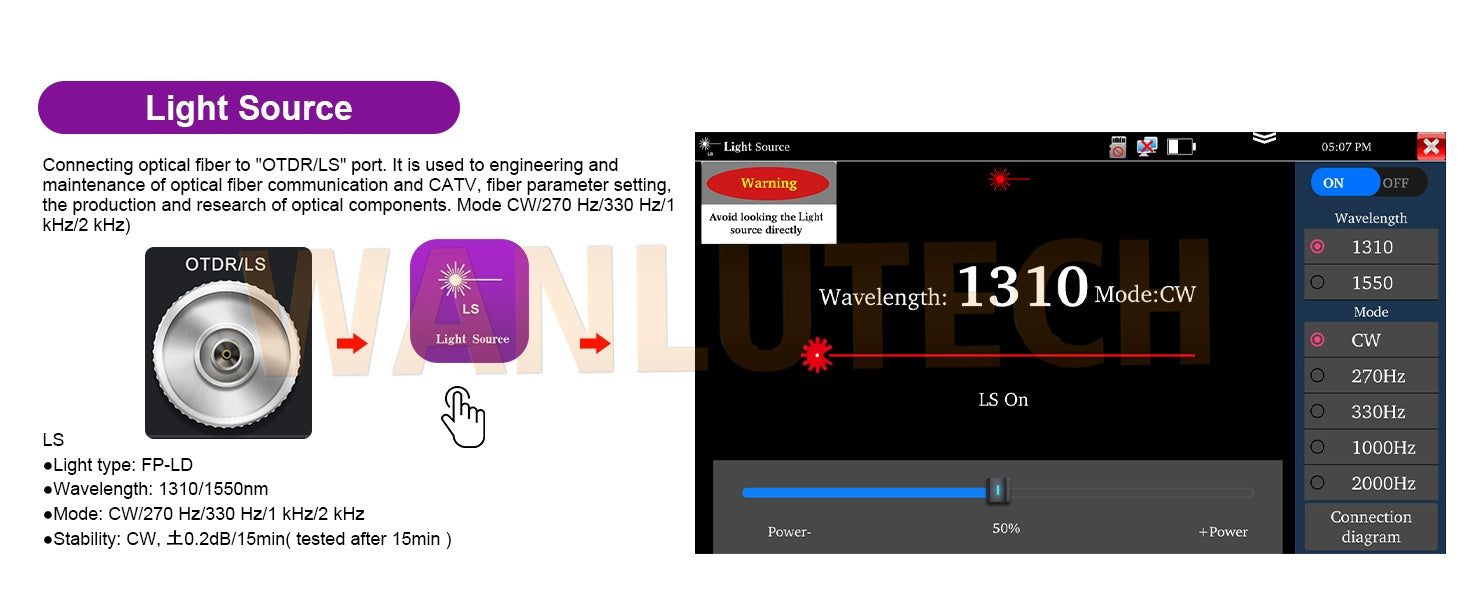

Light Source

WANLUTECH OTDR Tester Optical Power Meter Visual Fault Locator Optical Loss Test Event map Essential Tool for Fiber Optical Cable Network Testing Ethernet Cable Testing MOT-31

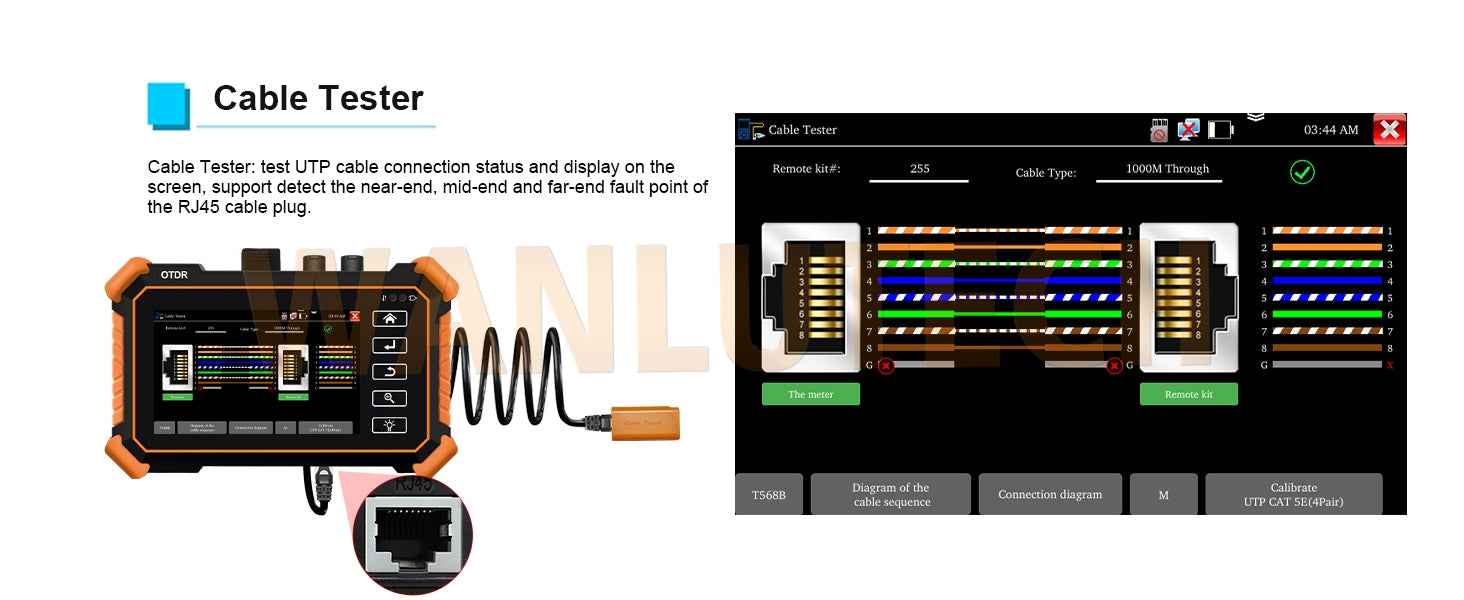

Cable Tester

WANLUTECH OTDR Tester Optical Power Meter Visual Fault Locator Optical Loss Test Event map Essential Tool for Fiber Optical Cable Network Testing Ethernet Cable Testing MOT-31

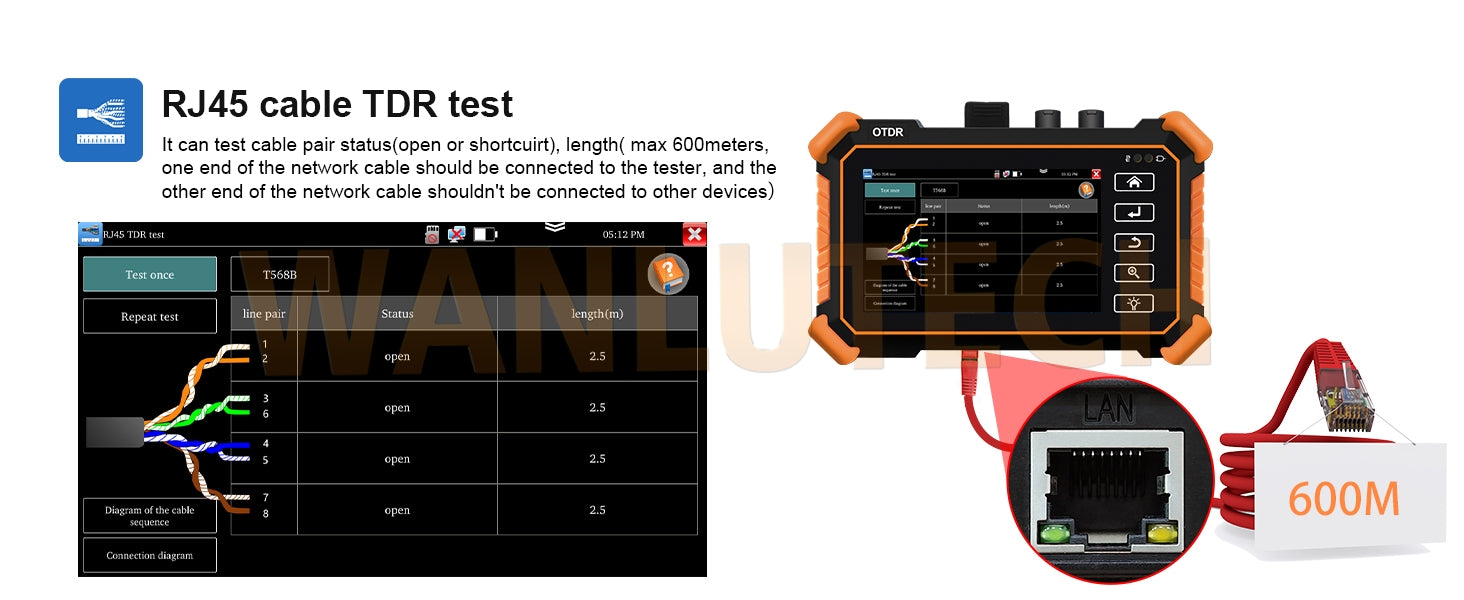

RJ45 Cable TDR Test

WANLUTECH OTDR Tester Optical Power Meter Visual Fault Locator Optical Loss Test Event map Essential Tool for Fiber Optical Cable Network Testing Ethernet Cable Testing MOT-31

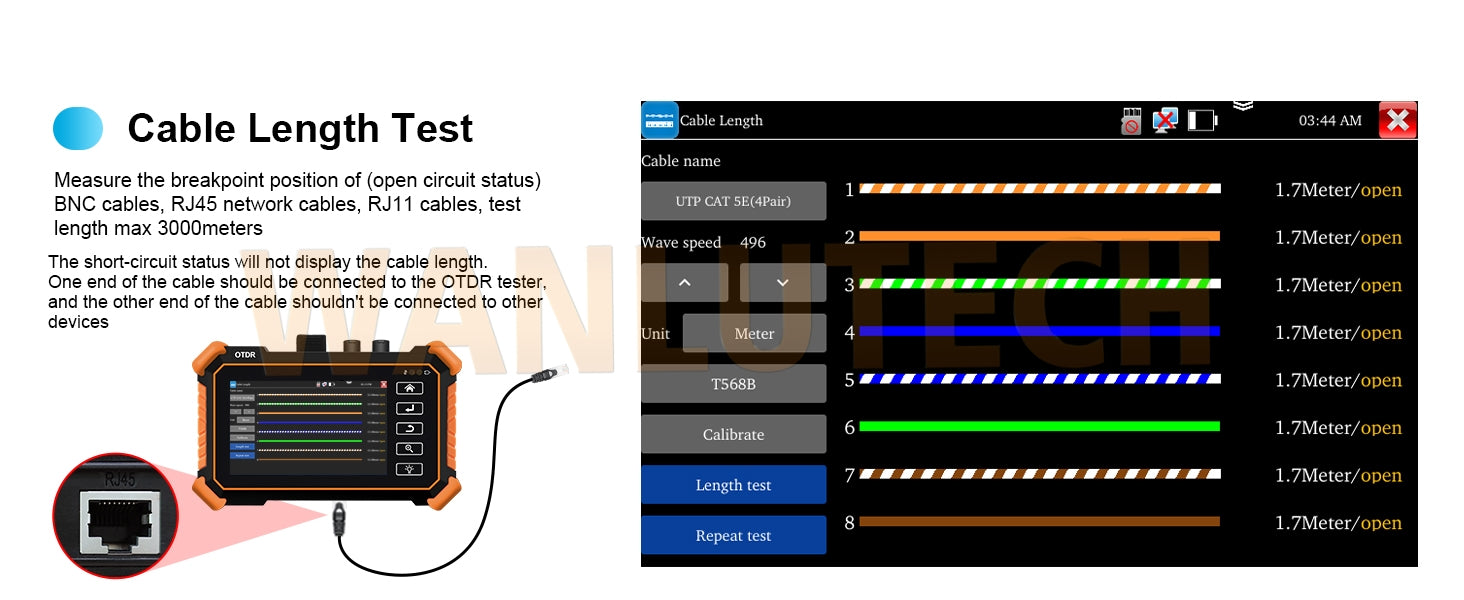

Cable Length Test(max 3km)

WANLUTECH OTDR Tester Optical Power Meter Visual Fault Locator Optical Loss Test Event map Essential Tool for Fiber Optical Cable Network Testing Ethernet Cable Testing MOT-31

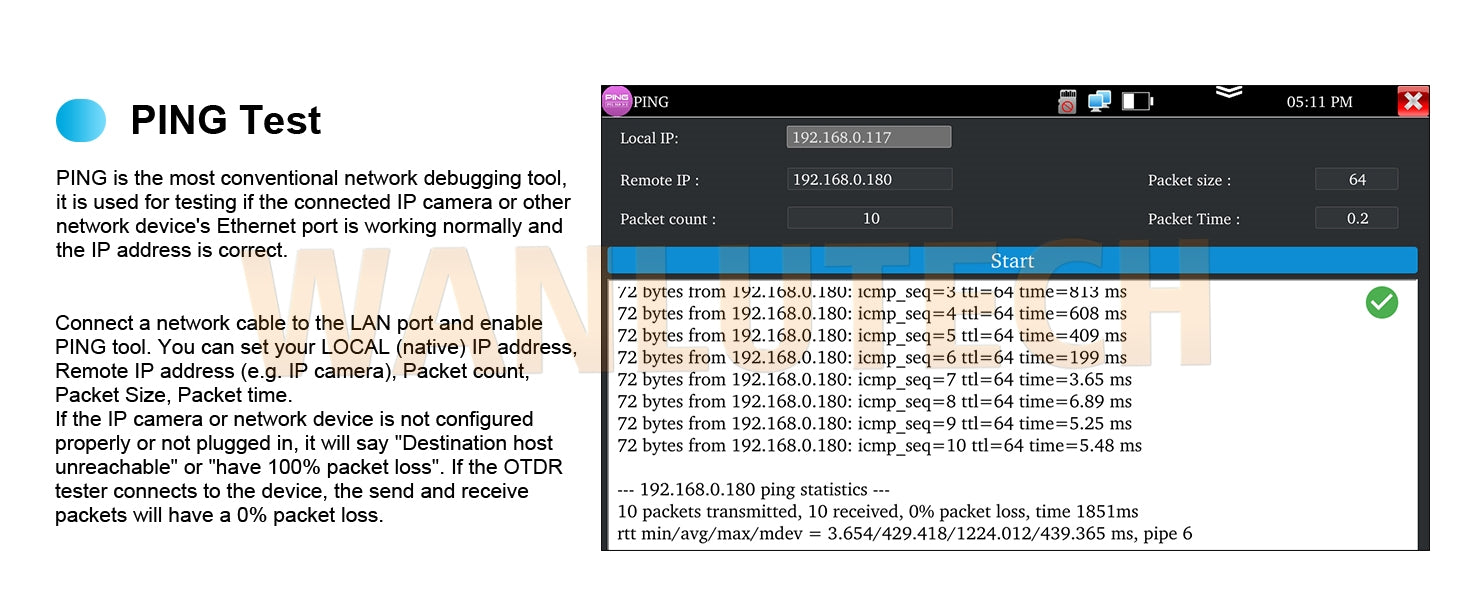

PING Test

WANLUTECH OTDR Tester Optical Power Meter Visual Fault Locator Optical Loss Test Event map Essential Tool for Fiber Optical Cable Network Testing Ethernet Cable Testing MOT-31

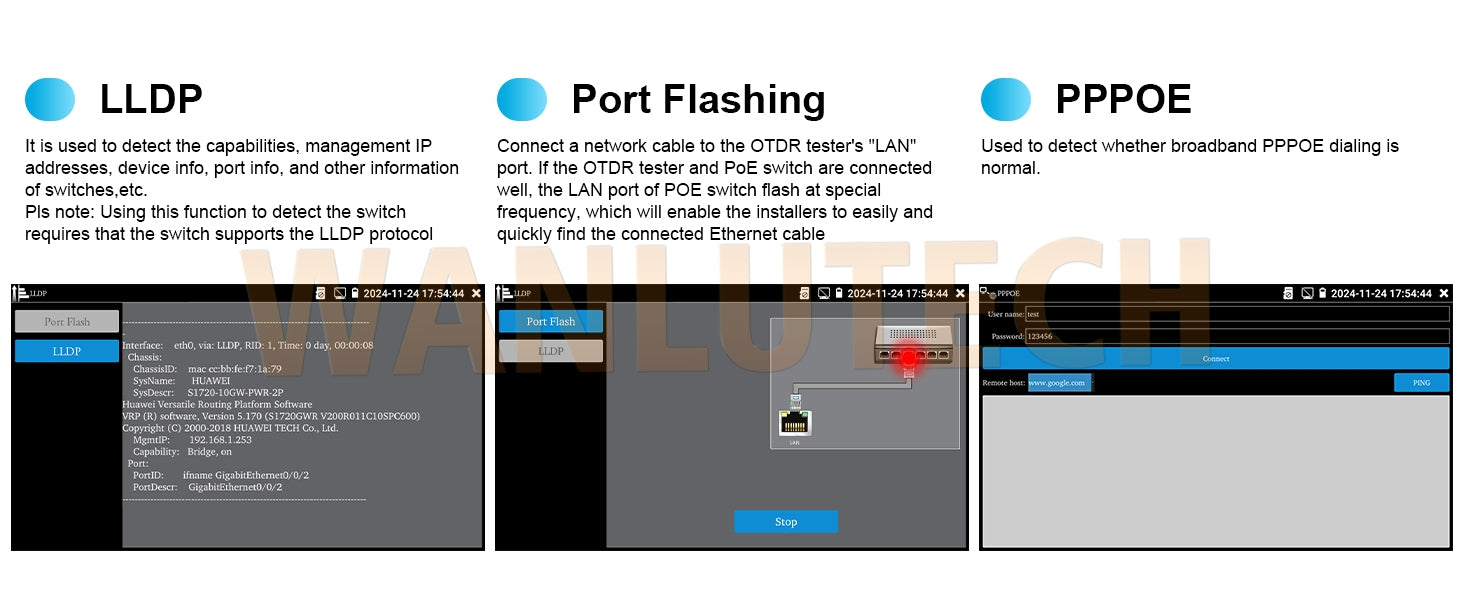

LLDP/Port Flashing/PPPOE

WANLUTECH OTDR Tester Optical Power Meter Visual Fault Locator Optical Loss Test Event map Essential Tool for Fiber Optical Cable Network Testing Ethernet Cable Testing MOT-35

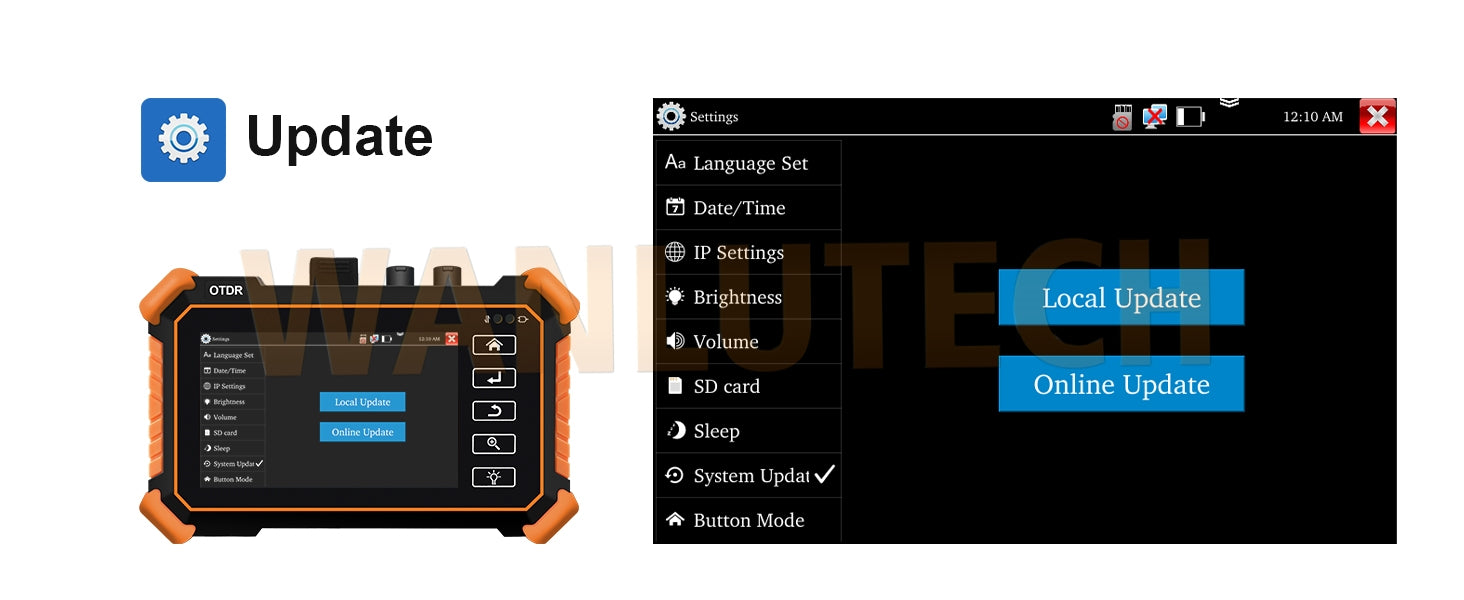

Application Update

WANLUTECH OTDR Tester Optical Power Meter Visual Fault Locator Optical Loss Test Event map Essential Tool for Fiber Optical Cable Network Testing Ethernet Cable Testing MOT-31

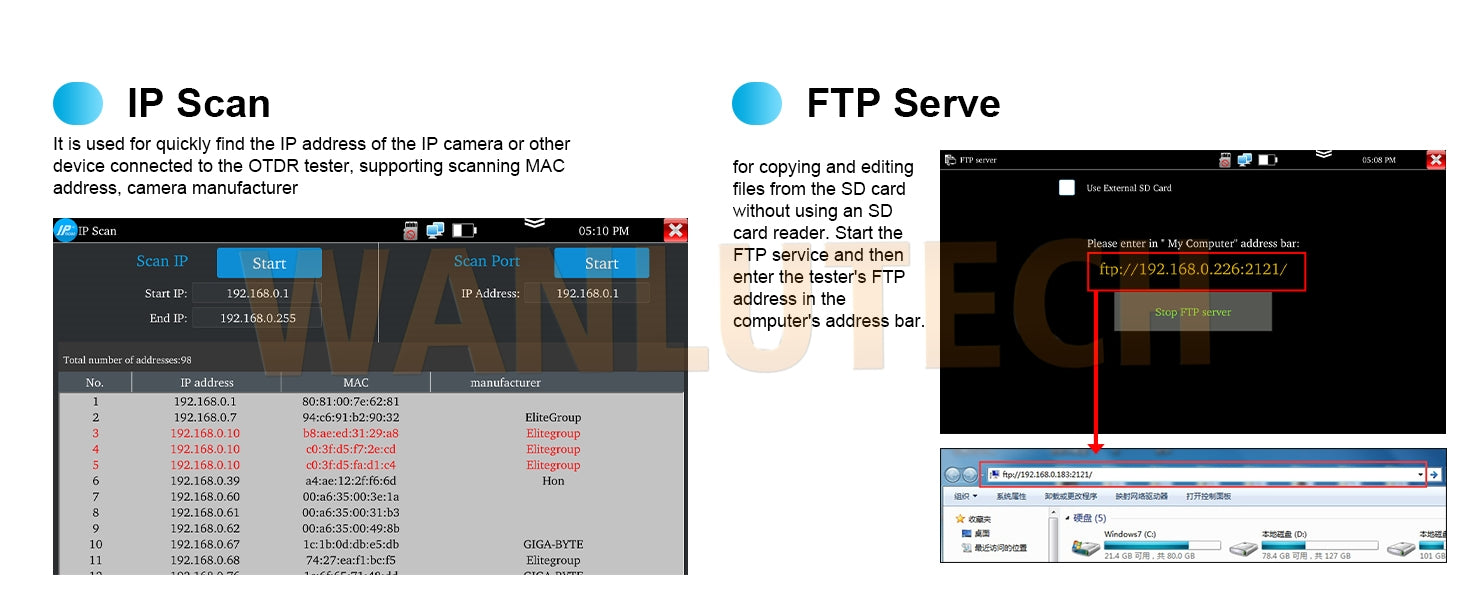

IP Scan/FTP Serve

WANLUTECH OTDR Tester Optical Power Meter Visual Fault Locator Optical Loss Test Event map Essential Tool for Fiber Optical Cable Network Testing Ethernet Cable Testing MOT-31

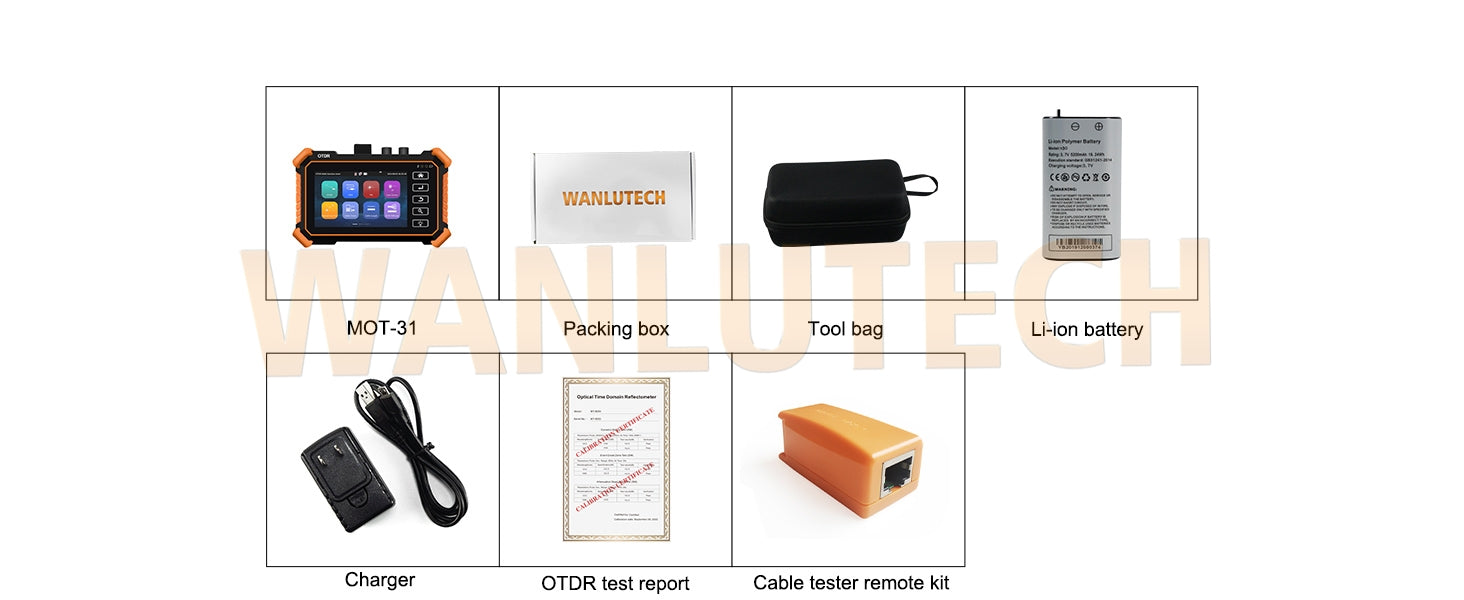

Packing List

WANLUTECH OTDR Tester Optical Power Meter Visual Fault Locator Optical Loss Test Event map Essential Tool for Fiber Optical Cable Network Testing Ethernet Cable Testing MOT-31

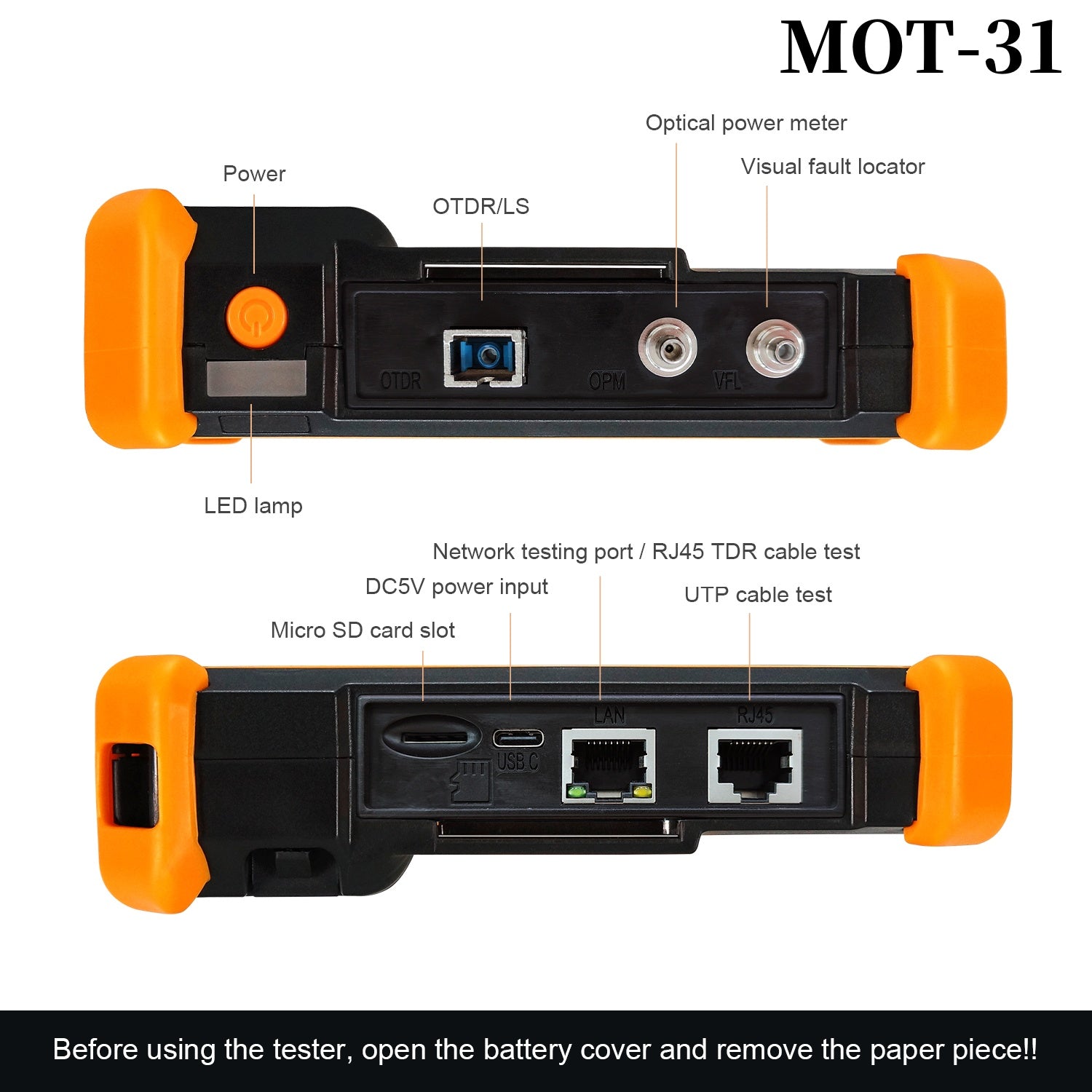

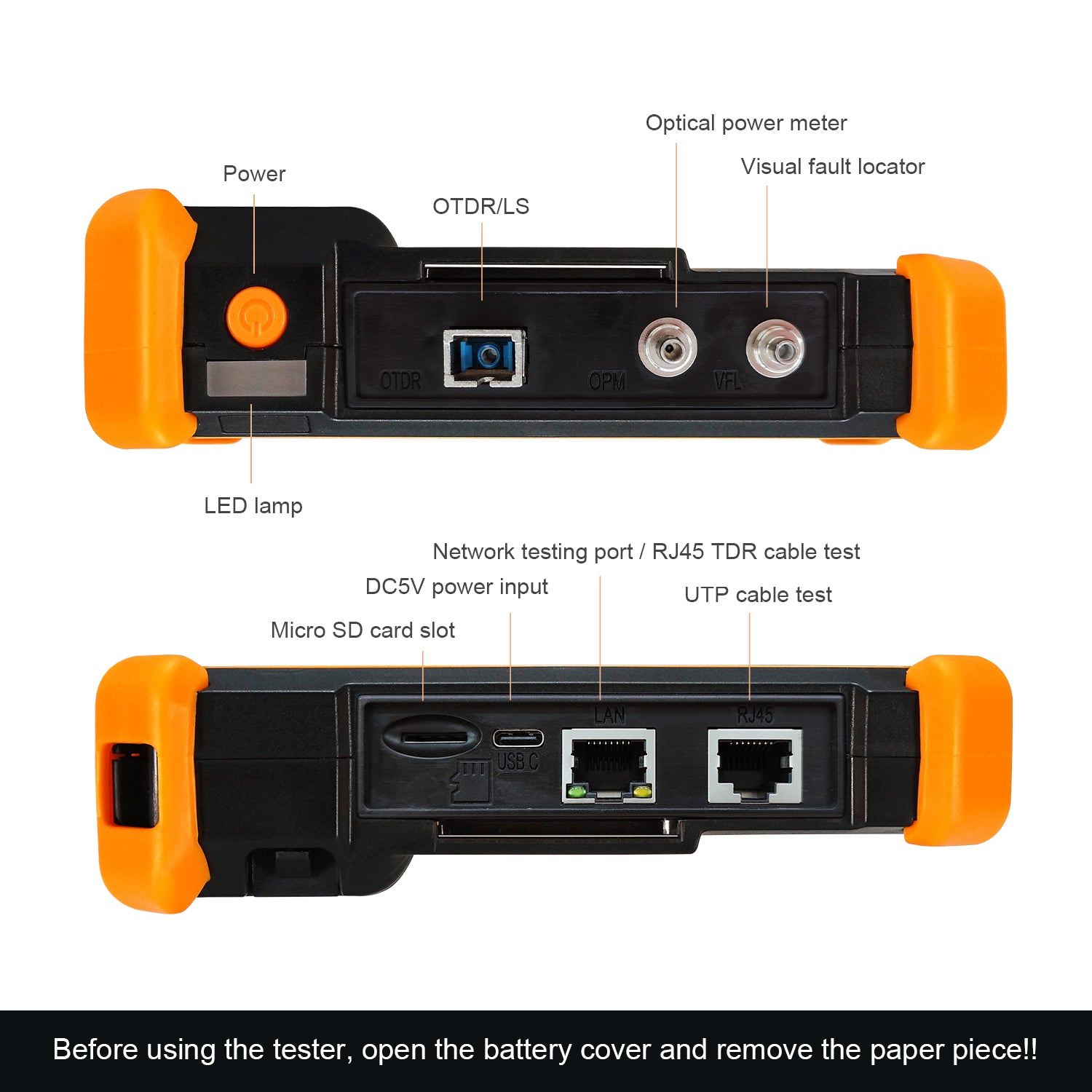

Ports Introduction
