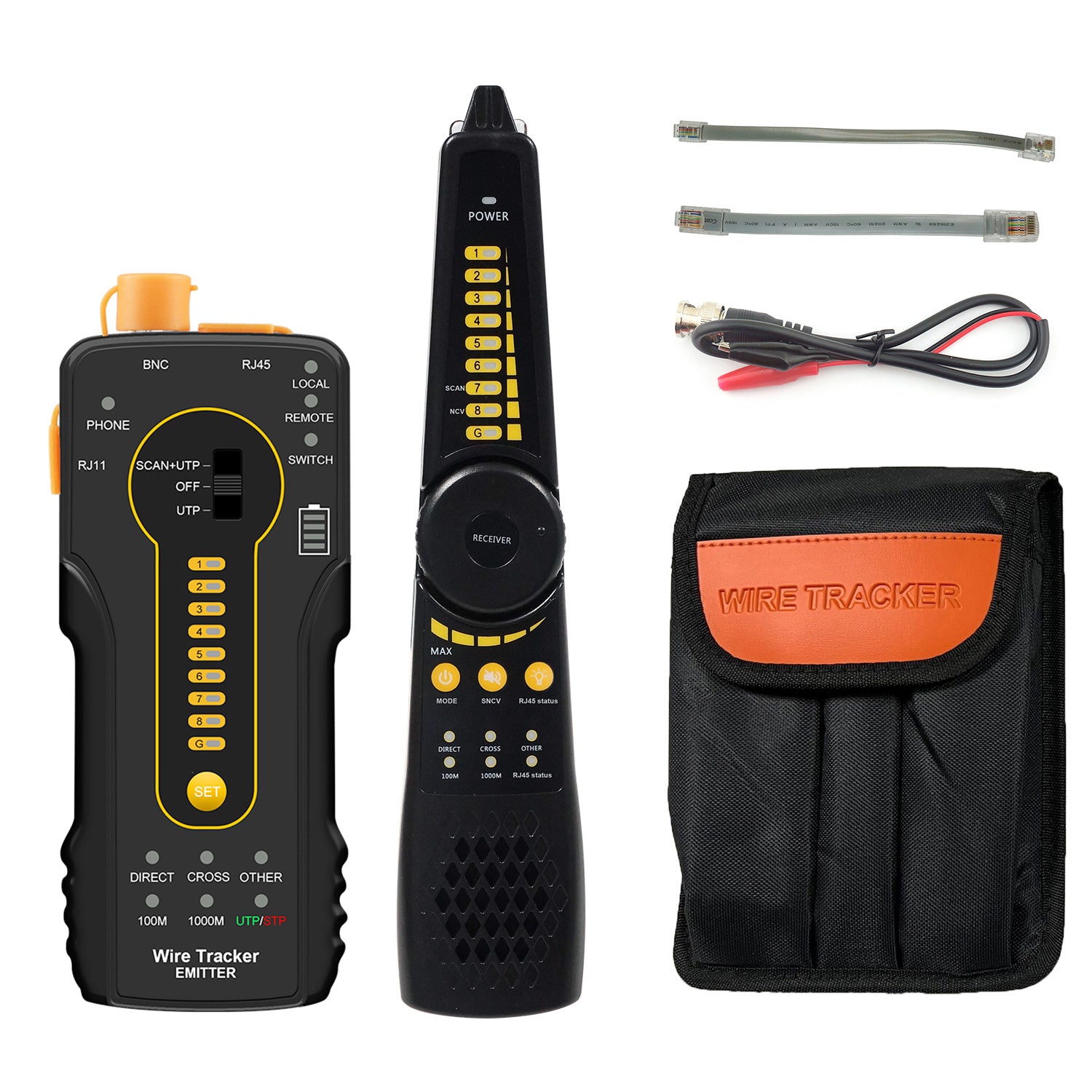

WANLUTECH Digital Cable Tracer Wire Tracker RJ11 RJ45 Cable Toner Line Finder (CT-66)

Download the user manual Here

• [Digital Toner Cable Tracer] WANLUTECH digital toner with probe support searching for RJ45 network cable, RJ11 telephone cable, BNC coxial cable from cluttered cables, also can search shielded network cables
• [Cable Tester Continuity Testing] supporting to test twisted pair cables continuity. Network cable type detection: straight-through/crossover/other. You can see the cable sequence, 1Gbps/100Mbps on the emitter, support detect the near-end, mid-end and far-end fault point of the RJ45 cable plug
• [ PD Power Detection ] The PD port of the toner probe is connected to a power supply device such as a POE switch or PSE. If it is powered by the 1236 pin, the 1236 indicator on the PD port is on. If the power is supplied by the 4578 pin, the 4578 indicator on the PD port will be on. If power is supplied to both 1236 and 4578 pins, both lights are on.The status of the light is always on, it means the access is non-standard POE. The status of the light is blinking, it means the access is standard POE.
• UTP port support max 60V withstand voltage, the wire can be traced directly in connection with PoE switch. There are two bright LED lights on the probe, so you don't have to worry about working in a dark environment. Probe has a 3.5mm headphone jack and is suitable for wearing headphones in noisy environments
• [PLEASE NOTE] Adjusting the knob on the receiver can change the sensitivity of the receiver. When the cables are too close to each other and difficult to distinguish, adjust to low sensitivity to track the cable. Long press the ''SNCV'' key for silent mode. In this mode, the signal strength indicator light is used to trace the wire. When received the strongest signal, the eight indicator lights are on. Long press the ''SNCV'' key again to exit silent mode
