WANLUTECH Single Mode OTDR Fiber Tester, MOT-51 1550nm 24dB 5.55'' Touchscreen OTDR Support 1310/1490/1577/1625nm Live Test VFL OPM LS(Light Source) Event Map OLT (Optical Loss Test) RJ45 Cable Tester Network Tools

Download the user manual Here

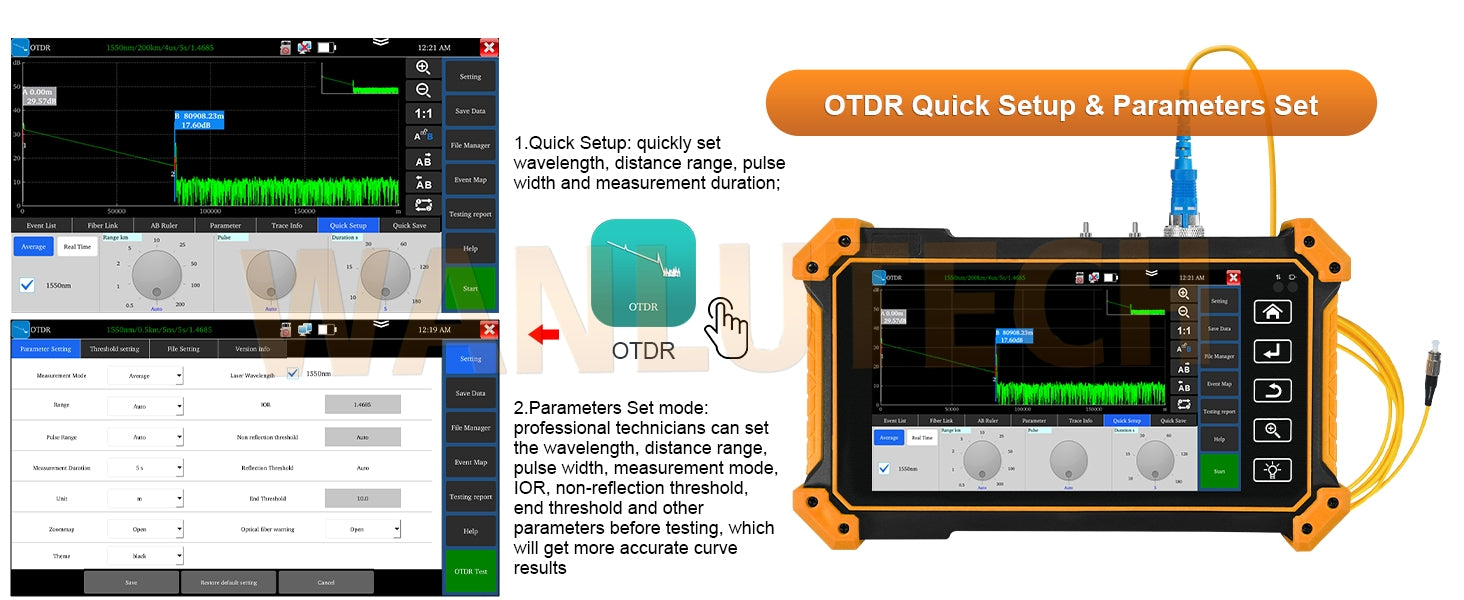

• [ OTDR Fiber Optic Tester ] OTDR test: wavelength 1550nm, dynamic range 24dB. Quick Setup mode: quickly set wavelength, distance range, pulse width and measurement duration; Parameters Set mode: professional technicians can set the wavelength, distance range, pulse width, measurement mode, IOR, non-reflection threshold, end threshold and other parameters before testing, which will get more accurate curve results.(PLEASE NOTE: this 1550nm 24dB model support 1310/1490/1577/1625nm live test)

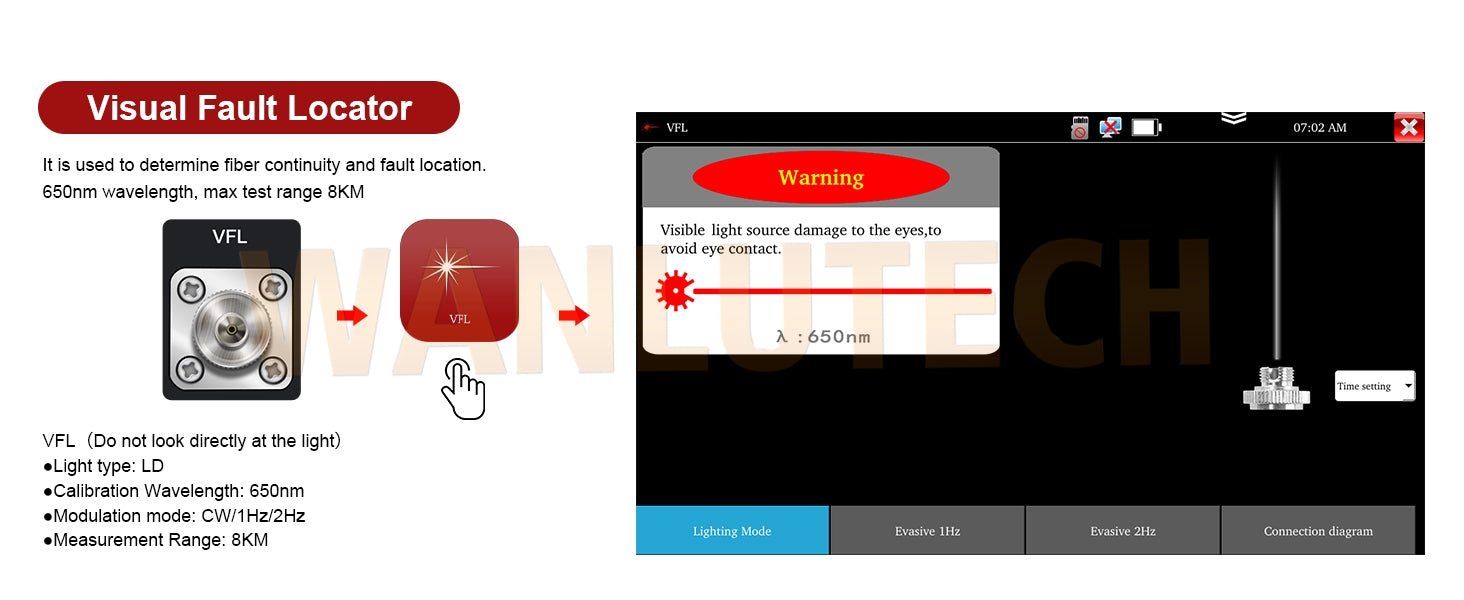

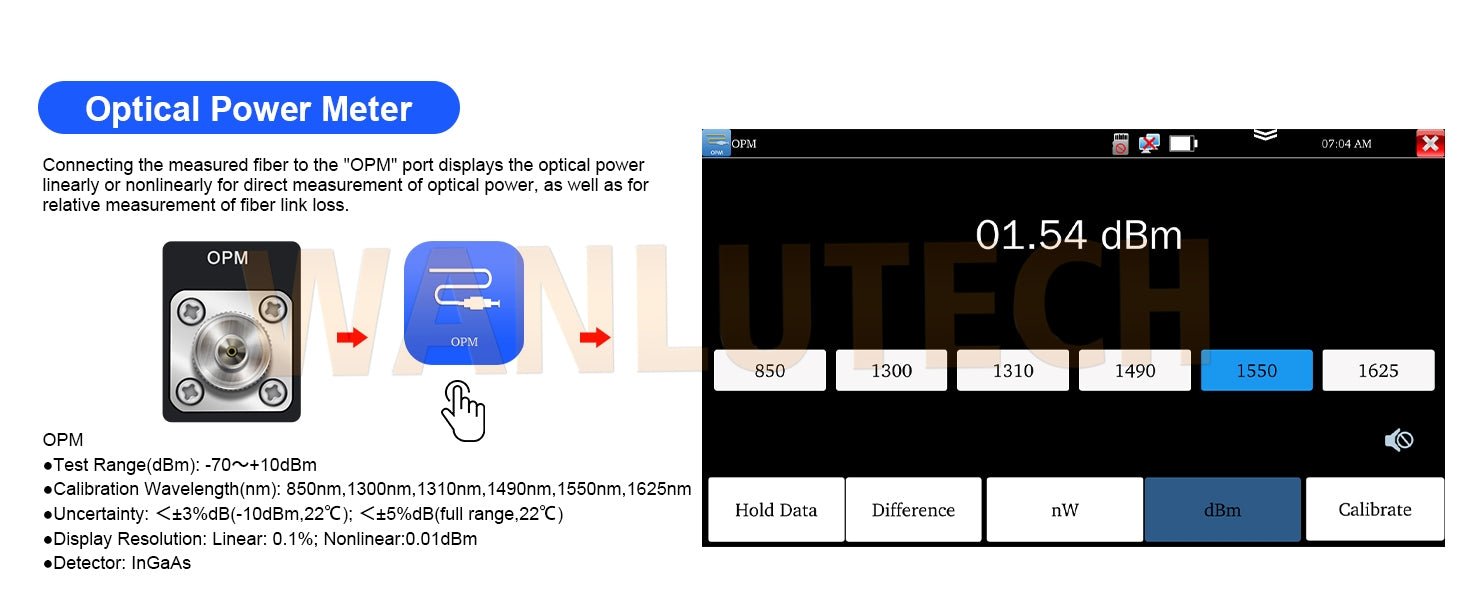

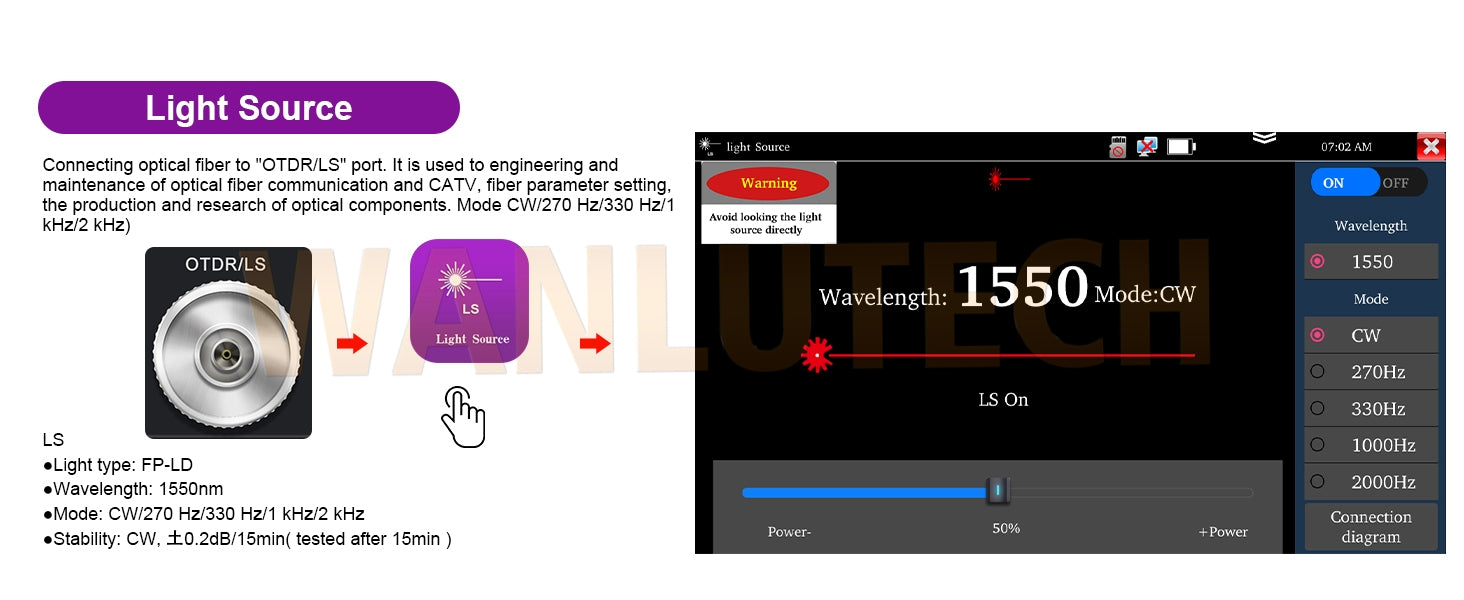

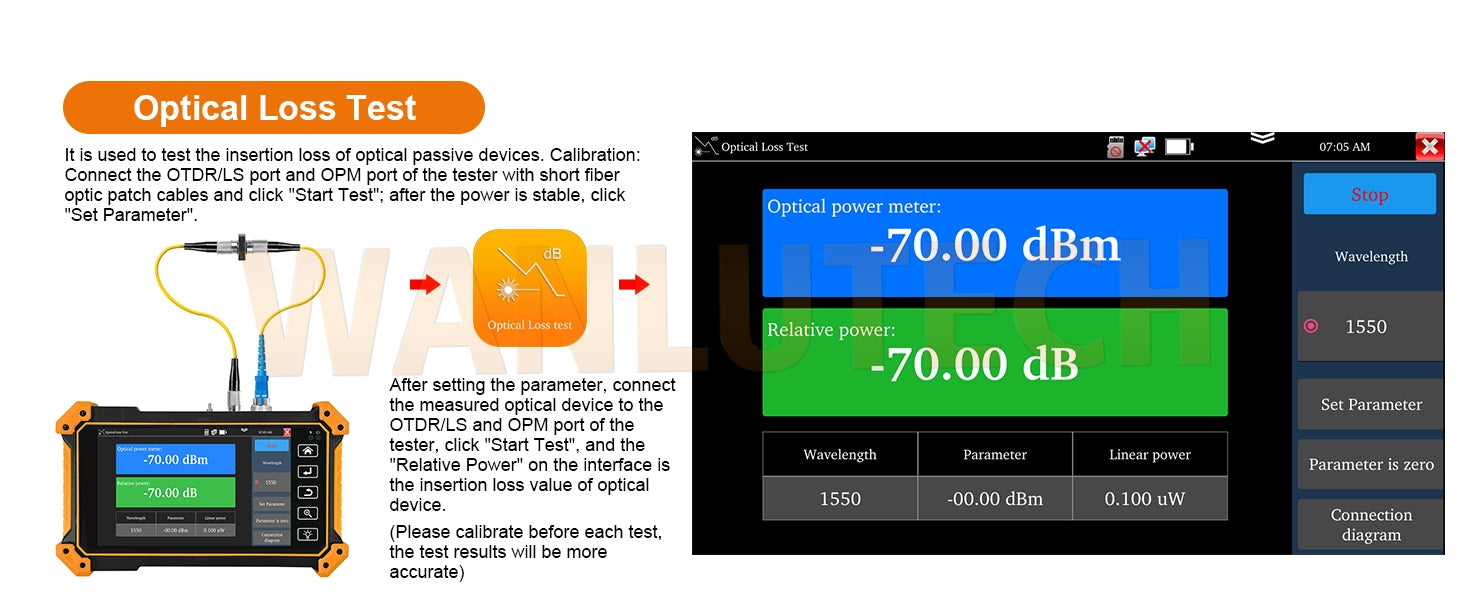

• [ OPM VFL LS OLS ] WANLUTECH MOT-51 1550nm 24dB combines necessary fiber optic testing in one handheld device. OPM (Optical Power Meter: Calibrated Wavelength 850/1300/1310/1490/1550/1625nm); VFL (Visual Fault Locator: 650nm wavelength, max test range 8 KM); LS (Light Source:mode CW/270 Hz/330 Hz/1 kHz/2 kHz); OLS(Optical Loss Test: It is used to test the insertion loss of optical passive devices)

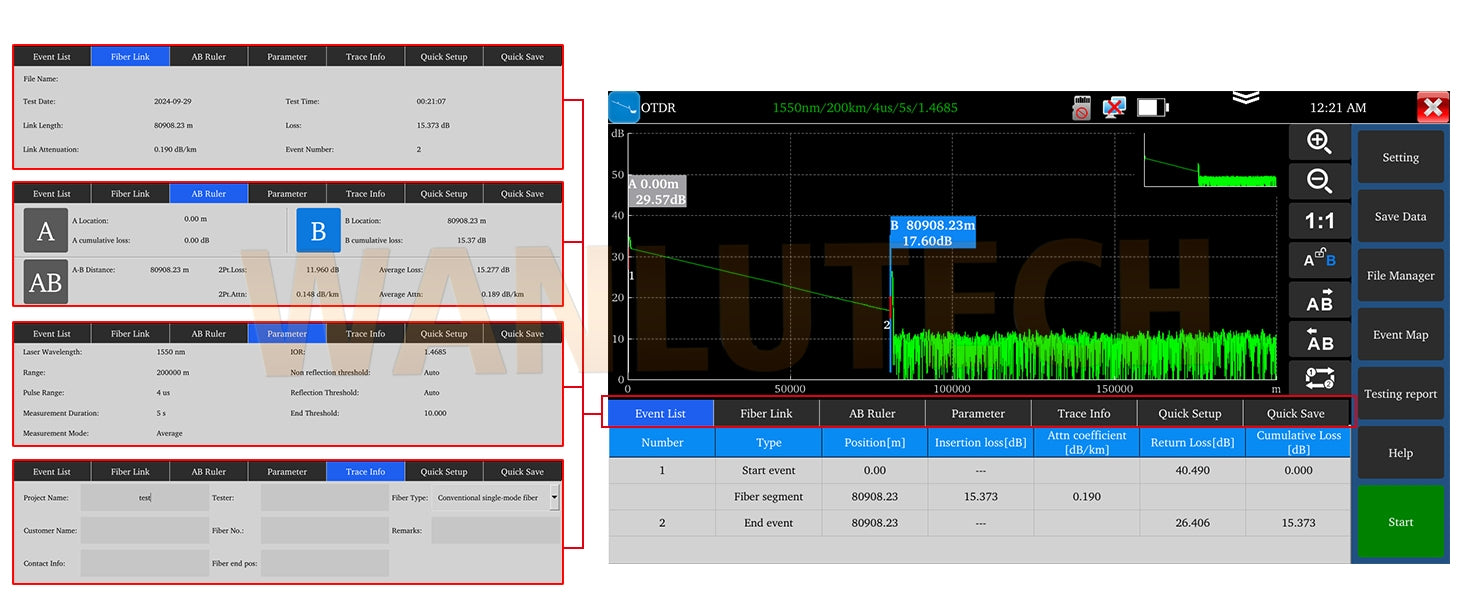

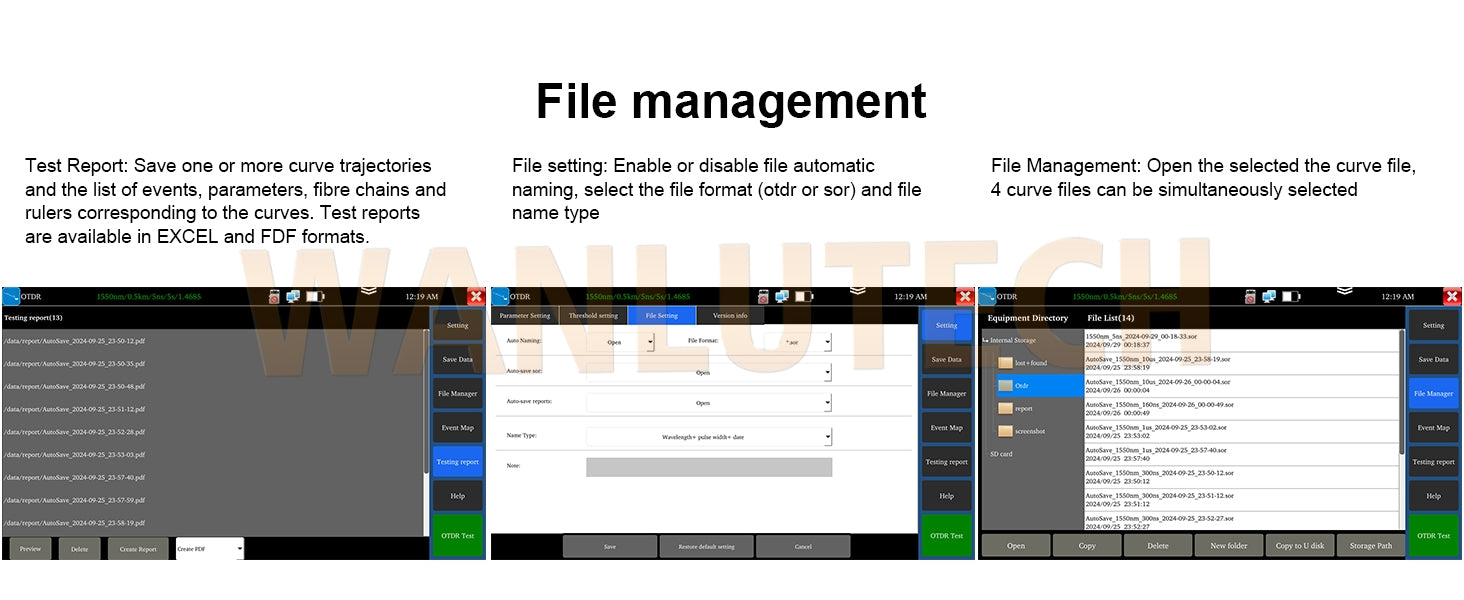

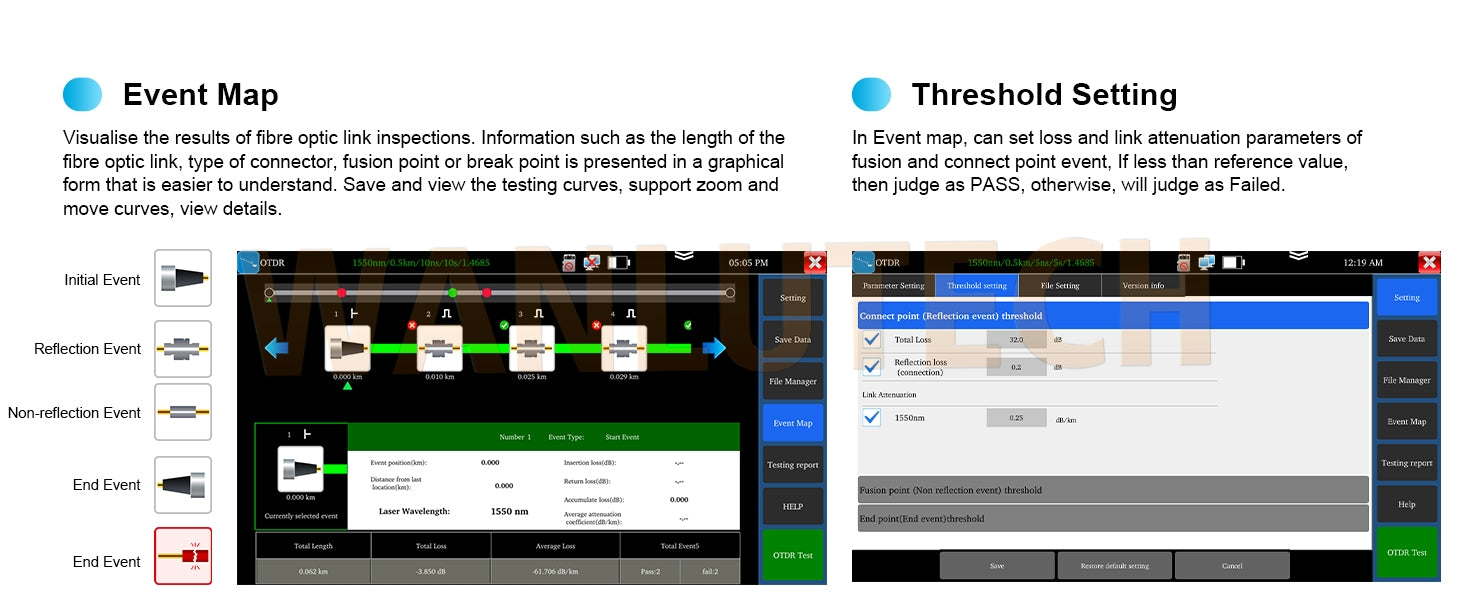

• [ Event Map & Data Storage ] Visualise the results of fibre optic link inspections. Information such as the length of the fibre optic link, type of connector, fusion point or break point is presented in a graphical form that is easier to understand. Save and view the testing curves, support zoom and move curves, view details. (Event Blind Zone <1.6 m, Attenuation Blind Zone<8 m.) Support create testing report, including curve trajectory graphs, parameter settings, fiber event information, and fiber link information. SOR standard file format PDF/EXCEL

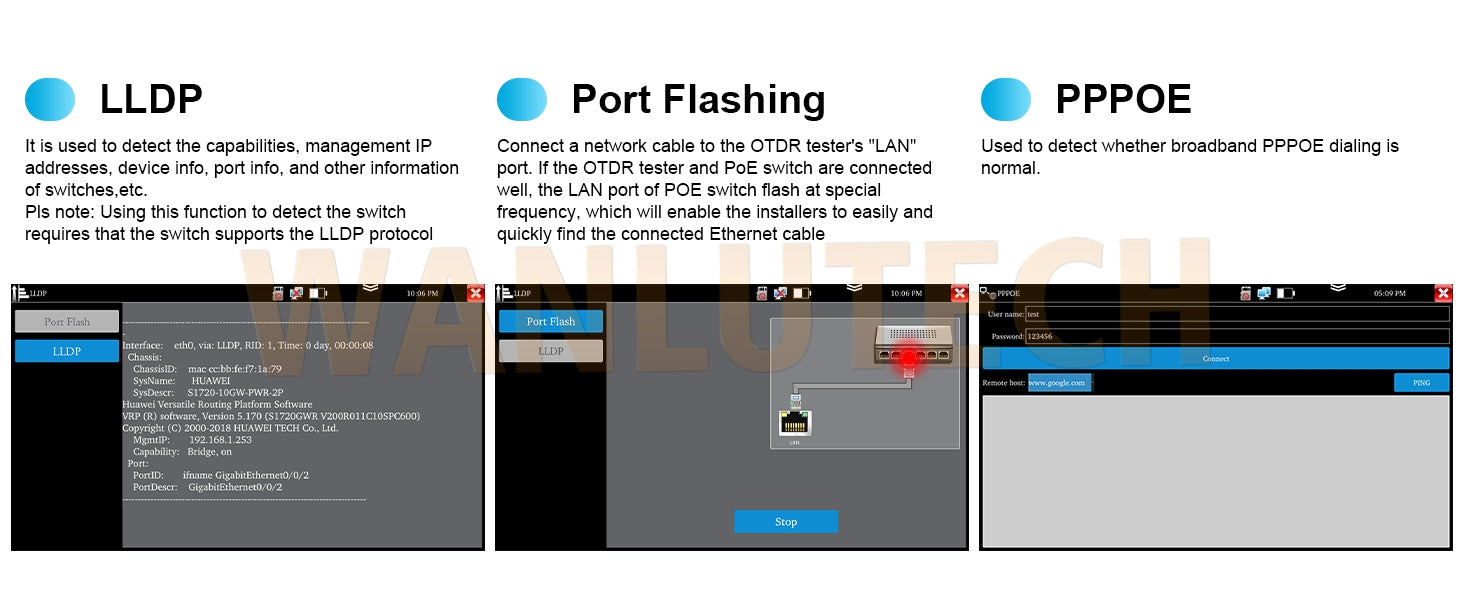

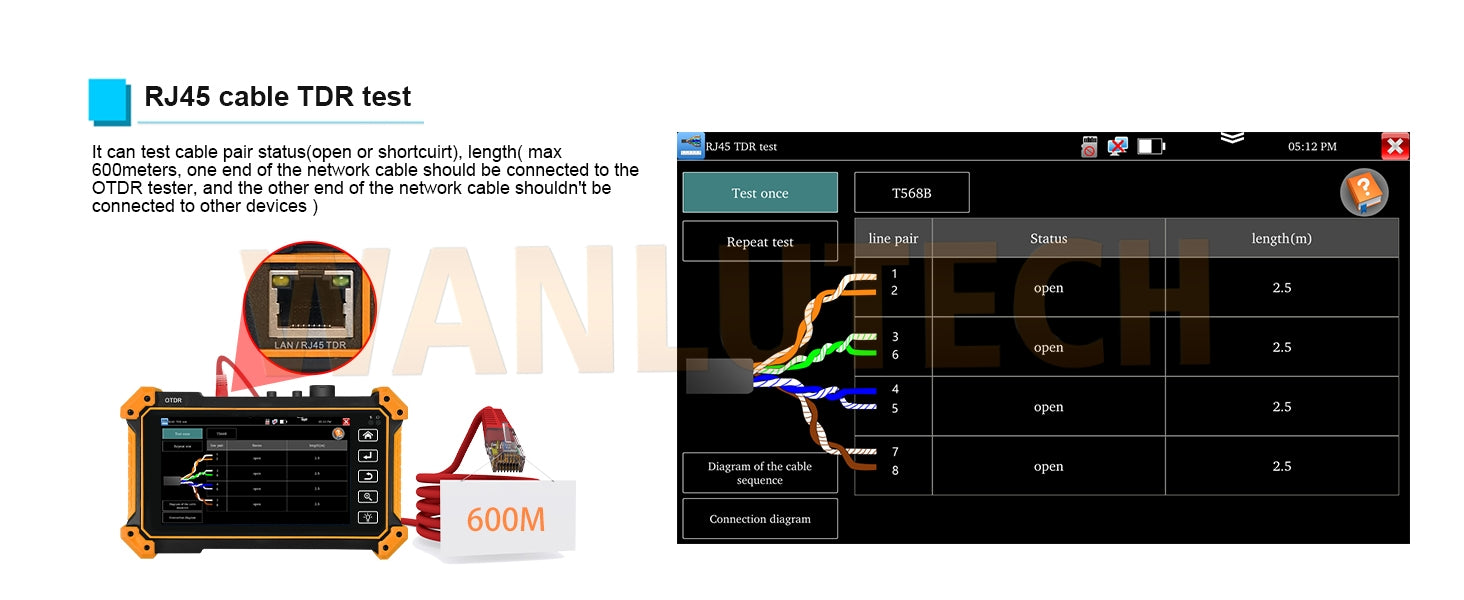

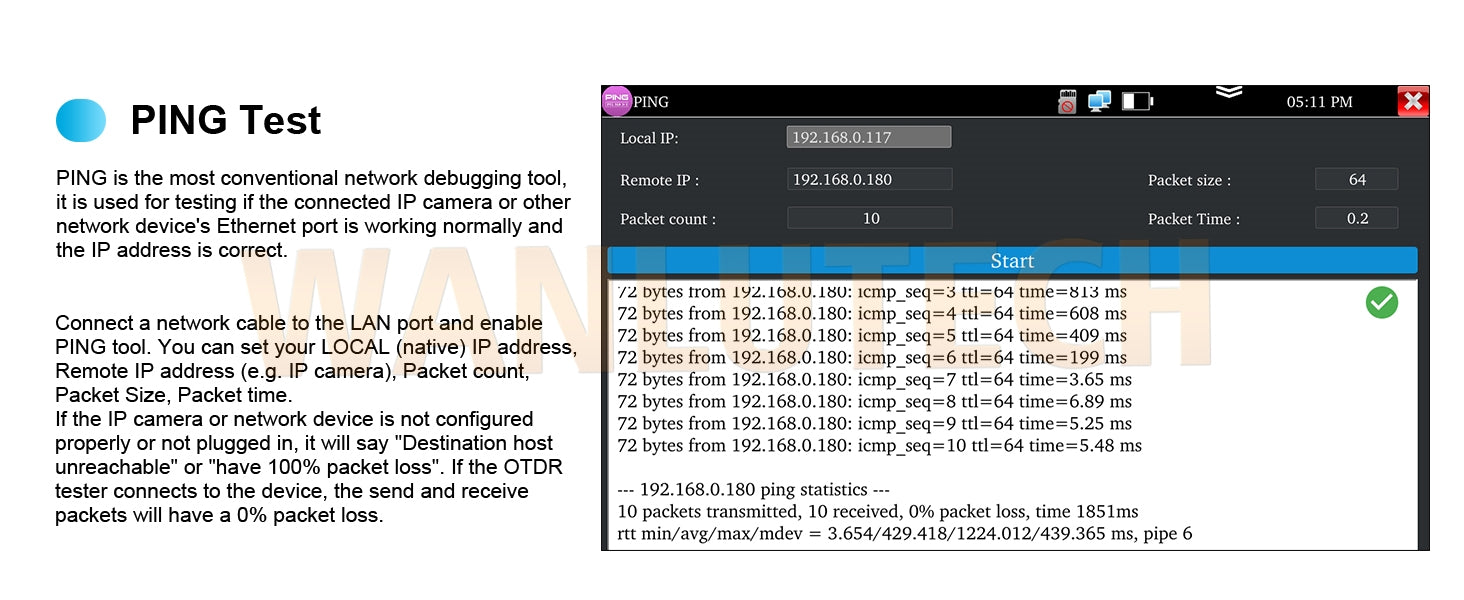

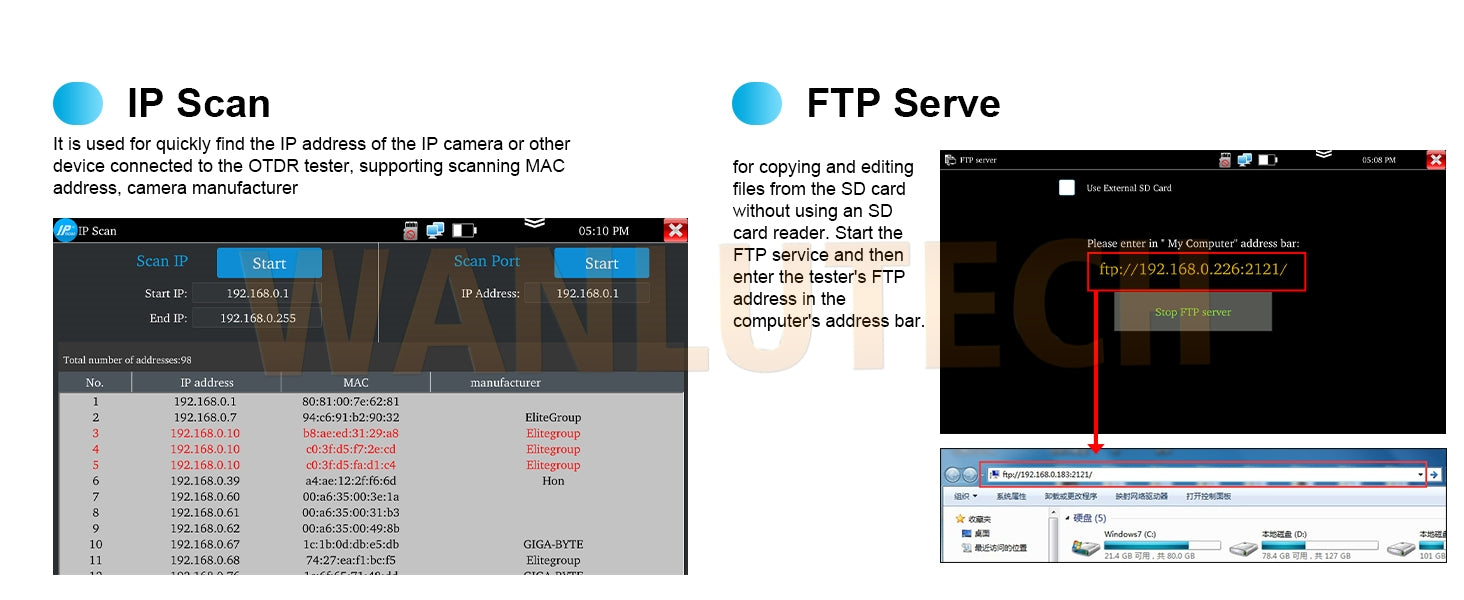

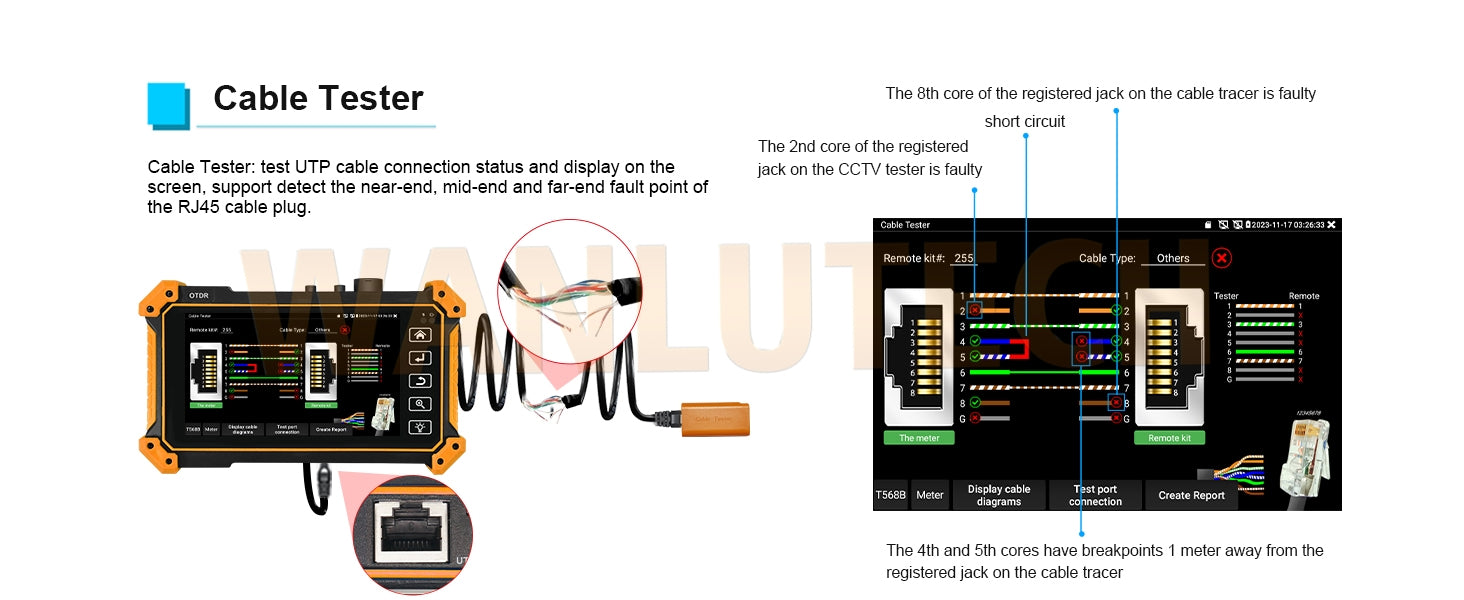

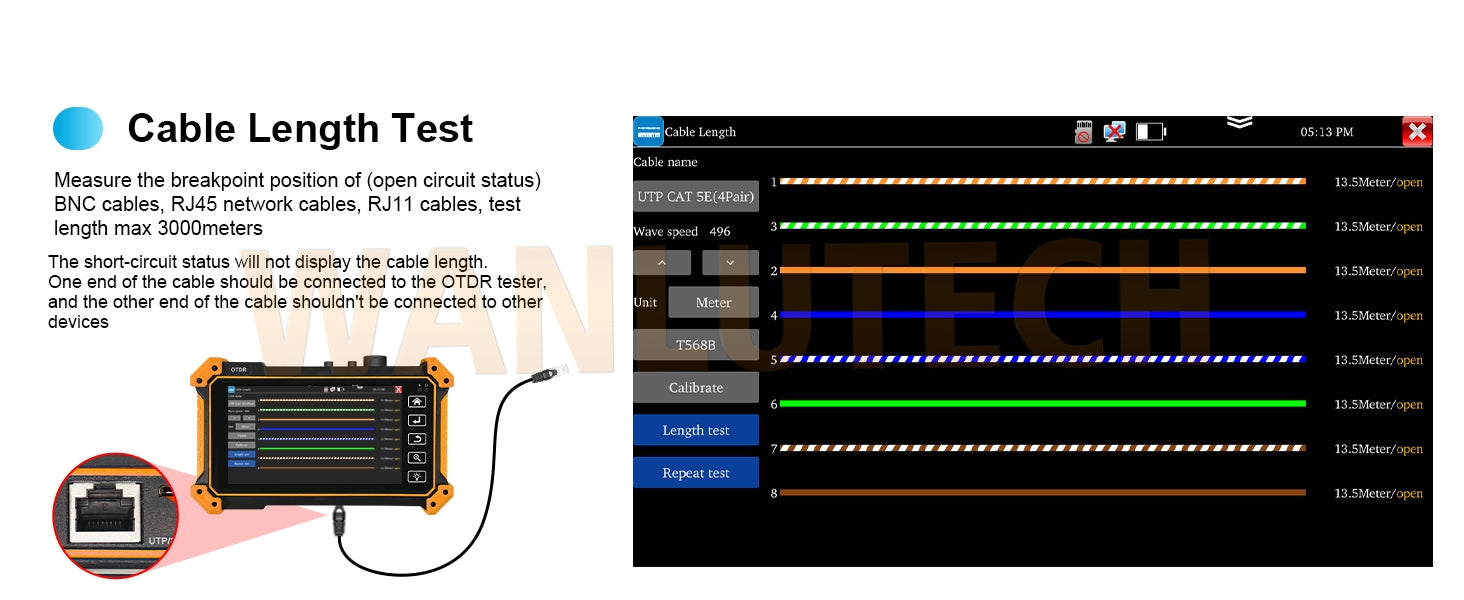

• [ RJ45 Cable Tester & Network Test Tools ] RJ45 CABLE TDR Test: it can test cable pair status(open or shortcuirt), length( max 600meters ); UTP Cable Tester: test UTP cable connection status and display on the screen, support detect the near-end, mid-end and far-end fault point of the RJ45 cable plug; Cable Length Test: Measure the breakpoint position of (open circuit status) BNC cables, RJ45 network cables, RJ11 cables, test length max 3000 meters. Network Test: IP address scan, PING test, LLDP, PPPOE, FTP file management,etc

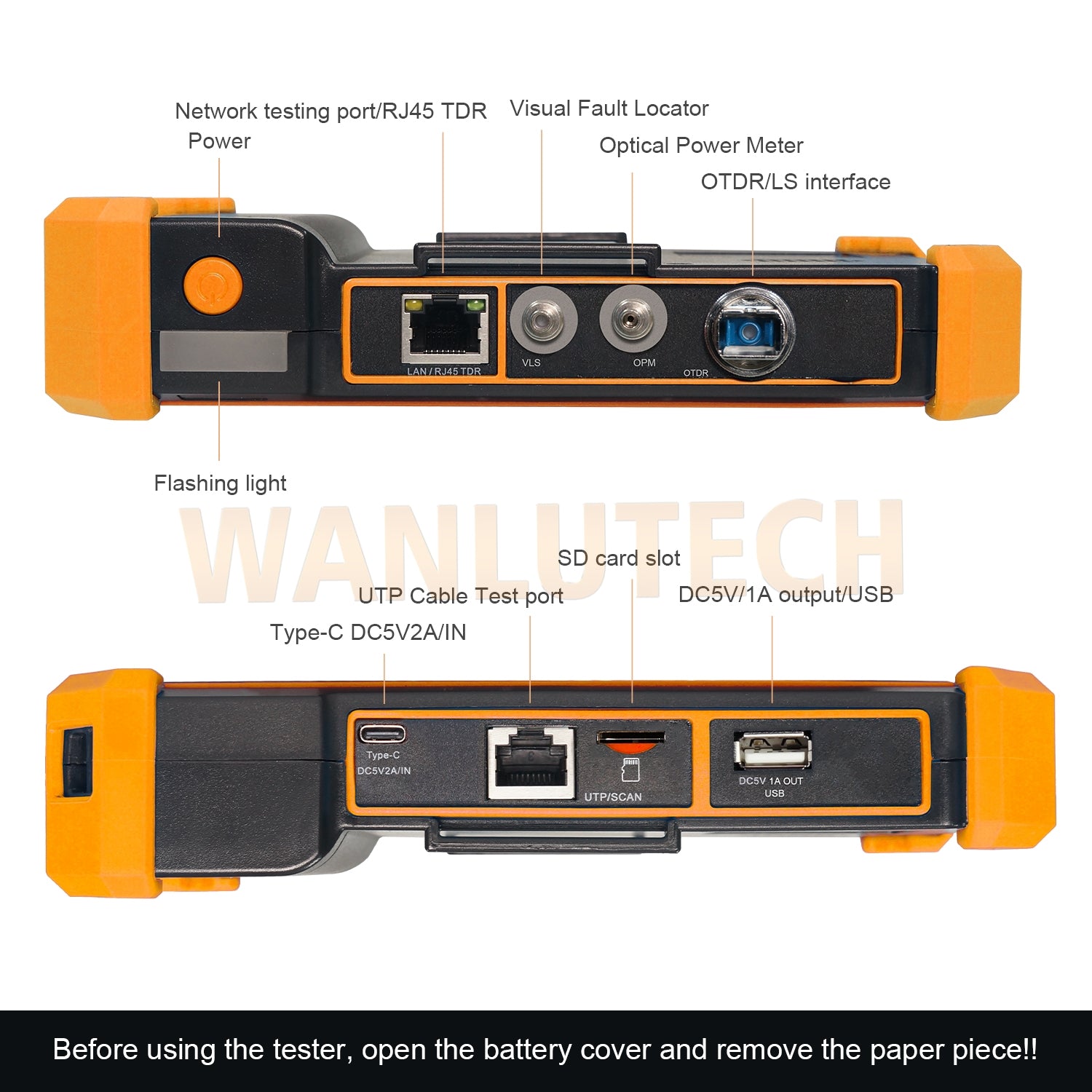

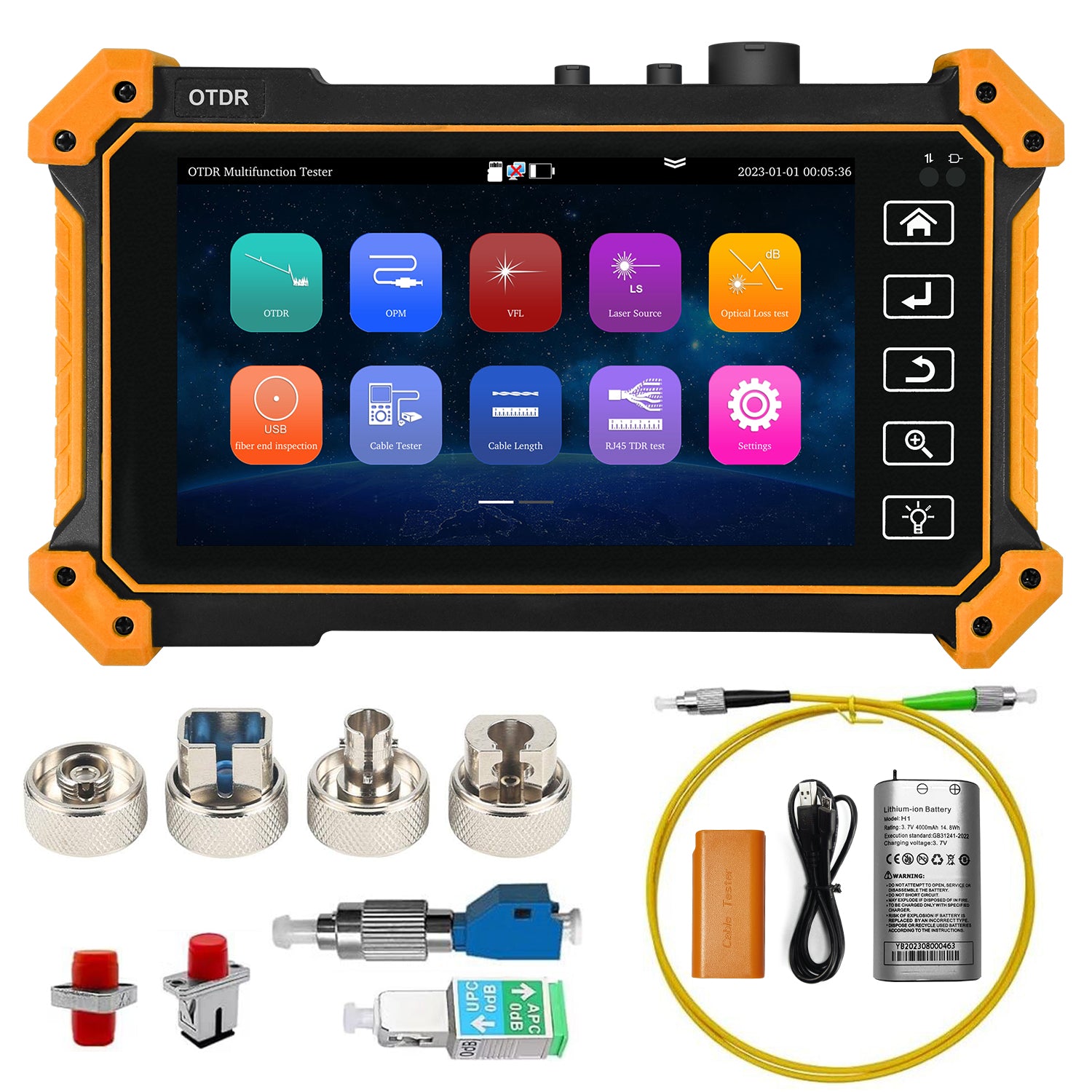

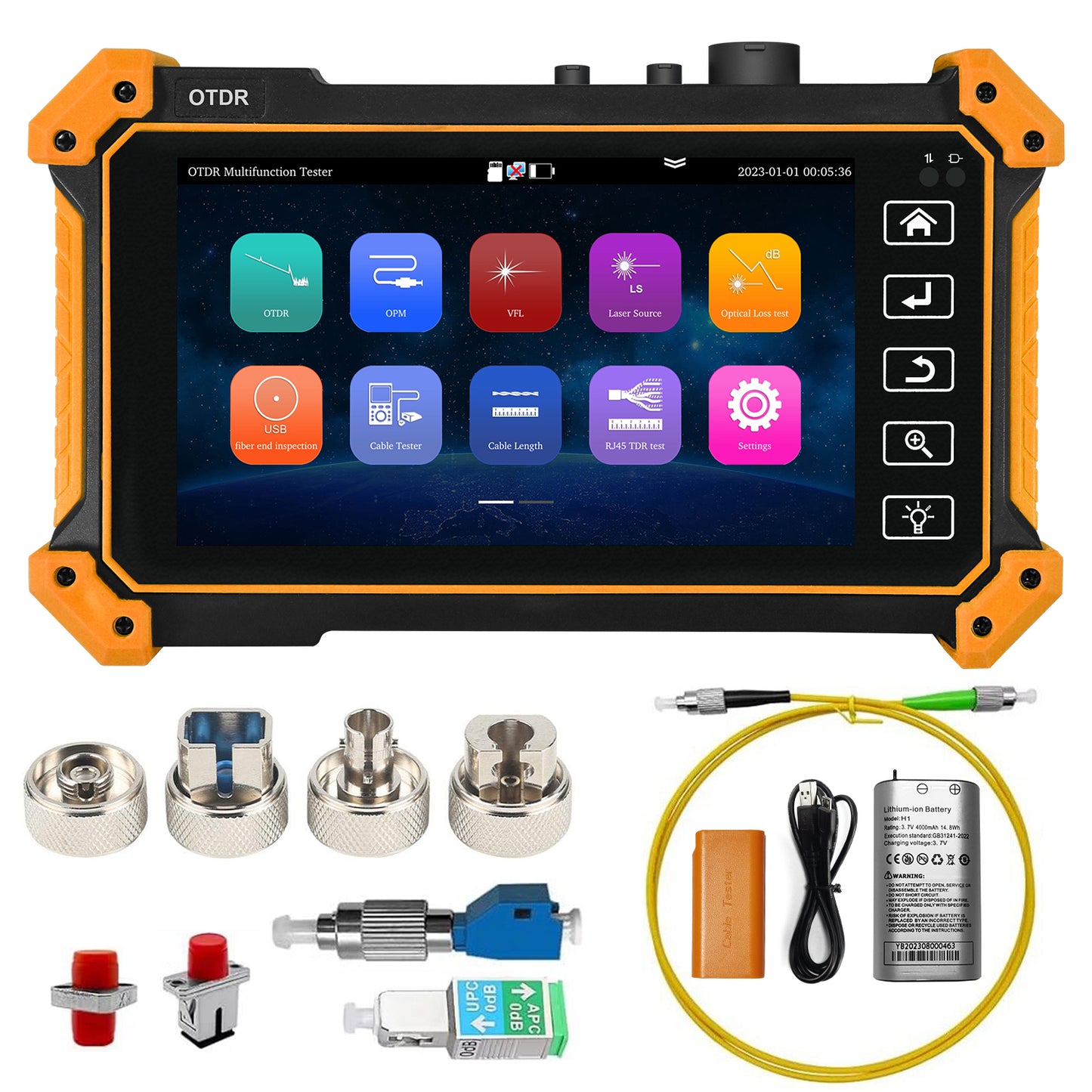

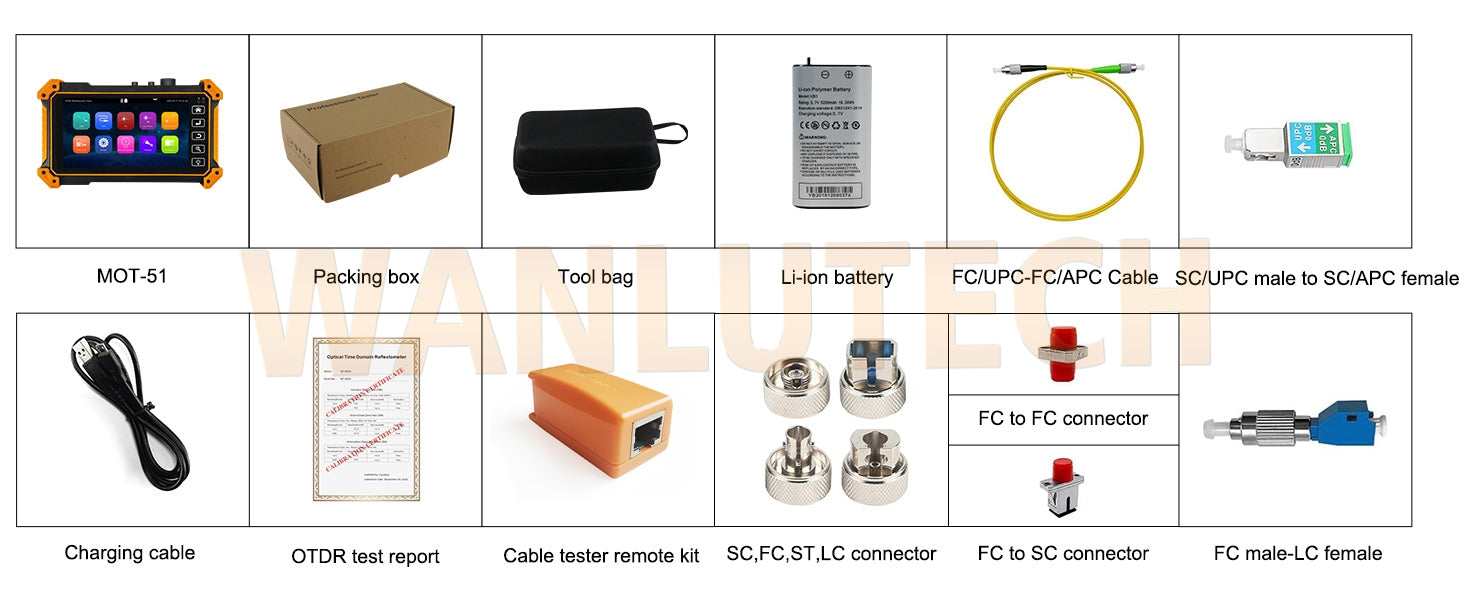

• [ Multifunction Fiber Tester ] 5.55 inches touch screen; packing included 1xSC/UPC, 1xFC/UPC, 1xST/UPC, 1xLC/UPC adapter, 1xFC male-FC female adapter, 1xFC male-SC female adapter, 1xFC(male)- LC(female) adapter, 1xSC/UPC(Male)-SC/APC(Female) adapter; 1xPatch Cord(FC/UPC-FC/APC); Built-in 3.7V/4000mAh battery, Single Gigabit Ethernet port, 10/100/1000Mbps adaptive; power input:DC5V/2A, power output:DC5V/1A. PLEASE NOTE this model packaging does not include a charging adapter
• [ PLEASE NOTE ] There is a paper piece isolating the battery. Before using the tester, open the battery cover and remove the paper sheet. We are the manufacturer. Any questions, please let us know, We'll get back to you within 12 hours
