WANLUTECH Single Mode OTDR Fiber Optic Tester, OTDR CCTV Tester MT-6500 1310/1550nm 28/26dB 5.4'' Touchscreen OTDR OPM OLS VFL Event Map Support 4K IP Camera Test Cable Tracker/PoE/RJ45 Cable TDR Test

Name: WANLUTECH Single Mode OTDR Fiber Optic Tester, OTDR CCTV Tester MT-6500 1310/1550nm 28/26dB 5.4'' Touchscreen OTDR OPM OLS VFL Event Map Support 4K IP Camera Test Cable Tracker/PoE/RJ45 Cable TDR Test
Brand: WANLUTECH
SKU: MT-6500 1310/1550 28/26
Price: 499.99 USD
Availability: InStock

WANLUTECH Single Mode OTDR Fiber Optic Tester, OTDR CCTV Tester MT-6500 1310/1550nm 28/26dB 5.4'' Touchscreen OTDR OPM OLS VFL Event Map Support 4K IP Camera Test Cable Tracker/PoE/RJ45 Cable TDR Test

$499.99 USD

~~$599.99 USD~~ $499.99 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

[ OTDR Fiber Optic Tester ] WANLUTECH OTDR combines necessary fiber optic testing in one handheld device. OTDR test: wavelength 1310nm/1550nm, dynamic range 28dB/26dB. Quick Setup mode: quickly set wavelength, distance range, pulse width and measurement duration; Parameters Set mode: professional technicians can set the wavelength, distance range, pulse width, measurement mode, IOR, non-reflection threshold, end threshold and other parameters before testing, which will get more accurate curve results. As well, it is for maintenance and installation of 4K IP camera (PLEASE NOTE: this 1310nm/1550nm model does not support testing live fiber)
[ OPM VFL LS OLS Event map ] OPM (Optical Power Meter: Calibrated Wavelength 850/1300/1310/1490/1550/1625nm); VFL (Visual Fault Locator: 650nm wavelength, max test range 8KM); LS (Light Source:mode CW/270 Hz/330 Hz/1 kHz/2 kHz); OLS (Optical Loss Test: It is used to test the insertion loss of optical passive devices); EVENT MAP: Visualise the results of fibre optic link inspections. Save and view the testing curves, support zoom and move curves, view details

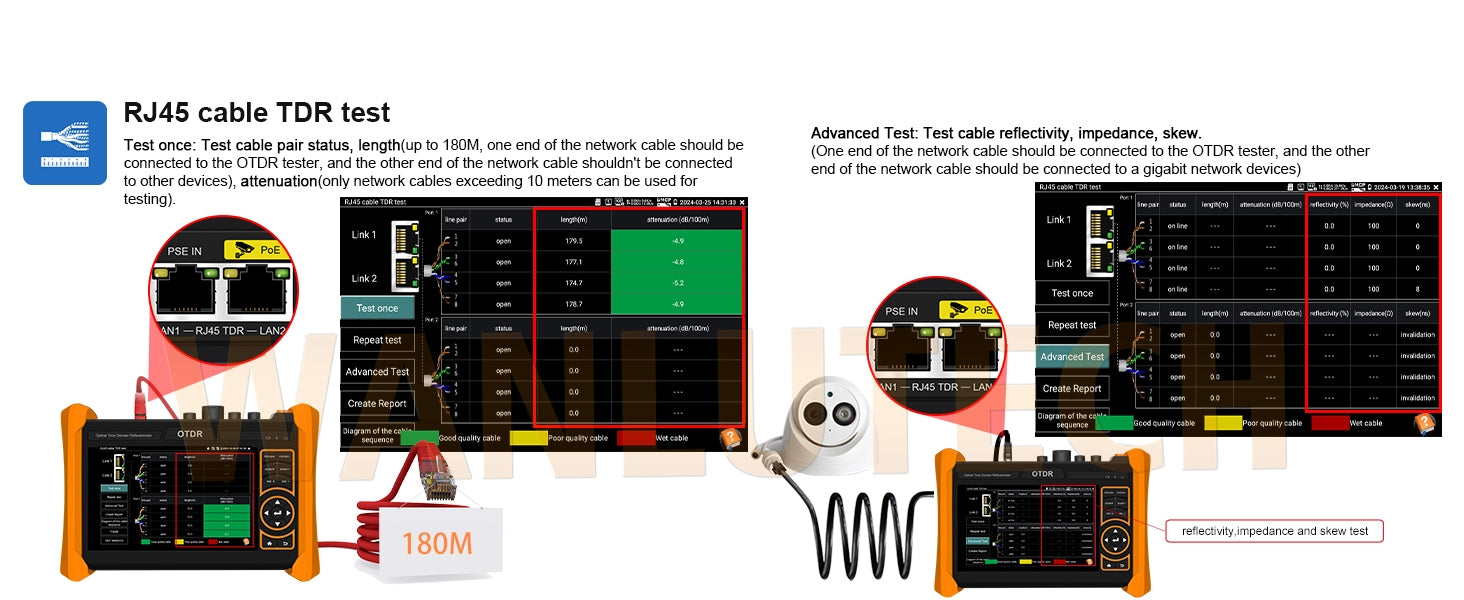

[ 4K 12MP IP Camera Tester & Cable Tester ] It support to test max 4K 12MP IP cameras.Support IP Discovery/Quick OVIF/IPC test/RTSP play/Client APK. It supports batch activation of DH, Hik cameras and modification of IP addresses, passwords, etc. RJ45 Cable TDR Test: RJ45 cable TDR test, test the open and short status of the network cable, test cable length, max test 600 M. UTP Cable Tester: Test UTP cable connection status and display on the screen, support detect the near-end, mid-end and far-end fault point of the RJ45 cable plug. Cable Tracer: Support searching for BNC cable, network cable and telephone cable from cluttered cables
[ Network Test Tools & PoE & Wifi Analyzer ] Built-in porfessional network testing tools,such as Ping, IP scan, DHCP server, PPPOE, Trace Route, Port Flash, LLDP, Link Monitor, etc. PoE Detection: measurement POE switch or PSE power supply voltage and cable connection status. Support PoE IEEE802.3af/at , max 48V, power output 30W. Wifi Analyzer, Support 2.4G frequency band, wifi connection, wifi list, wifi information, wifi signal strength detection
[ Multi-function Fiber Tester ] More feature: 5.4'' IPS touch screen, 1920x1152 resolution, 12V Load Detection, power management, one gigabit Ethernet 10/100/1000M Port, audio in/out, RS485 port, 8GB TF card, etc. Power output: DC24V/2A, DC12V/3A,DC5V/2A
[ PLEASE NOTE ] There is a paper piece isolating the battery. Before using the tester, open the battery cover and remove the paper sheet. We are the manufacturer. Any questions, please let us know, We'll get back to you within 12 hours

View full details

Specification Details

Single Mode OTDR Fiber Optic Tester, OTDR CCTV Tester MT-6500 1310/1550nm 28/26dB

Specification	Details	Specification	Details
Wavelength	1310/1550nm	Loss resolution	0.01dB
Dynamic Range	28/26dB	Minimum distance resolution	0.05m
Pulse Width	5ns/10ns/20ns/30ns/ 50ns/80ns/160ns/300ns/ 500ns/800ns/1μs/2μs/ 4μs/6μs/10μs/20μs	Sampling point	32K-128K
Testing Distance	<150Km	Distance uncertainty	±(1m+ Sampling interval +0.005％×Test distance)
Event Blind Zone	≤1.6m	Distance scope	5sec, 10sec, 15sec, 30sec, 1min, 2min, 3min
Attenuation Blind Zone	≤8m	Connector	packing included 1SC/UPC, 1FC/UPC, 1ST/UPC, 1LC/UPC adapter, 1FC -FC adapter, 1FC-SC adapter, 1FC/UPC(male)- LC/UPC(female) adapter, 1SC/UPC(Male)-SC/APC(Female) adapter; 1*Patch Cord(FC/UPC-FC/APC)
Linearity	±0.05 dB/ dB	File format	SOR Standard file format/PDF/EXCEL
Loss threshold	0.05dB	PLEASE NOTE	This 28/26dB model support 1310/1550 nm live test!
