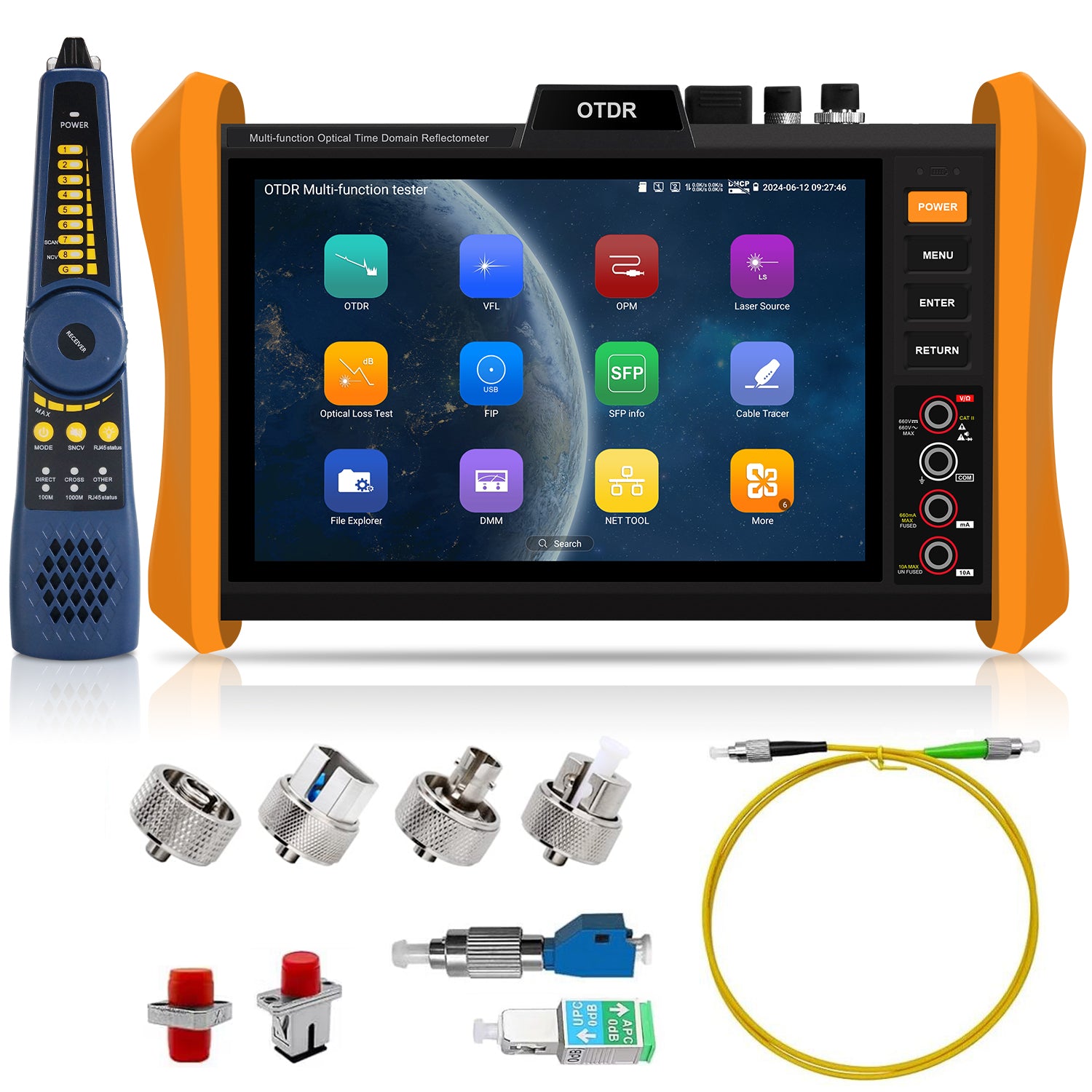

WANLUTECH Single Mode Optical Fiber Tester, MOT-85 1310/1550nm 28/26dB 8'' Touchscreen OTDR Built-in VFL OPM LS Event Map OLT (Optical Loss test) Functions SFP Test RJ45 Cable Tester Digital Multimeter Network Tools

WANLUTECH Single Mode Optical Fiber Tester, MOT-85 1310/1550nm 28/26dB 8'' Touchscreen OTDR Built-in VFL OPM LS Event Map OLT (Optical Loss test) Functions SFP Test RJ45 Cable Tester Digital Multimeter Network Tools

$449.19 USD
$527.99 USD $449.19 USD
Sale Sold out
Shipping calculated at checkout.
  • [ WANLUTECH OTDR Fiber Optic Tester ] OTDR test: wavelength 1310nm/1550nm, dynamic range 28dB/26dB. Quick Setup mode: quickly set wavelength, distance range, pulse width and measurement duration; Parameters Set mode: professional technicians can set the wavelength, distance range, pulse width, measurement mode, IOR, non-reflection threshold, end threshold and other parameters before testing, which will get more accurate curve results (PLEASE NOTE: this 1310nm/1550nm model does not support testing live fiber)
  • [ OPM VFL LS OLS ] WANLUTECH MOT-85 combines necessary fiber optic testing in one handheld device. OPM (Optical Power Meter: Calibrated Wavelength 850/1300/1310/1490/1550/1625nm); VFL (Visual Fault Locator:650nm wavelength, max test range 8 KM); LS (Light Source:mode CW/270 Hz/330 Hz/1 kHz/2 kHz); OLS (Optical Loss Test: It is used to test the insertion loss of optical passive devices)
  • [ Event Map & Data Storage ] Visualise the results of fibre optic link inspections. Information such as the length of the fibre optic link, type of connector, fusion point or break point is presented in a graphical form that is easier to understand. Save and view the testing curves, support zoom and move curves, view details. ( Event Blind Zone <1.6m, Attenuation Blind Zone < 8 m ) Support create testing report, including curve trajectory graphs, parameter settings, fiber event information, and fiber link information. SOR standard file format PDF/EXCEL
  • [ SFP & Cable Tester & Network Test Tools ] It has a gigabit SFP optical fiber module port, support insert SFP optical fiber module, for optical fiber network testing. Digital Cable Tracer: Searching for BNC cable, network cable and telephone cable from cluttered cables,also can search shield cables. RJ45 Cable TDR Test: it can test cable pair status, length, attenuation, reflectivity, impedance, skew. UTP Cable Tester: test UTP cable connection status and display on the screen, support detect the near-end, mid-end and far-end fault point of the RJ45 cable plug. Network Test: Ping test, IP scan, FTP file management, PPPOE, Port flashing, LLDP, Link monitor,etc

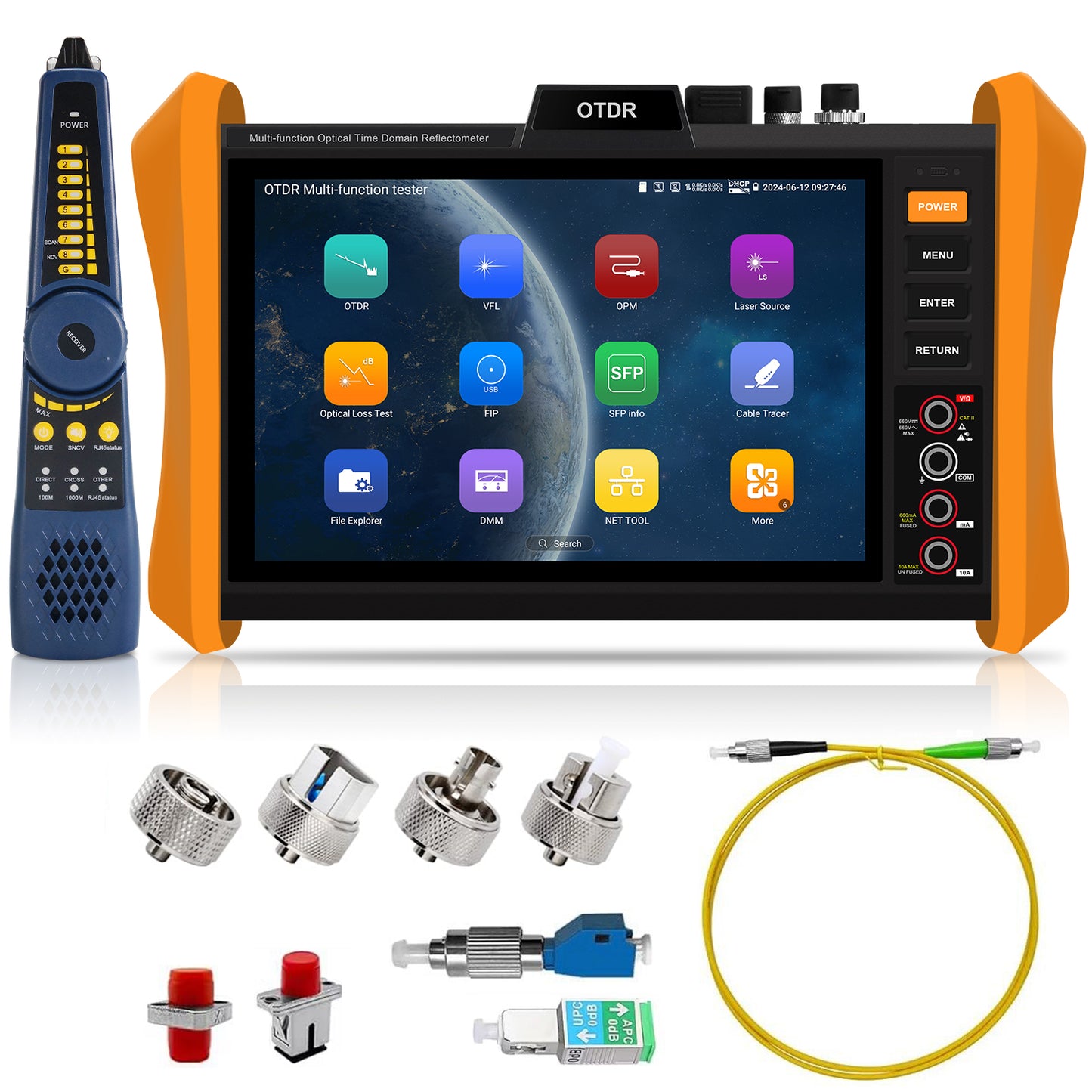

  • [ Multifunction Fiber Cable Tester ] Digital Multimeter: DC and AC voltage measurement, DC and AC current measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement. 8 inches IPS touch screen; Dual Gigabit Ethernet ports, 10/100/1000Mbps adaptive; Built in 2.4G WIFI, speeds150M, WiFi analyzer; PoE Detection(measurement POE switch or PSE power supply voltage and cable connection status); Packing included 1xSC/UPC, 1xFC/UPC, 1xST/UPC, 1xLC/UPC adapter, 1xFC male-FC female adapter, 1xFC male-SC female adapter, 1xFC(male)- LC(female) adapter, 1xSC/UPC(Male)-SC/APC(Female) adapter; 1xPatch Cord(FC/UPC-FC/APC). Power input: DC15V/1.6A, power output:DC5V/2A
  • [ PLEASE NOTE ] There is a paper piece isolating the battery. Before using the tester, open the battery cover and remove the paper sheet. We are the manufacturer. Any questions, please let us know, We'll get back to you within 12 hours
View full details

Specification Details

Single Mode Fiber Tester MOT-85 Wavelength 1310/1550nm Dynamic Range 28/26dB

Specification

Details


Specification


Details

Wavelength

1310/1550nm

Loss resolution

0.01dB

Dynamic Range

28/26dB

Minimum distance resolution

0.05m

Pulse Width


5ns/10ns/20ns/30ns/

50ns/80ns/160ns/300ns/

500ns/800ns/1μs/2μs/

4μs/6μs/10μs/20μs

Sampling point

32K-128K

Testing Distance

<150Km

Distance uncertainty

±(1m+ Sampling interval +0.005％×Test distance)

Event Blind Zone

≤1.6m

Distance scope

5sec, 10sec, 15sec, 30sec, 1min, 2min, 3min

Attenuation Blind Zone

≤8m

Connector

packing included 1*SC/UPC, 1*FC/UPC, 1*ST/UPC, 1*LC/UPC adapter, 1*FC -FC adapter, 1*FC-SC adapter, 1*FC/UPC(male)- LC/UPC(female) adapter, 1*SC/UPC(Male)-SC/APC(Female) adapter; 1*Patch Cord(FC/UPC-FC/APC)

Linearity

±0.05 dB/ dB

File format

SOR Standard file format/PDF/EXCEL

Loss threshold

0.05dB

PLEASE NOTE


This 28/26dB model  support 1310/1550 nm live test!

WANLUTECH Singlemode MOT-85 1310/1550nm 28/26dB

WANLUTECH OTDR Optical Power Meter Visual Fault Locator Optical Loss Test Event Map Essential Tool for Fiber Cable Network Testing MOT-85

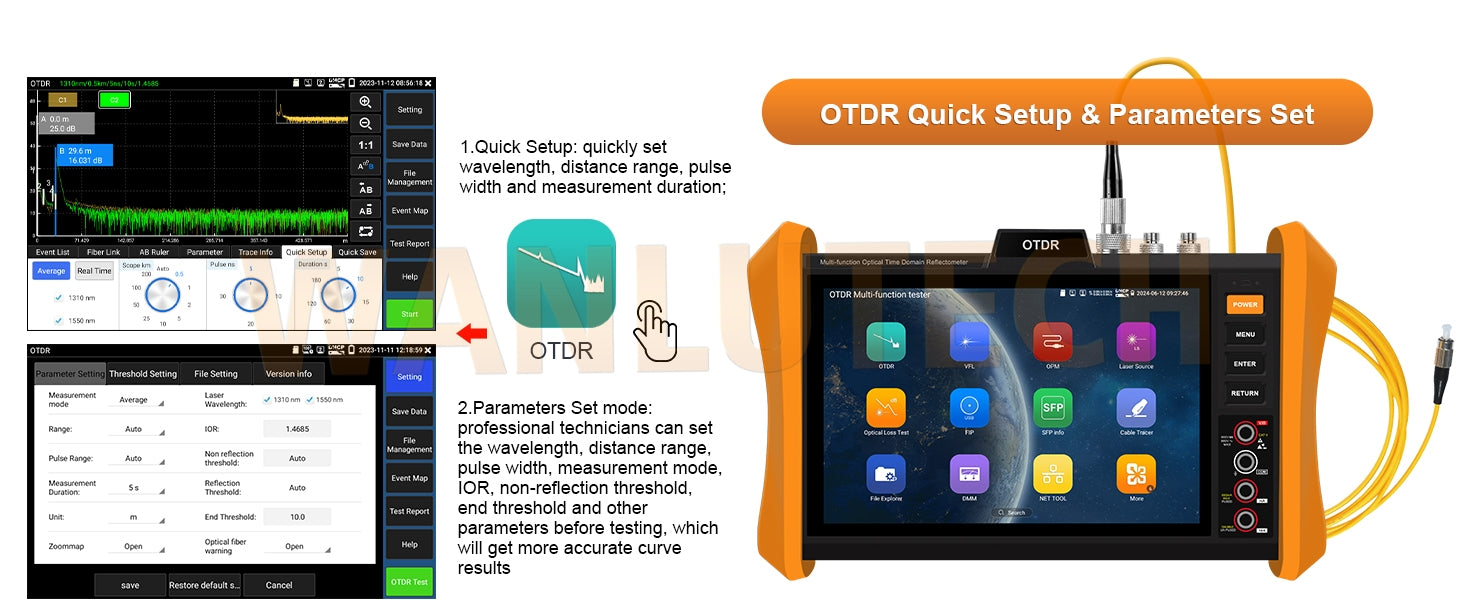

Auto OTDR Testing Mode & Expert Parameter Setting Mode

WANLUTECH OTDR Optical Power Meter Visual Fault Locator Optical Loss Test Event Map Essential Tool for Fiber Cable Network Testing MOT-85

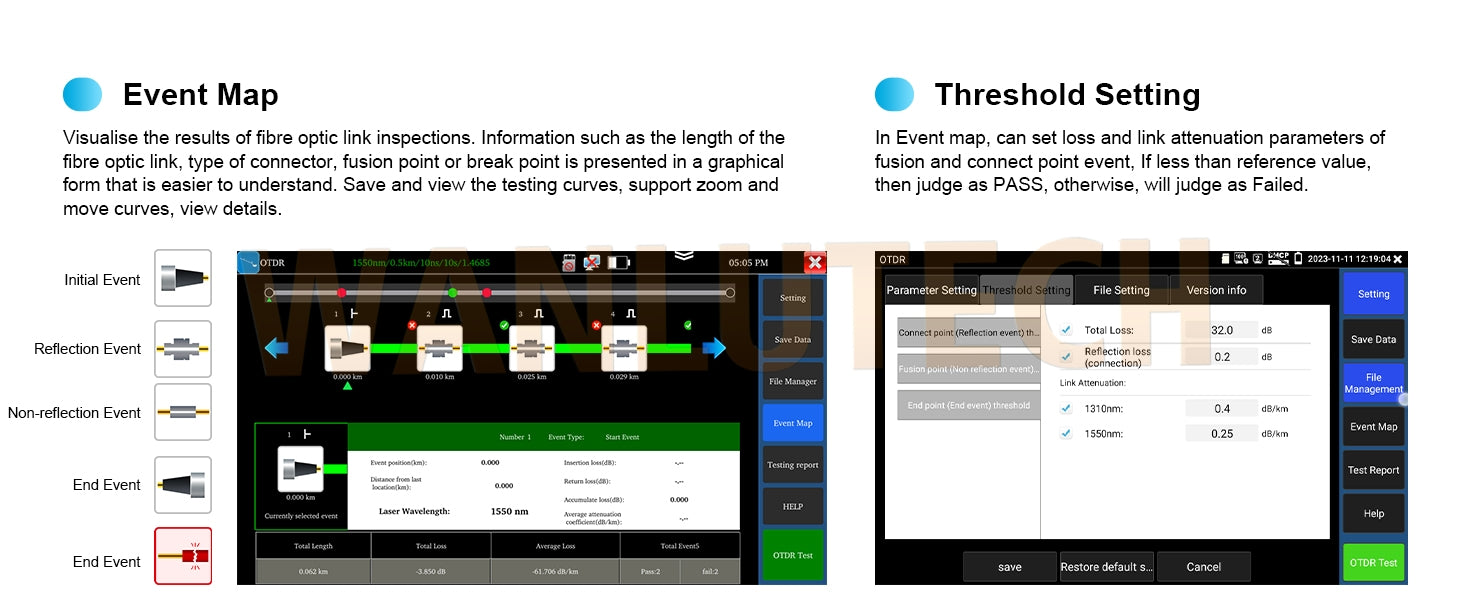

Event Map: Event Location, Loss (dB), Reflectance (dB), Event Type, Cumulative Loss

WANLUTECH OTDR Optical Power Meter Visual Fault Locator Optical Loss Test Event Map Essential Tool for Fiber Cable Network Testing MOT-85

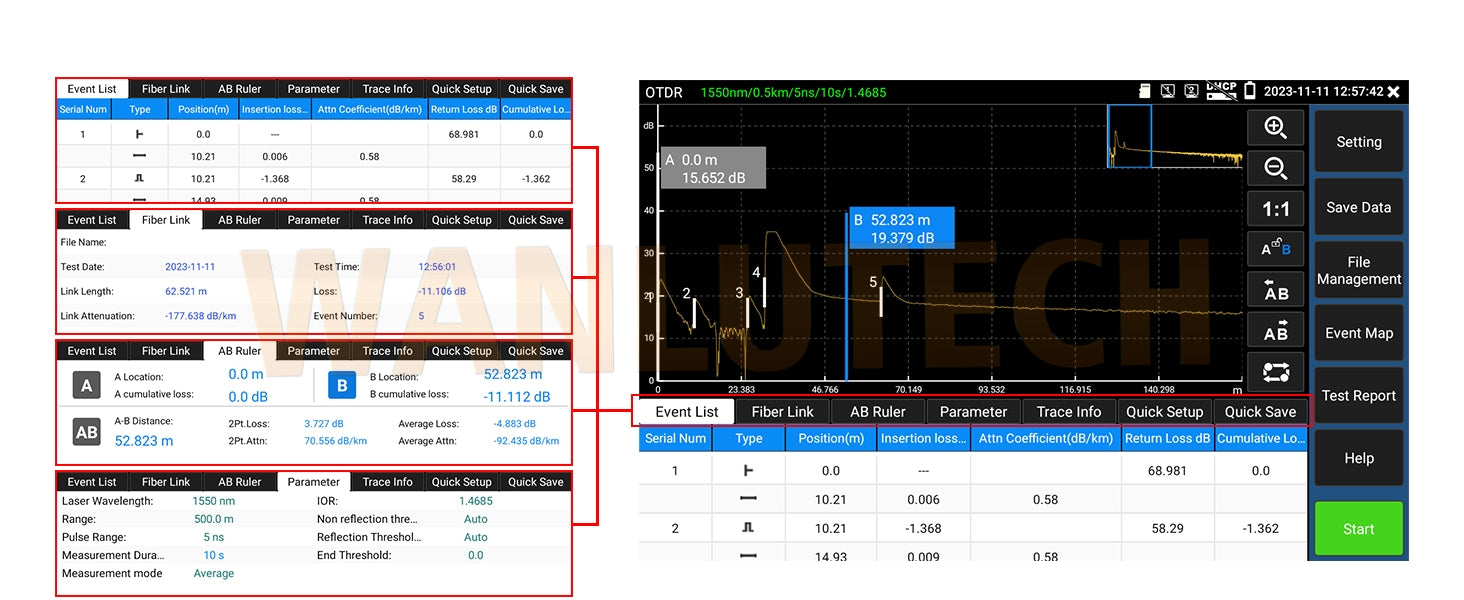

Test Results Window Area

WANLUTECH OTDR Optical Power Meter Visual Fault Locator Optical Loss Test Event Map Essential Tool for Fiber Cable Network Testing MOT-85

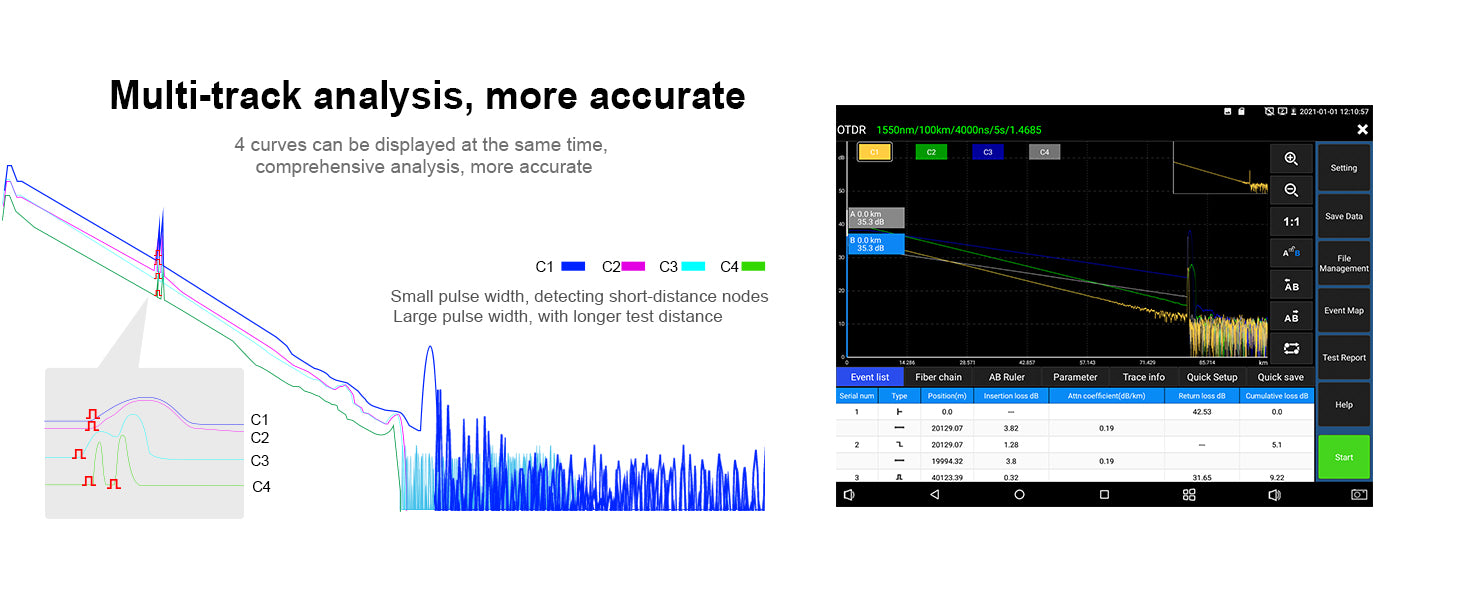

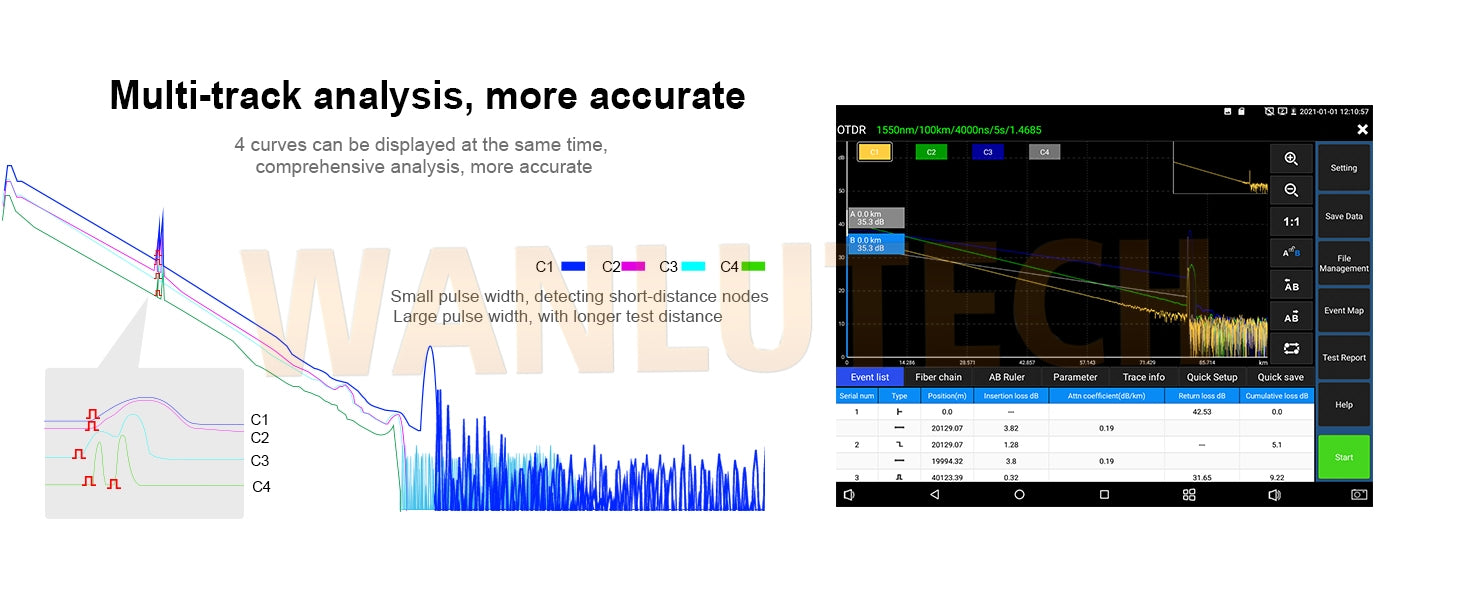

Multiple Trace Display: View several OTDR traces simultaneously

WANLUTECH OTDR Optical Power Meter Visual Fault Locator Optical Loss Test Event Map Essential Tool for Fiber Cable Network Testing MOT-85

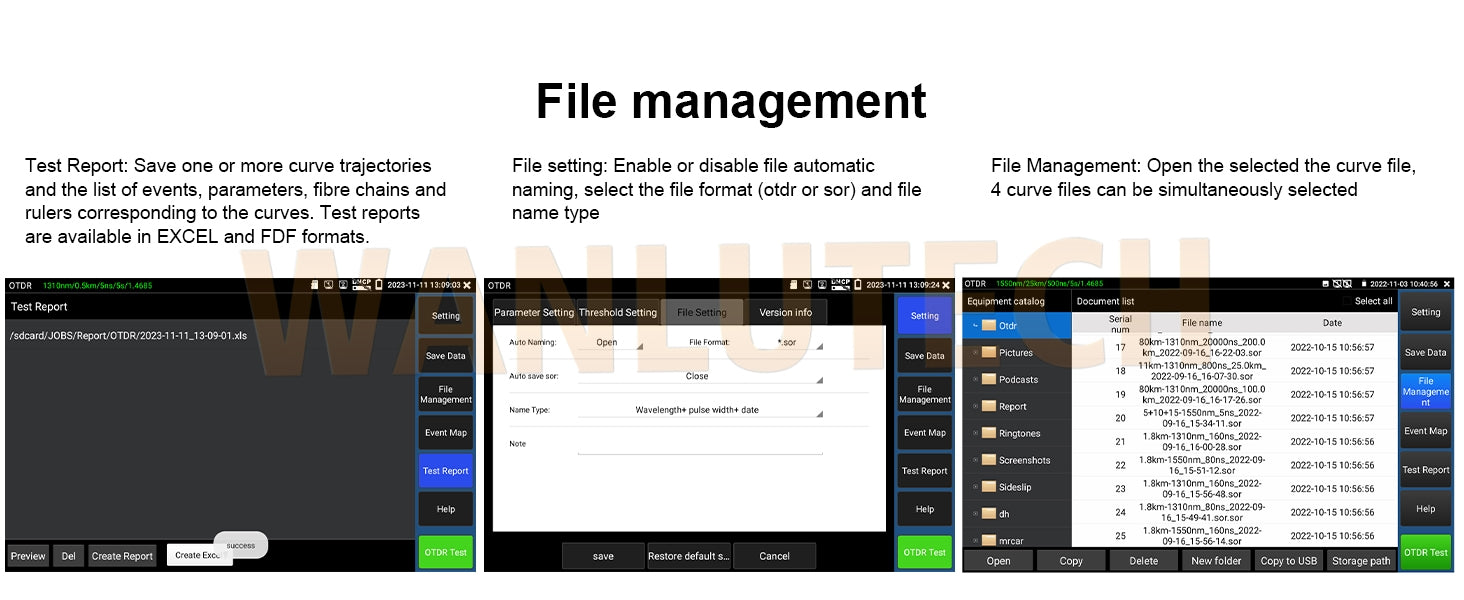

Create Test Reports

WANLUTECH OTDR Optical Power Meter Visual Fault Locator Optical Loss Test Event Map Essential Tool for Fiber Cable Network Testing MOT-85

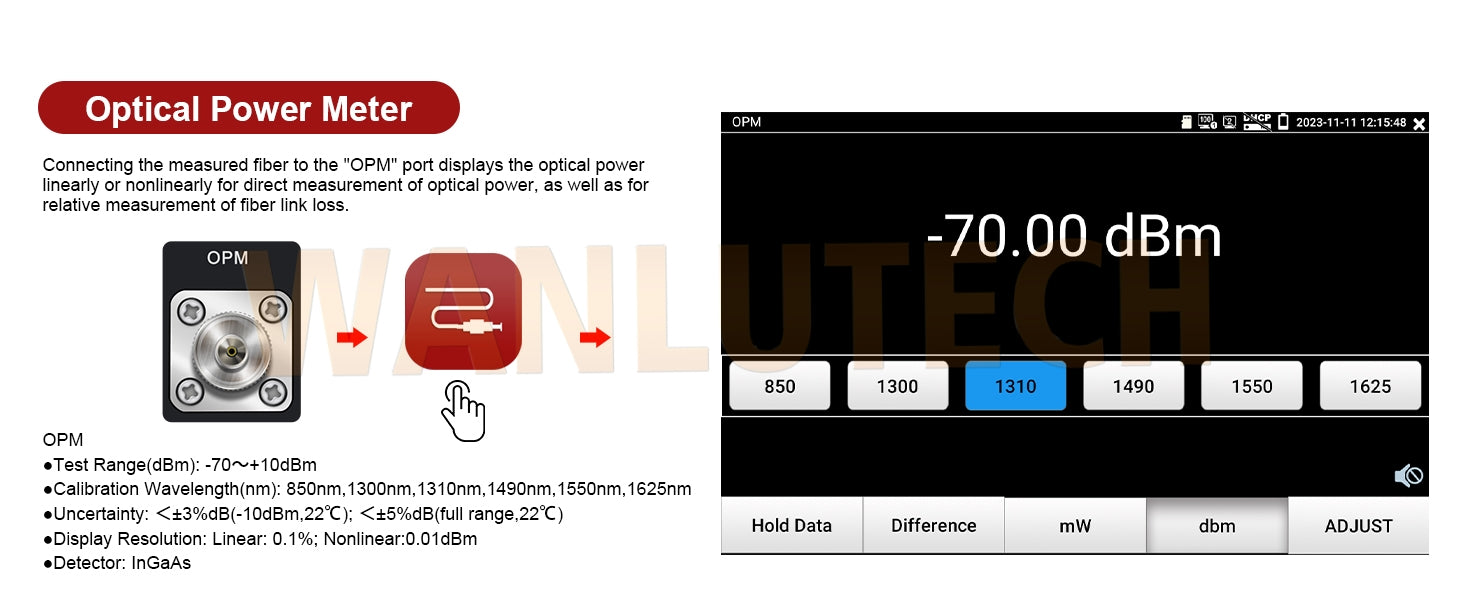

Optical Power Meter

WANLUTECH OTDR Optical Power Meter Visual Fault Locator Optical Loss Test Event Map Essential Tool for Fiber Cable Network Testing MOT-85

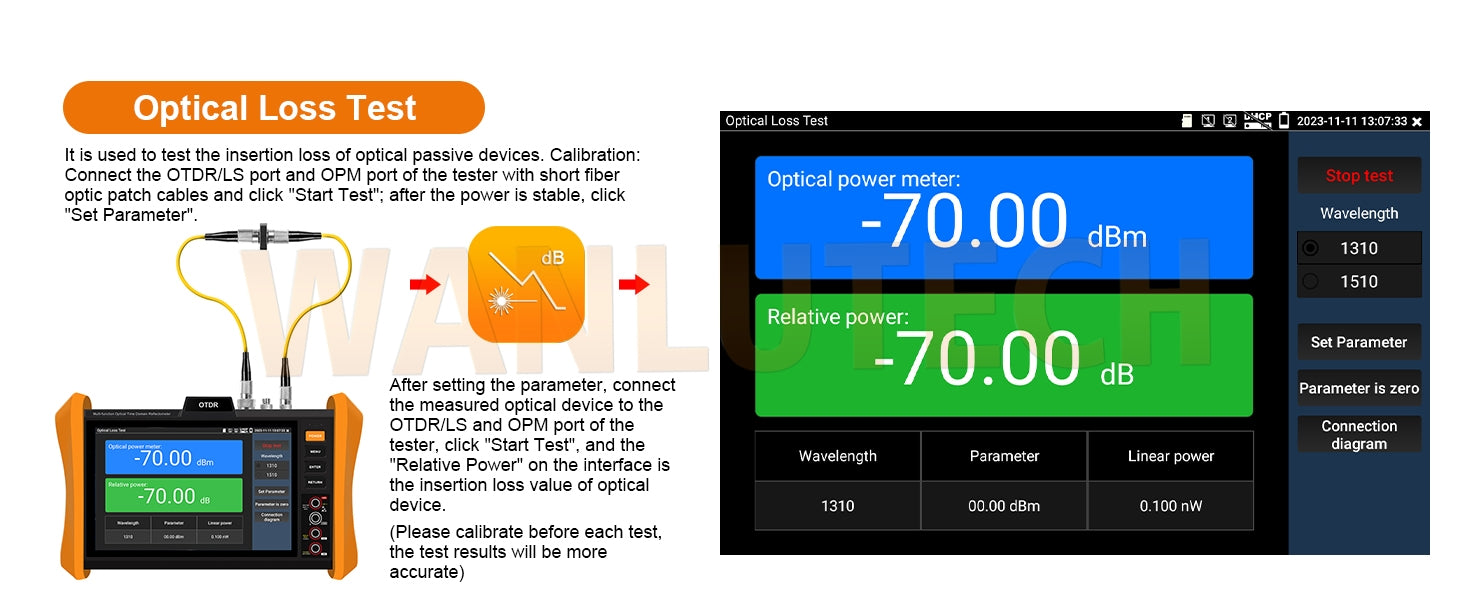

Optical Loss Test

WANLUTECH OTDR Optical Power Meter Visual Fault Locator Optical Loss Test Event Map Essential Tool for Fiber Cable Network Testing MOT-85

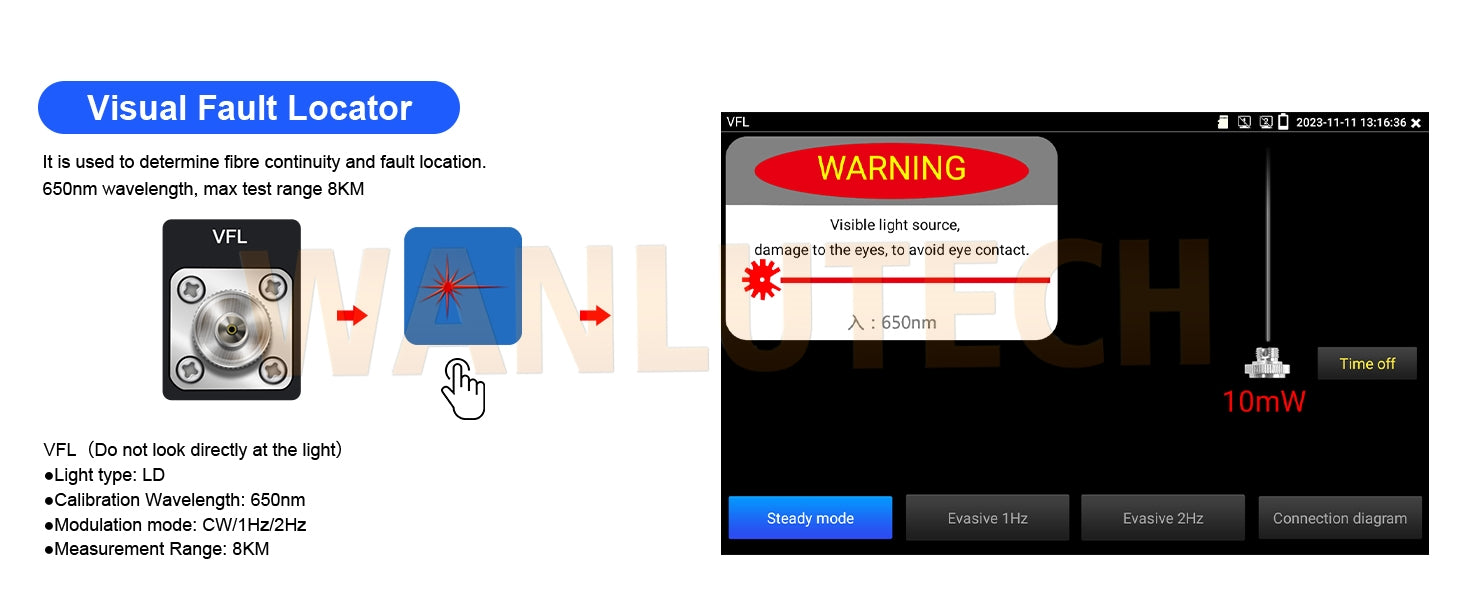

Visual Fault Locator

WANLUTECH OTDR Optical Power Meter Visual Fault Locator Optical Loss Test Event Map Essential Tool for Fiber Cable Network Testing MOT-85

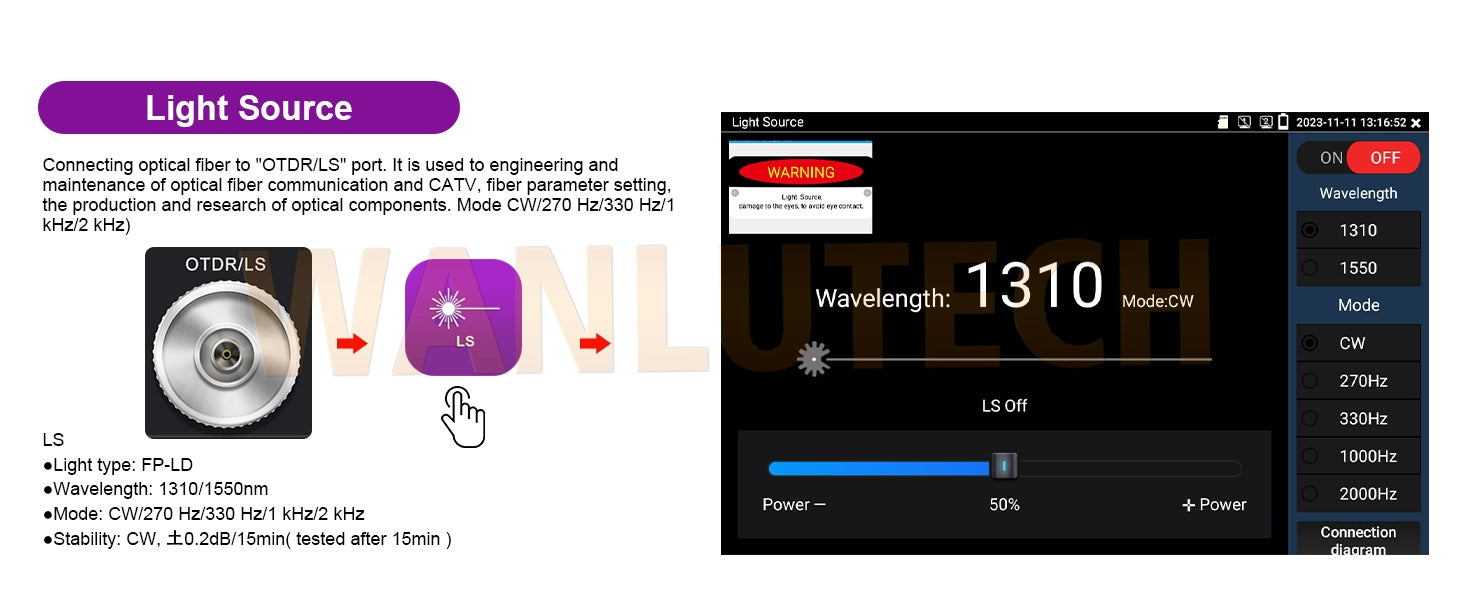

Light Source

WANLUTECH OTDR Optical Power Meter Visual Fault Locator Optical Loss Test Event Map Essential Tool for Fiber Cable Network Testing MOT-85

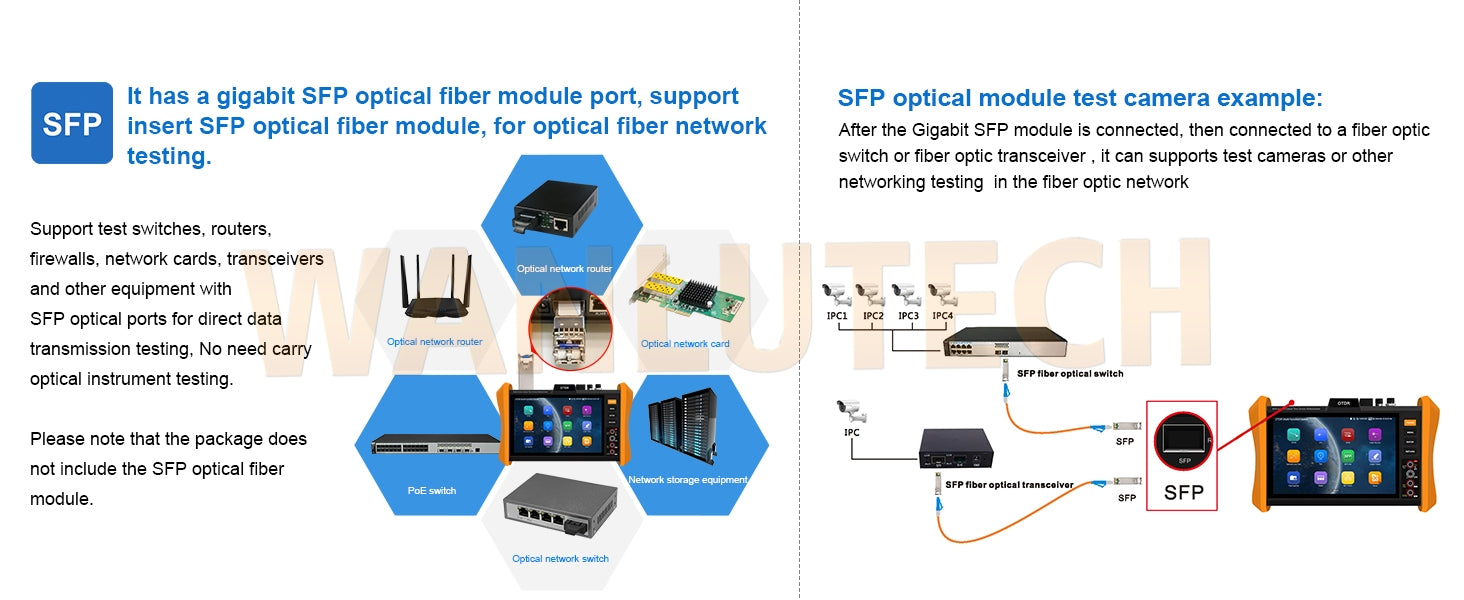

SFP Testing

WANLUTECH OTDR Optical Power Meter Visual Fault Locator Optical Loss Test Event Map Essential Tool for Fiber Cable Network Testing MOT-85

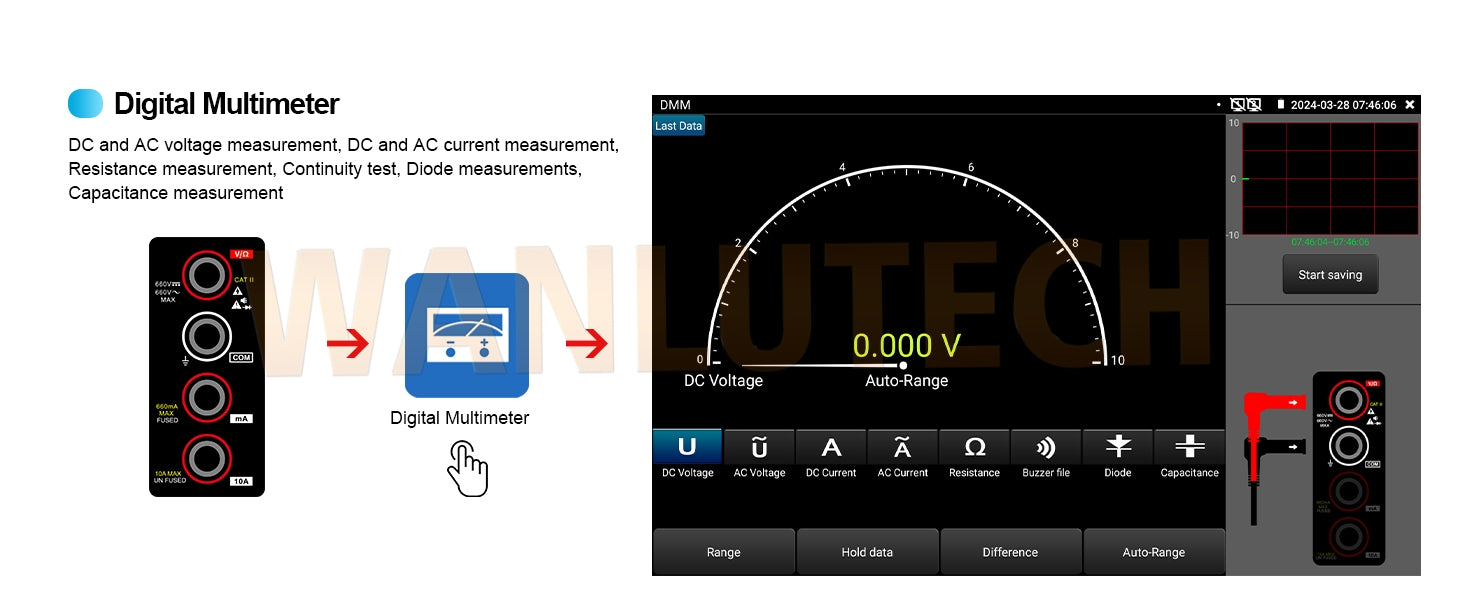

Digital Multimeter

WANLUTECH OTDR Optical Power Meter Visual Fault Locator Optical Loss Test Event Map Essential Tool for Fiber Cable Network Testing MOT-85

Network Testing Tools

WANLUTECH OTDR Optical Power Meter Visual Fault Locator Optical Loss Test Event Map Essential Tool for Fiber Cable Network Testing MOT-85

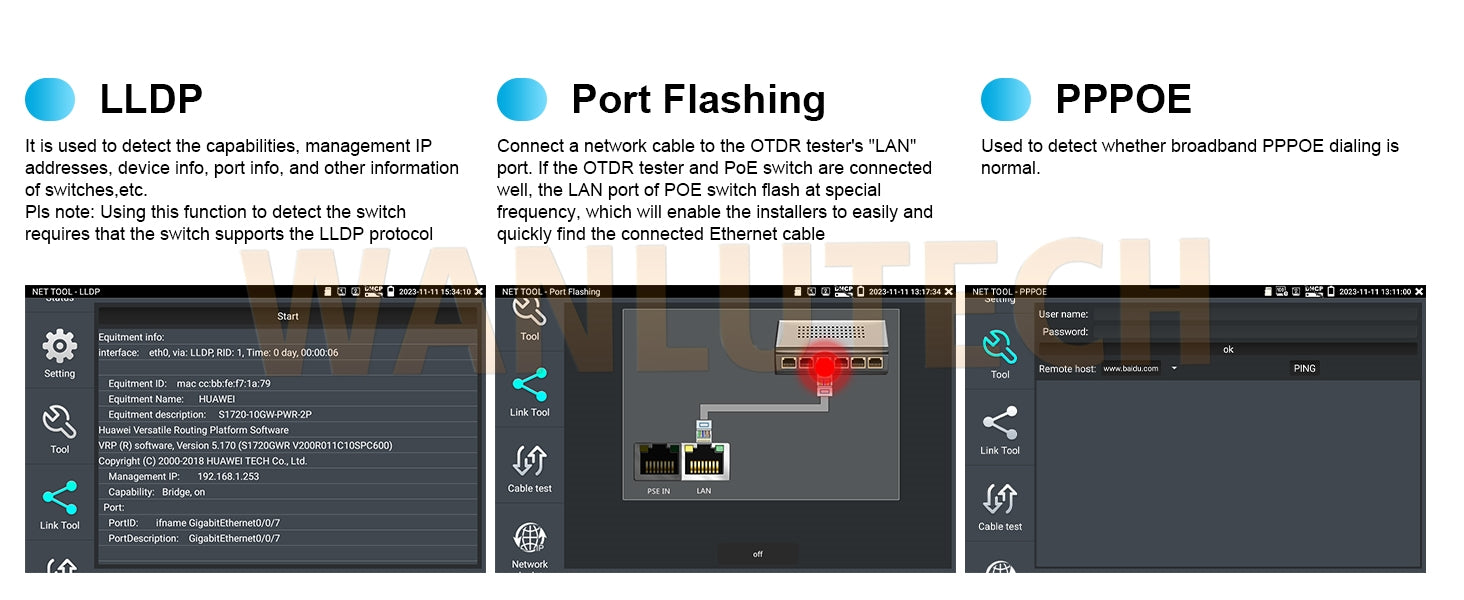

LLDP / Port Flashing / PPPOE

WANLUTECH OTDR Optical Power Meter Visual Fault Locator Optical Loss Test Event Map Essential Tool for Fiber Cable Network Testing MOT-85

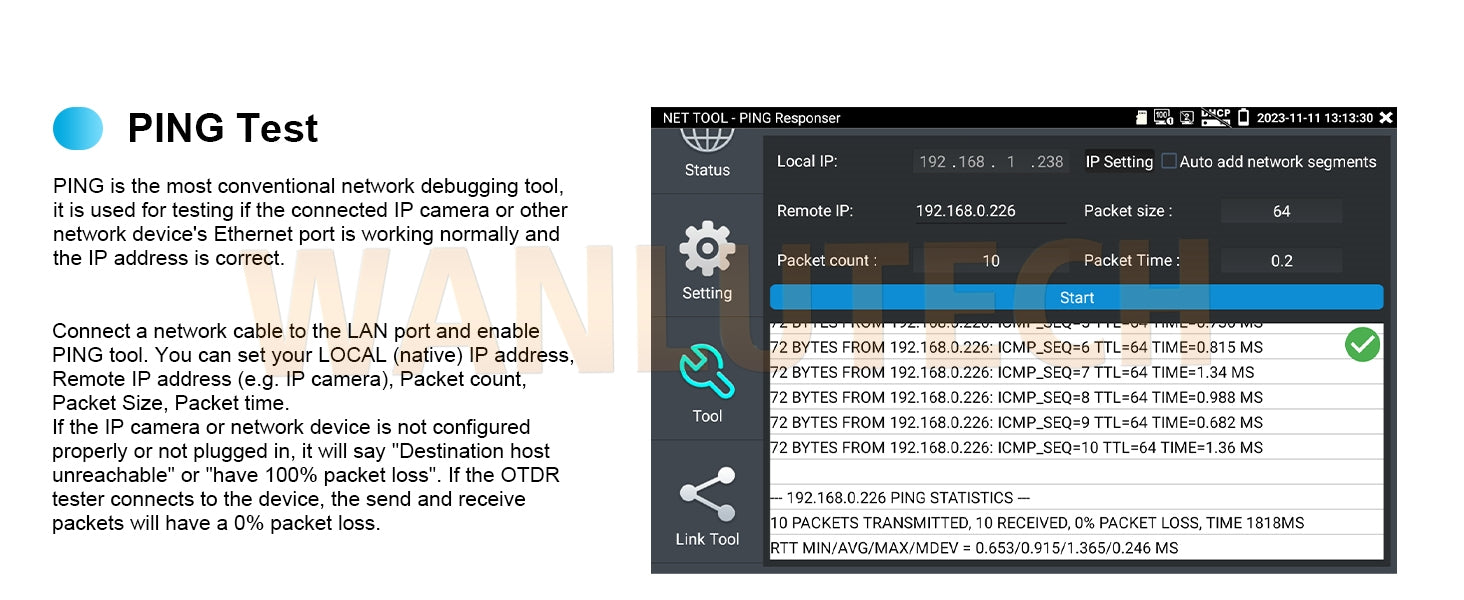

PING Test

WANLUTECH OTDR Optical Power Meter Visual Fault Locator Optical Loss Test Event Map Essential Tool for Fiber Cable Network Testing MOT-85

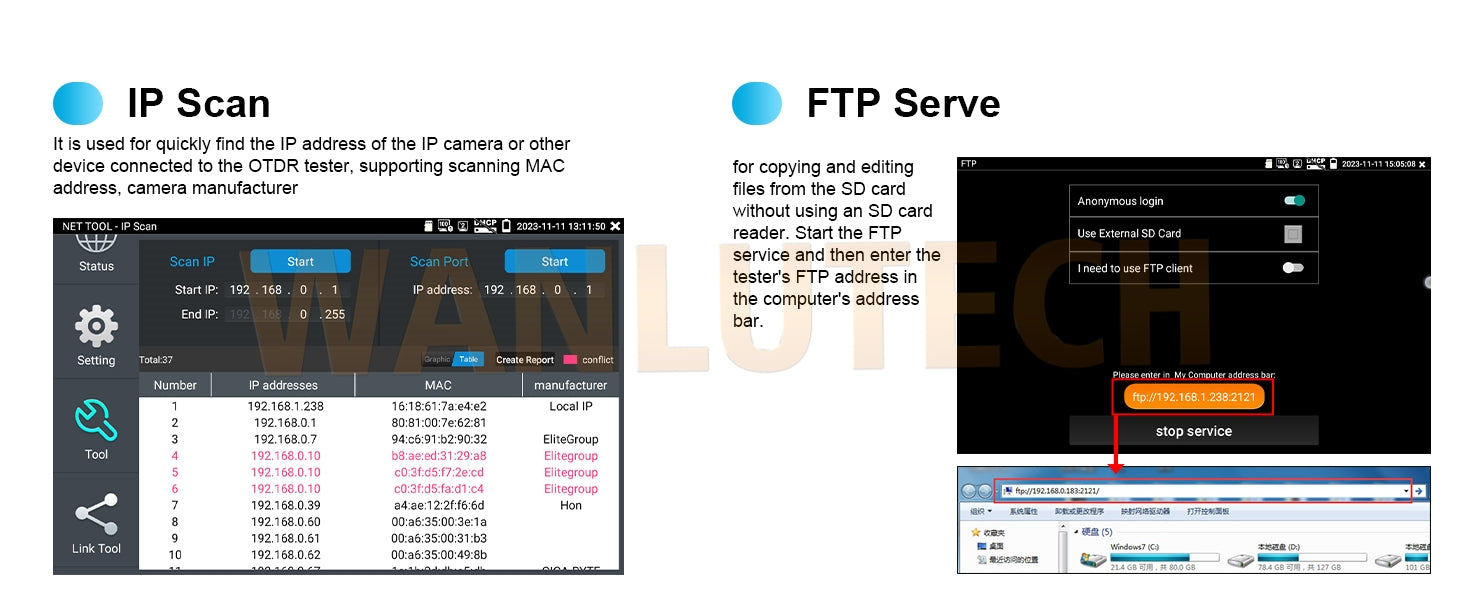

IP Scan / FTP Serve

WANLUTECH OTDR Optical Power Meter Visual Fault Locator Optical Loss Test Event Map Essential Tool for Fiber Cable Network Testing MOT-85

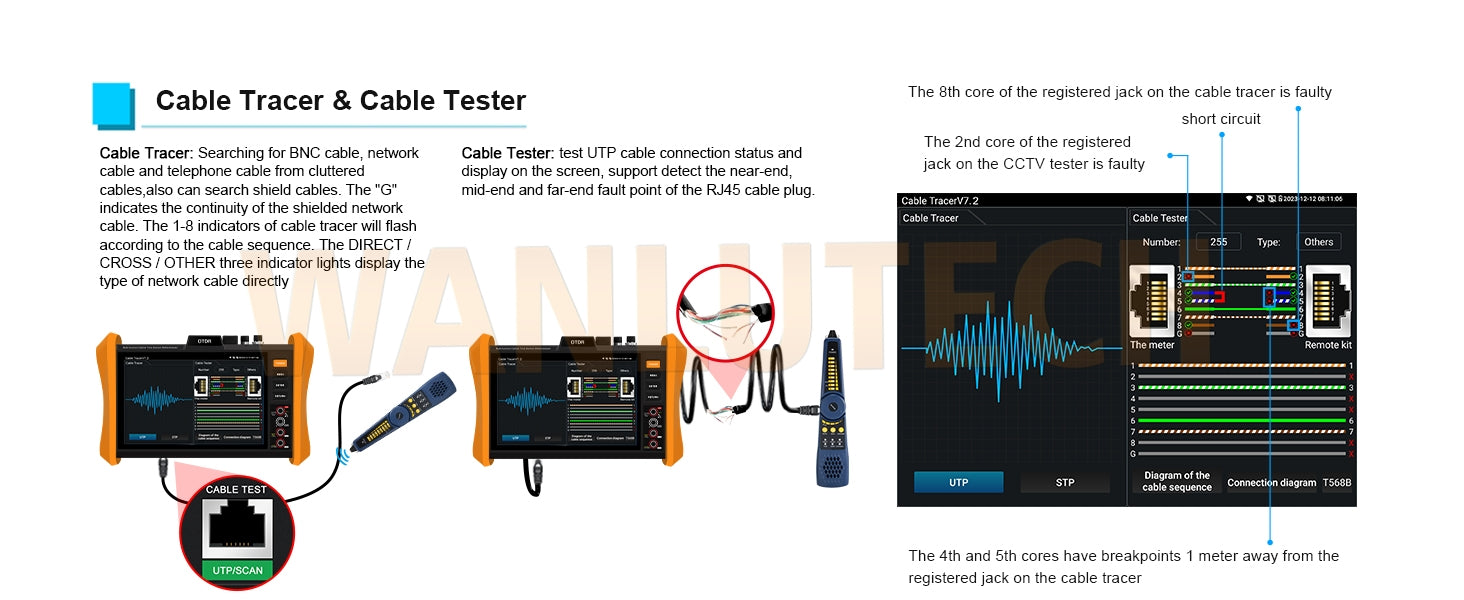

Cable Tracer / UTP Cable Tester

WANLUTECH OTDR Optical Power Meter Visual Fault Locator Optical Loss Test Event Map Essential Tool for Fiber Cable Network Testing MOT-85

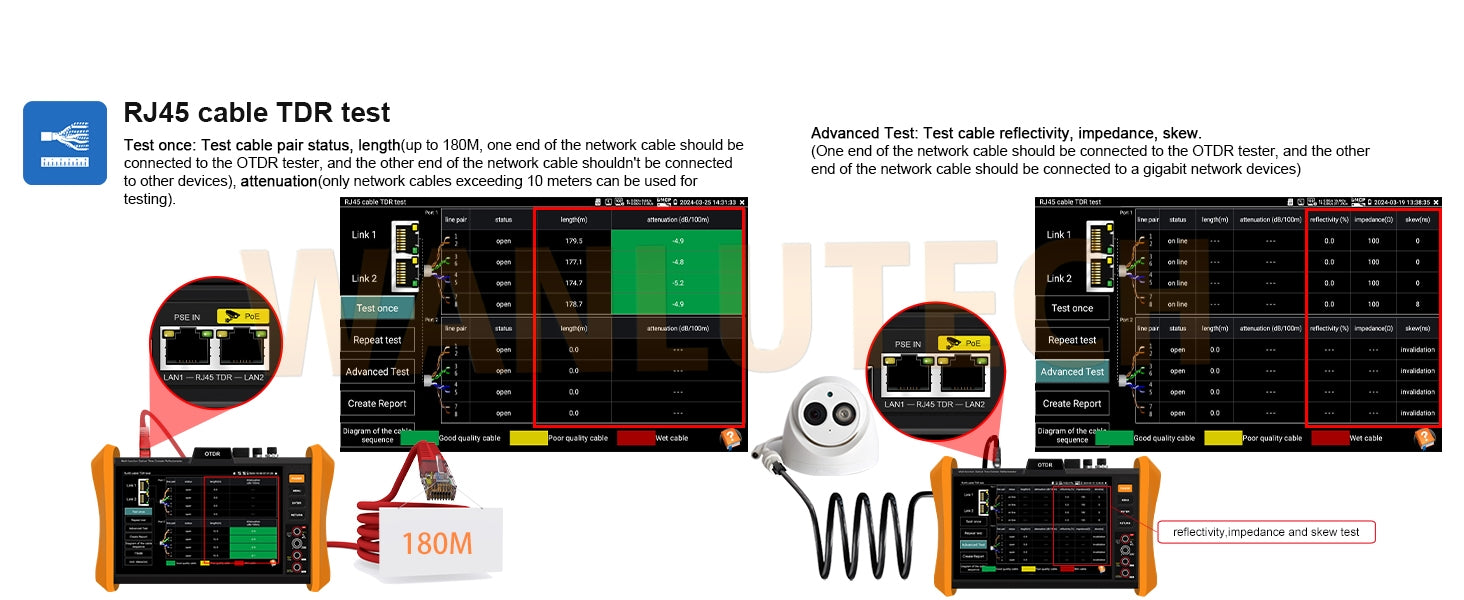

RJ45 Cable TDR Test

WANLUTECH OTDR Optical Power Meter Visual Fault Locator Optical Loss Test Event Map Essential Tool for Fiber Cable Network Testing MOT-85

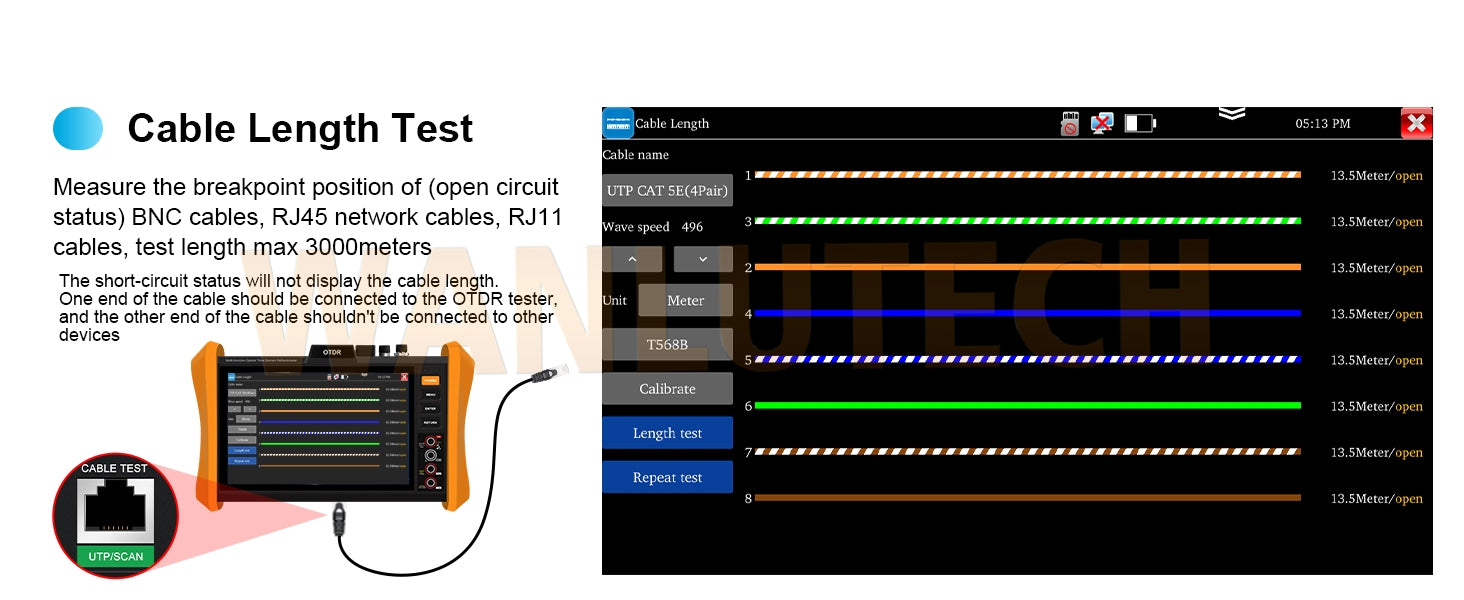

Cable Length Tester (Up to 3km)

WANLUTECH OTDR Optical Power Meter Visual Fault Locator Optical Loss Test Event Map Essential Tool for Fiber Cable Network Testing MOT-85

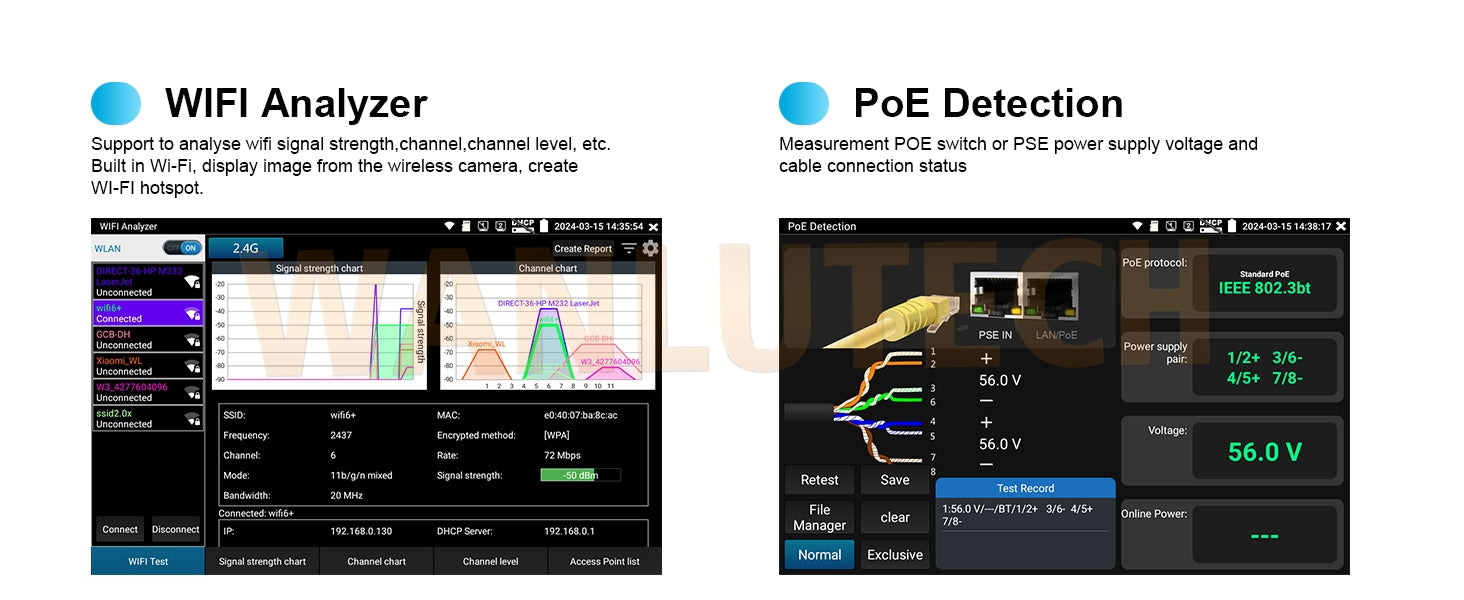

WIFI Analyzer / PoE Checker

WANLUTECH OTDR Optical Power Meter Visual Fault Locator Optical Loss Test Event Map Essential Tool for Fiber Cable Network Testing MOT-85

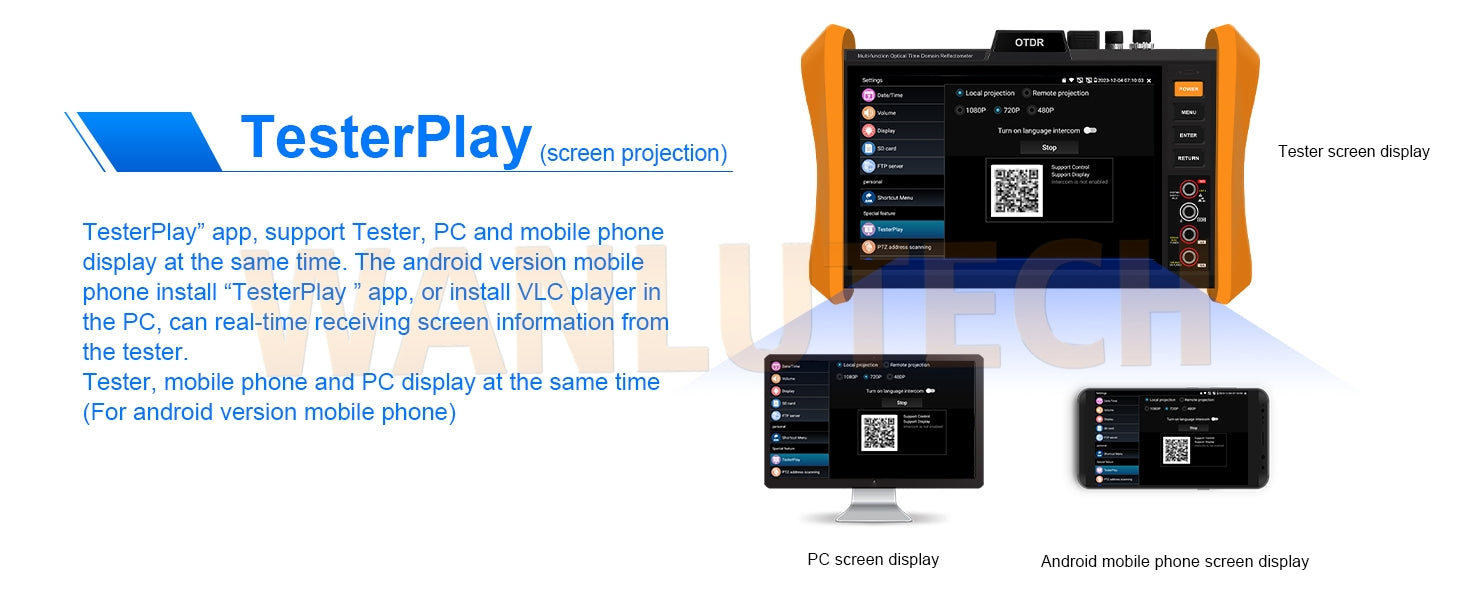

Tester Play: It is the feature about screen sharing

WANLUTECH OTDR Optical Power Meter Visual Fault Locator Optical Loss Test Event Map Essential Tool for Fiber Cable Network Testing MOT-85

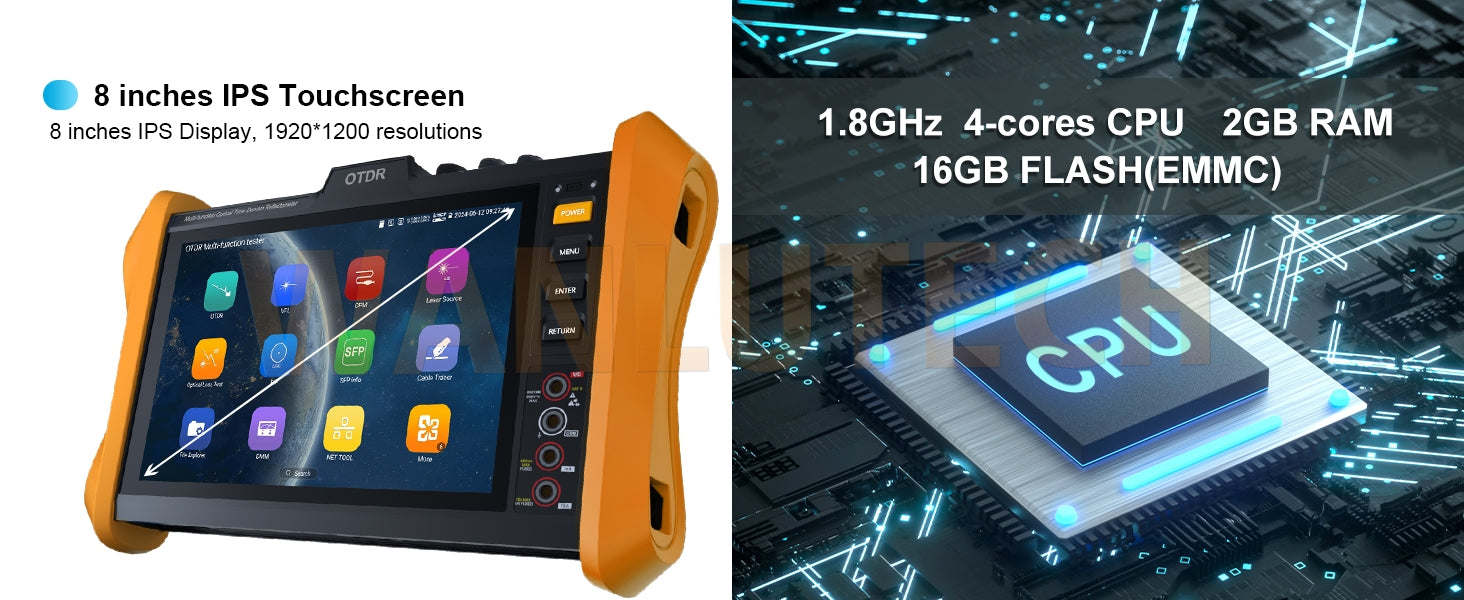

CPU / RAM / EMMC / 8'' Touchscreen
