Model
|

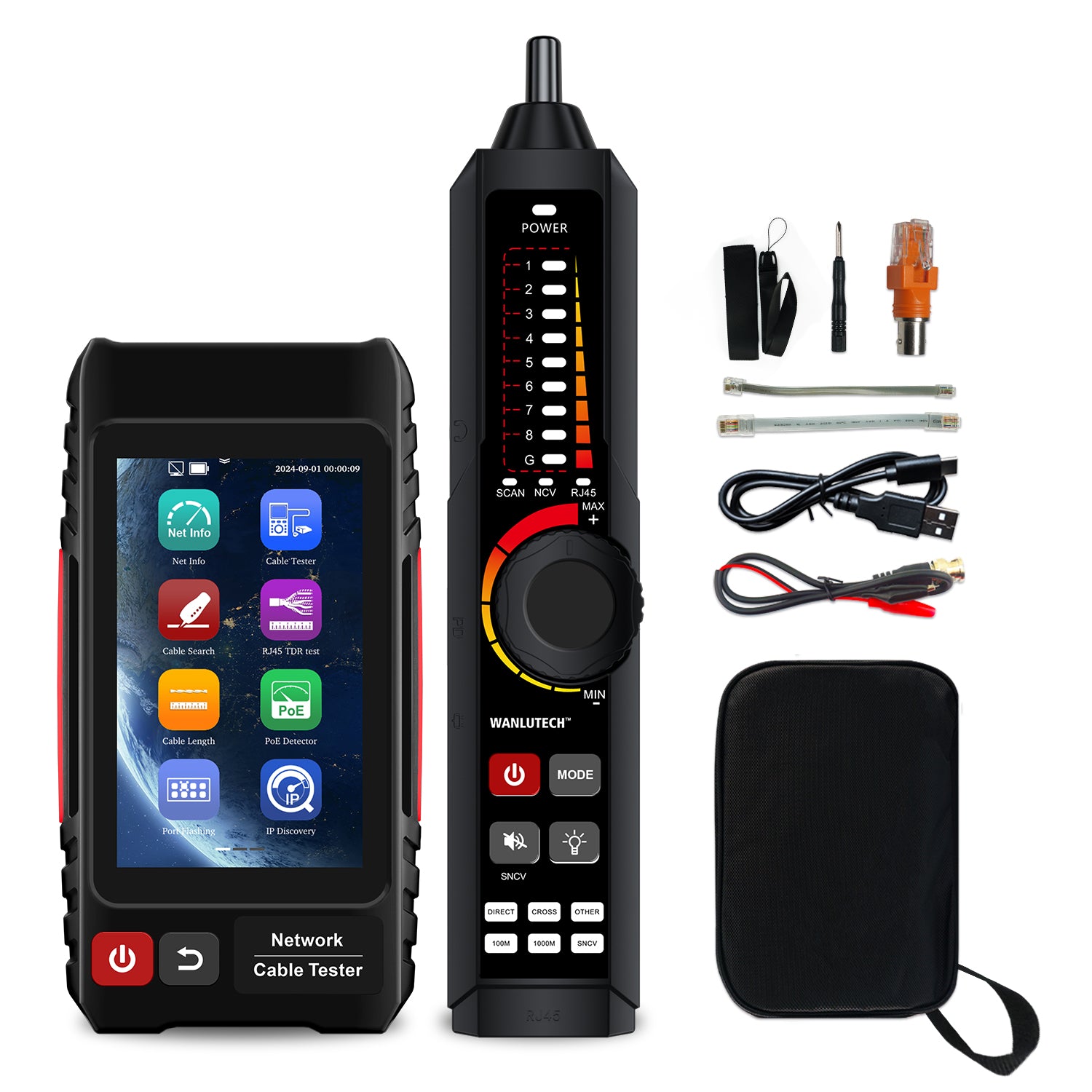

Network cable Tester LT-600S
|
Screen & Display
|
4 inch IPS touch screen, 800*480 resolution
|
|
Cable Tracing/Wire Mapping/Continuity Test
|
WANLUTECH Digital Tone Cable Tracer: searching for BNC cable, network cable and telephone cable from cluttered cables,also can search shielded network cables. Wire Map Continuity Test: test UTP cable connection status and display on the screen, support detect the near-end, mid-end and far-end fault point of the RJ45 cable plug
|
Length Measurement
|
Measure opens of network cables ,max measurement length up to 3000 meters. Accuracy: Cable length x 3% ± 1m
|
Port Flashing
|
Switch port will flash at a fixed frequency, quickly find the switch to which the tester is connected. |
PoE Detector
|
Supports IEEE802.3BT/AT/AF and non-standard protocol detection. Displays power supply voltage, power supply pins, and pin polarity. |
Network tool
|
IP discovery, IP address scan, PING test, LLDP/CDP detection, Port flashing, PPPOE dial-up, FTP server, etc.
|
Optical Power Meter *（Optional）
|
Wavelength (nm): 850/980/1270/1300/1310/1490/1550/1577/1625/1650nm. |
| Power range (dBm): -70 to +6 dBm |
Visual fault locator *（Optional）
|
Emits visible red laser to detect fiber optic line breaks, cracks, bends, and other faults. |
