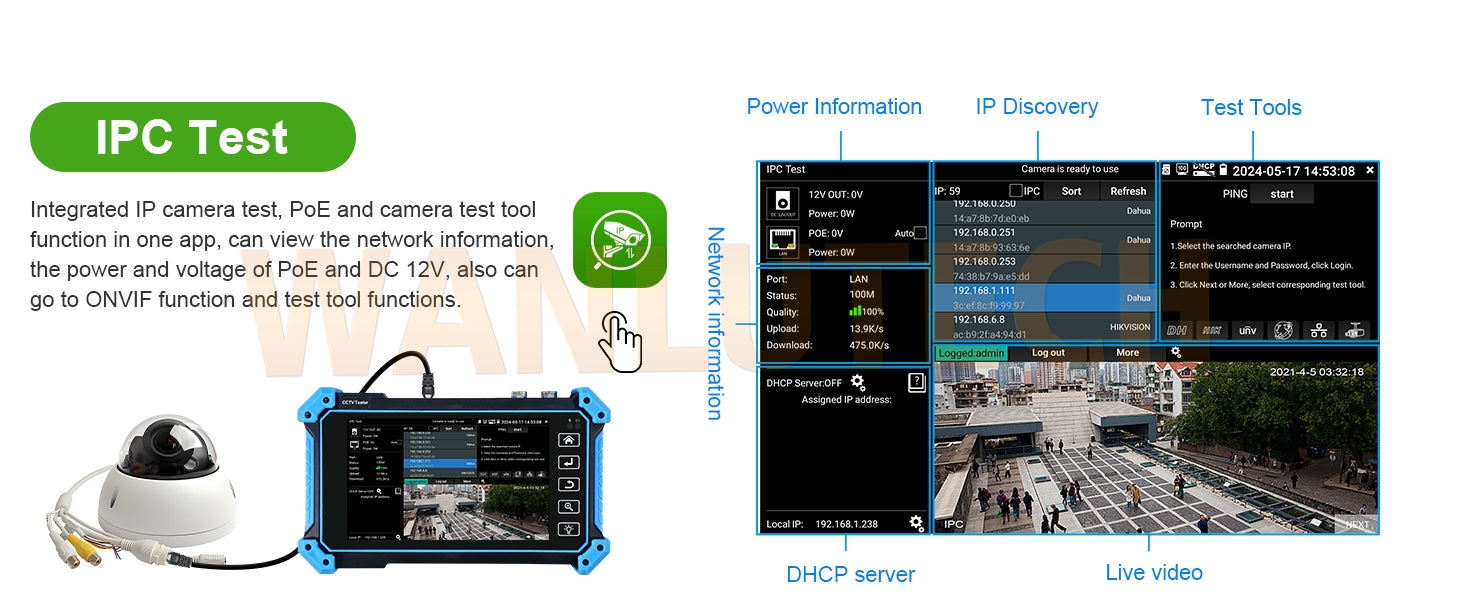

| Max 8K 32MP IP camera test |

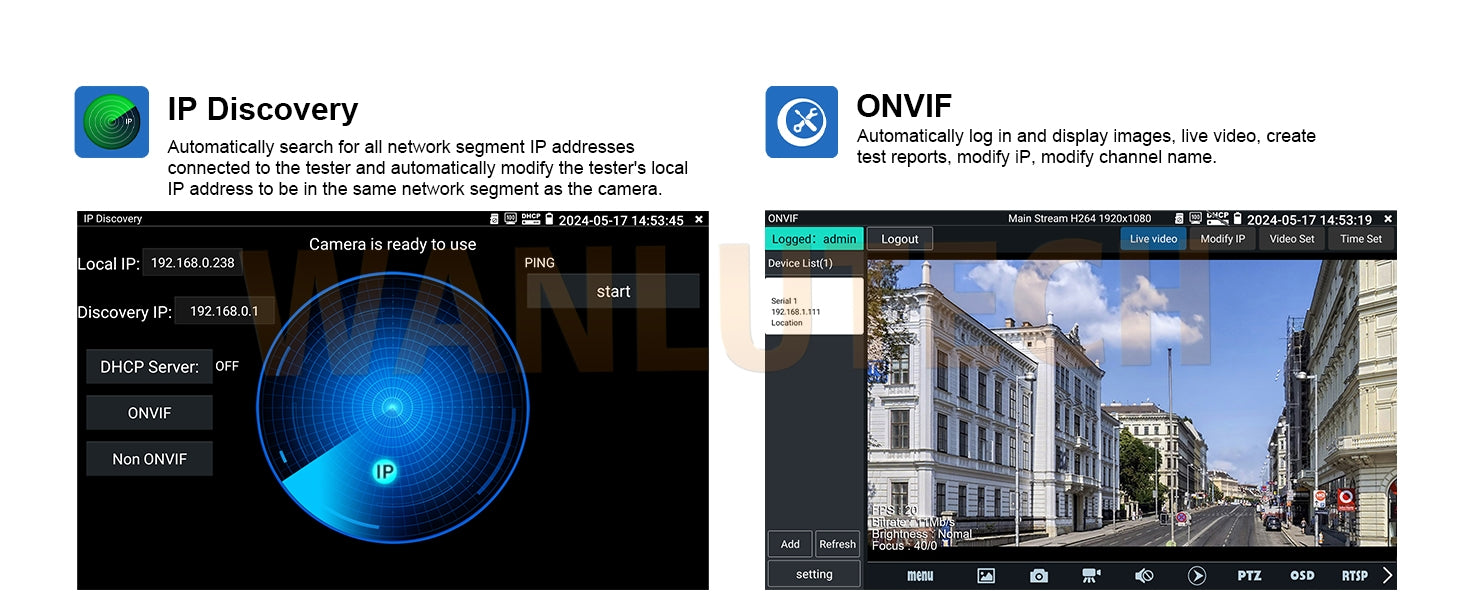

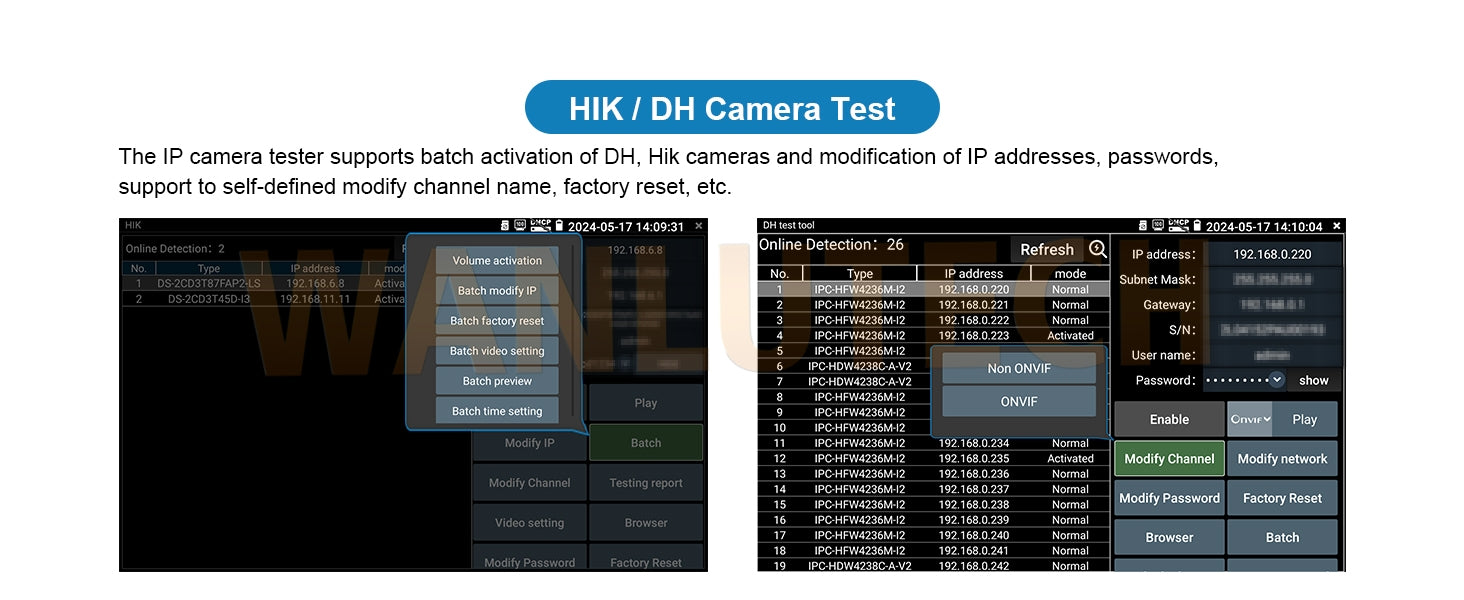

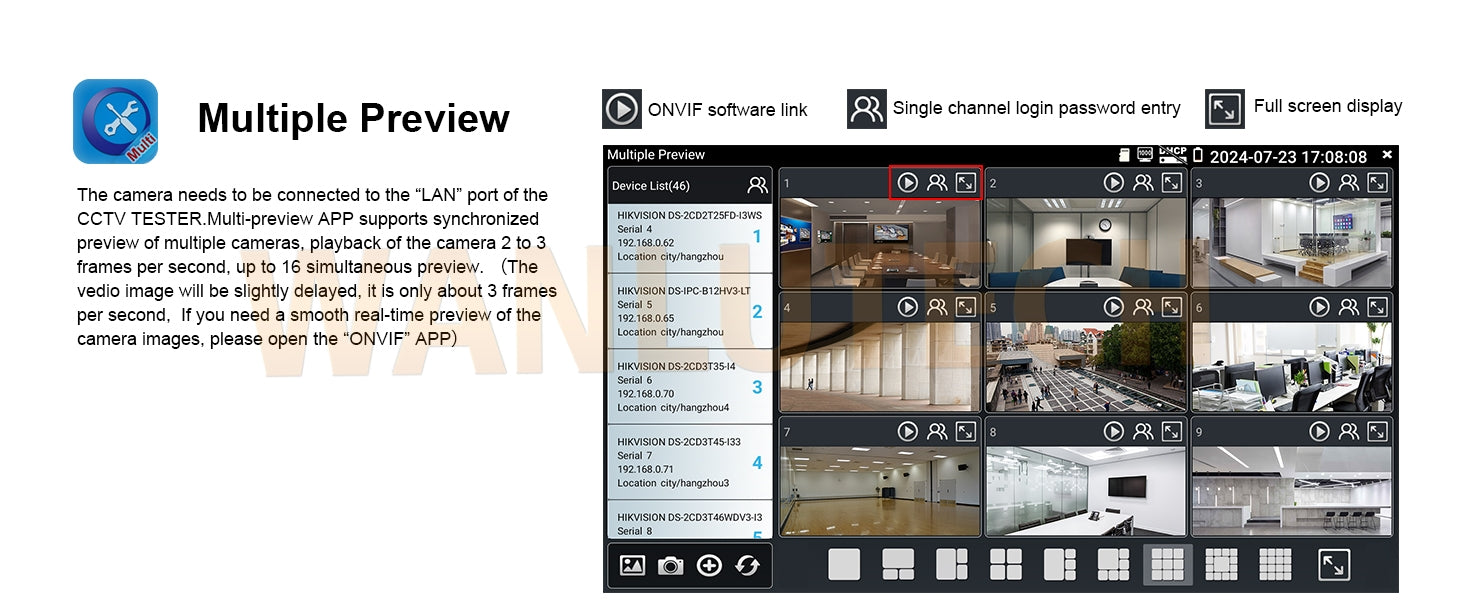

Support max 8K IP camera test. IP Discovery/Quick OVIF/IPC test /RTSP play /Client APK. Rapid Video,auto view the video, create testing report. HIK/DH camera test tool, support modify HIK/DH camera's user name, password, IP parameters,etc. |
| CVBS |
1 channel BNC input, NTSC/PAL (Auto adapt). PTZ control, Support RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as for PELCO-D/P, for Samsung, for Panasonic etc. |

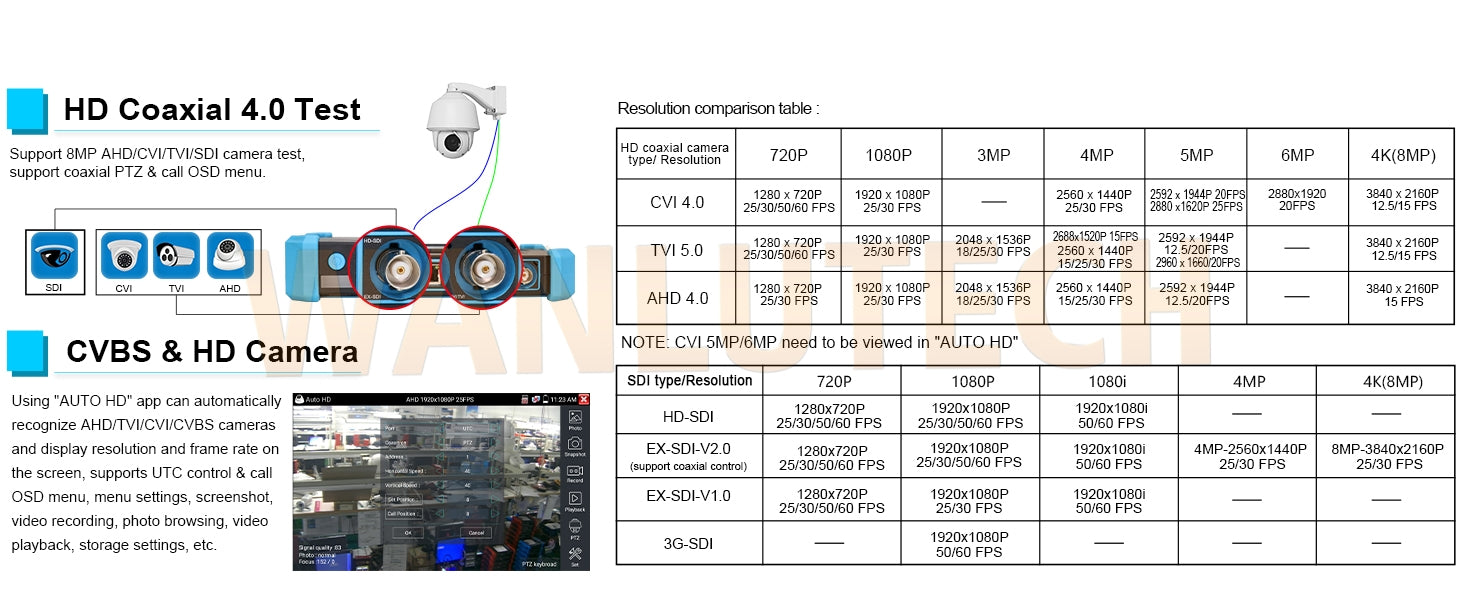

| HD coaxial test |
( Only TVI 5.0 support coaxial audio test) Support 8MP EX-SDI, HD-SDI, 3G-SDI, UTC control / call OSD menu. 8MP TVI/CVI/AHD camera test, 3840 x 2160P 15FPS, UTC control/call OSD menu. Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu. |

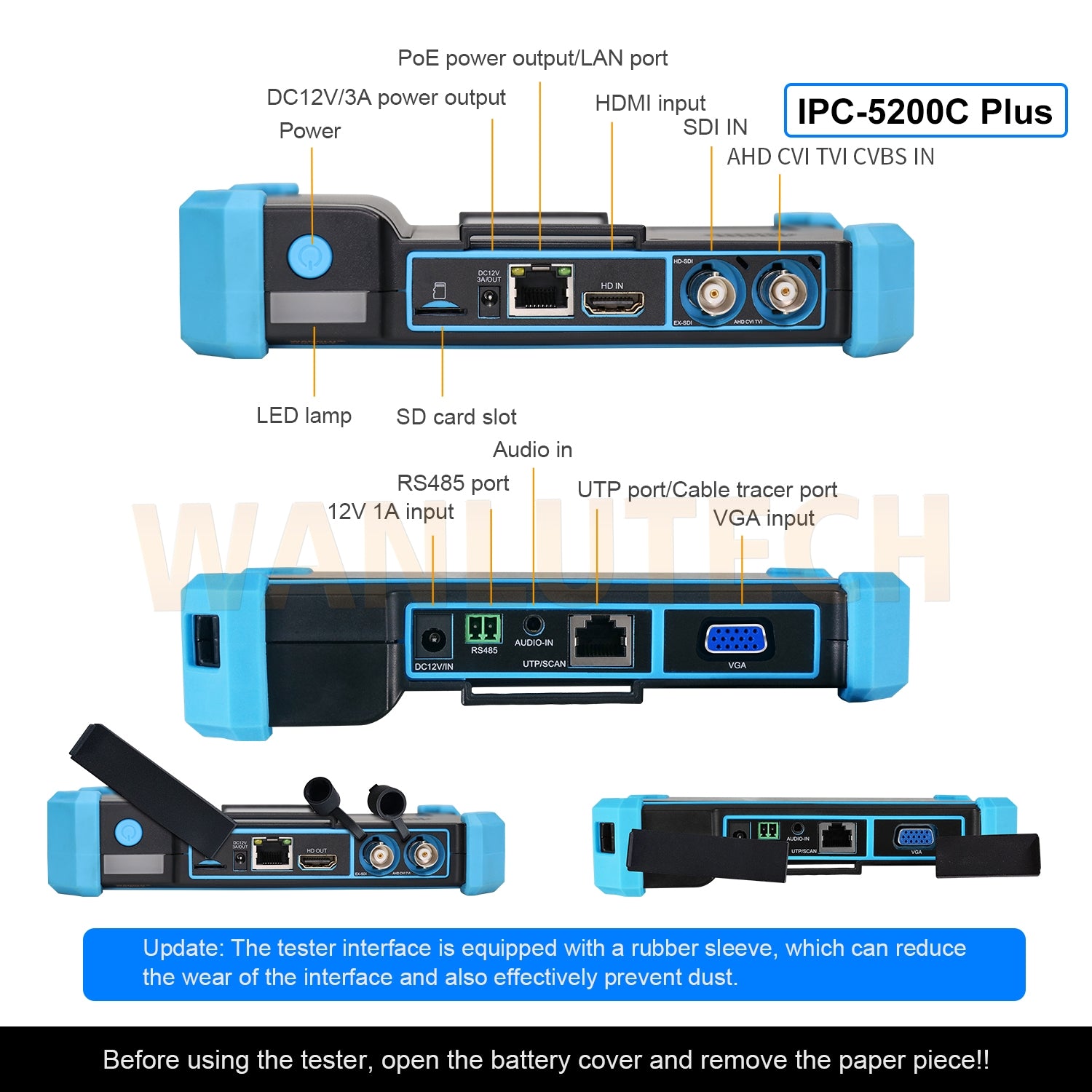

| HDMI input & VGA input |
Support 1 channel HDMI input, support 4K 30FPS. Support 1 channel VGA input, support 1920 x 1200P 60FPS. |

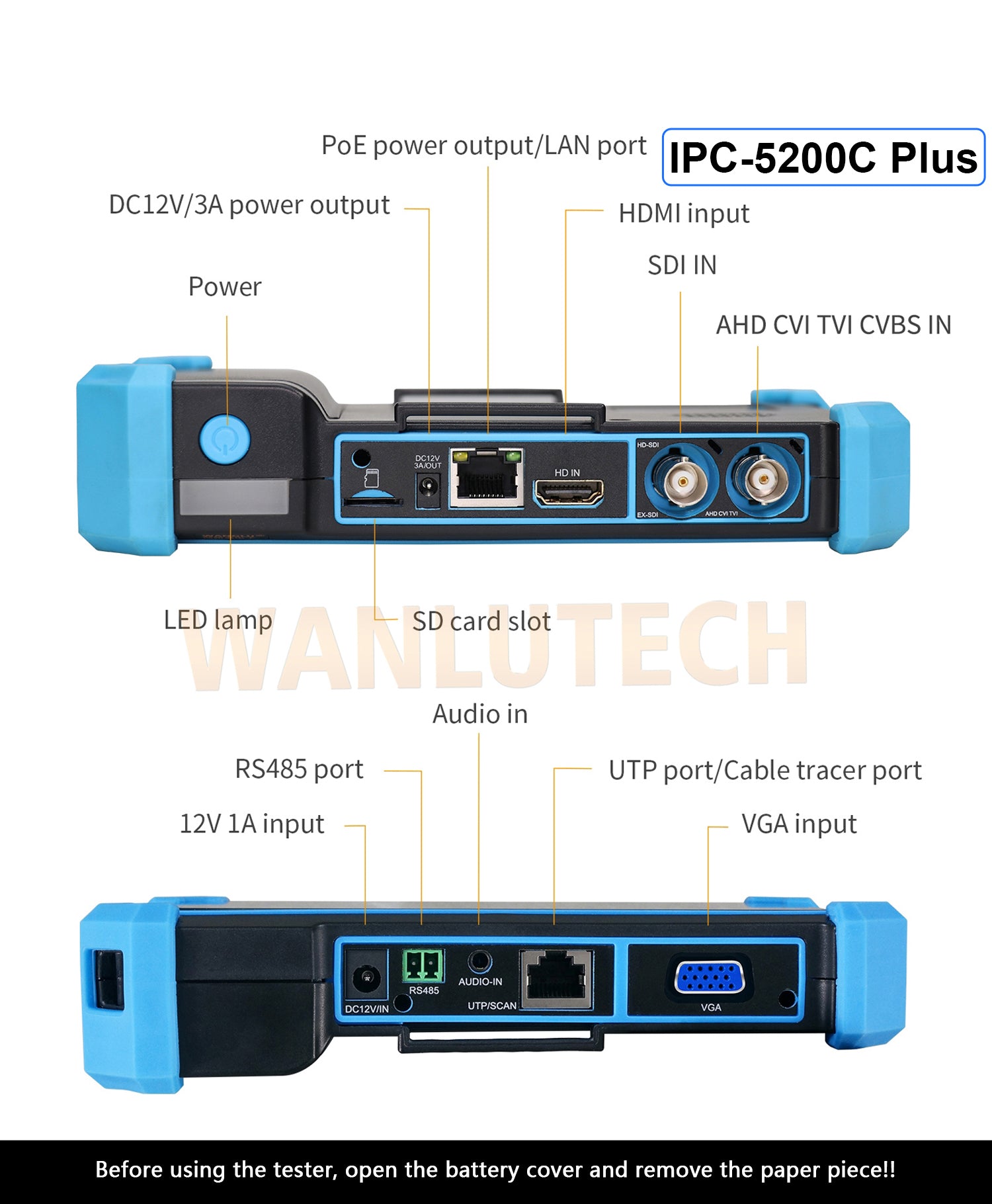

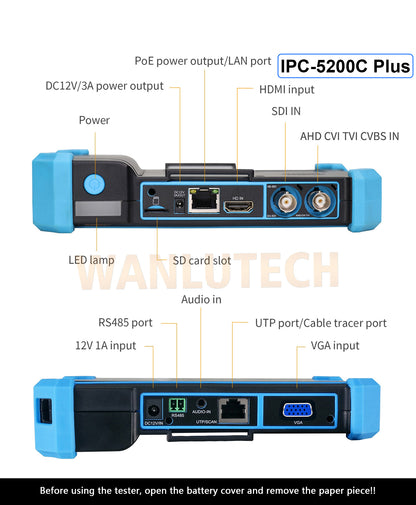

| PoE/Power input/Power output |

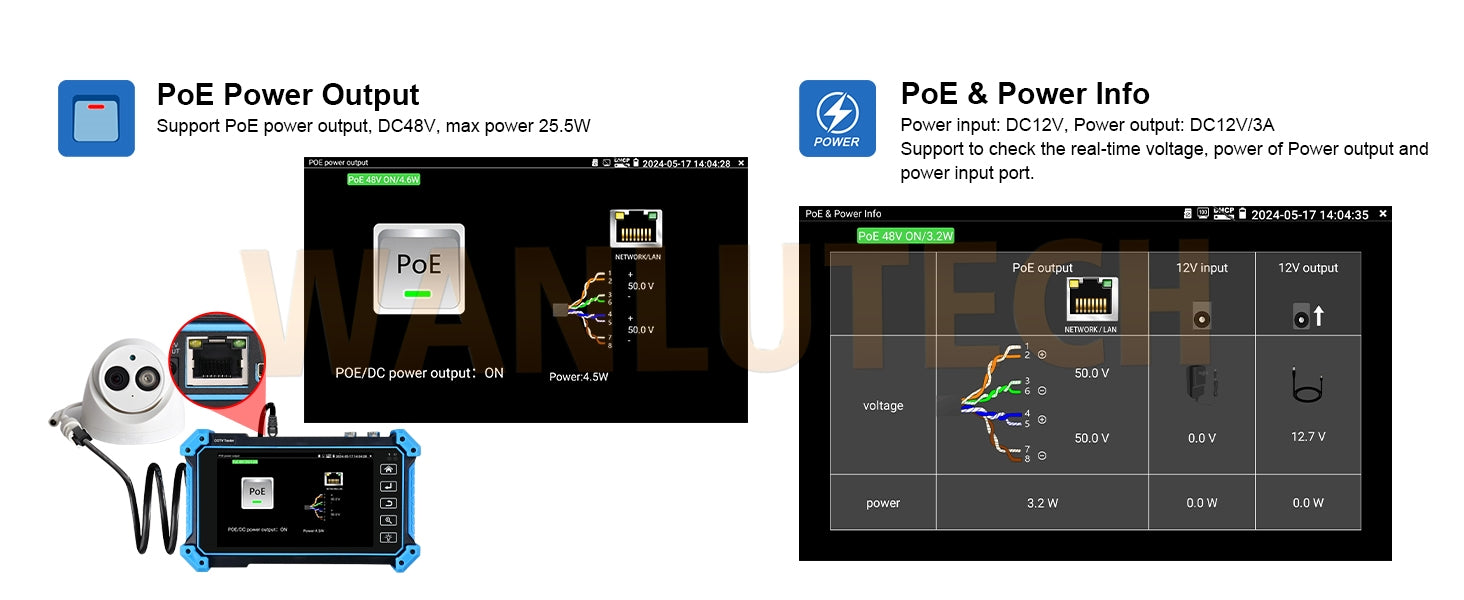

PoE power output, 48V PoE power output, max power 30W. DC12V/1A power input. DC12V/3A power out, supply temporarily power for the camera. |
| Power management |
Display DC 12V input & output voltage and power in real time. |
| Cable test |

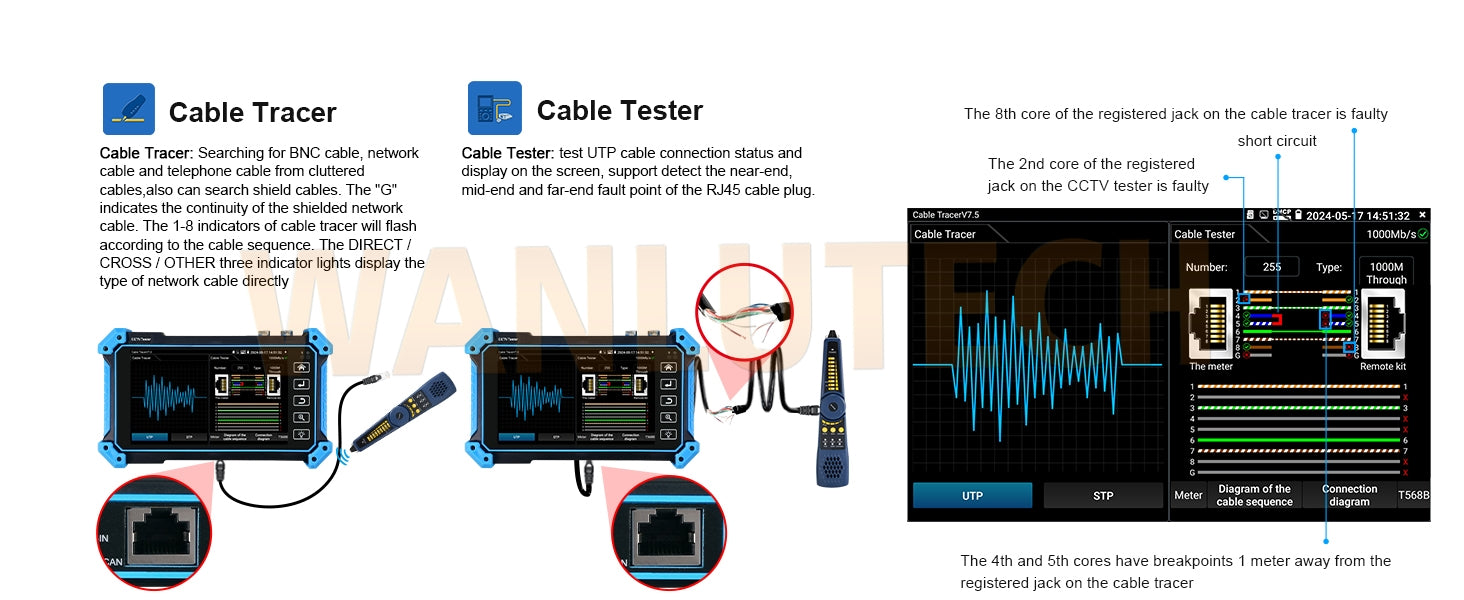

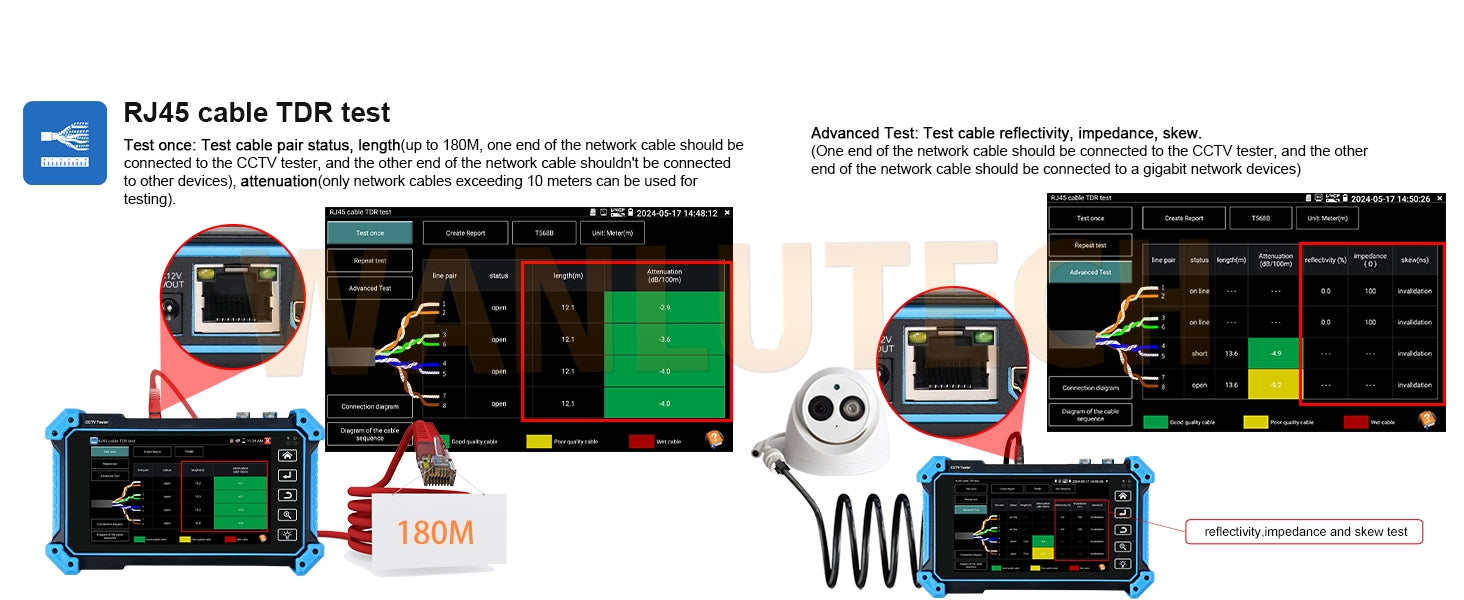

Digital Cable tracer can search BNC cable, network cable and telephone cable from the mess of cables. RJ45 Cable TDR Test: it can test cable pair status, length(180m), attenuation, reflectivity, impedance, skew. UTP Cable Tester: test UTP cable connection status and display on the screen, support detect the near-end, mid-end and far-end fault point of the RJ45 cable plug. |
| Data monitor |
Captures and analyzes the command data from controlling device, also can send hexadecimal. |
