WANLUTECH IP Camera Tester with PoE, CCTV Camera Tester Support 8MP AHD CVI TVI CVBS 8K IP Camera Test RJ45 Cable Tester SFP Test HDMI VGA Input 7 inch IPS Touch Screen (K15-ADH)

Download the user manual Here

• [ 8K IP Camera Tester ] WANLUTECH CCTV tester has 7'' IPS touch screen, 1920x1200 resolution. It support to test max 8K 32MP 4K 12MP IP cameras, also support CVBS analog camera test. The IP camera tester with PoE support batch activation of DH, Hik cameras and modification of IP addresses, passwords, etc. Support quick ONVF,automatic login and display images, one key to create a test report, including camera IP address, resolution, encoding and other related information; support for cross-network segment testing; face recognition and other feature. Support 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)
• [ AHD TVI CVI Camera Tester ] WANLUTECH IP camera tester with poe support to test max 8MP AHD/TVI/CVI camera. Using "AUTO HD" app can automatically recognize AHD CVI TVI CVBS cameras and display resolution and frame rate on the screen, supports UTC control & call OSD menu, menu settings, screenshot, video recording, video playback, etc. 4K color bar generator, send CVI/TVI/AHD/CVBS color bar video signal for testing monitor or video cable, support 4K resolution
• [ Cable Tester & Network Testing Tools ] RJ45 cable TDR test: it tests cable pair status, length, attenuation, reflectivity, impedance, skew etc. Test UTP cable connection status and display on the screen. Read the number on the screen,and detect near-end, mid-end and far-end fault test of RJ45 cable plug. Built-in network testing tools, trace route, link monitor, DHCP server, port flashing, Ping test, etc
• [ SFP & PoE & WIFI & HDMI VGA ] It has a SFP optical module port, it supports to insert SFP optical fiber module, for optical fiber network testing and support testing of devices with SFP optical ports for direct data transmission testing. Support 48V, Max 30W PoE power output, it can power supply for POE camera. WANLUTECH CCTV tester has WIFI analysis function and it support 2.4G/5G frequency band, and detect the surrounding WIFI signal and signal strength.Support max 4K 30fps HDMI input, 4K 60fps HDMI output,1920x1200P 60fps VGA input, and the cctv tester can be used as a display

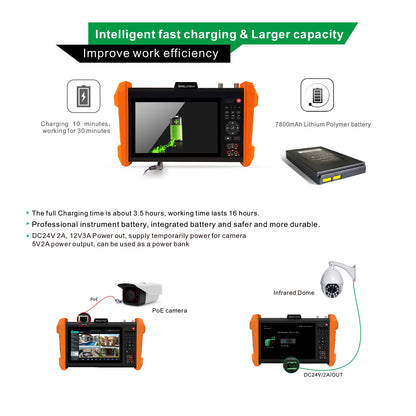

• [ Multifunction CCTV Camera Tester ] Measurement POE switch or PSE power supply voltage and cable connection status. Dual Gigabit Ethernet Ports, HDMI in/out, VGA in, Audio I/O, RS485 port. USB 5V 2A, DC12V 3A, 24V 2A power output. 7.6 V /7800mAh Lithium Battery, 8GB TF card included
• [ PLEASE NOTE ] There is a paper piece isolating the battery. Before using the tester, open the battery cover and remove the paper sheet. We are the manufacturer. Any questions, please let us know, We'll get back to you within 12 hours
