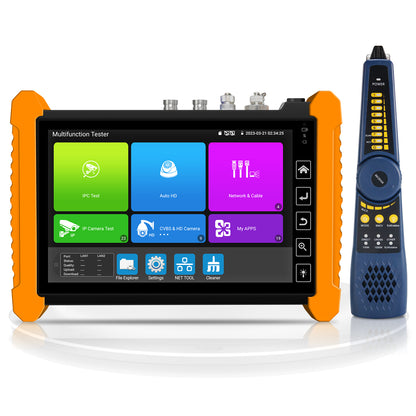

WANLUTECH CCTV Tester 7 inch Touchscreen 8MP TVI CVI AHD SDI CVBS Camera Tester OPM VFL TDR Cable Tester Network Tools WiFi PoE HDMI VGA (IPC-7600COVTADHS Plus)

WANLUTECH CCTV Tester 7 inch Touchscreen 8MP TVI CVI AHD SDI CVBS Camera Tester OPM VFL TDR Cable Tester Network Tools WiFi PoE HDMI VGA (IPC-7600COVTADHS Plus)

$509.99 USD
$569.99 USD $509.99 USD
Sale Sold out
Shipping calculated at checkout.
  • [ IP Analog Camera Tester ] WANLUTECH 8K IP camera tester has 7'' touchscreen, 1280x800 resolution. It support to test max 8K 32MP 4K 12MP IP cameras, support CVBS analog camera test. The IP camera tester supports batch activation of DH, Hik cameras and modification of IP addresses, passwords, etc. Support IPC Test /IP Discovery/Rapid Video/RTSP Play /Quick OVIF/Hik DH test tool/Client APK. Support to measure analog video level meter, peak video signal level, SYNC signal level
  • [ AHD TVI CVI SDI Camera Tester ] WANLUTECH IP camera tester with poe support to test max 8MP AHD/TVI/CVI/SDI camera. Using "AUTO HD" app can automatically recognize AHD CVI TVI CVBS cameras and display resolution and frame rate on the screen, supports UTC control & call OSD menu, menu settings, screenshot, video recording, video playback, etc
  • [ Cable Tester ] Cable Tracer: Searching for BNC cable, network cable and telephone cable from cluttered cables,also can search shield cables. RJ45 Cable TDR Test: it can test cable pair status, length, attenuation, reflectivity, impedance, skew. UTP Cable Tester: test UTP cable connection status and display on the screen, support detect the near-end, mid-end and far-end fault point of the RJ45 cable plug. TDR Cable Breakpoint Short Circuit Test: BNC cable, network cable, telephone cable, RVV cable and TVVB elevator cable, cat 5/6 cable’s length(up to1.2 KM ) and short circuit. Cable tracer support NCV Voltage Detector
  • [ PoE OPM VFL WIFI ] PoE power output, support PoE IEEE802.3af/at , max 48V, power output 30W. Optical Power Meter: connecting the measured fiber to the "OPM" port displays the optical power linearly or nonlinearly for direct measurement of optical power, as well as for relative measurement of fiber link loss. Red Visible light source: It can emit a red light source to detect faults such as breakage, cracking, and bending of fiber optic cables. WI-FI analyzer(2.4GHz frequency band) support to analyse wifi signal, strength,channel,channel level, etc. Built in 2.4G WIFI, speeds 150M, also can create WI-FI hotspot
  • [ Multifunction CCTV Camera Tester ] Built-in porfessional network testing tools,such as Ping, IP scan, DHCP server, PPPOE, Trace Route, Port Flash, LLDP, Link Monitor, etc. Measurement POE switch or PSE power supply voltage and cable connection status. Dual Gigabit Ethernet Ports, HDMI in/out, VGA in, Audio I/O, RS485 port, including 8GB TF card. Power input:DC12V 2A. Power output:DC12V/3A, DC24V/2A, DC5V/2A
  • [ PLEASE NOTE ] There is a paper piece isolating the battery. Before using the tester, open the battery cover and remove the paper sheet. We are the manufacturer. Any questions, please let us know, We'll get back to you within 12 hours
