WANLUTECH CCTV Tester, 8K 32MP IP Camera Tester Support CVBS Camera Test HDMI Out Rj45 TDR Cable Test SFP PoE WiFi (IPC-9800 Pro)

Camera installed but can't get a signal? Not sure if that cable run is even connected? The WANLUTECH IPC-9800 Pro is a security installer's essential field tool — camera testing, cable testing, and power diagnostics in one device, so you don't have to run back to the van for another gadget.

Key Features

📹 Full-Format Camera Testing

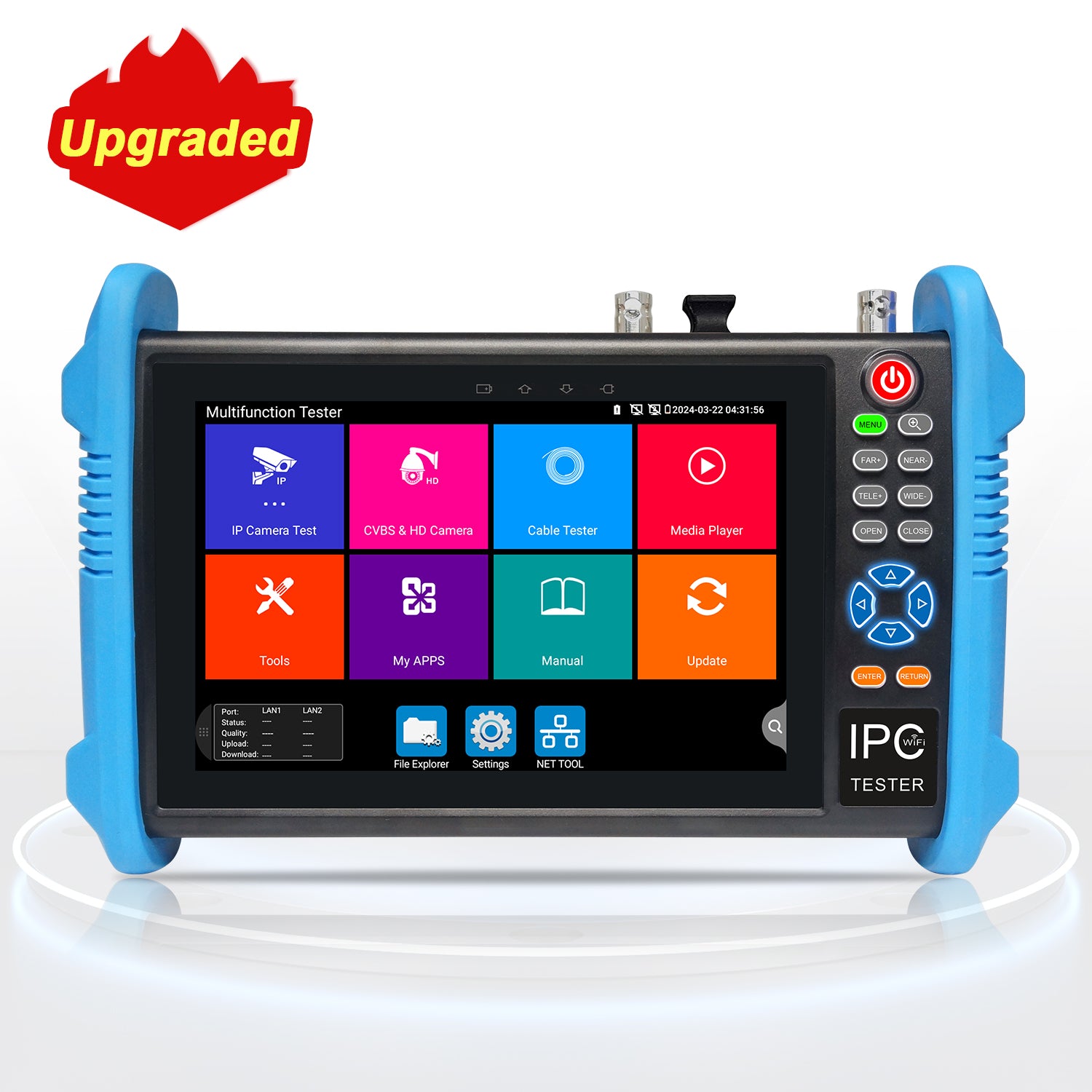

7" touchscreen with 1280x800 resolution, supports IP cameras up to 8K 32MP plus CVBS analog cameras. Batch activation and IP/password modification for Dahua and Hikvision cameras. Built-in IP Discovery, RTSP playback, and Quick ONVIF test.

🔌 Cable Fault Diagnosis

RJ45 cable TDR test: check pair status, length, attenuation, reflectivity, and impedance in one pass. Locate near-end, mid-end, and far-end fault points on RJ45/BNC/RJ11 cables — no more guessing where the break is.

⚡ PoE Power & Network Tools

Up to 55V 90W PoE power output for temporarily powering high-power PTZ cameras. Built-in Gigabit SFP fiber module port for fiber network testing. Includes professional network tools — Ping, IP scan, DHCP server, Trace Route — plus 2.4GHz WiFi signal analysis.

🔋 Integrated Power Management

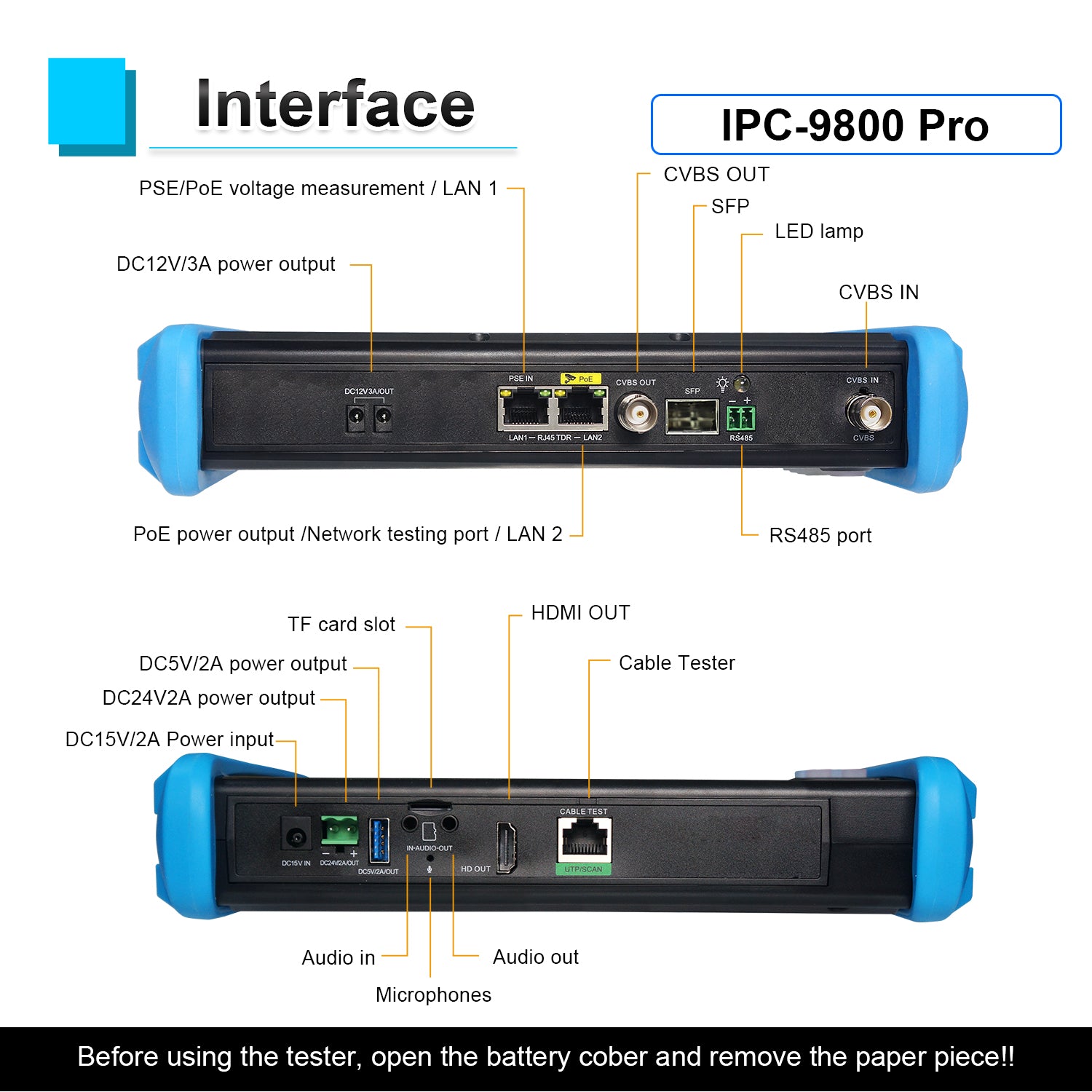

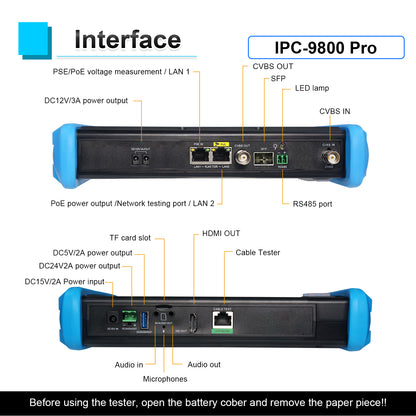

Real-time voltage, power, and port status display. 8GB TF card storage, dual Gigabit Ethernet ports, HDMI in/out, VGA in, audio in/out, RS485 port.

📖 Which model do you need? The IPC-9800 series has 6 models:
· IPC‑9800 Pro — IP + CVBS only, our base model

· IPC‑9800ADH Pro — adds AHD/TVI/CVI analog camera support

· IPC‑9800ADHS Pro — adds AHD/TVI/CVI + SDI support

· IPC‑9800CADH Pro — adds AHD/TVI/CVI + Cable Tracer for locating cables in cluttered bundles

· IPC‑9800CADHS Pro — adds AHD/TVI/CVI + SDI + Cable Tracer for locating cables in cluttered bundles

· IPC‑9800CLMOVTADHS Pro — full‑feature flagship model, supports IP/CVBS/AHD/TVI/CVI/SDI, Cable Tracer, CLMO & VLT function, most complete feature set

💡 Before first use: open the battery cover and remove the isolating paper strip. Download the full user manual here. We are the original manufacturer — any questions, we'll respond within 12 hours.
