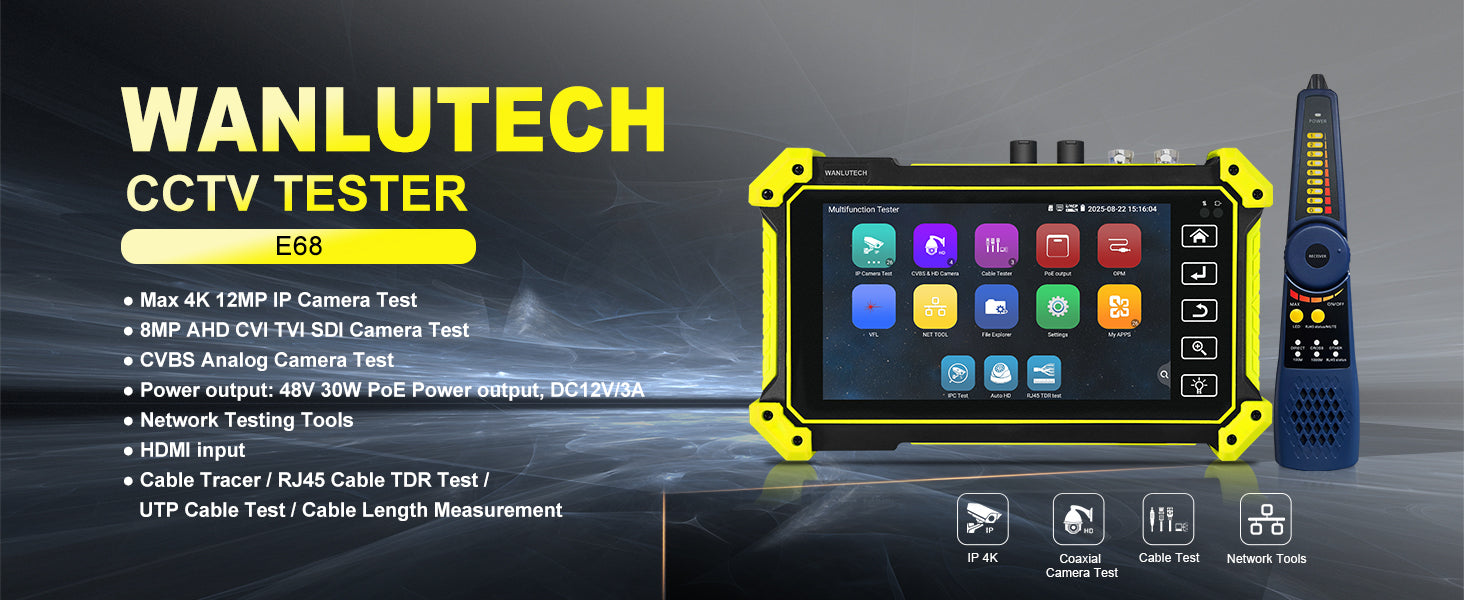

WANLUTECH E68 CCTV Tester Product Description
Camera installed but getting no signal? Unsure if the issue comes from the camera or faulty cabling?
The E68 CCTV Tester is an all-in-one troubleshooting tool for security installers. It integrates IP/analog camera testing, cable diagnosis and full network tools in one portable device, saving you from carrying multiple tools on-site.
What this tester does for you

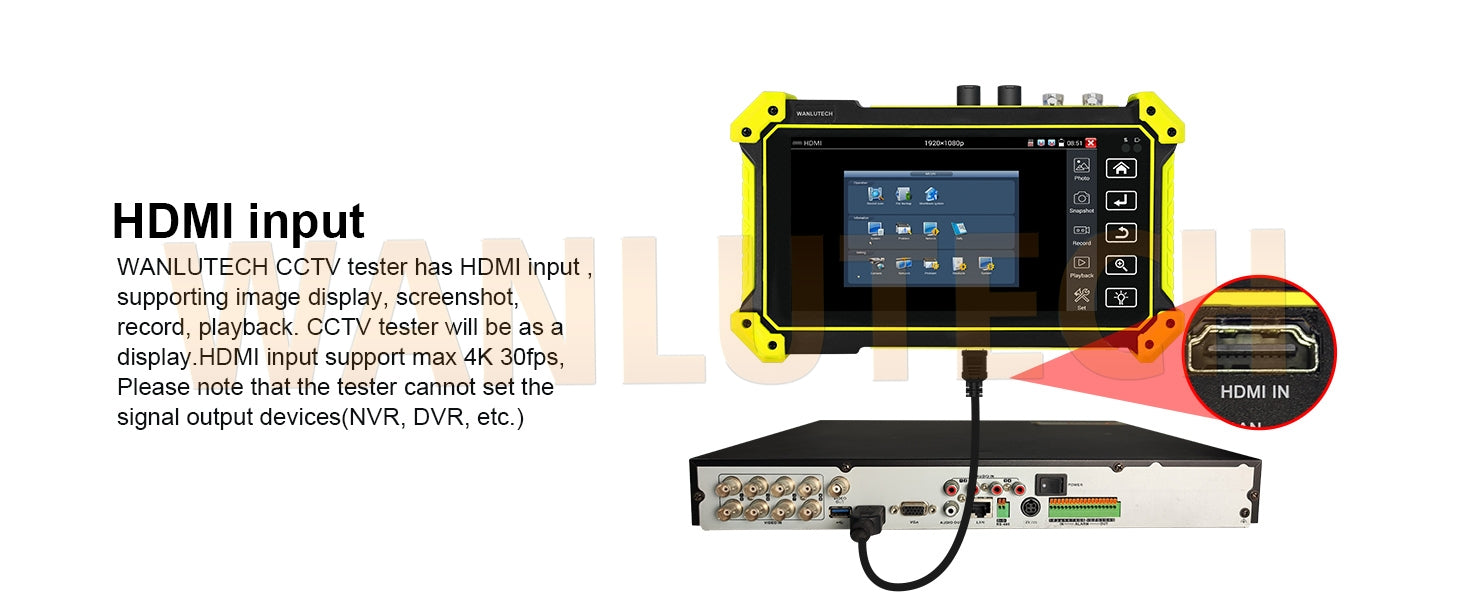

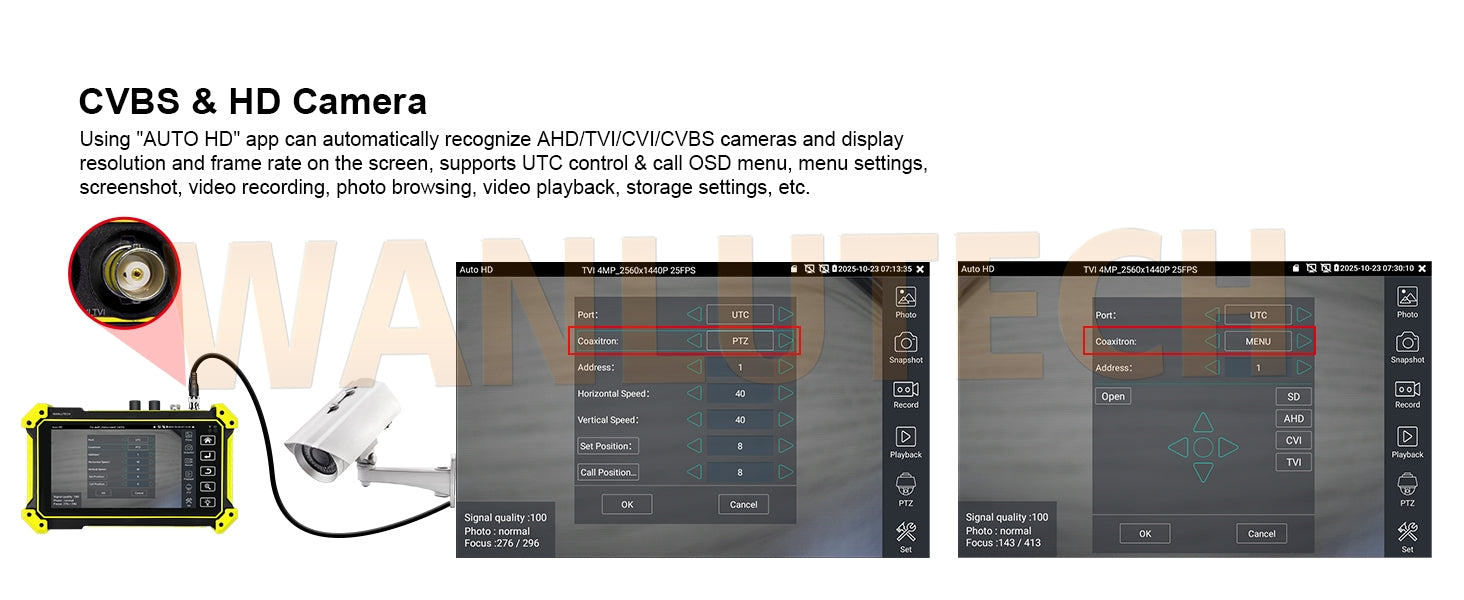

✅ Full camera compatibility Supports 4K 12MP H.264/H.265 IP cameras and 8MP AHD/TVI/CVI/CVBS analog cameras. Optional HD-SDI testing. Auto HD recognition, 4x zoom, video recording, snapshot, PTZ control and OSD menu access. It also features 4K HDMI input for external signal preview.

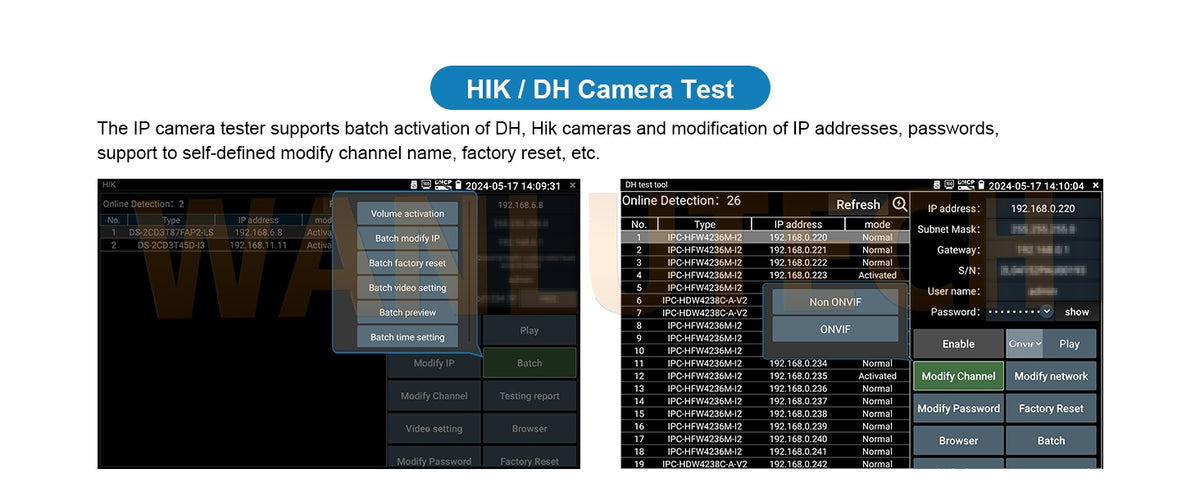

✅ Fast batch camera configuration Built-in Hikvision and Dahua tools support batch activation, IP/password modification and channel editing. Rapid ONVIF auto-scans and displays camera images instantly, compatible with all mainstream ONVIF devices.

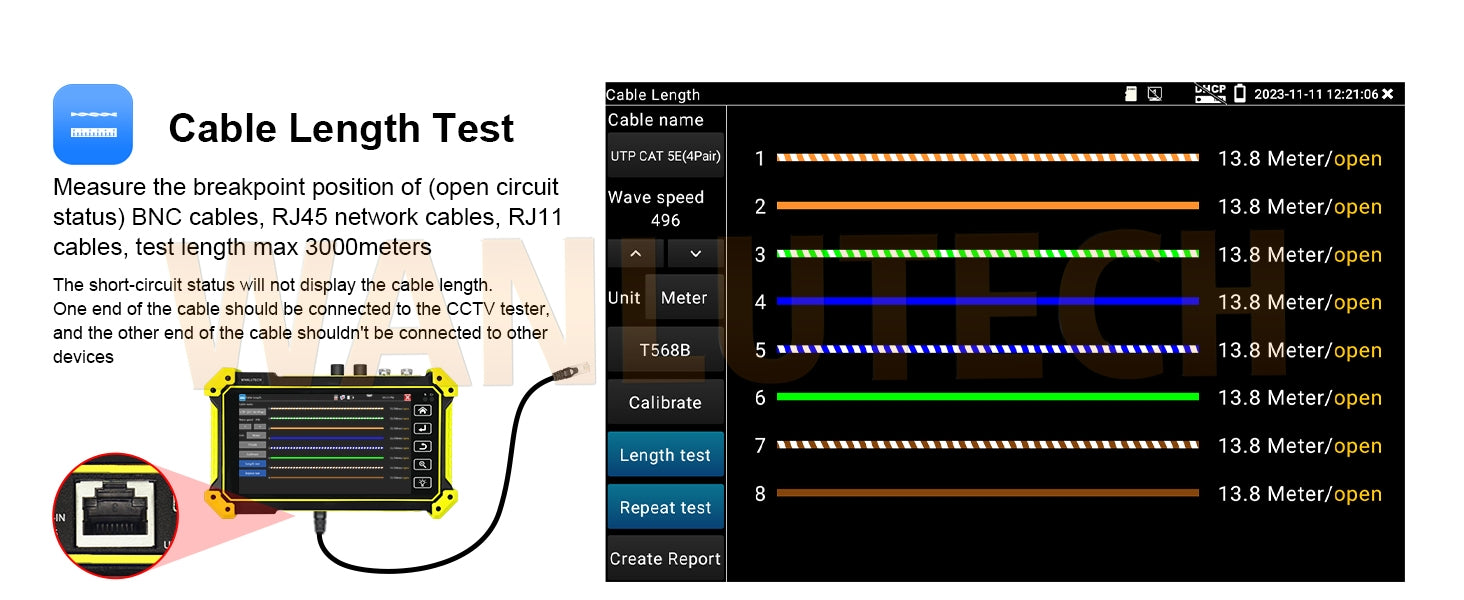

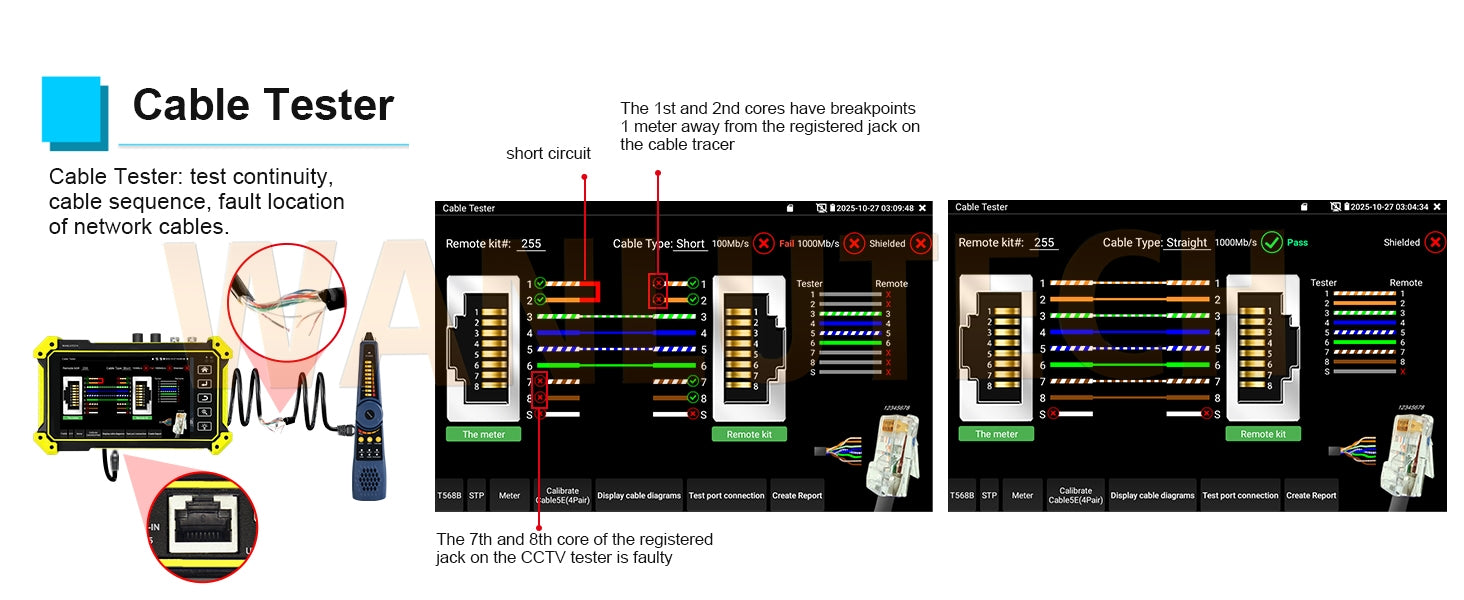

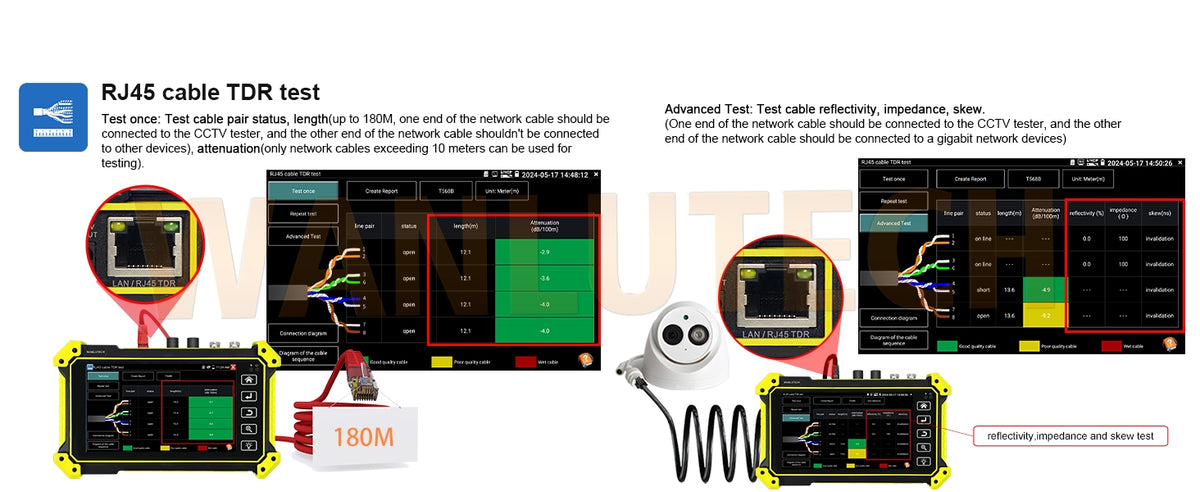

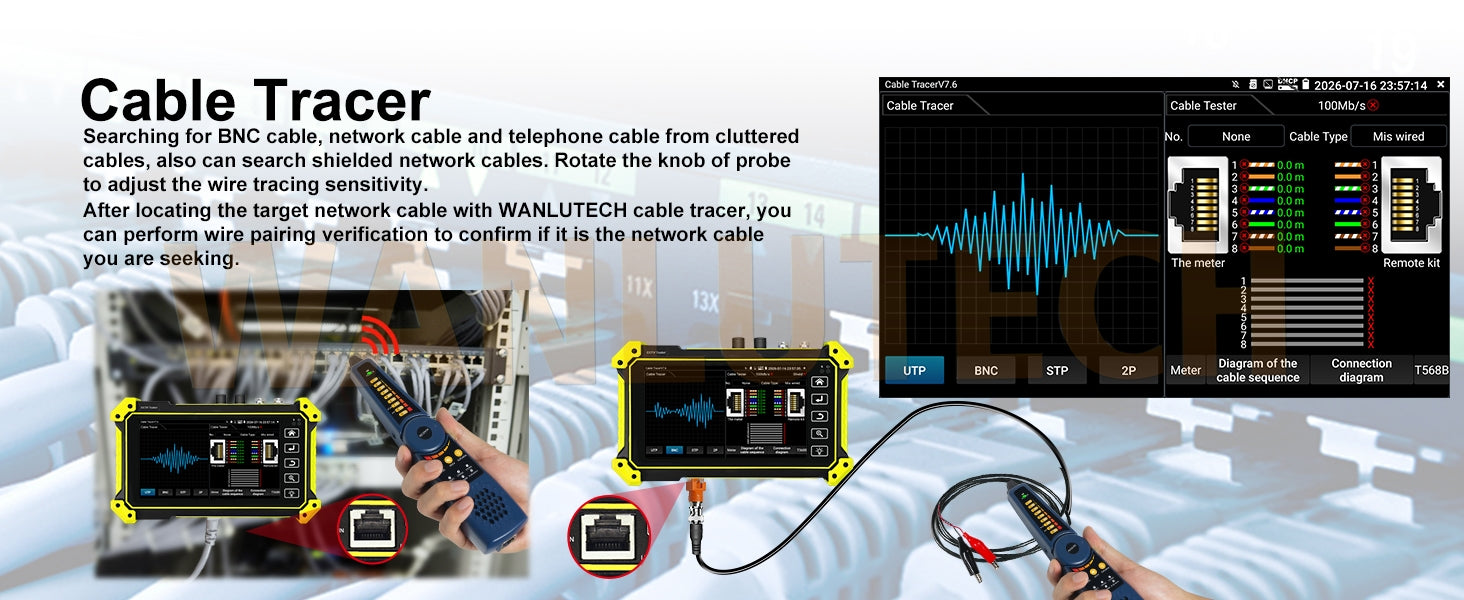

✅ Cable Tracer & Cable Tester Advanced cable tester verifies sequence and connectivity for UTP and telephone cables; supports saving test reports (custom‑report available upon request). Detects near‑end, mid‑span and far‑end faults on RJ45 connectors.RJ45 TDR test analyses pair status, cable length, attenuation, reflectivity, impedance and skew, with test‑report generation.Digital cable tracer locates BNC, network and telephone cables within tangled bundles. Supports simultaneous cable tracing and UTP cable testing.

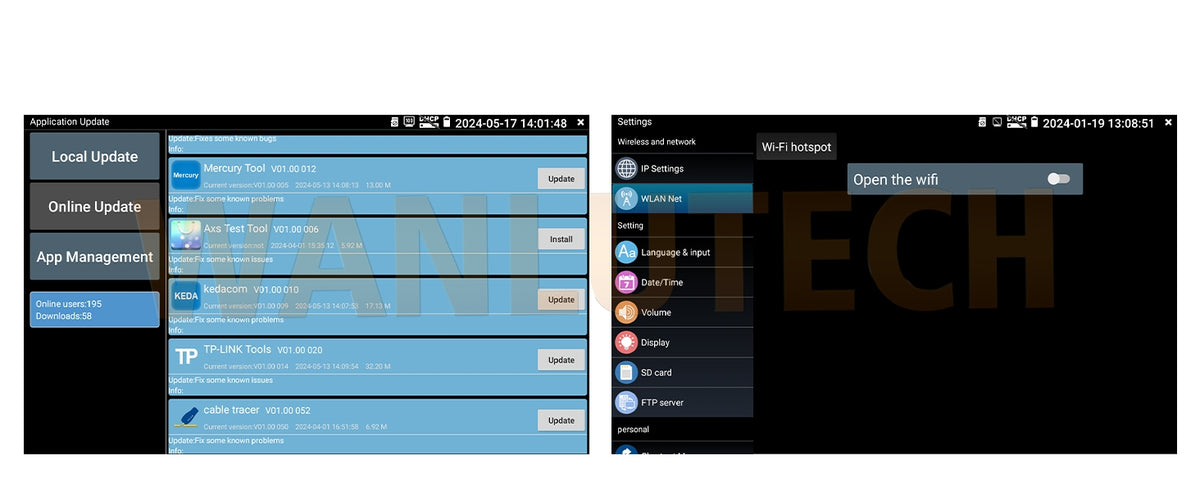

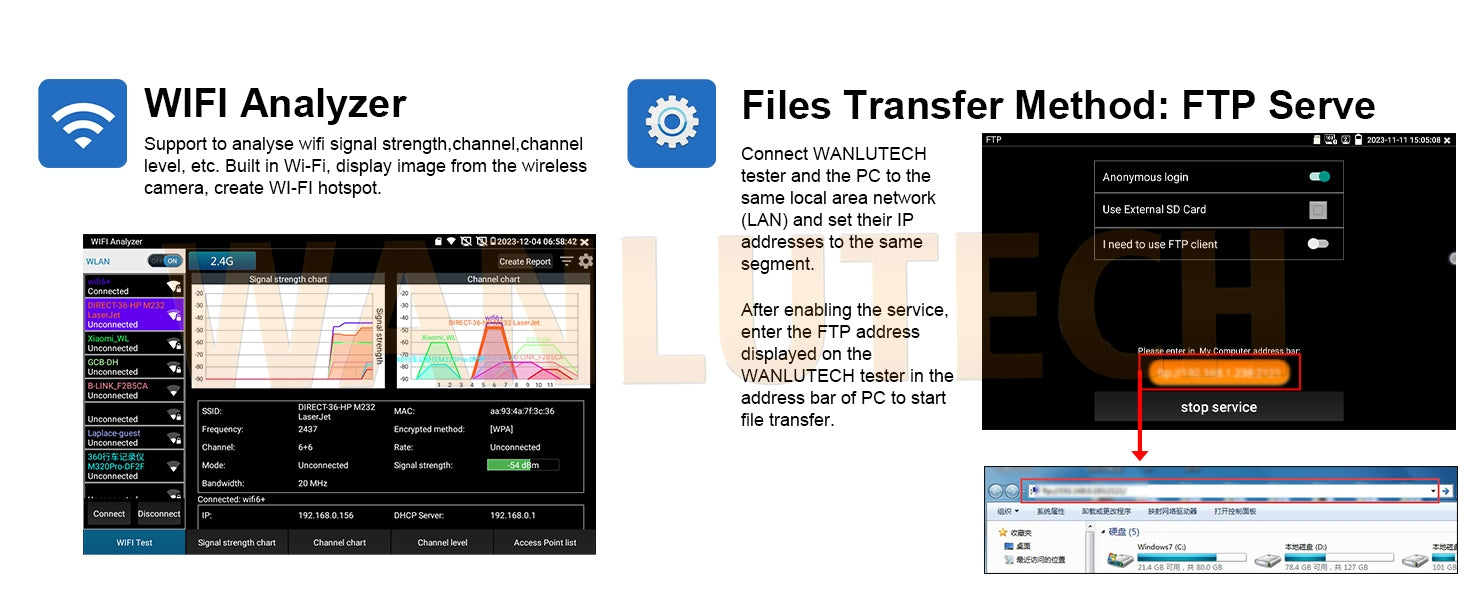

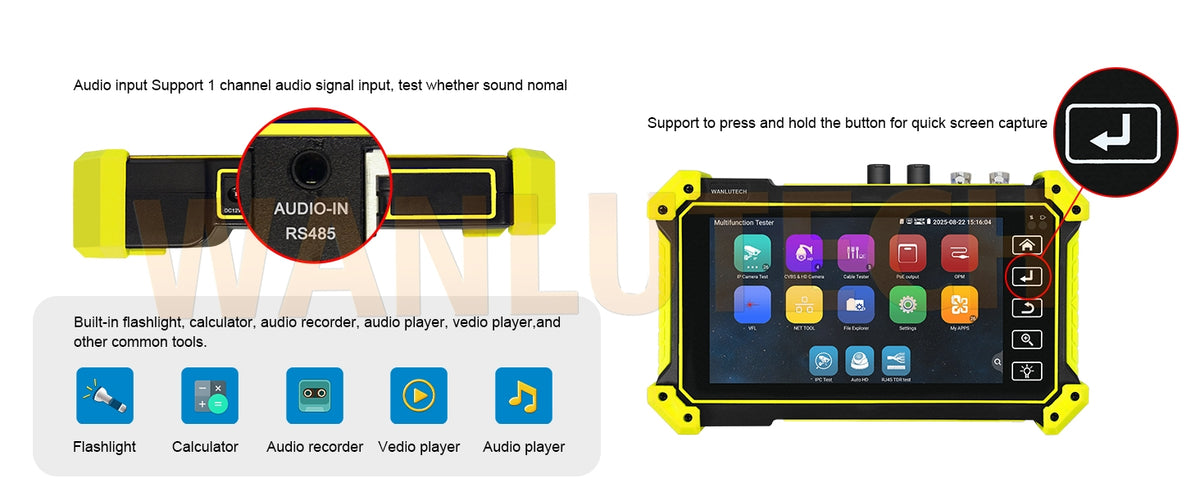

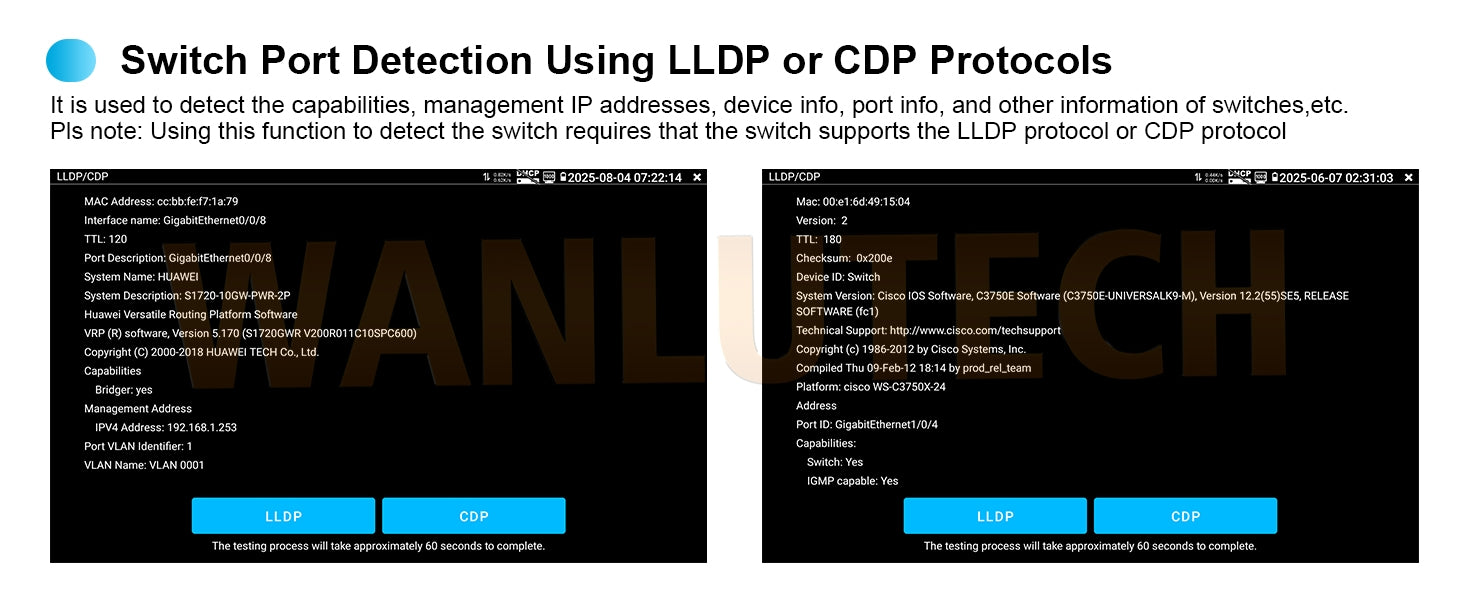

✅ Built-in network & practical tools Integrates Ping, IP Scan, Trace Route, Port Flashing and real-time network traffic monitoring. Comes with Wi-Fi hotspot, 12V/3A camera power output, 4K media player, audio recording and system self-upgrade function.

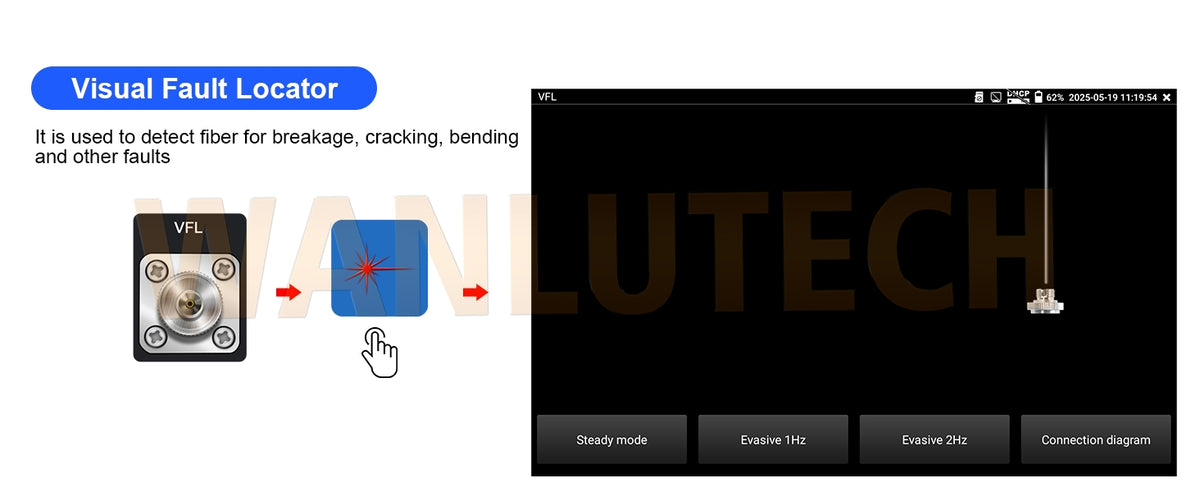

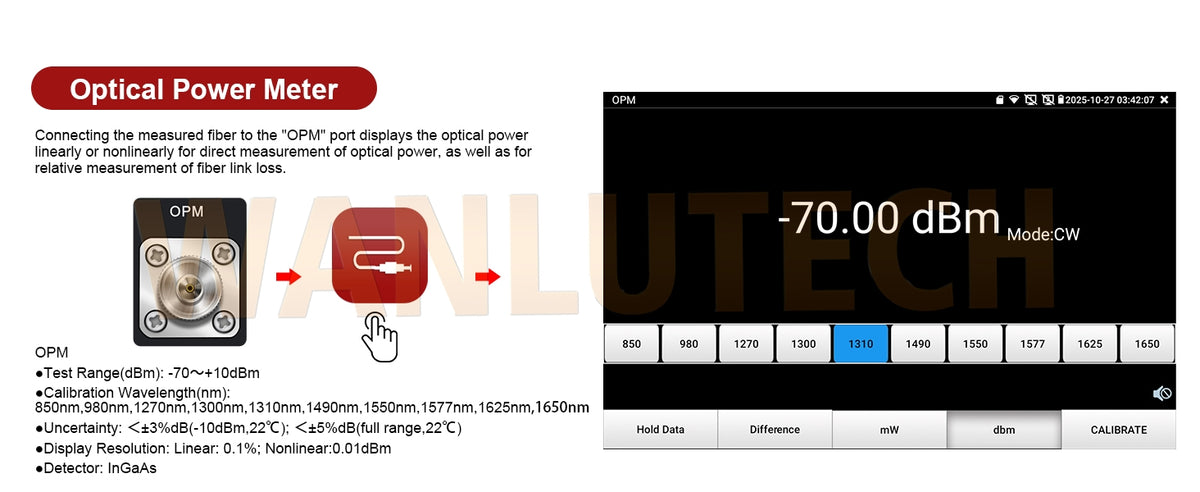

✅ OPM&VFL Optical Power Meter: connecting the measured fiber to the "OPM" port displays the optical power linearly or nonlinearly for direct measurement of optical power, as well as for relative measurement of fiber link loss. VFL, it is used to detect fiber for breakage, cracking, bending and other faults
Quick specs
Screen: 5.5” IPS Touch Screen, 1920×1080

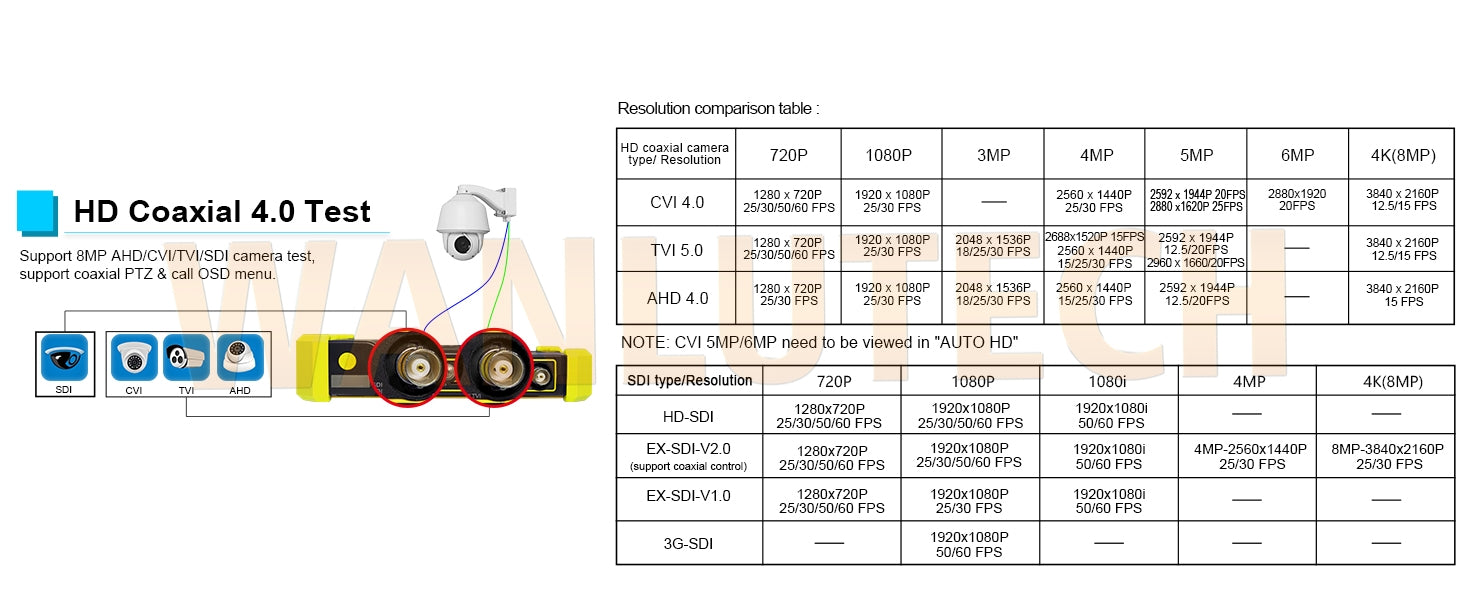

Camera Support: 4K 12MP IP / 8MP AHD/TVI/CVI/CVBS / Optional SDI

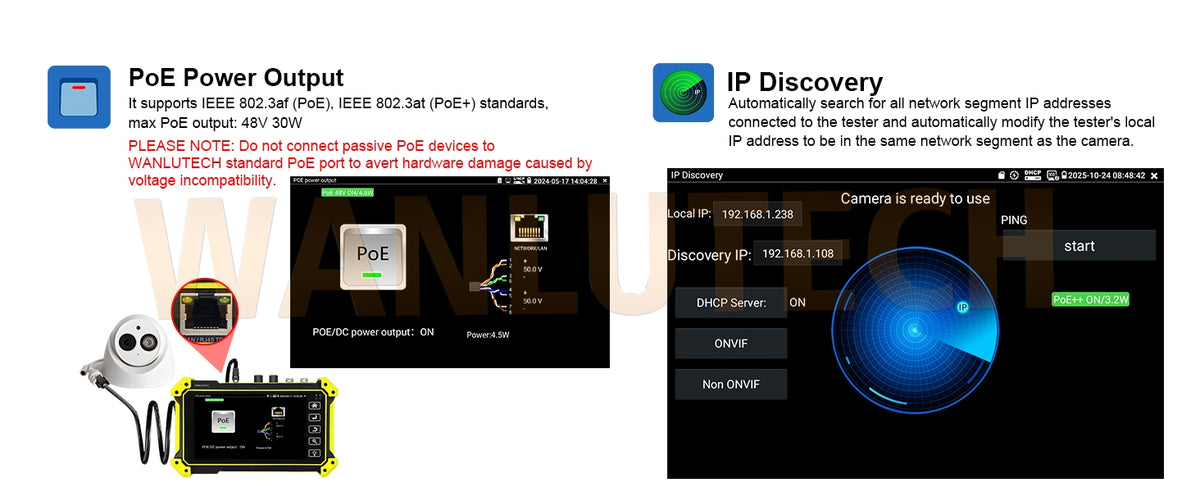

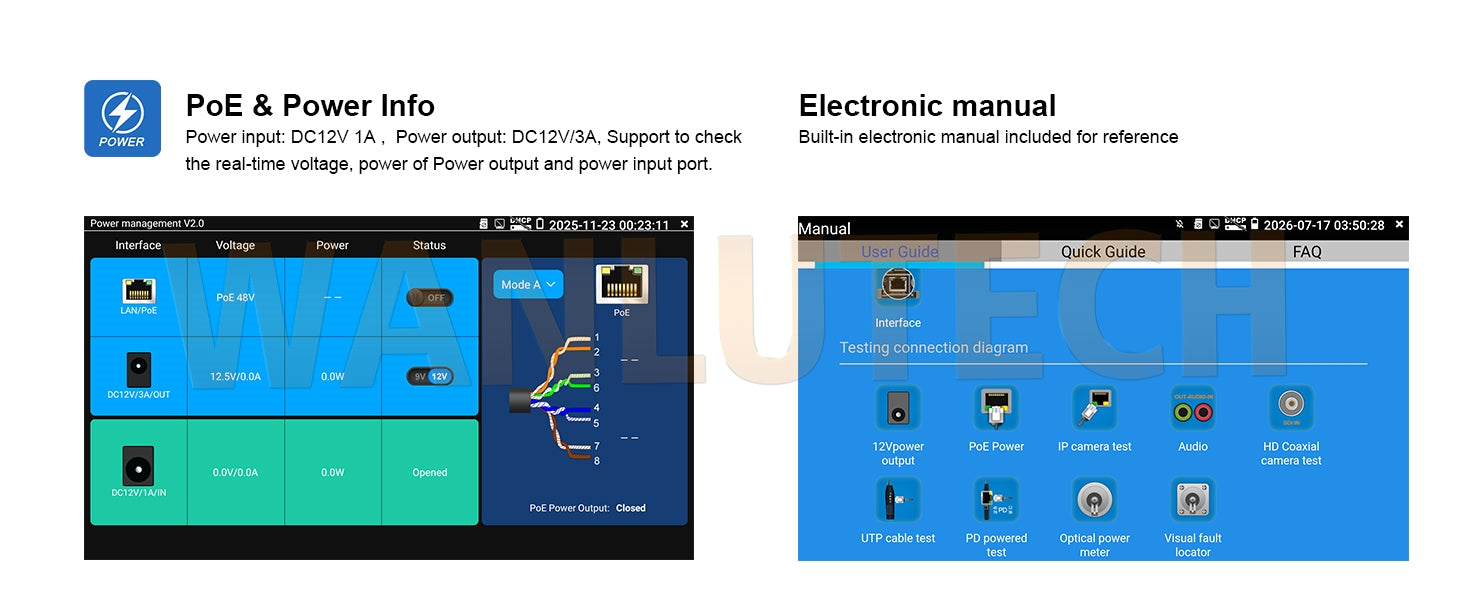

PoE Output: 48V, Max 30W DC12V/3A
camera power output Battery: 7.4V 2600mAh, 4.5H working time
Network & cable test tools built-in Multi-language support
Cable Tracer&OPM&VFL
|
Features/ Model
|
E66
|
E67
|
E68
|
|
4K H.265 IP camera test
|
√
|
√
|
√
|
|
CVBS IN
|
√
|
√
|
√
|
|
8MP AHD
|
√
|
√
|
√
|
|
8MP TVI
|
√
|
√
|
√
|
|
8MP CVI
|
√
|
√
|
√
|
|
HD-SDI/3G-SDI/EX-SDI*
|
X
|
X
|
√
|
|
HDMI IN*
|
√
|
√
|
√
|
|
Digital Cable tracer
|
X
|
√
|
√
|
|
Optical power meter
|
X
|
X
|
√
|
|
Visual fault locator
|
X
|
X
|
√
|
