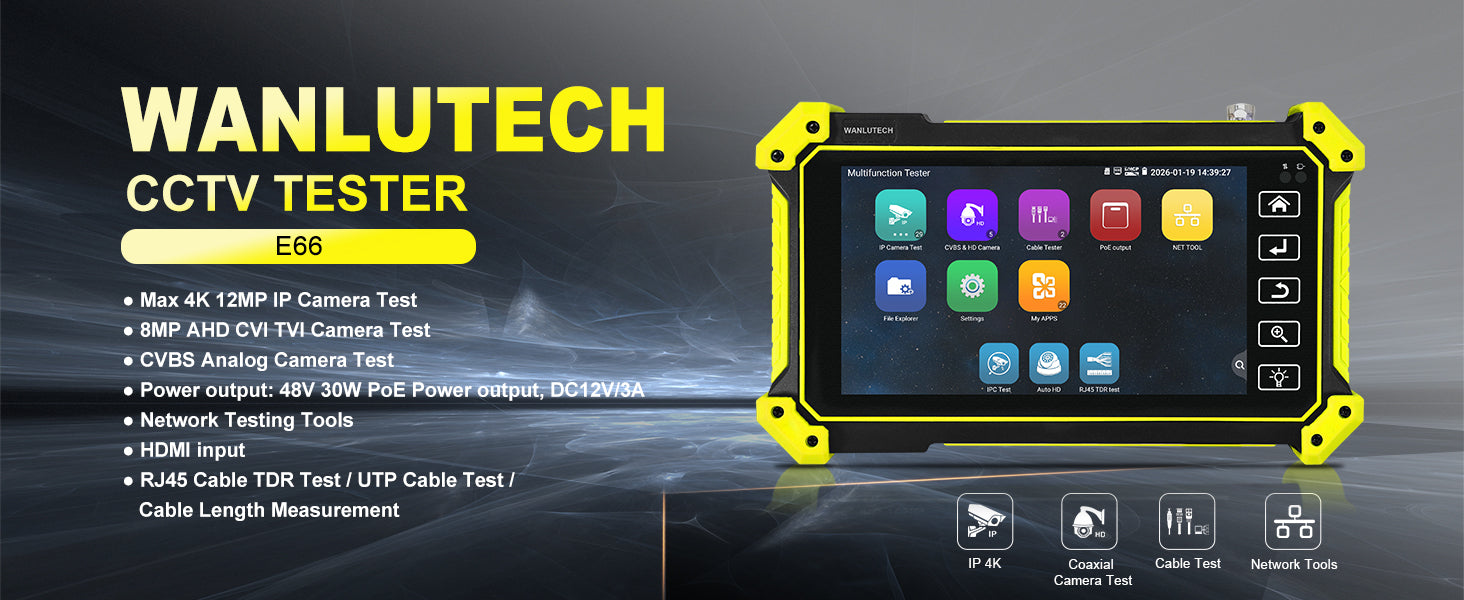

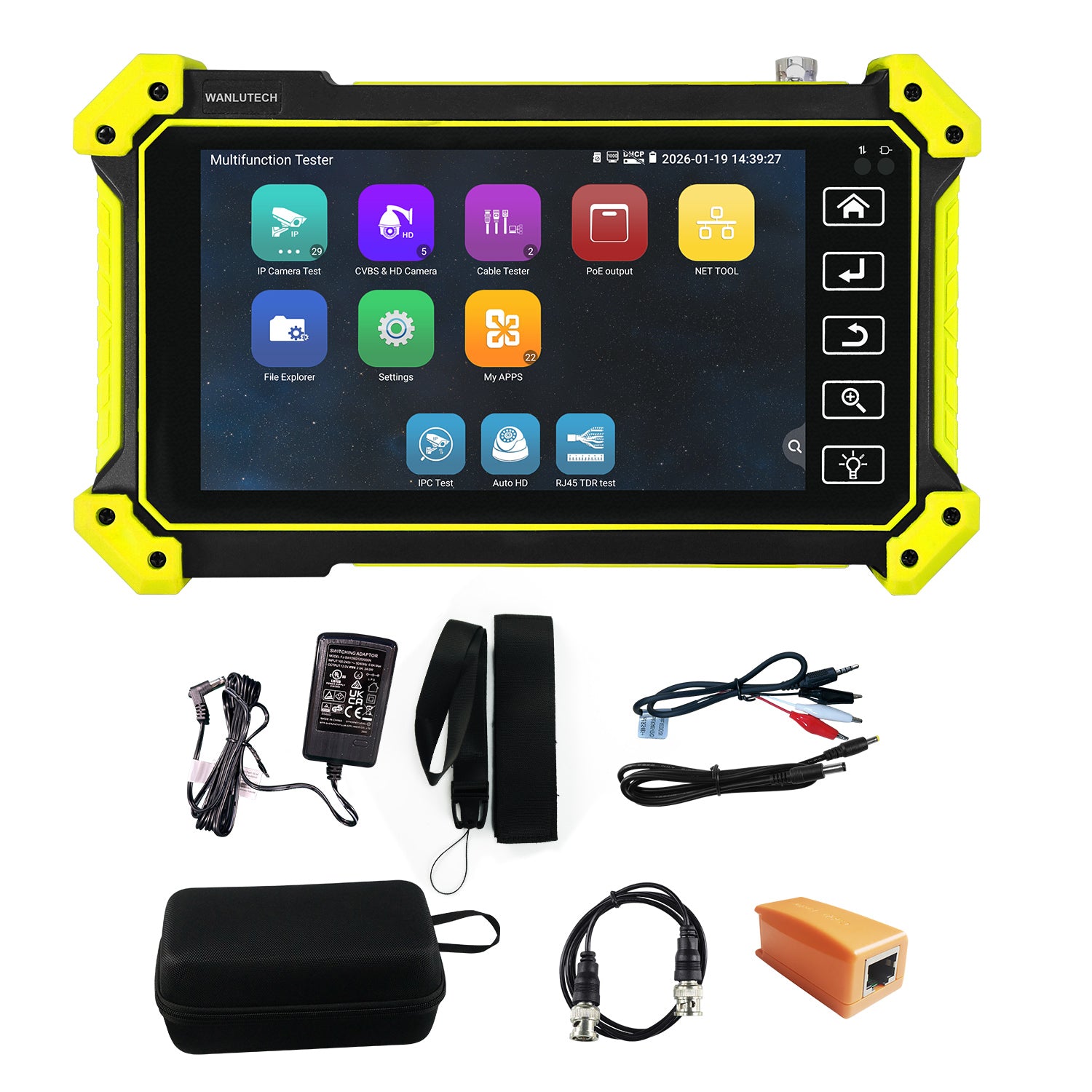

WANLUTECH E66 CCTV Tester Product Description
Camera installed but getting no signal? Unsure if the issue comes from the camera or faulty cabling?
The E66 CCTV Tester is an all-in-one troubleshooting tool for security installers. It integrates IP/analog camera testing, cable diagnosis and full network tools in one portable device, saving you from carrying multiple tools on-site.
What this tester does for you

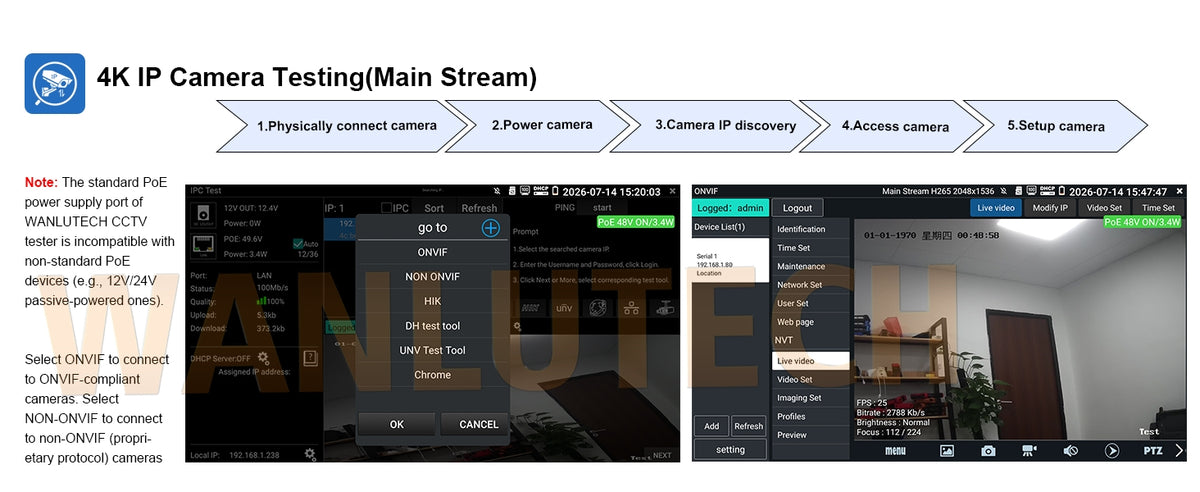

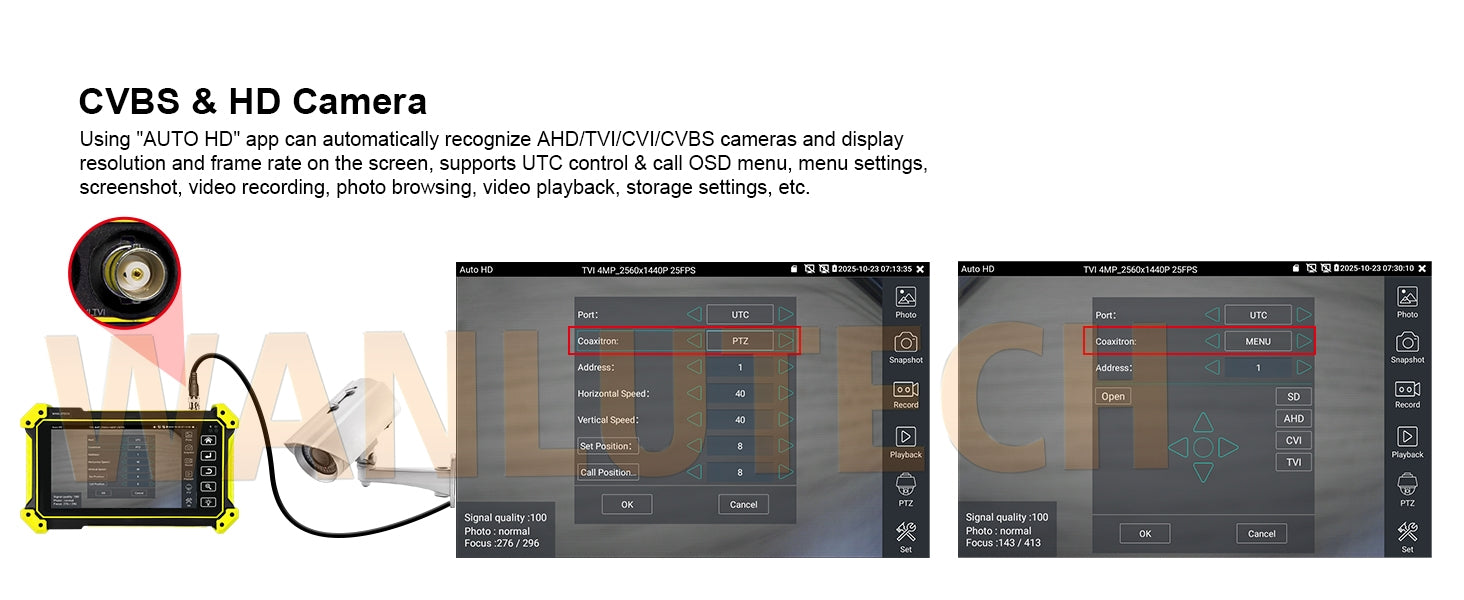

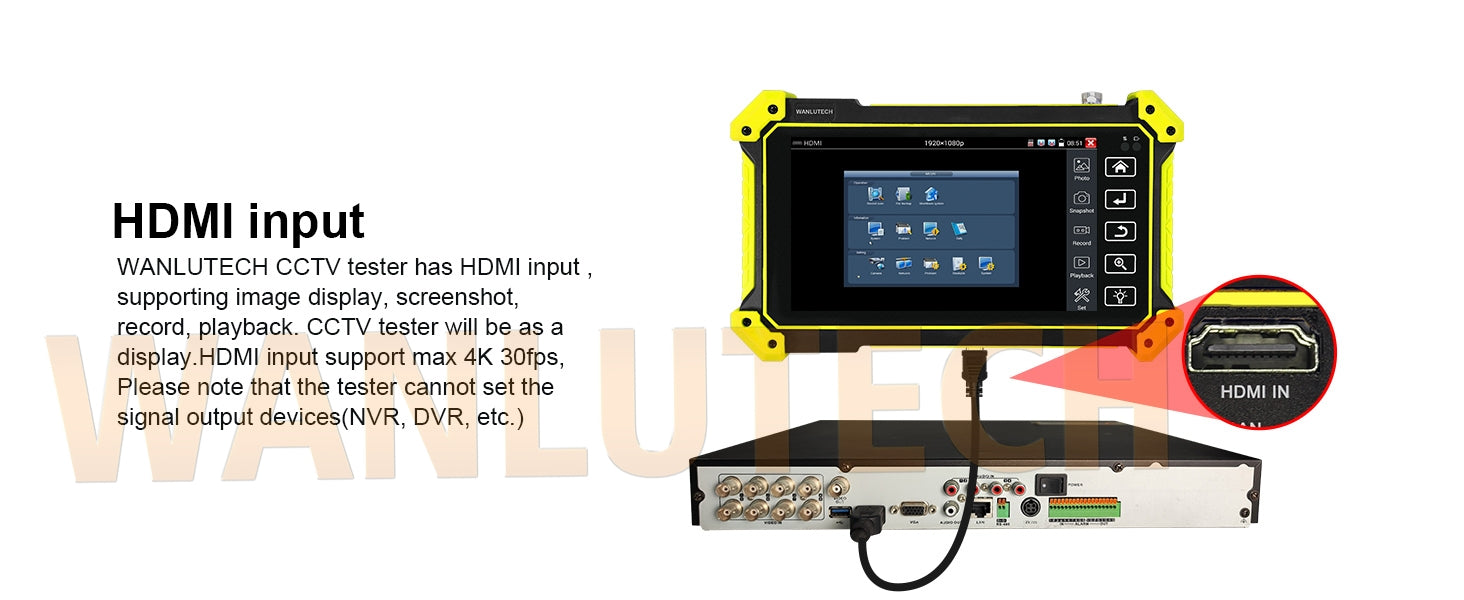

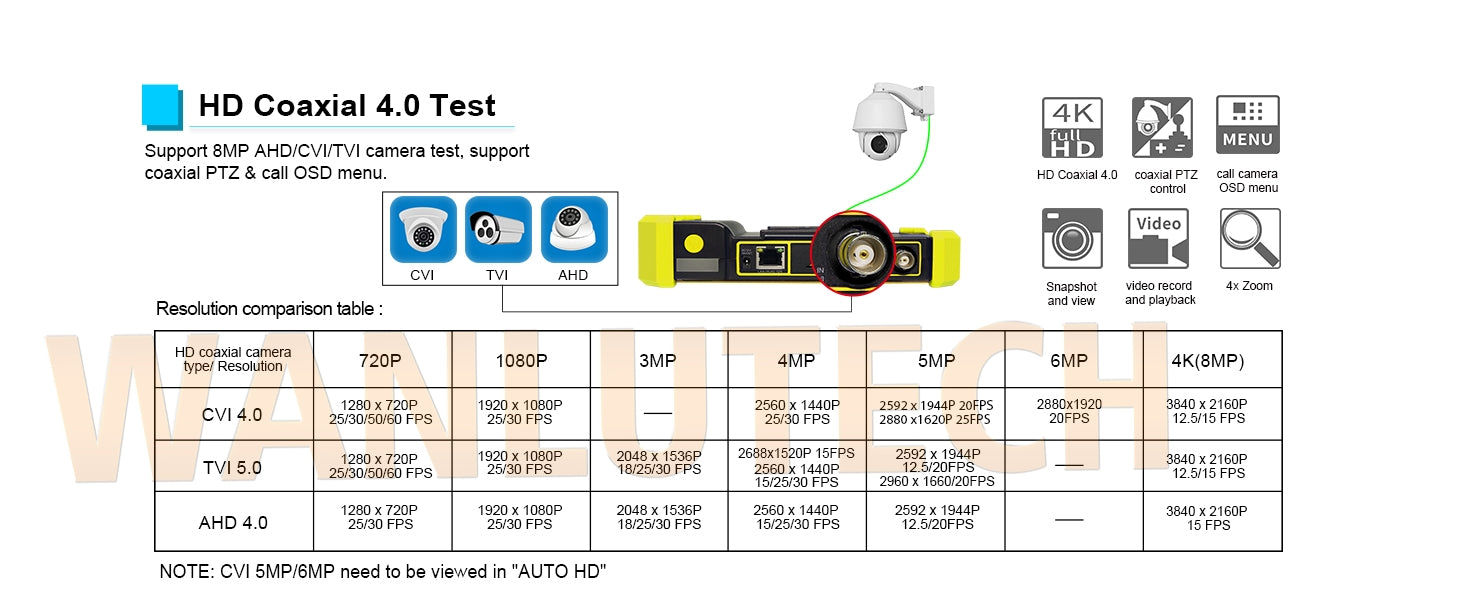

✅ Full camera compatibility Supports 4K 12MP H.264/H.265 IP cameras and 8MP AHD/TVI/CVI/CVBS analog cameras. Optional HD-SDI testing. Auto HD recognition, 4x zoom, video recording, snapshot, PTZ control and OSD menu access. It also features 4K HDMI input for external signal preview.

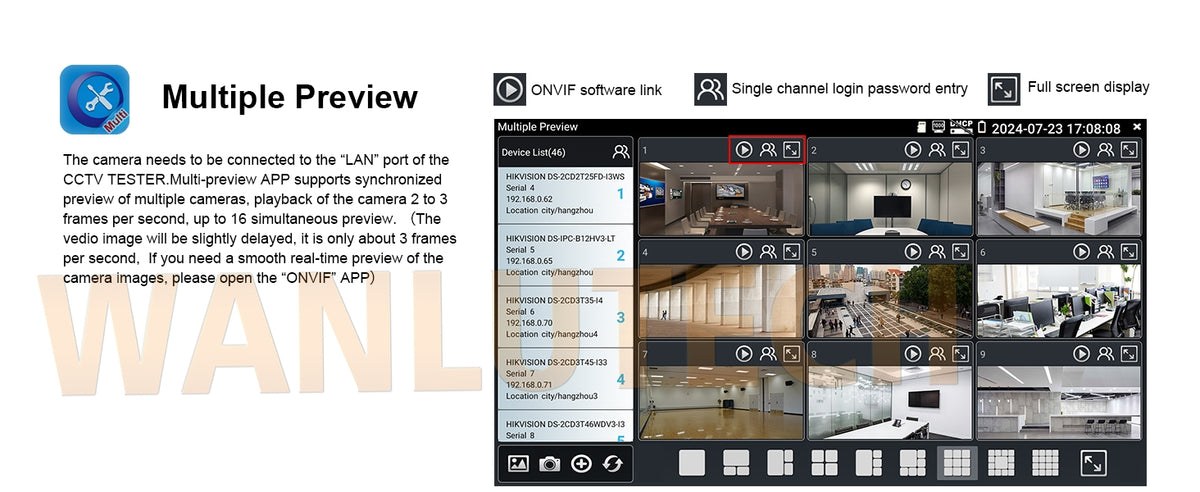

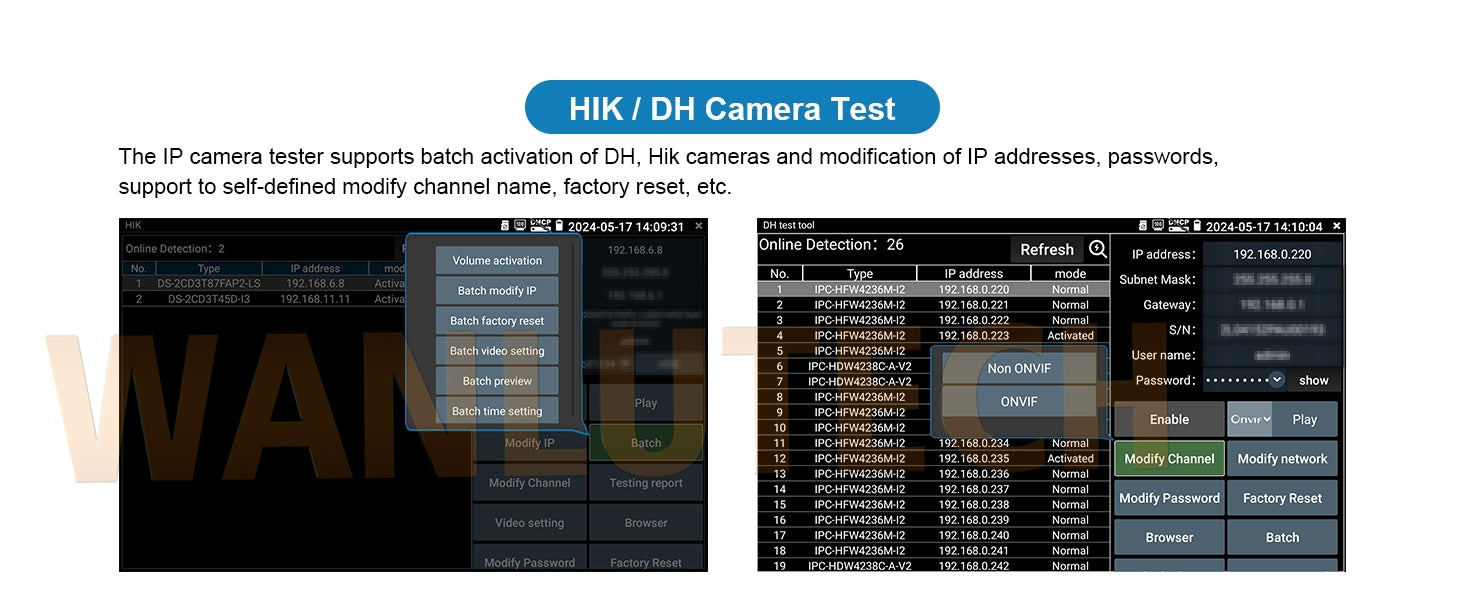

✅ Fast batch camera configuration Built-in Hikvision and Dahua tools support batch activation, IP/password modification and channel editing. Rapid ONVIF auto-scans and displays camera images instantly, compatible with all mainstream ONVIF devices.

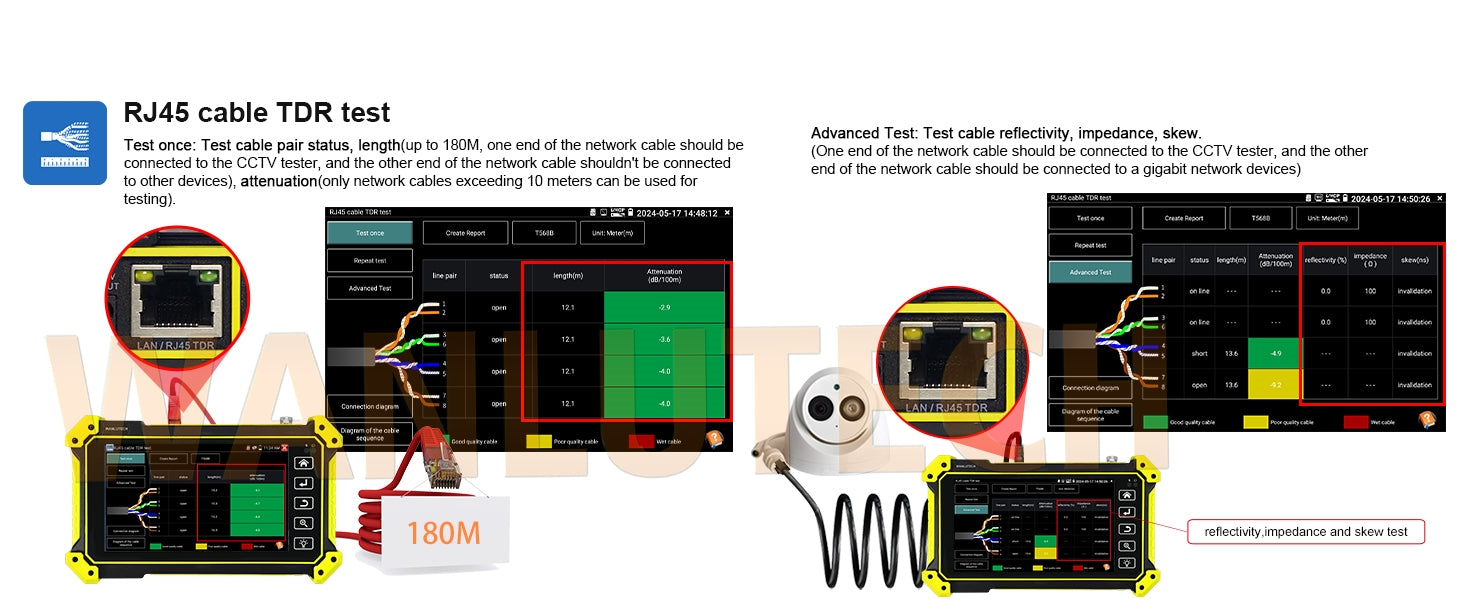

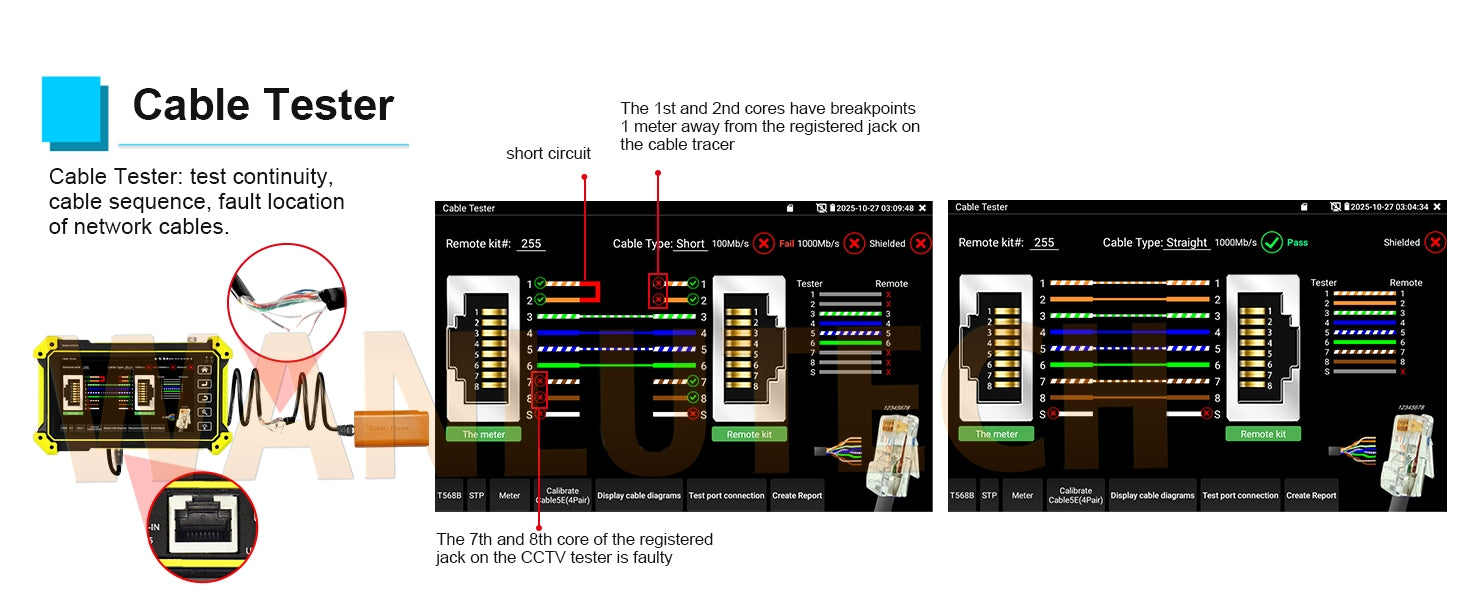

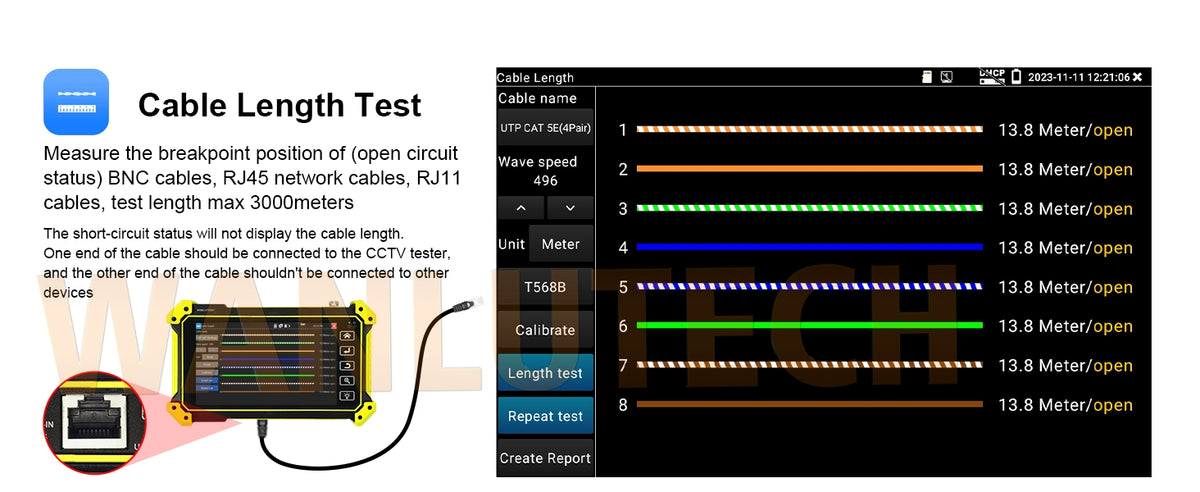

✅ Complete cable testing Equipped with RJ45 TDR test, UTP sequence and continuity test to detect cable length, impedance, attenuation and breakpoints. Optional cable tracer sorts messy network, BNC and telephone cables. All test results can be saved as reports.

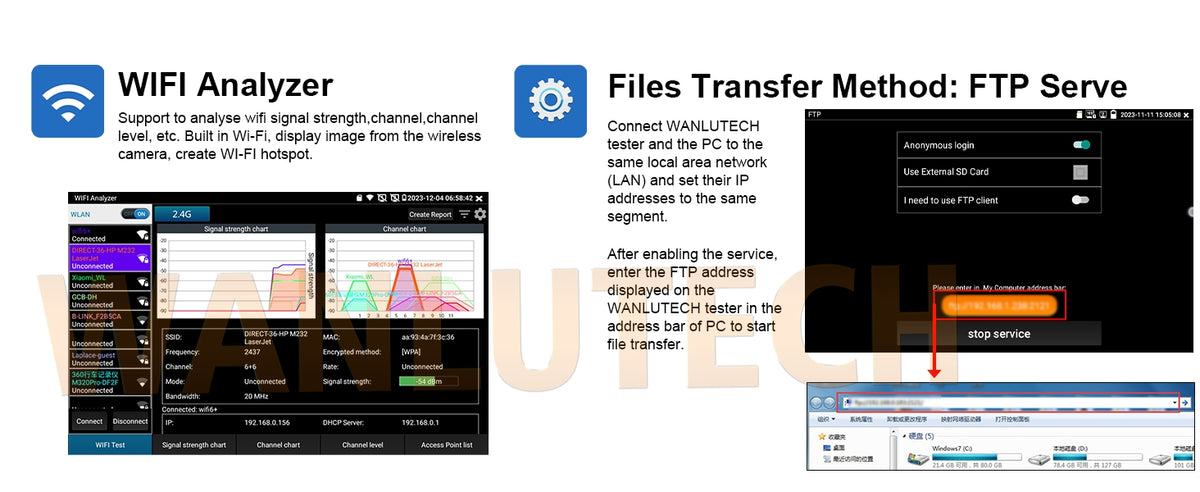

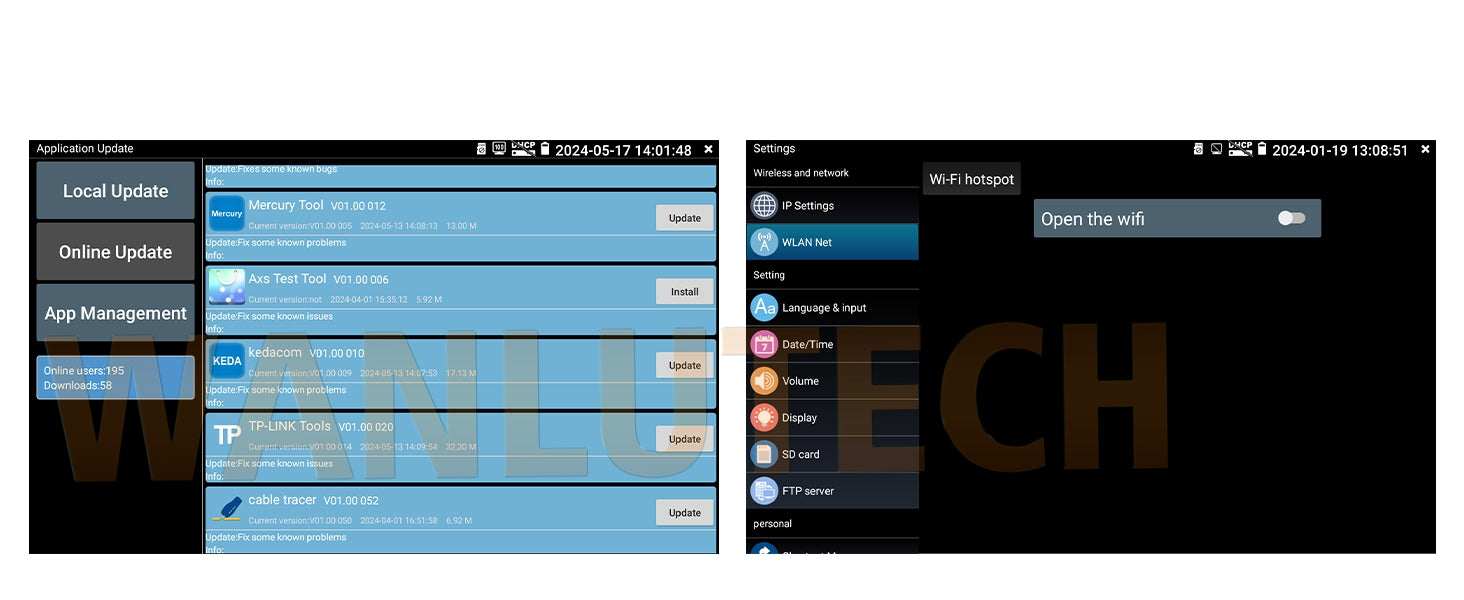

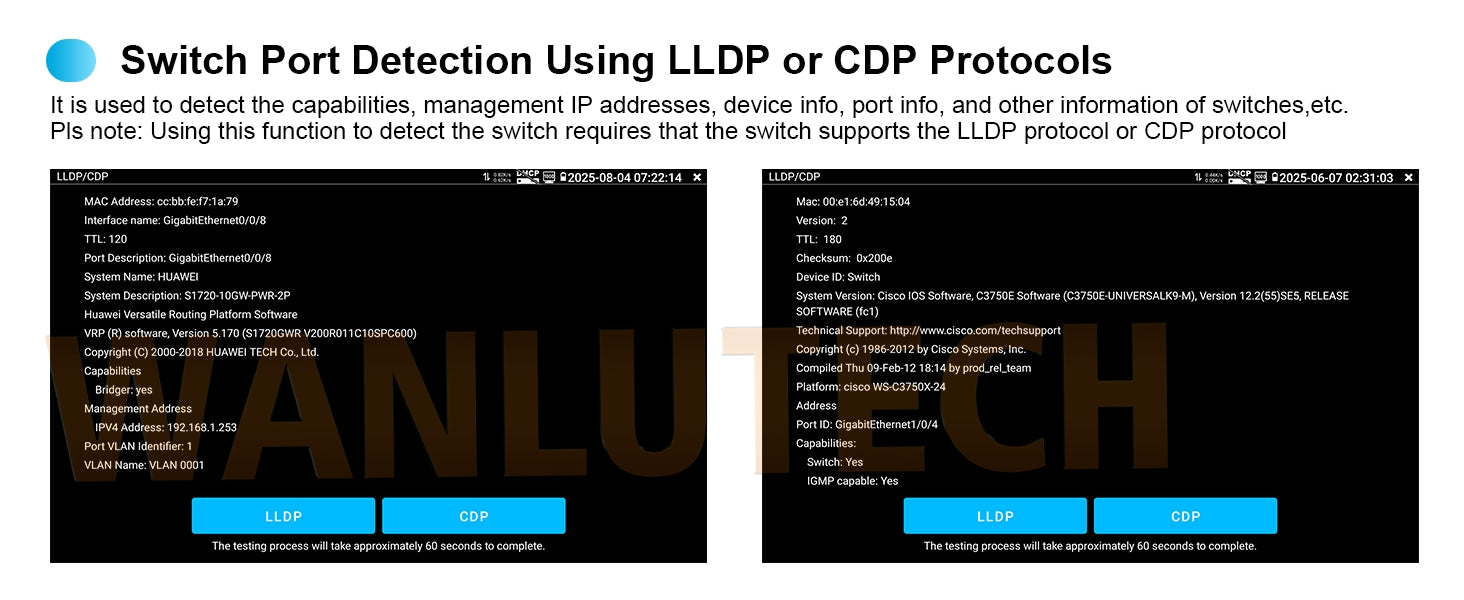

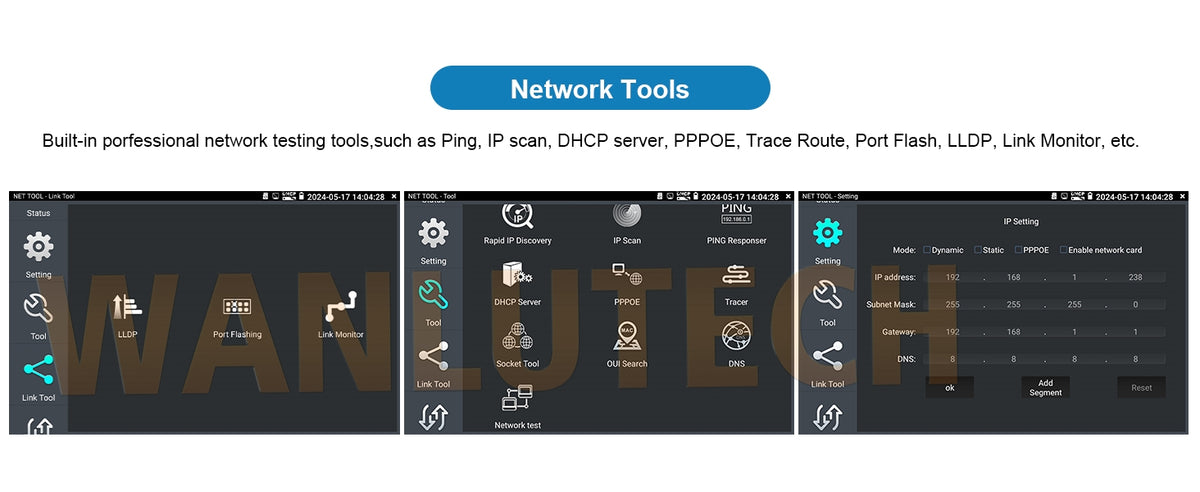

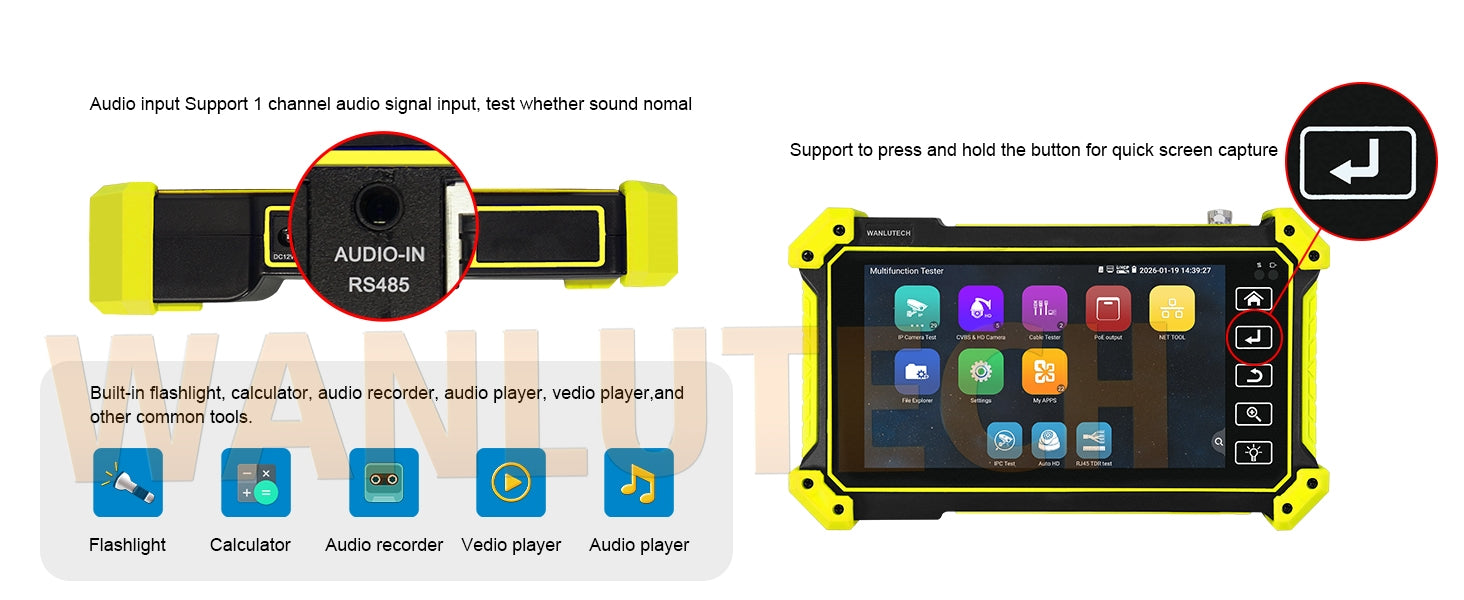

✅ Built-in network & practical tools Integrates Ping, IP Scan, Trace Route, Port Flashing and real-time network traffic monitoring. Comes with Wi-Fi hotspot, 12V/3A camera power output, 4K media player, audio recording and system self-upgrade function.
✅ Optional fiber test functions Optional Optical Power Meter and 10KM Visual Fault Locator for basic fiber inspection and link loss testing.
Quick specs
Screen: 5.5” IPS Touch Screen, 1920×1080
Camera Support: 4K 12MP IP / 8MP AHD/TVI/CVI/CVBS / Optional SDI

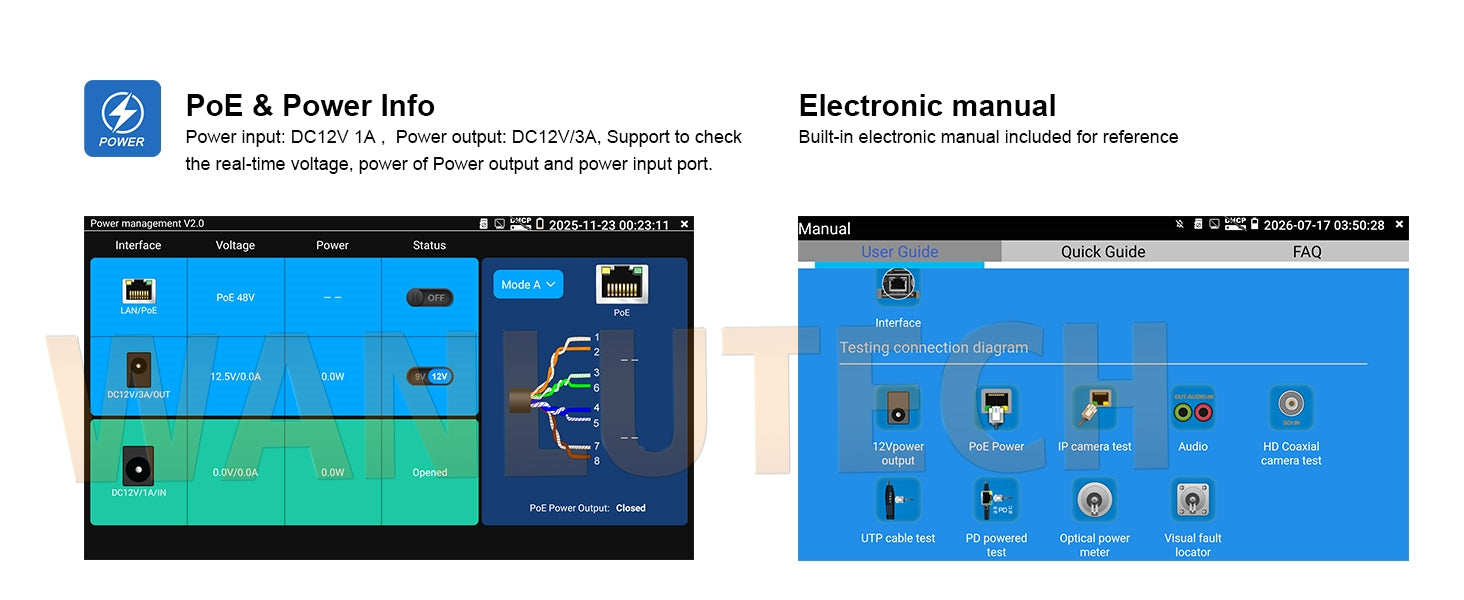

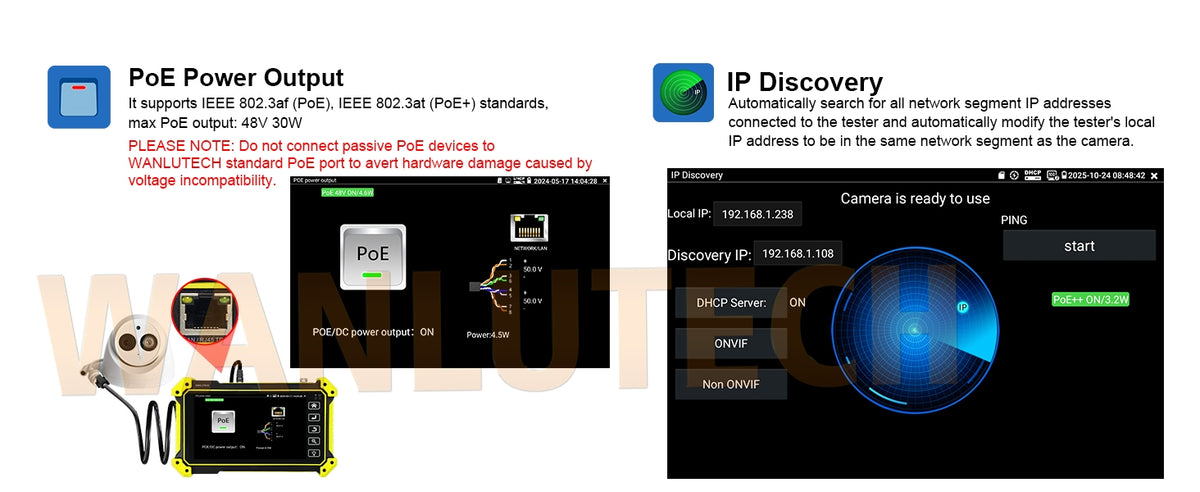

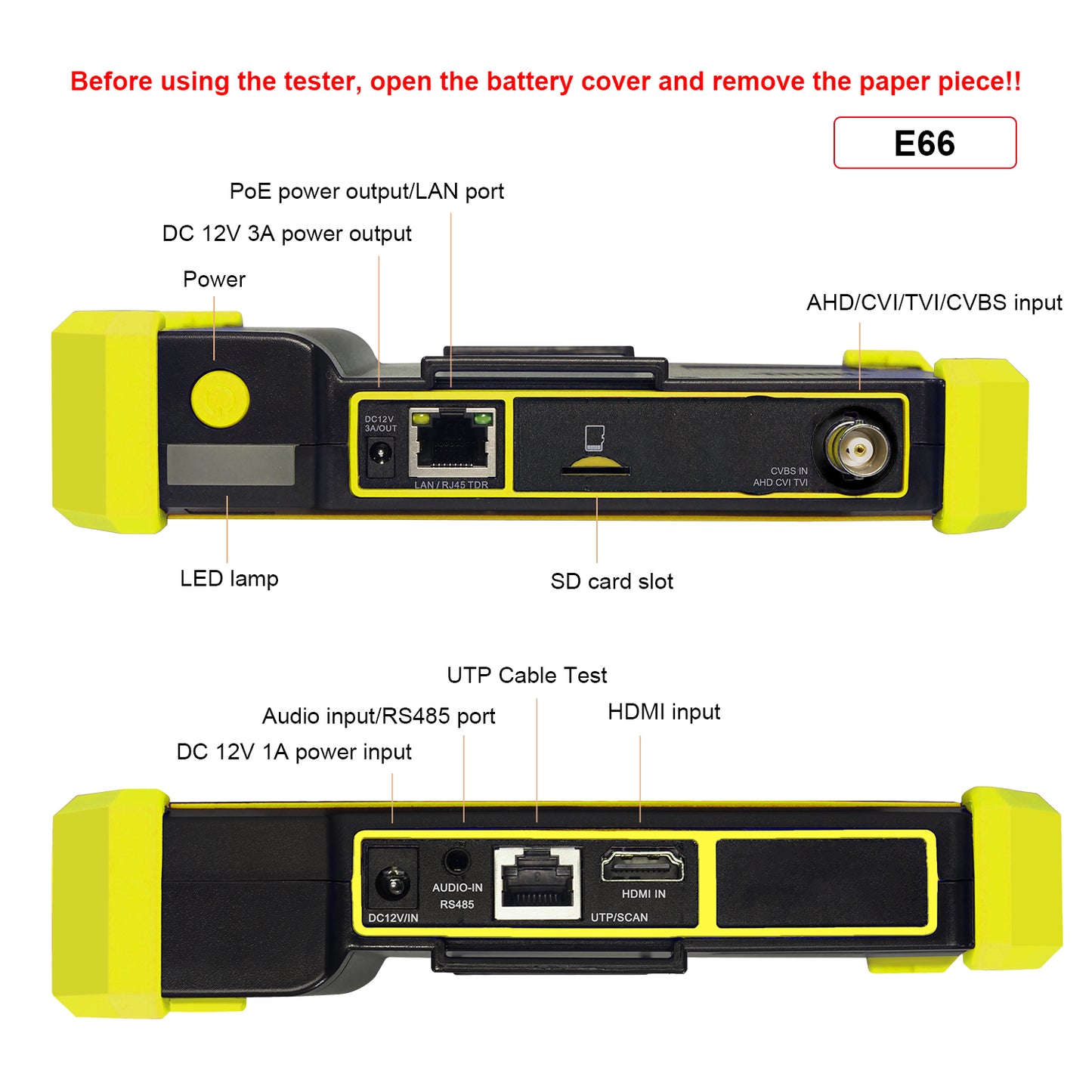

PoE Output: 48V, Max 30W DC12V/3A
camera power output Battery: 7.4V 2600mAh, 4.5H working time
Network & cable test tools built-in Multi-language support
|
Features/ Model
|
E66
|
E67
|
E68
|
|
4K H.265 IP camera test
|
√
|
√
|
√
|
|
CVBS IN
|
√
|
√
|
√
|
|
8MP AHD
|
√
|
√
|
√
|
|
8MP TVI
|
√
|
√
|
√
|
|
8MP CVI
|
√
|
√
|
√
|
|
HD-SDI/3G-SDI/EX-SDI*
|
X
|
X
|
√
|
|
HDMI IN*
|
√
|
√
|
√
|
|
Digital Cable tracer
|
X
|
√
|
√
|
|
Optical power meter
|
X
|
X
|
√
|
|
Visual fault locator
|
X
|
X
|
√
|
