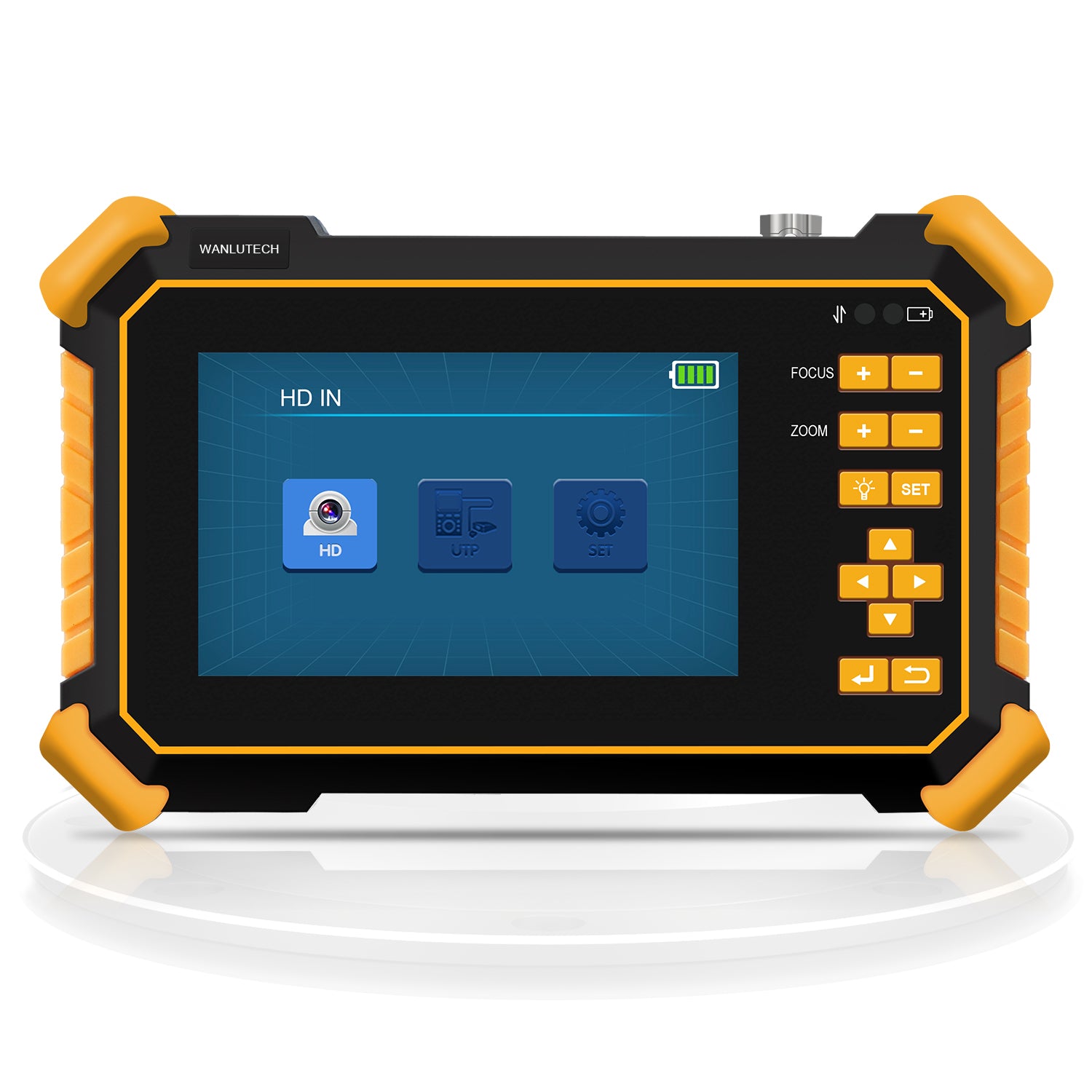

WANLUTECH CCTV Camera Tester Support 8MP TVI CVI AHD CVBS Analog Camera Tester 4.3 inches Screen RS485 PTZ Control Audio Test 12V Power Output ( HD-2900)

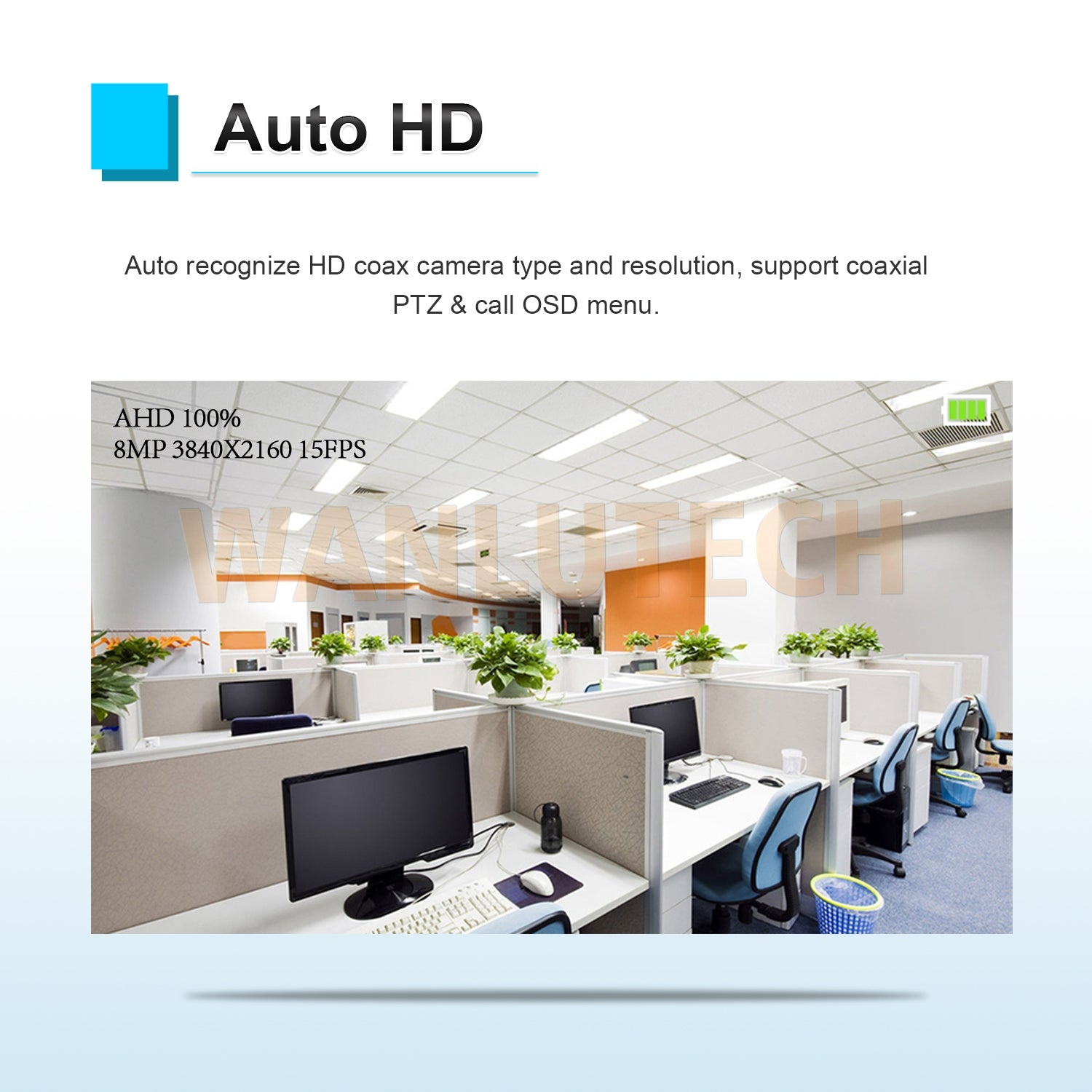

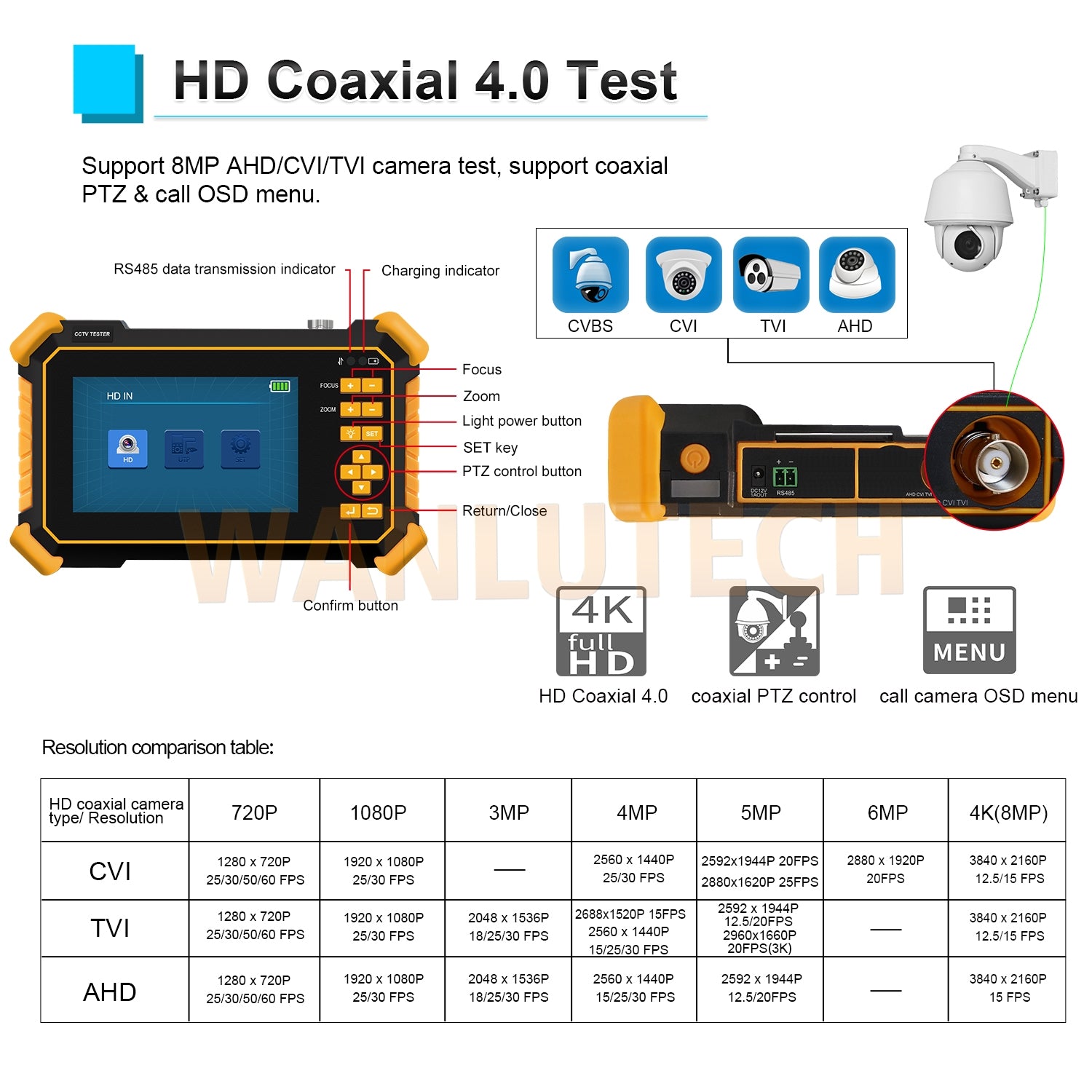

WANLUTECH CCTV camera tester supports to test max 8MP AHD/8MP TVI/8MP CVI/Analog CVBS camera. Using HD app can automatically recognize AHD CVI TVI cameras and display resolution and frame rate on the screen, support coaxial PTZ & call OSD menu

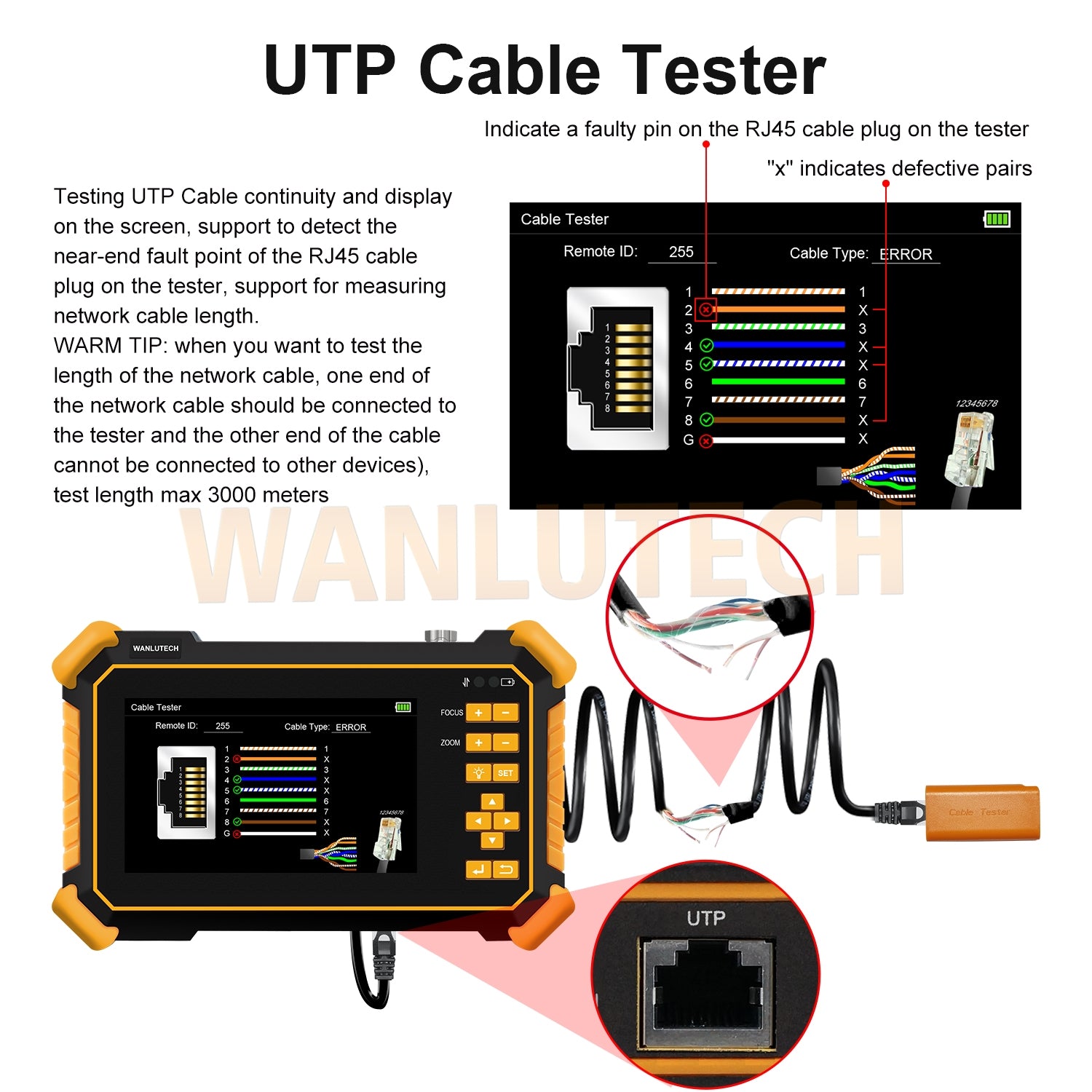

UTP Cable Tester: UTP cable continuity test and display on the screen, support to detect the near-end fault point of the RJ45 cable plug on the tester, support for measuring network cable length (When testing the length of the network cable, one end of the network cable should be connected to the tester and the other end of the cable cannot be connected to other devices), test length max 3000 meters

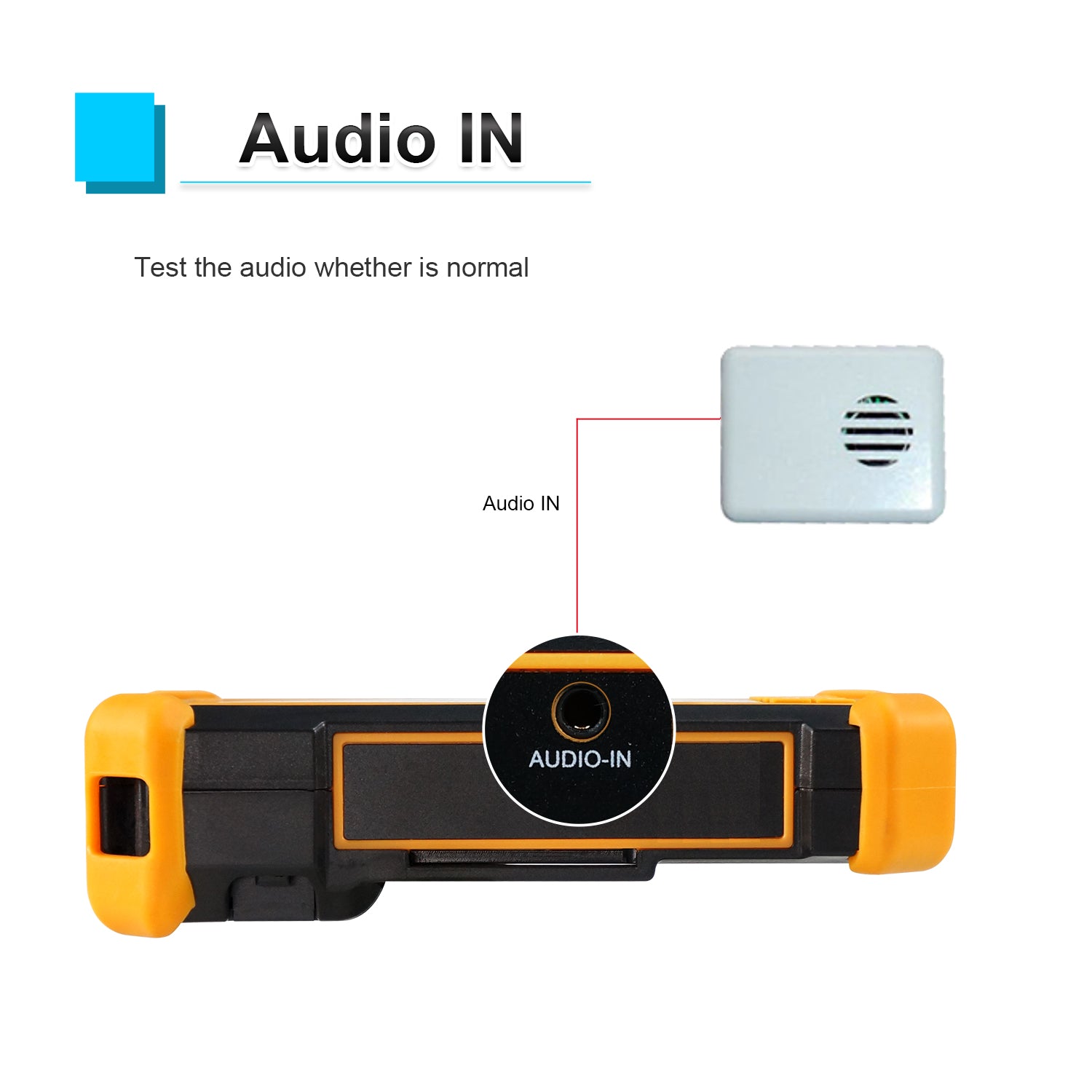

CVBS video signal test, 1 channel BNC input, NTSC/PAL (Auto adapt), PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols. Support audio test, 1 channel audio signal input, test the audio whether is normal

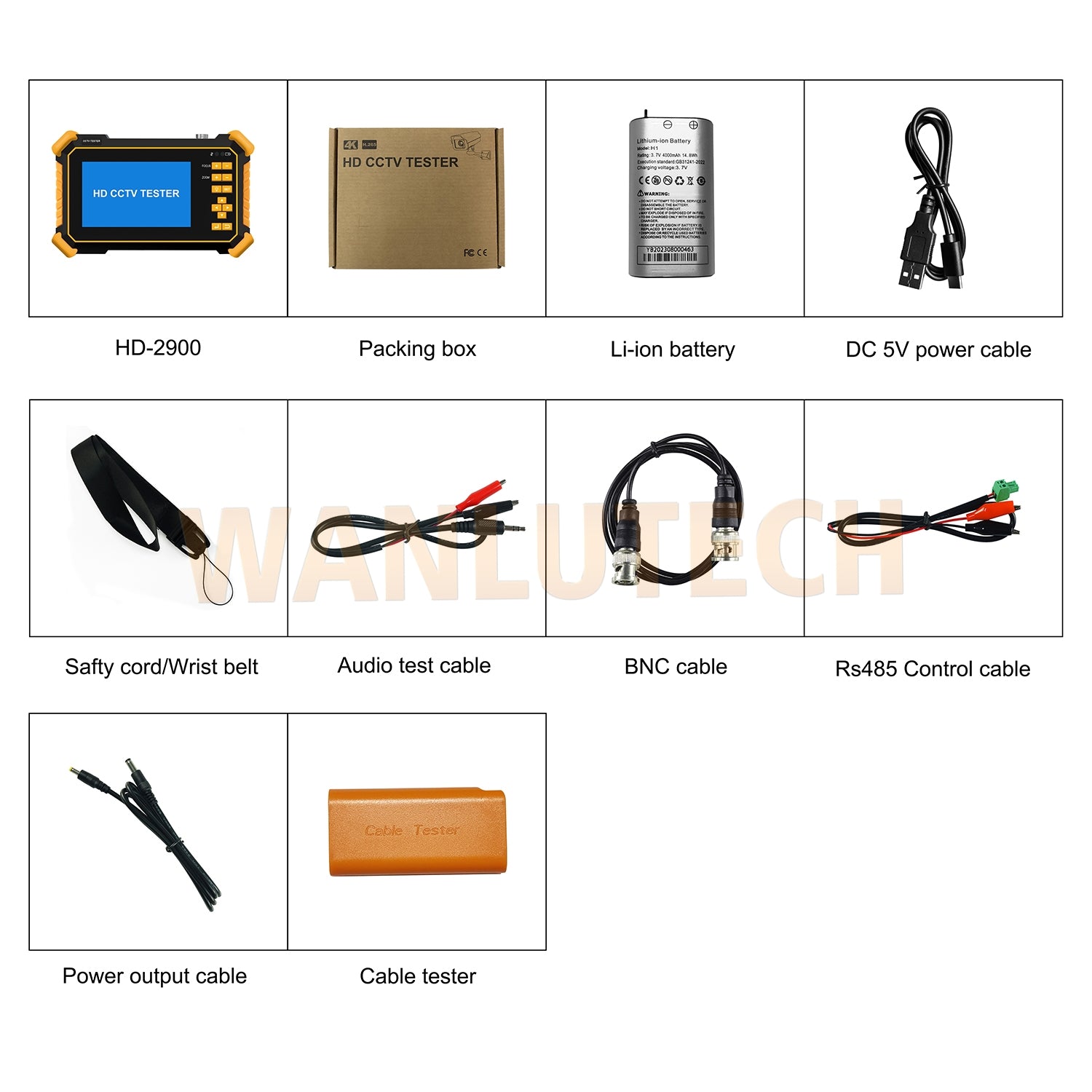

Built-in 3.7V/4000mAh battery. LED flashlight provides light for dark work environments. Power output: DC12V/1A. Power input: DC5V/2A. 4.3 inches screen, 480*272 resolution. Package include: 1x cctv tester, 1x 5V 2A USB charging cable, 1x BNC cable, 1x RS485 cable, 1x audio cable
PLEASE NOTE: there is a paper piece isolating the battery. Before using the tester, open the battery cover and remove the paper sheet. We are the manufacturer. Any questions, please let us know, We'll get back to you within 12 hours
