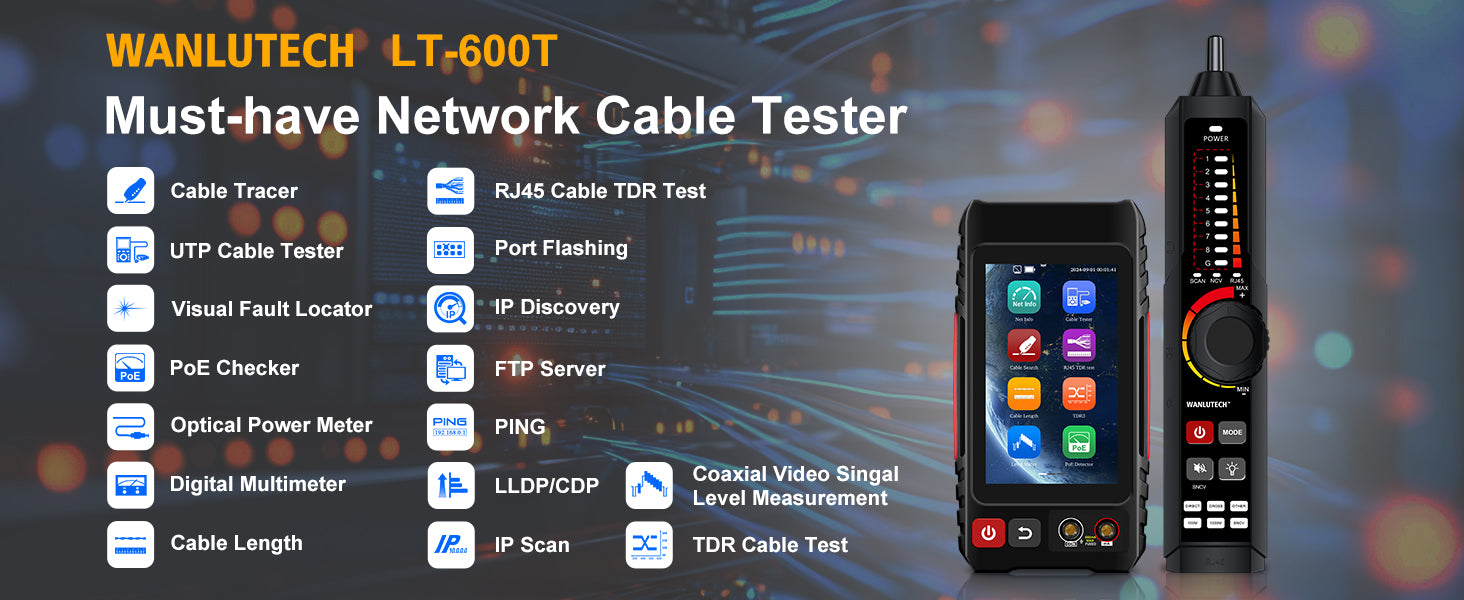

WANLUTECH All-in-One Network Cable Tester Support DMM OPM VFL TDR Cable Tester Wire Map Continuity Test Level Meter Cable Tracer PoE Check(LT-600T)

Model

WANLUTECH Network cable Tester LT-600T

Screen & Display

4 inch IPS touch screen, 800*480 resolution

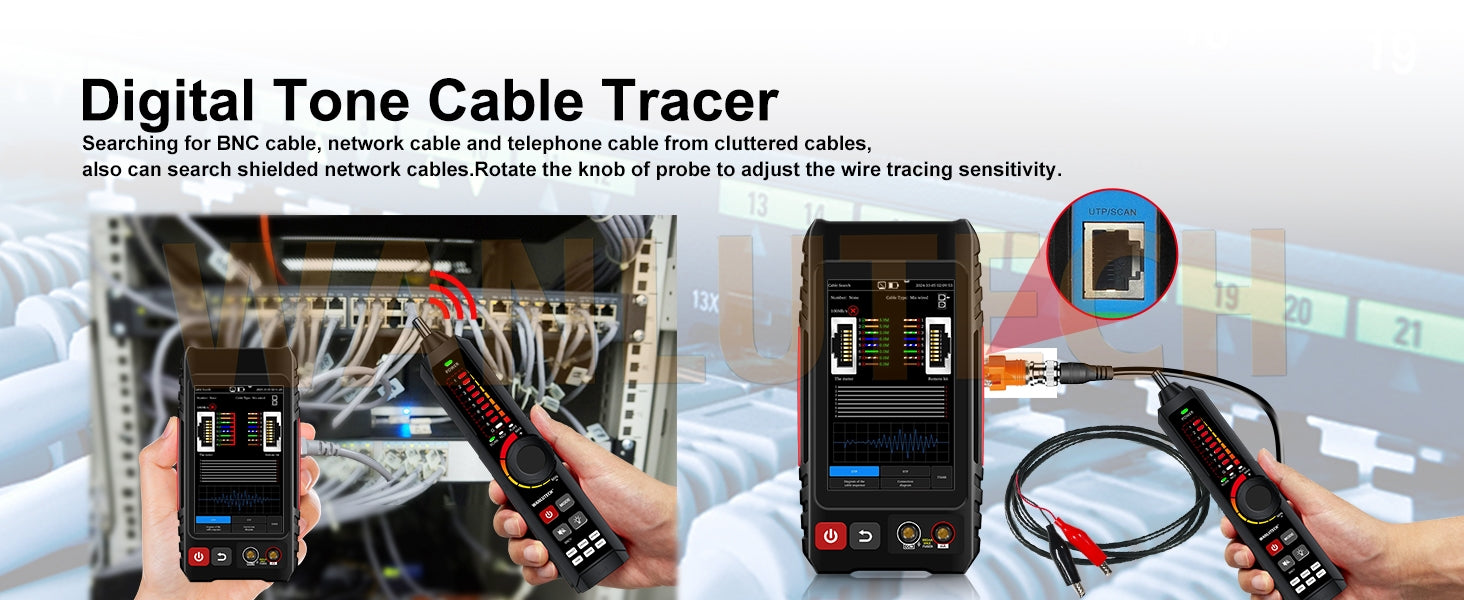

Cable Tracing/Wire Mapping/Continuity Test

Transmit Signal

Digital signal (decisively rejects noise and false signals)

Cable Types

Supports RJ45 twisted pair, RJ11 telephone cable, BNC video cable, and low-voltage metal cables.

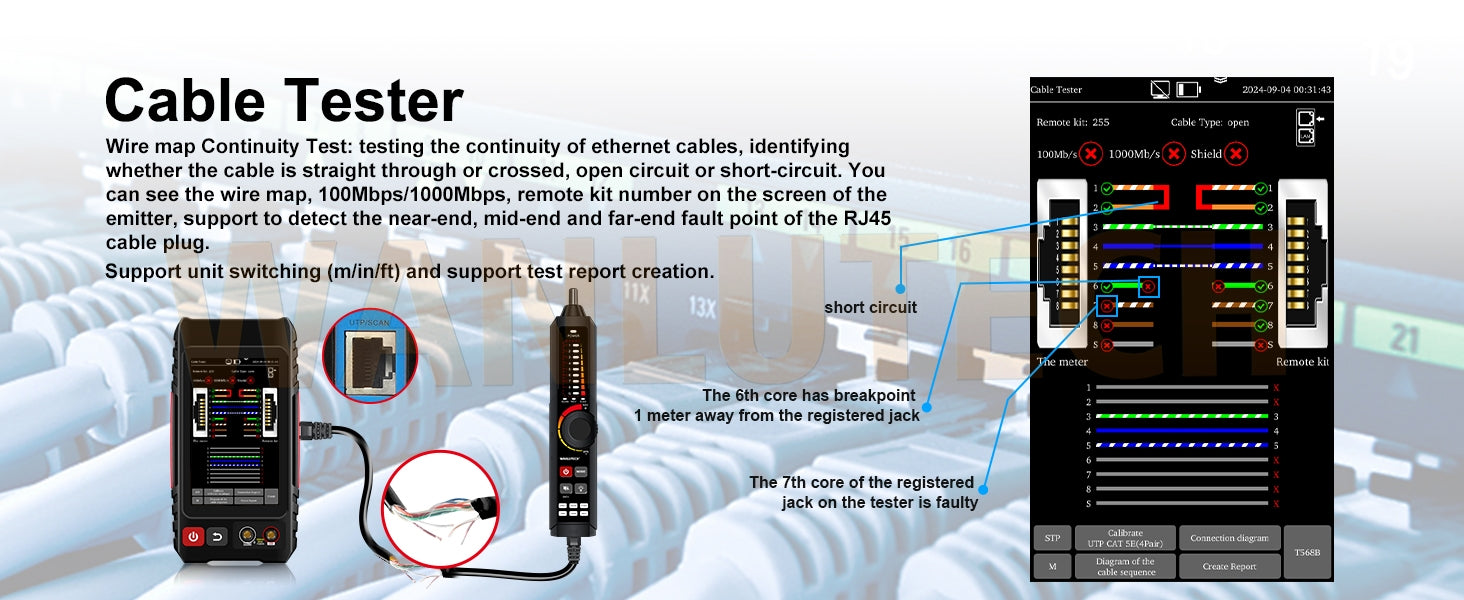

UTP Cable Test

Tests any two or more wires in a network cable. The screen displays the connection sequence, 1000/100M, and cable number. The receiver is identified through indicators.

Continuity Test

Emitter: Minimum recognition length of 10cm

Receiver: Minimum recognition length of 1m

Short Circuit Detection

Supports network cable short circuit detection

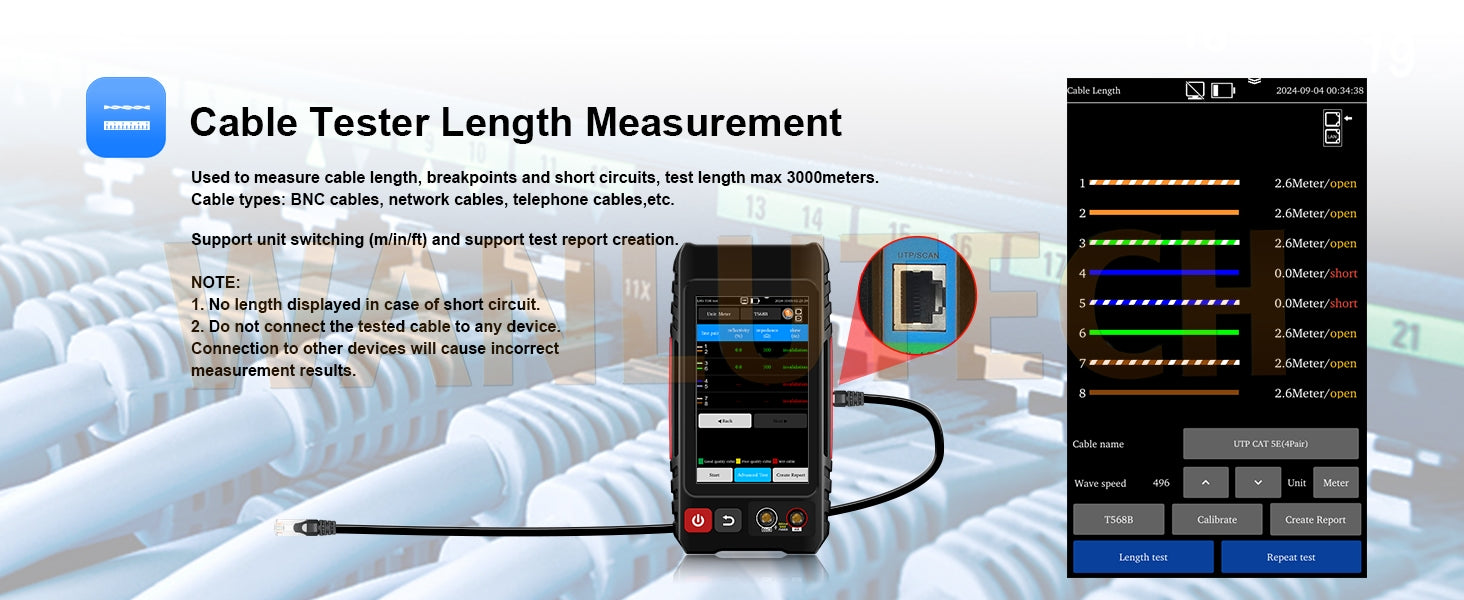

Length Measurement

Measure opens of network cables ,max measurement length up to 3000 meters. Accuracy: Cable length x 3% ± 1m

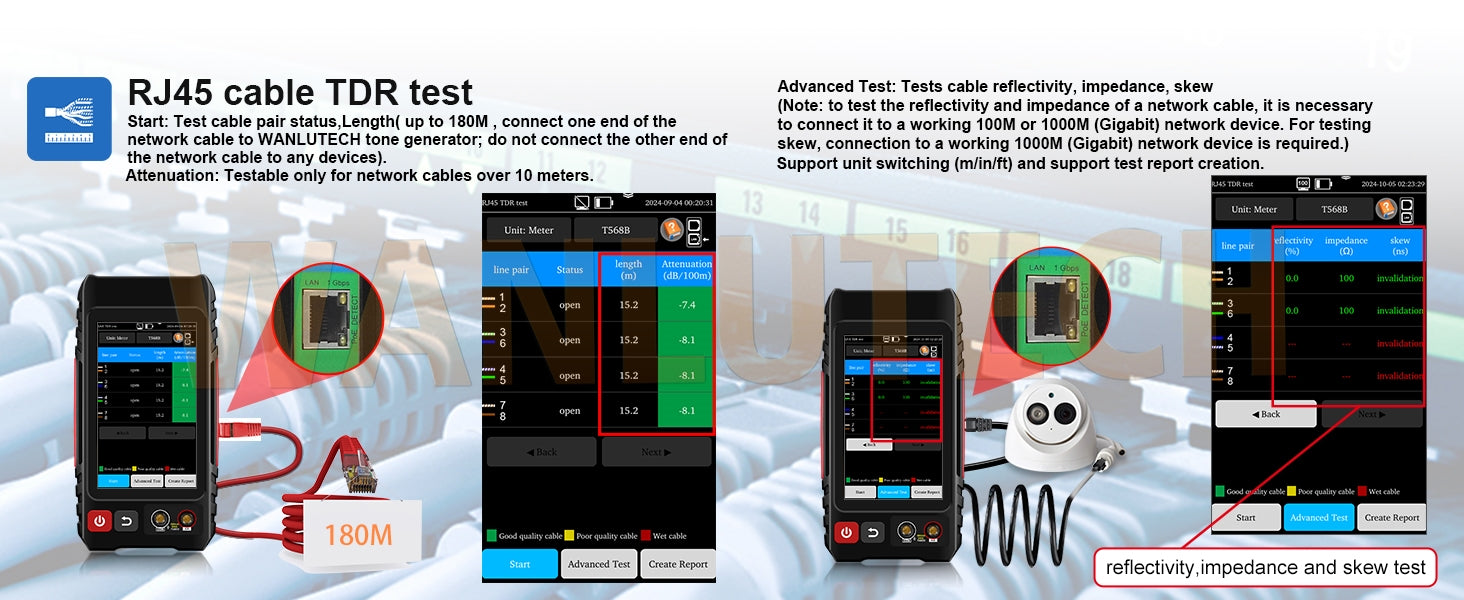

RJ45 cable TDR test

Test cable’s pair status, length, attenuation reflectivity, impedance, skew, and other parameters. Maximum measurable length up to 180 meters

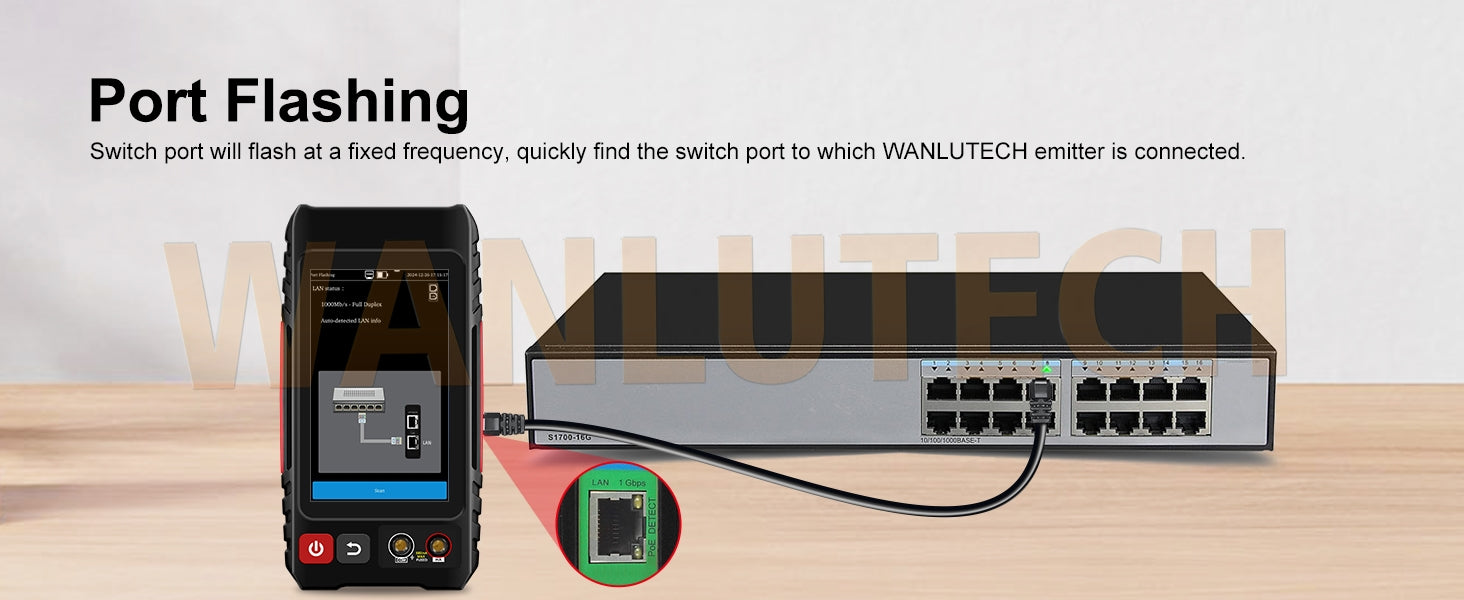

Port Flashing

Quickly locates ports connected to Ethernet switches and other devices.

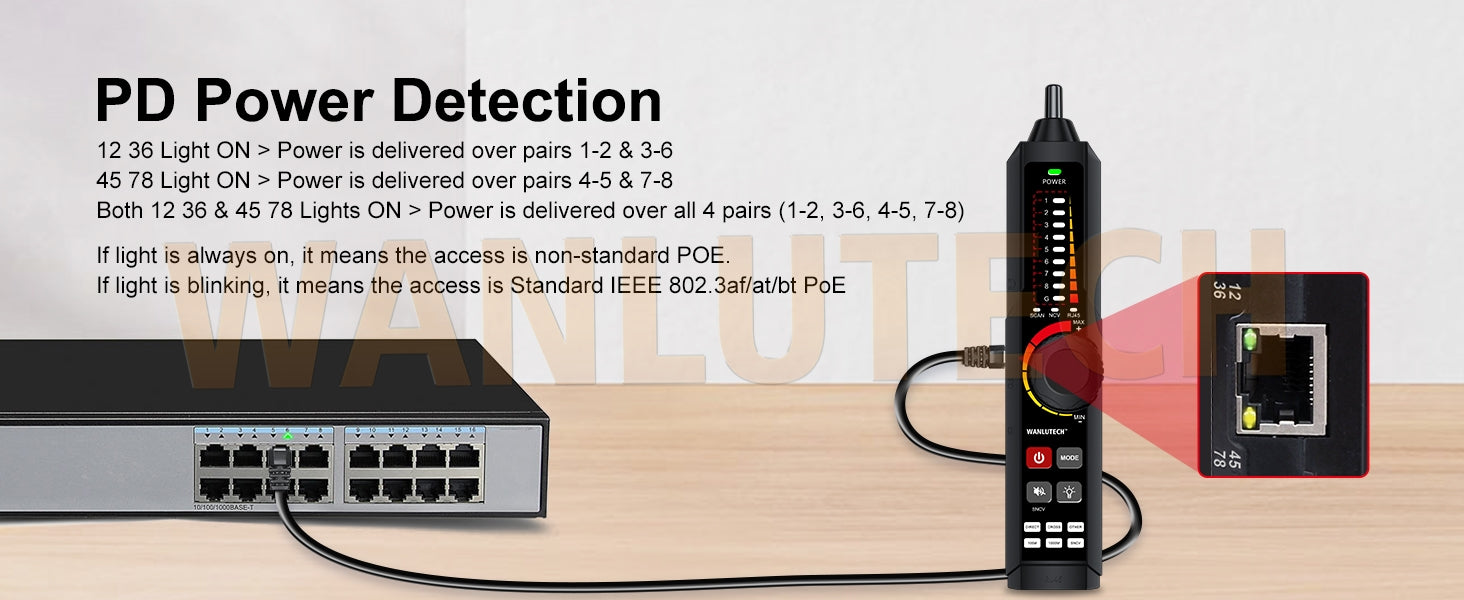

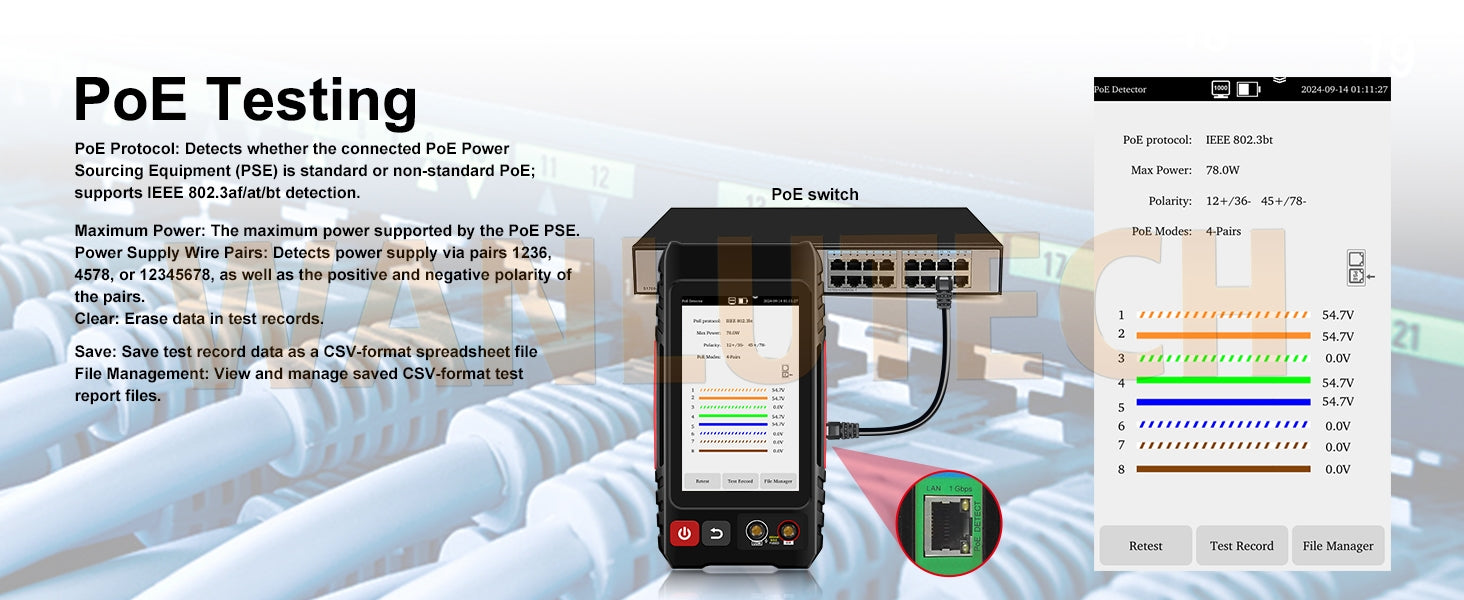

PoE Detector

Supports IEEE802.3BT/AT/AF and non-standard protocol detection. Displays power supply voltage, power supply pins, and pin polarity.

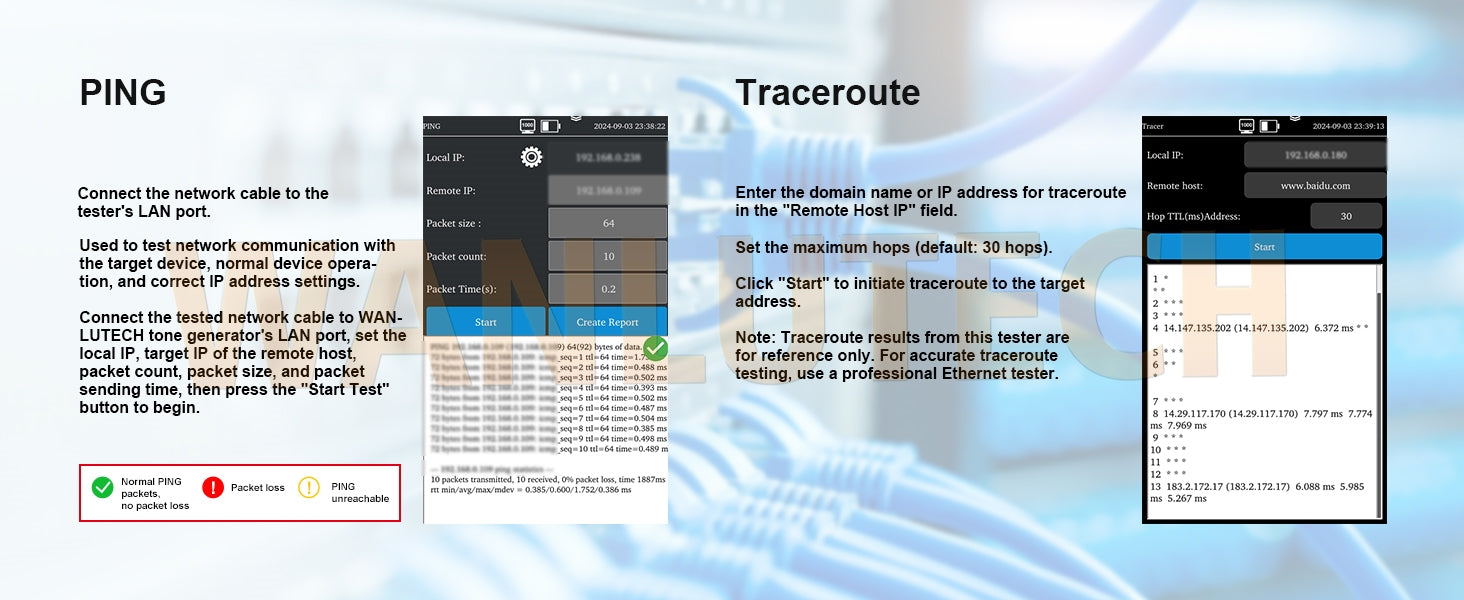

Network tool

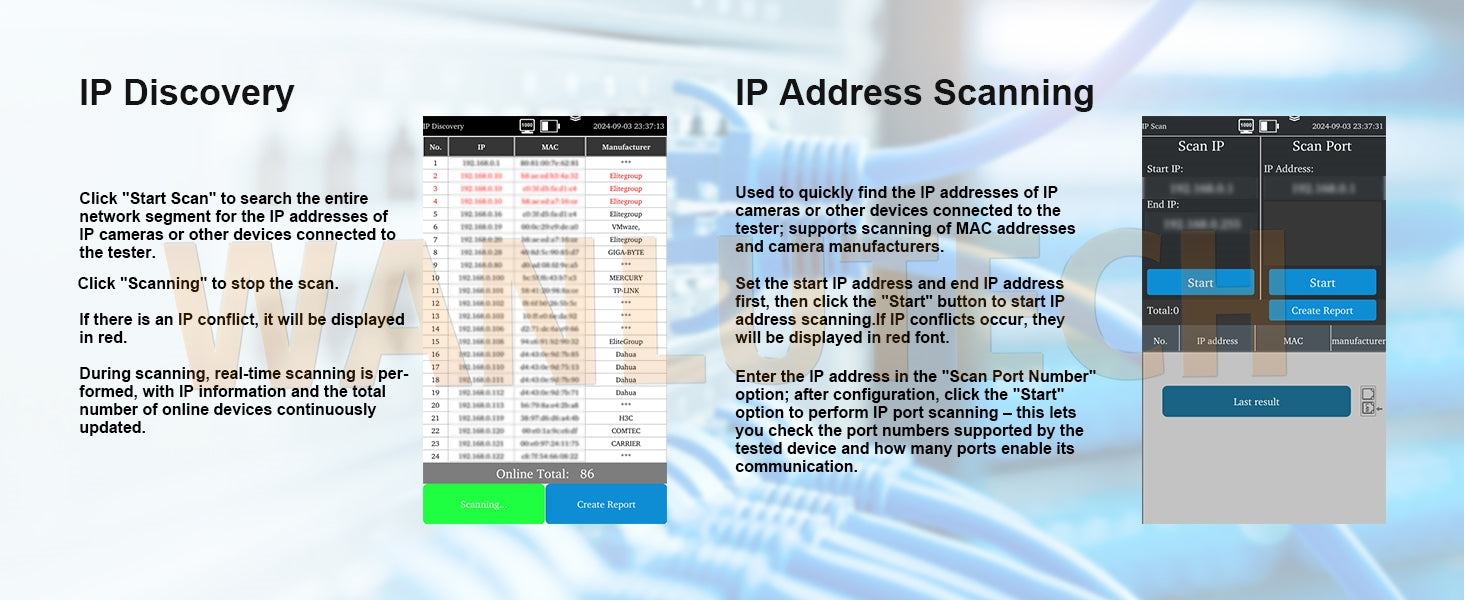

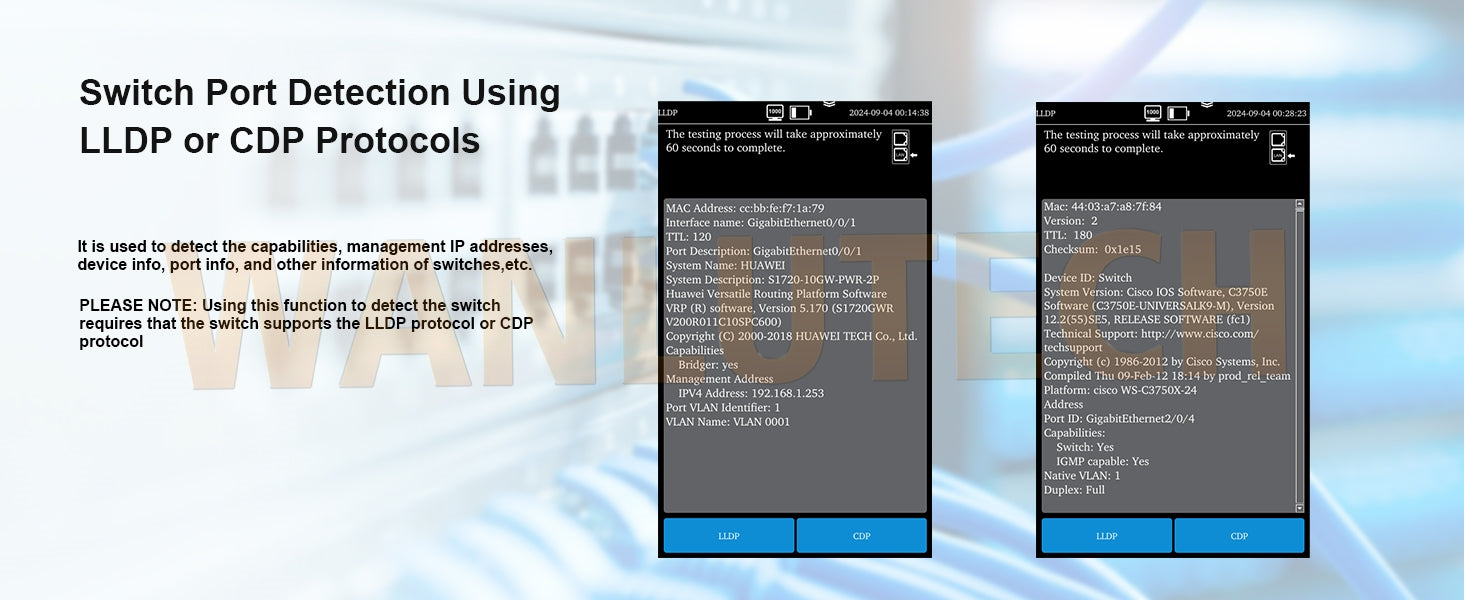

IP discovery, IP address scan, PING test, LLDP/CDP detection, Port flashing, PPPOE dial-up, FTP server, etc.

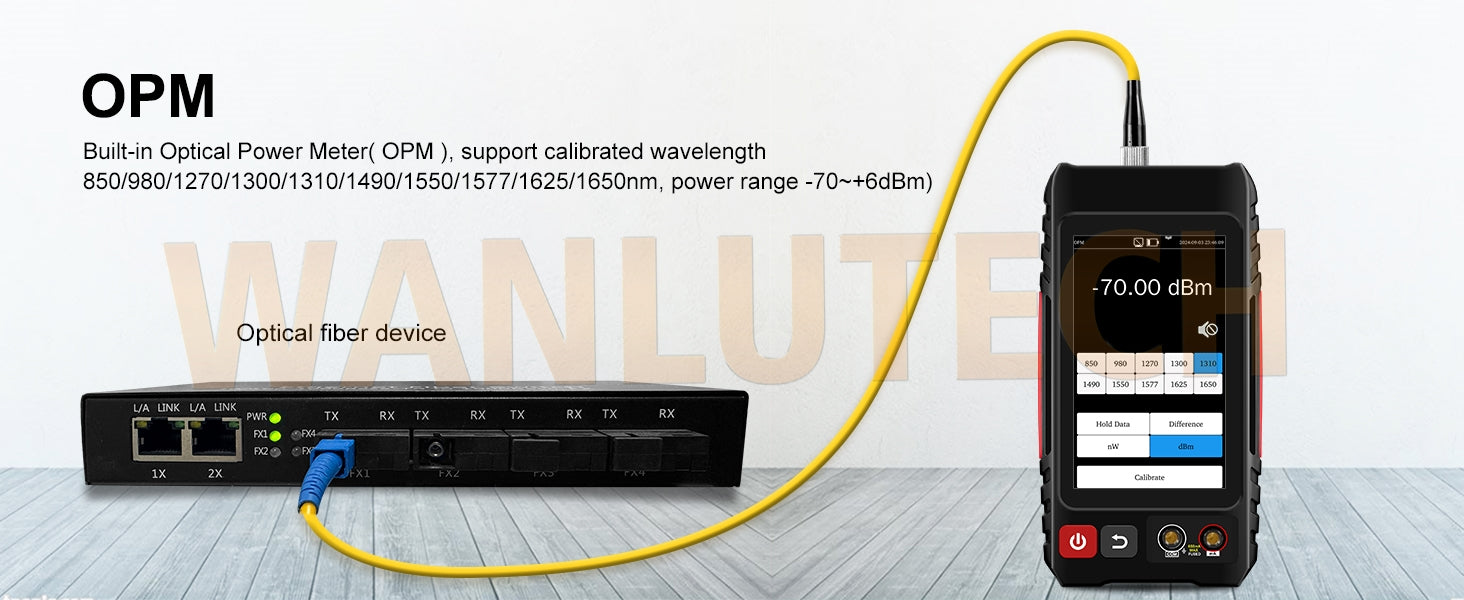

Optical Power Meter

Wavelength (nm): 850/980/1270/1300/1310/1490/1550/1577/1625/1650nm.

Power range (dBm): -70 to +6 dBm

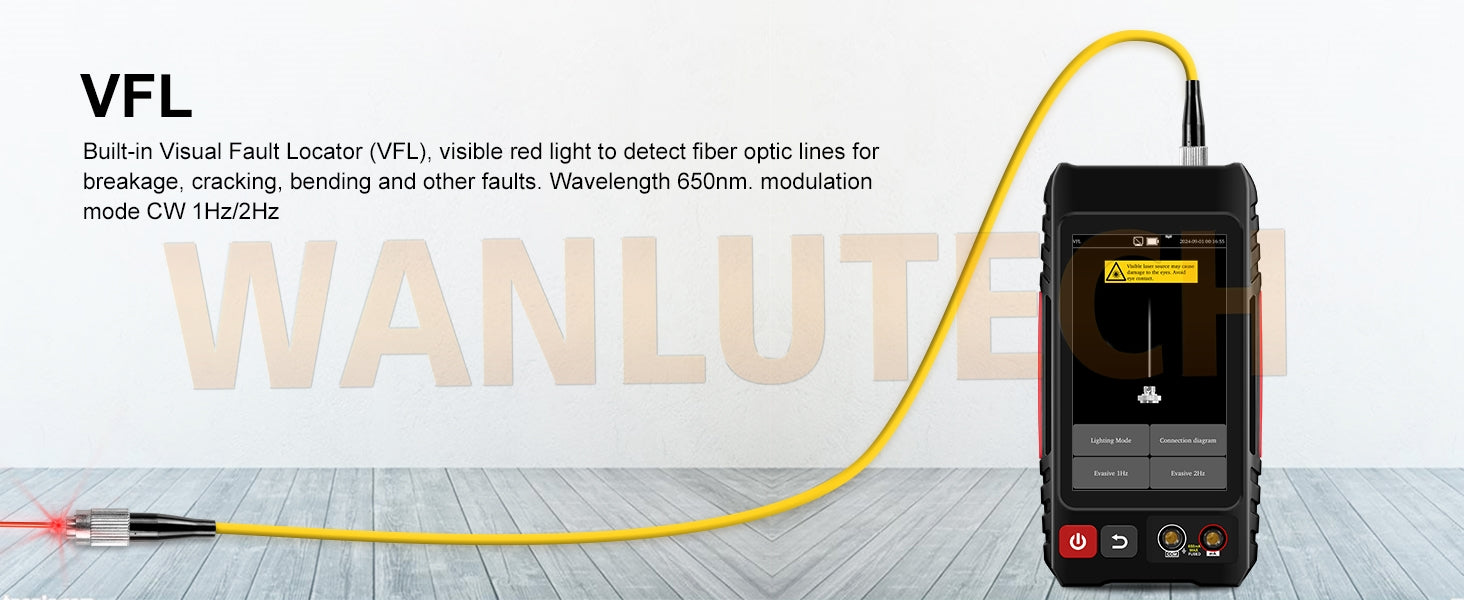

Visual fault locator

Emits visible red laser to detect fiber optic line breaks, cracks, bends, and other faults.

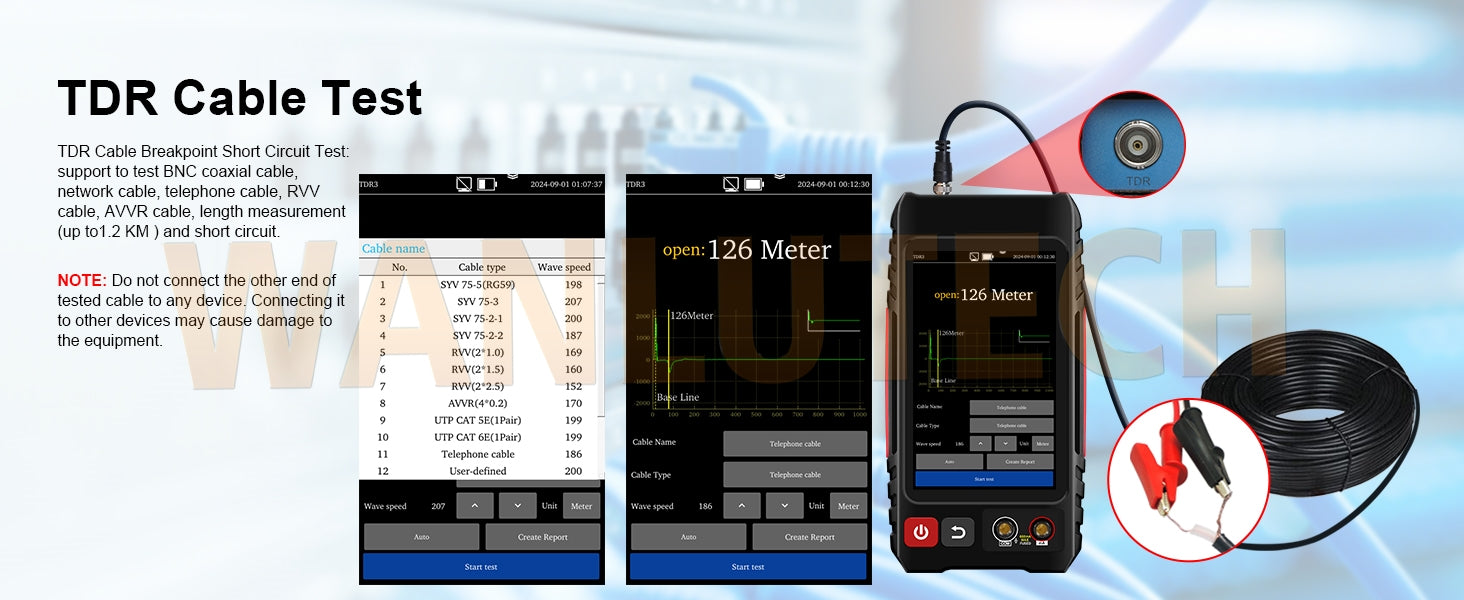

TDR cable test

BNC cable, network cable, telephone cable, RVV cable, and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1.2 km

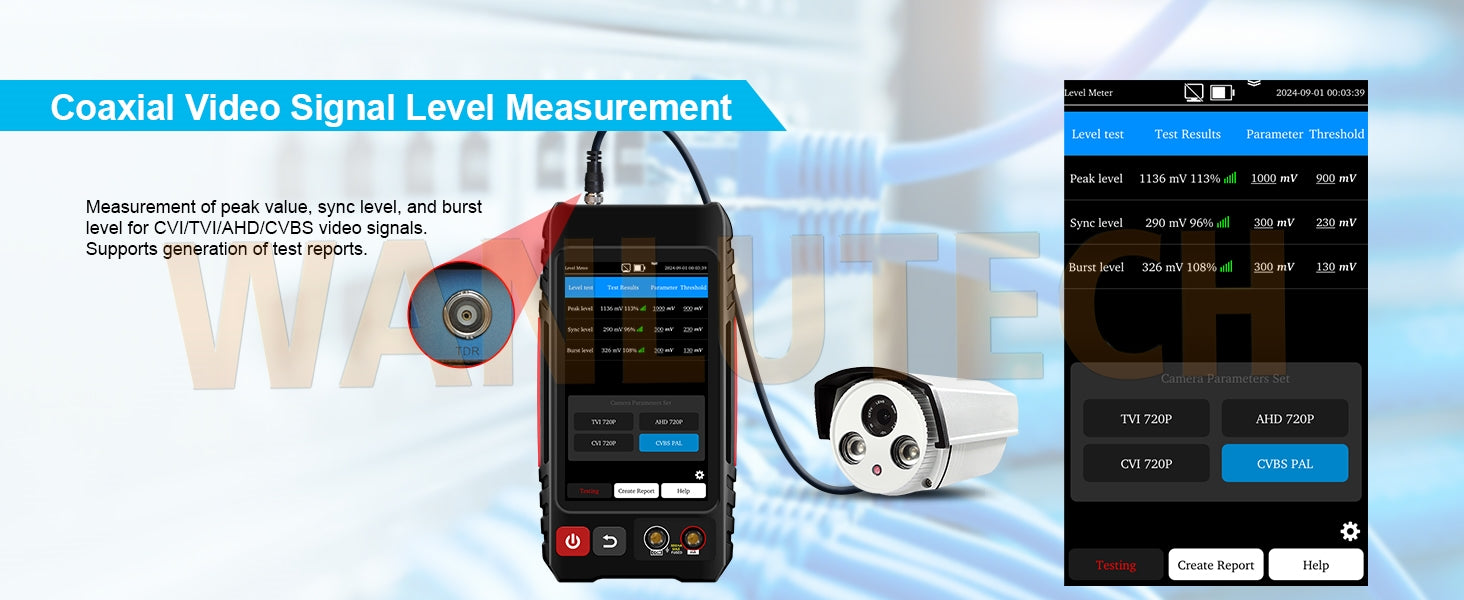

Level meter

Measures the peak level, sync level, and burst level of video signals

Power

Battery Power

Emitter

3.7V 4000mAh lithium-ion rechargeable battery

(working time about 6 hours)

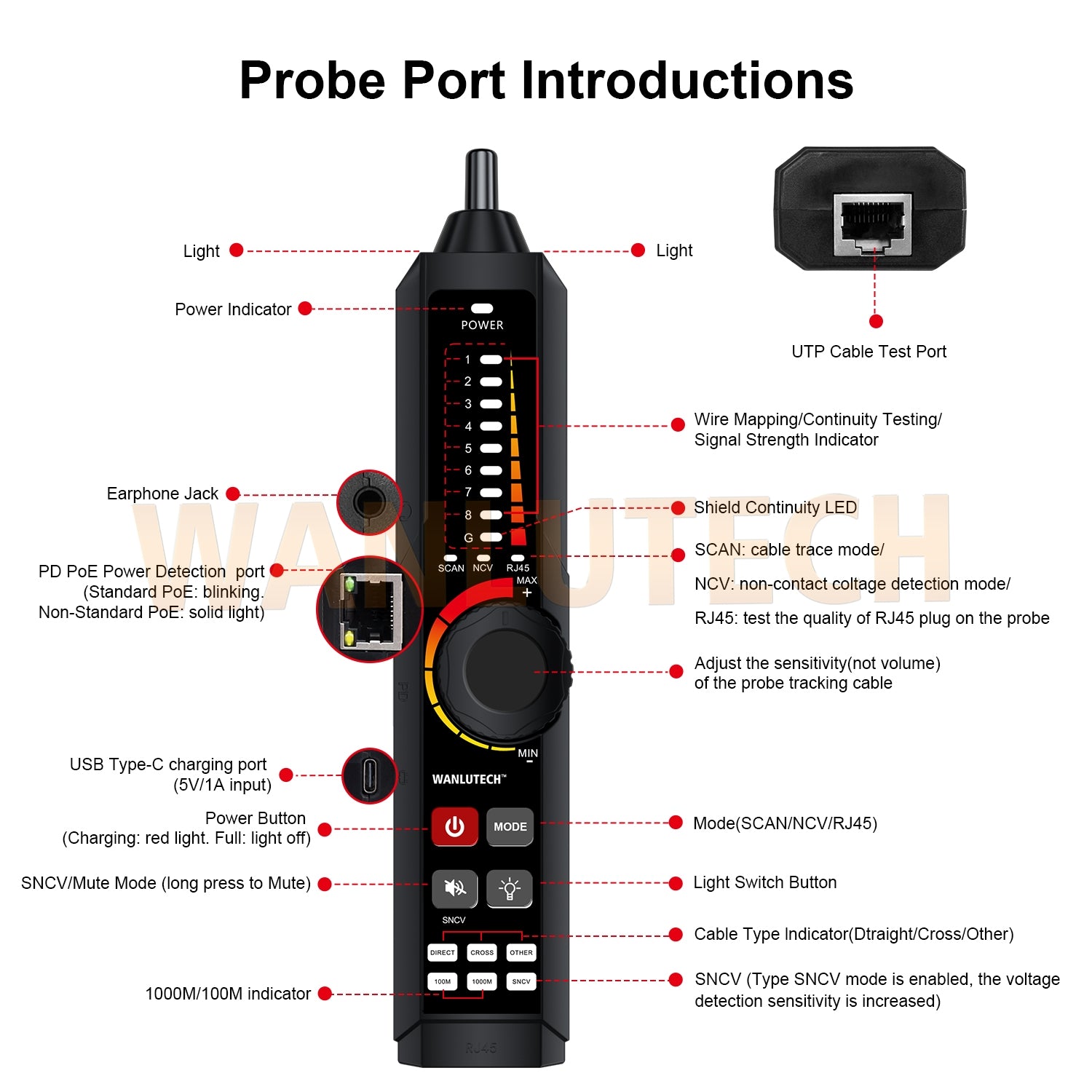

Receiver

3.7V 2000mAh lithium-ion rechargeable battery

(working time about 12 hours)

Working Environment and Specifications

Operating Temperature

-10℃---+50℃

Operating Humidity

30%-90%

Dimensions

Emitter

154mm x 86mm x 40mm / 0.3Kg

Receiver

218mm x 48mm x 32mm / 0.15Kg

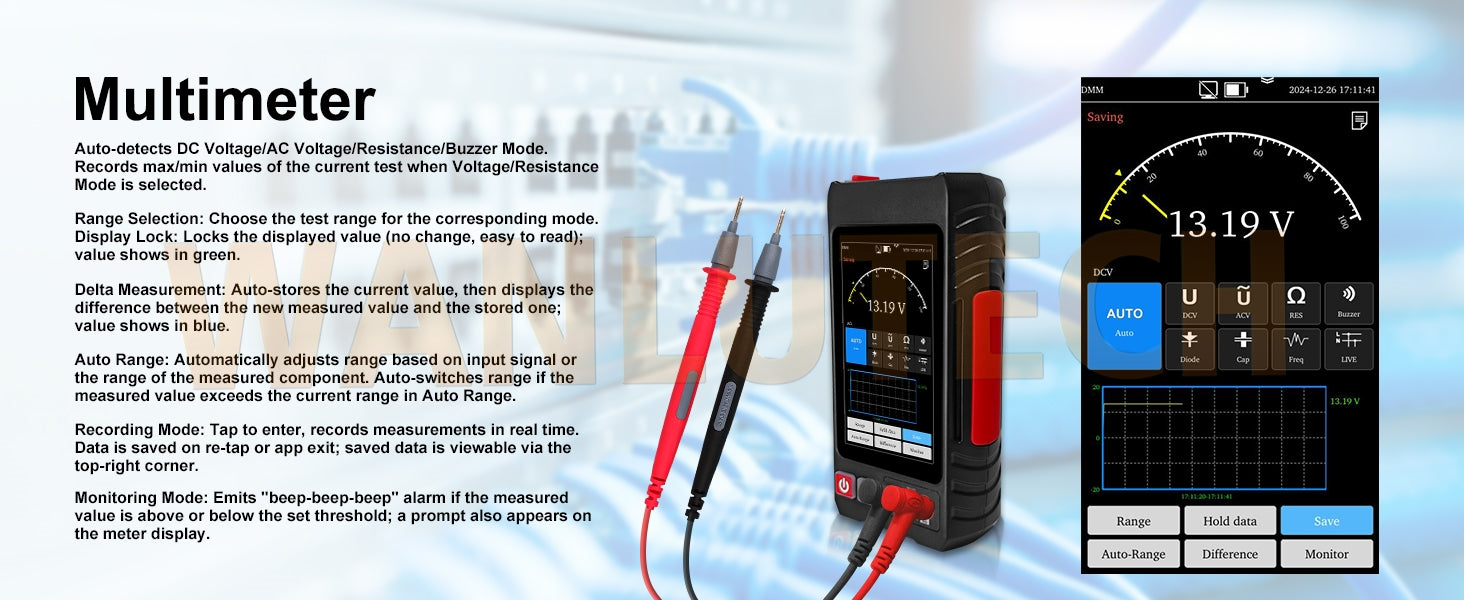

Multi-meter specifications*

DC voltage

Range: 60mV/600mV/6V/60V/600V; Counts: ±6000; Minimum resolution: 0.01m

VAccuracy: 0.01-600  Vaccuracy±(0.6%+4)/600V-1000  Vaccuracy±(0.8%+10)

AC voltage

Range: 60mV/600mV/6V/60V/600V; Counts: ±6000; Minimum resolution: 0.01mV;   Accuracy: 0.01-600  Vaccuracy±(1.2%+4)/600V-750  Vaccuracy±(1.2%+10)

Resistance

Range: 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ; Counts: 0~6000; Minimum resolution: 0.1Ω;  Accuracy: 0.1-6  Maccuracy±(0.8%+10)/6M-60  Maccuracy±(2.5%+4)

Capacitance

Range: 6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF; Counts: 0~6000; Minimum resolution: 1pF; Accuracy: 1nF-6000u  Faccuracy±(3.5%+20)/6000uF-60000u  Faccuracy±(5%+4)

Frequency Test

Range: 6Hz/60Hz/600Hz/6KHz/60KHz/600KHz/6MHz; Counts: 0~6000;
Minimum resolution: 0.001Hz; Accuracy: 1-6MHzaccuracy±(0.1%+3)

Diode

Continuity

Range: 50Ω; Counts: 0~500; Minimum resolution: 0.1Ω; Accuracy: ±1.2%+20
