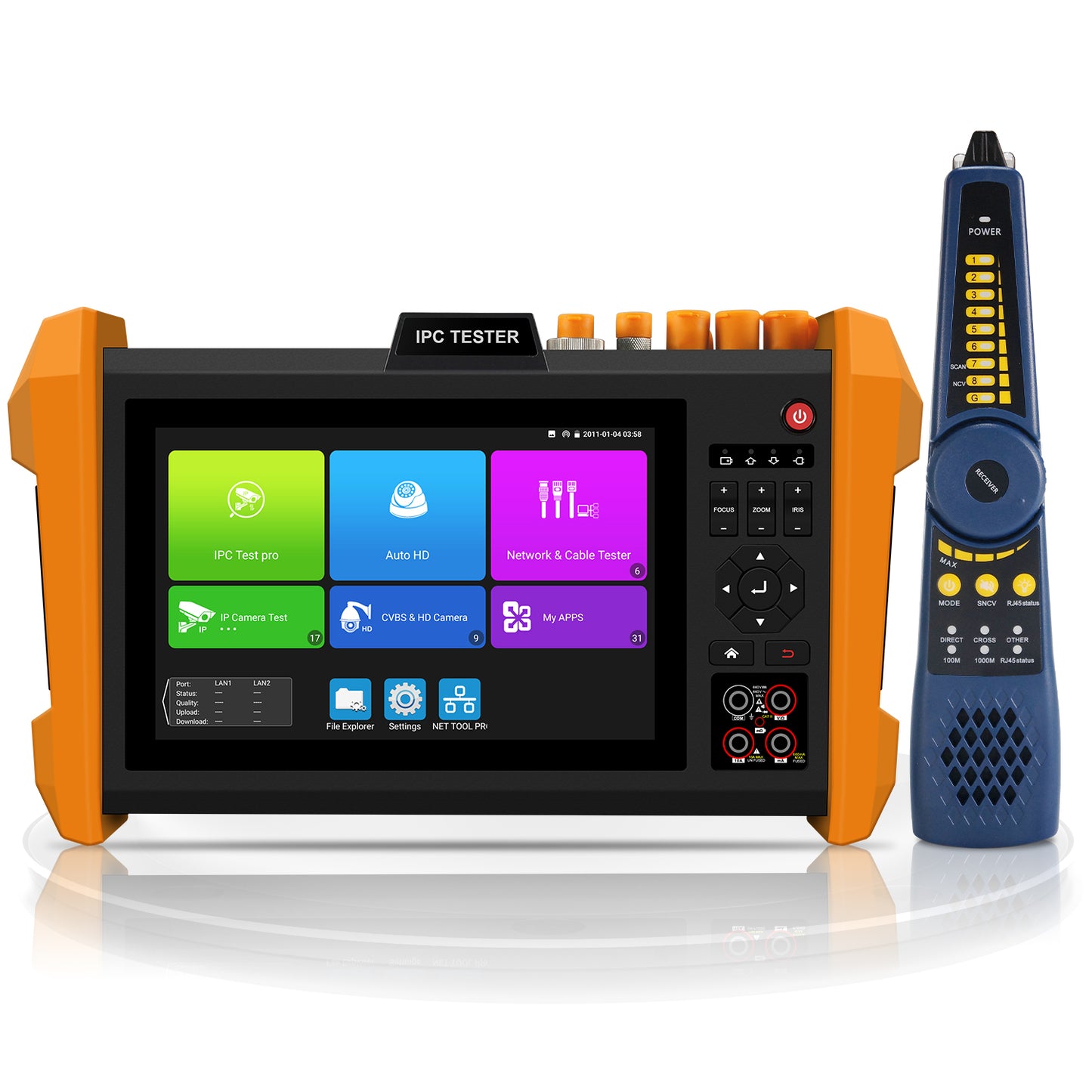

WANLUTECH 8K IP Camera Tester with PoE, CCTV Tester Support 8MP AHD CVI TVI SDI CVBS Camera Test SFP Test OPM VFL DMM Cable Tracer TDR Cable Test HDMI in VGA in (K15-CLMOVTADHSEF)
[ 8K IP Camera Tester ] WANLUTECH CCTV tester has 7'' IPS touch screen, 1920x1200 resolution. It support to test max 8K 32MP 4K 12MP IP cameras, also support CVBS analog camera test. The IP camera tester with PoE support batch activation of DH, Hik cameras and modification of IP addresses, passwords, etc. Support quick ONVF,automatic login and display images, one key to create a test report, including camera IP address, resolution, encoding and other related information; support for cross-network segment testing; face recognition and other feature. Support 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)

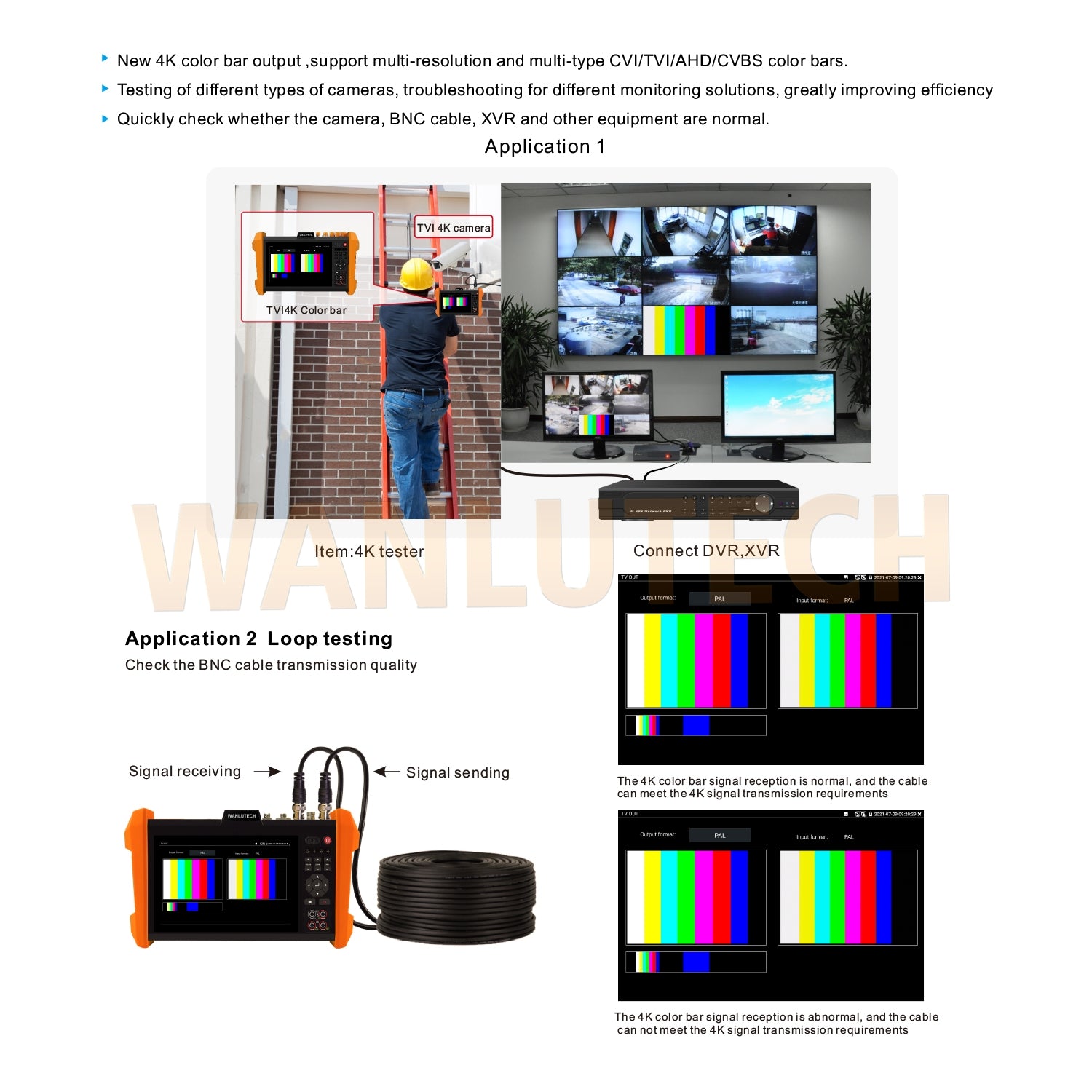

[ AHD TVI CVI SDI Camera Tester ] WANLUTECH IP camera tester with poe support to test max 8MP AHD/TVI/CVI/SDI camera. Using "AUTO HD" app can automatically recognize AHD CVI TVI CVBS cameras and display resolution and frame rate on the screen, supports UTC control & call OSD menu, menu settings, screenshot, video recording, video playback, etc. 4K color bar generator, send CVI/TVI/AHD/CVBS color bar video signal for testing monitor or video cable, support 4K resolution

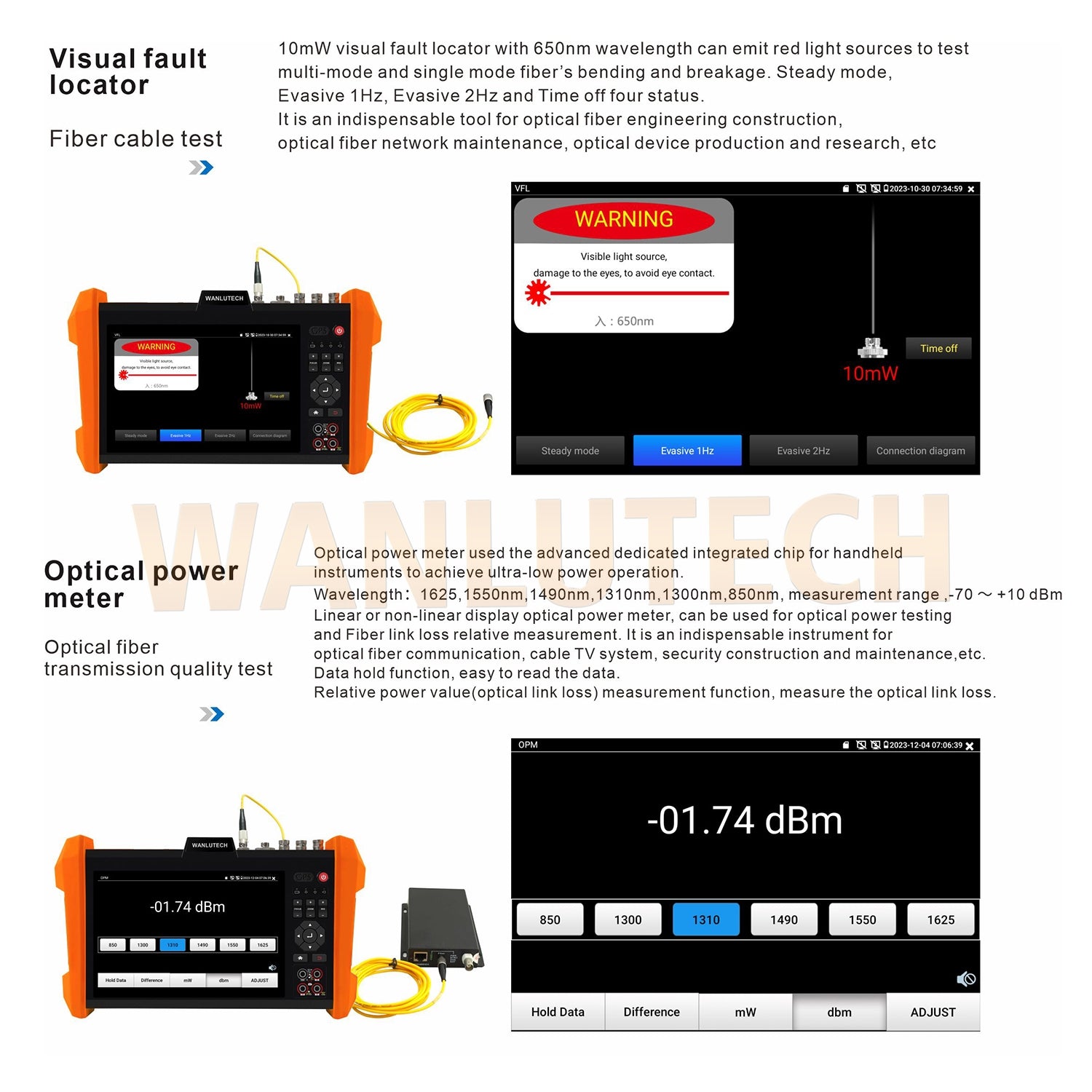

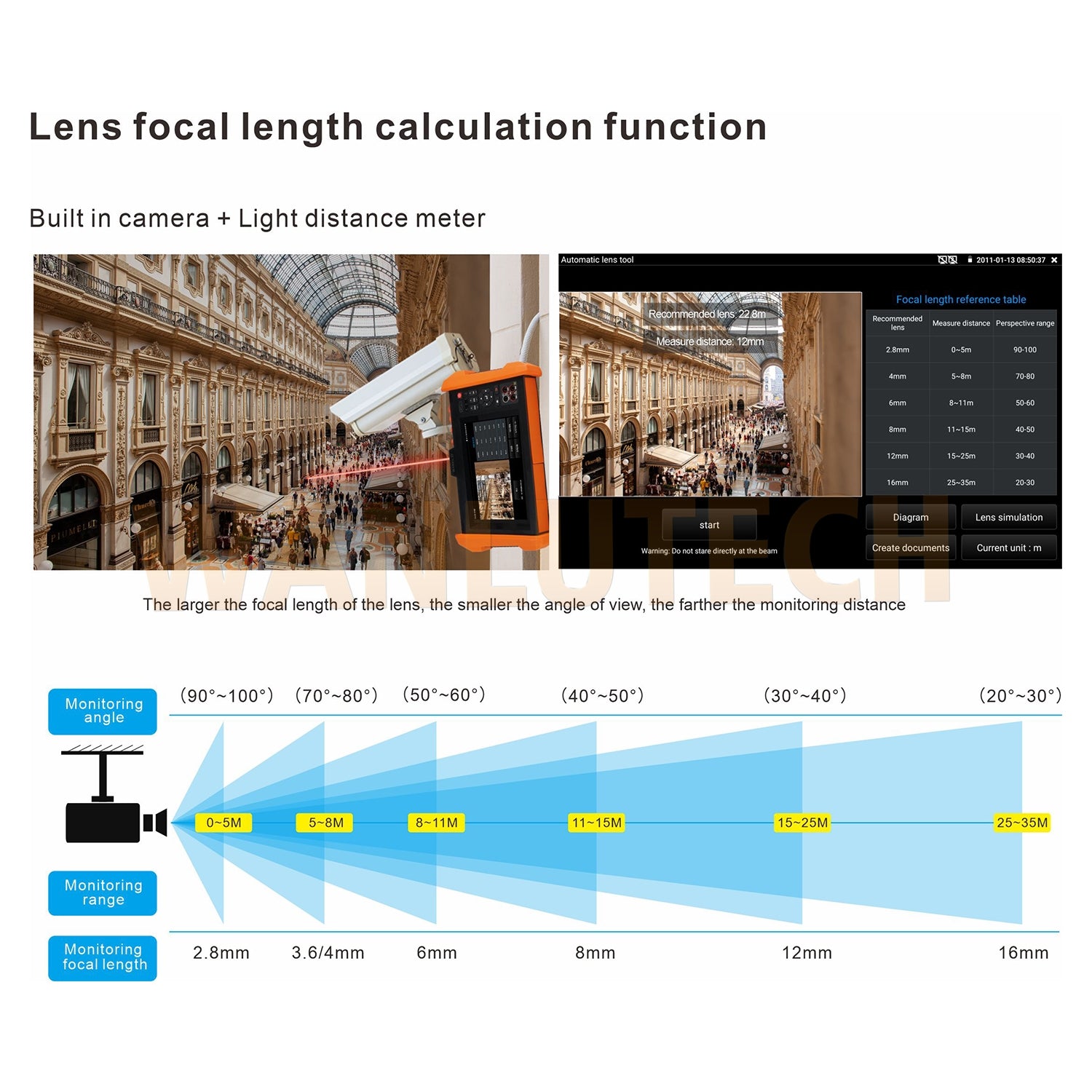

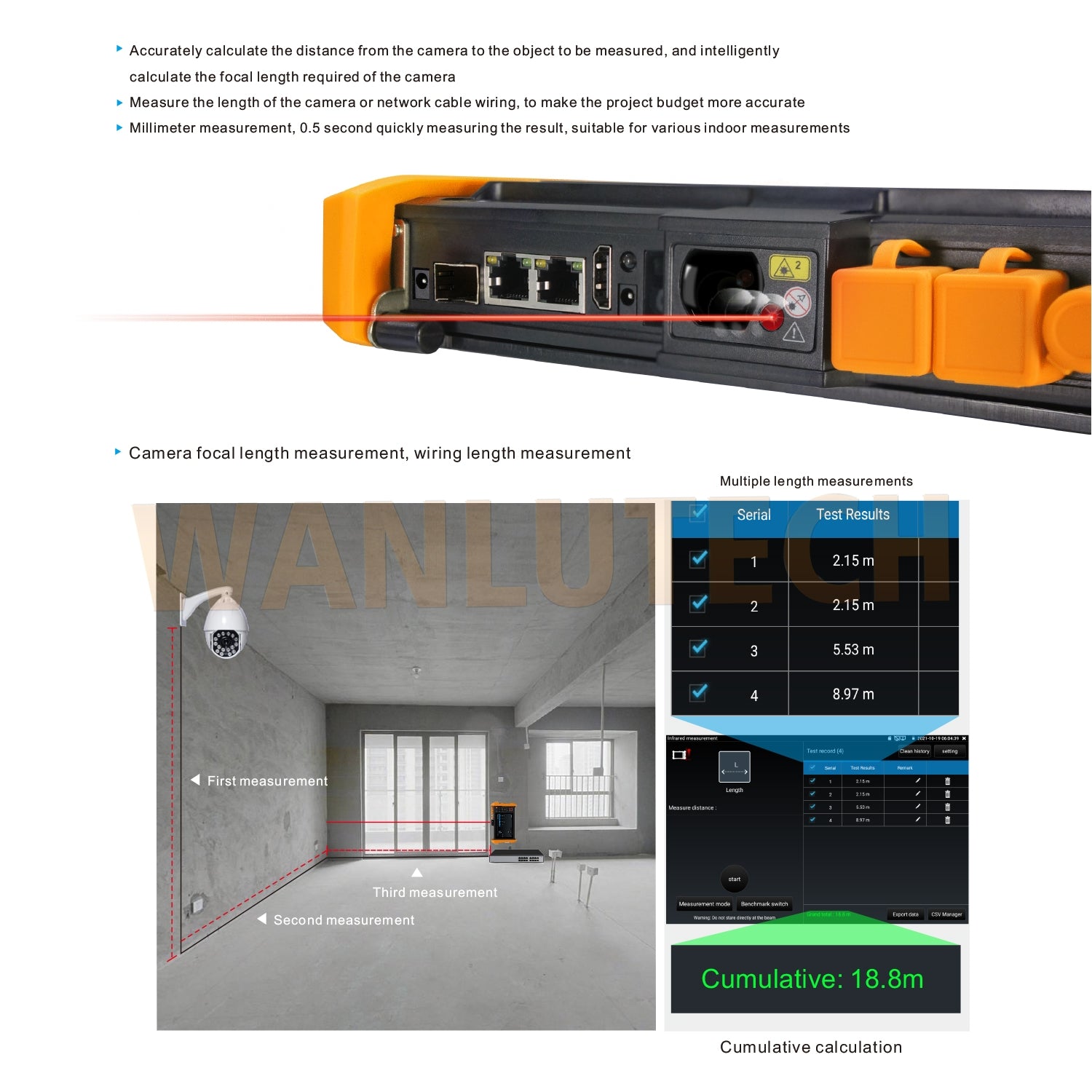

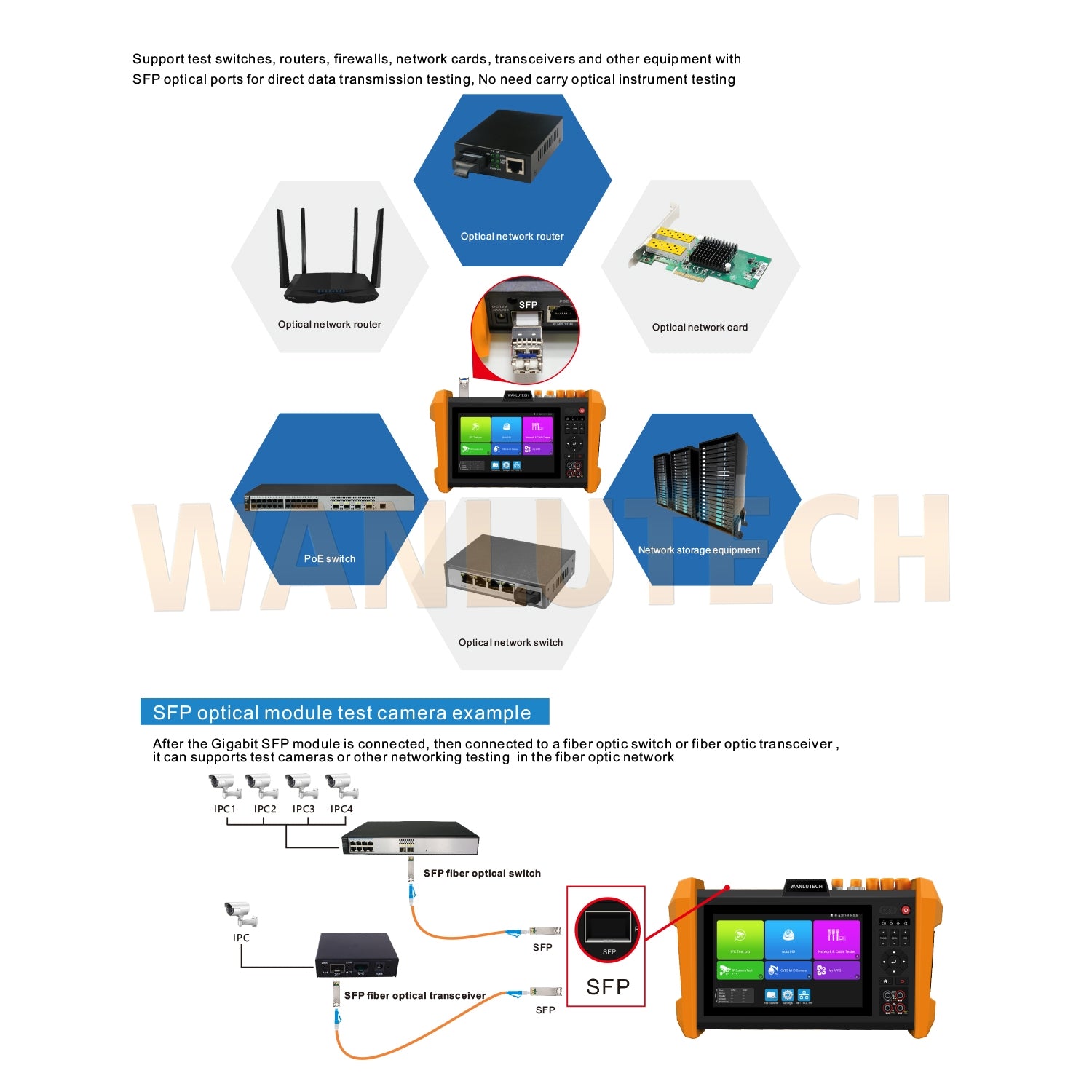

[ SFP & DMM & OPM & VFL & Distance measurement ] It has one gigabit SFP optical fiber module port, support insert SFP optical fiber module, for optical fiber network testing. Digital Multimeter: DC and AC voltage measurement, DC and AC current measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement. Optical Power Meter: It is used for both direct measurement of optical power and relative measurement of fibre link loss. Visual Fault Locator: It is used to determine fibre continuity and fault location. Distance Meter: It has several measurement modes, and support export data, support benchmark switch

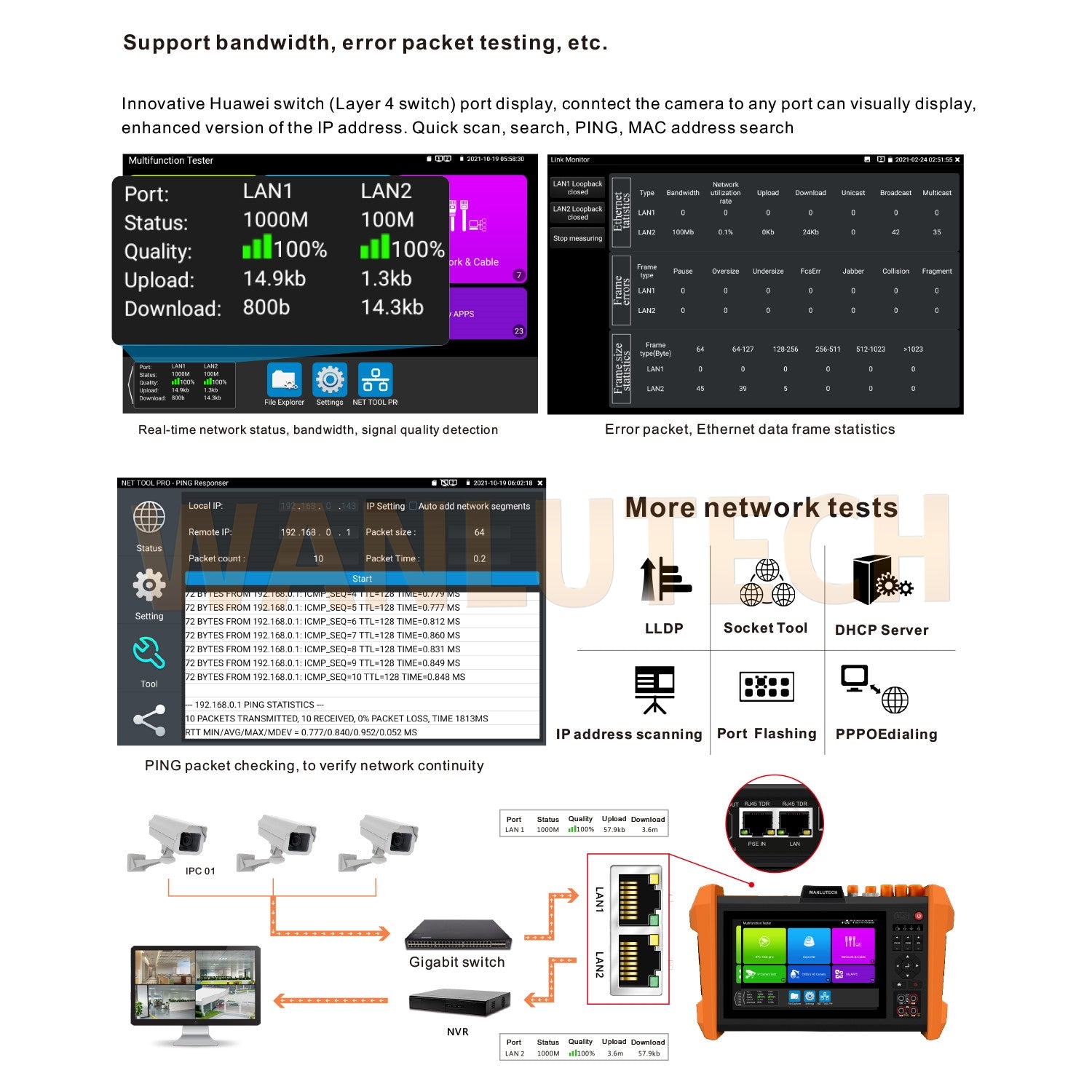

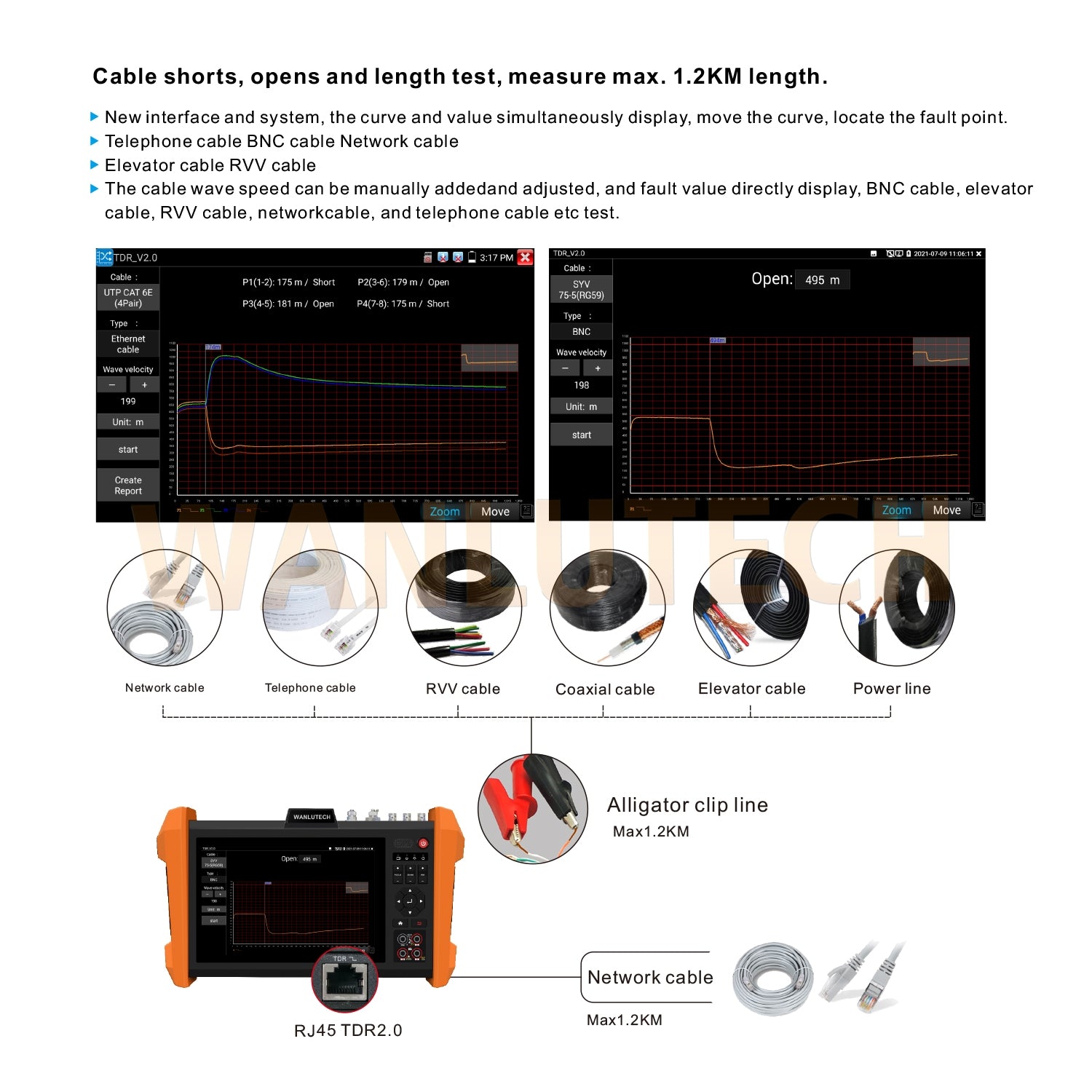

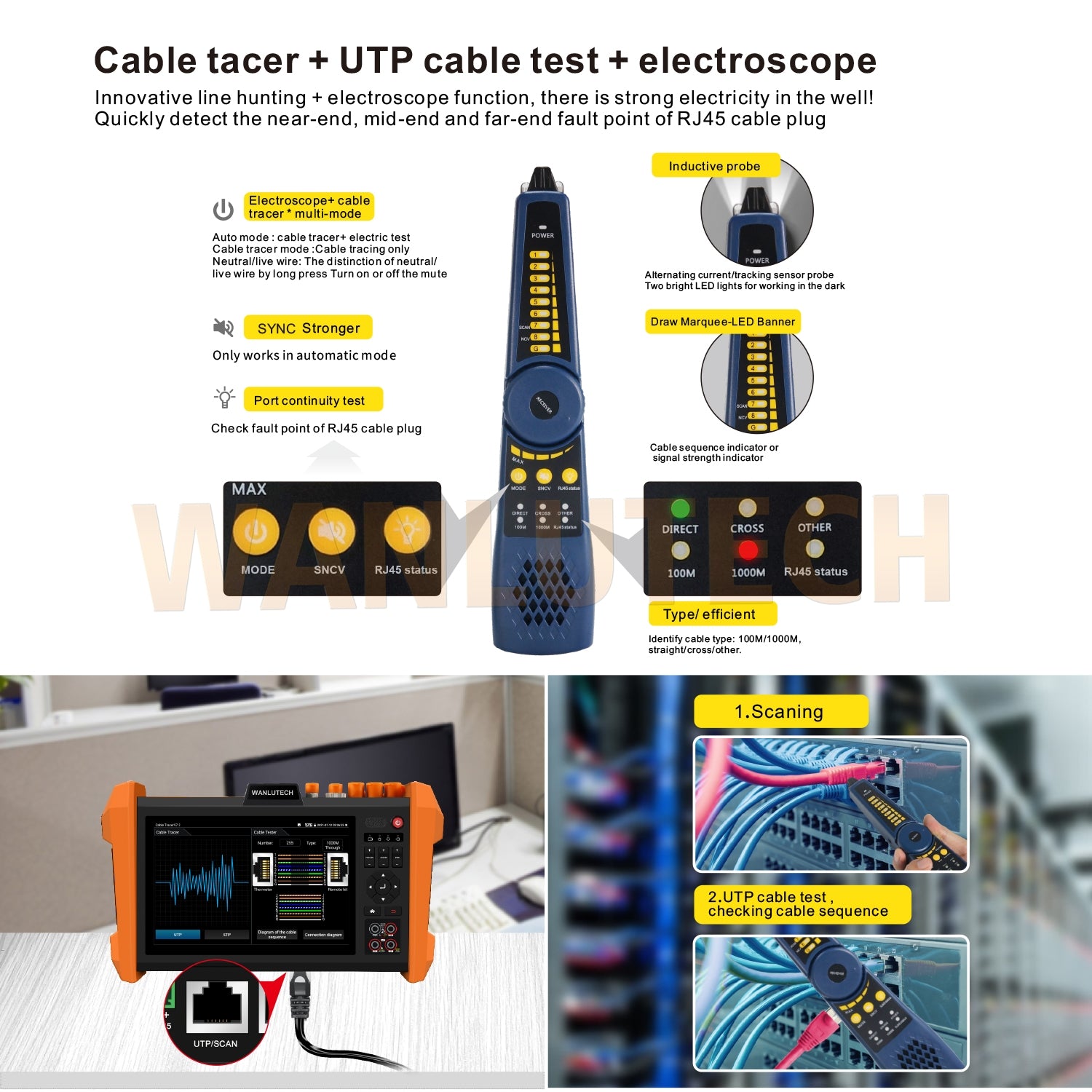

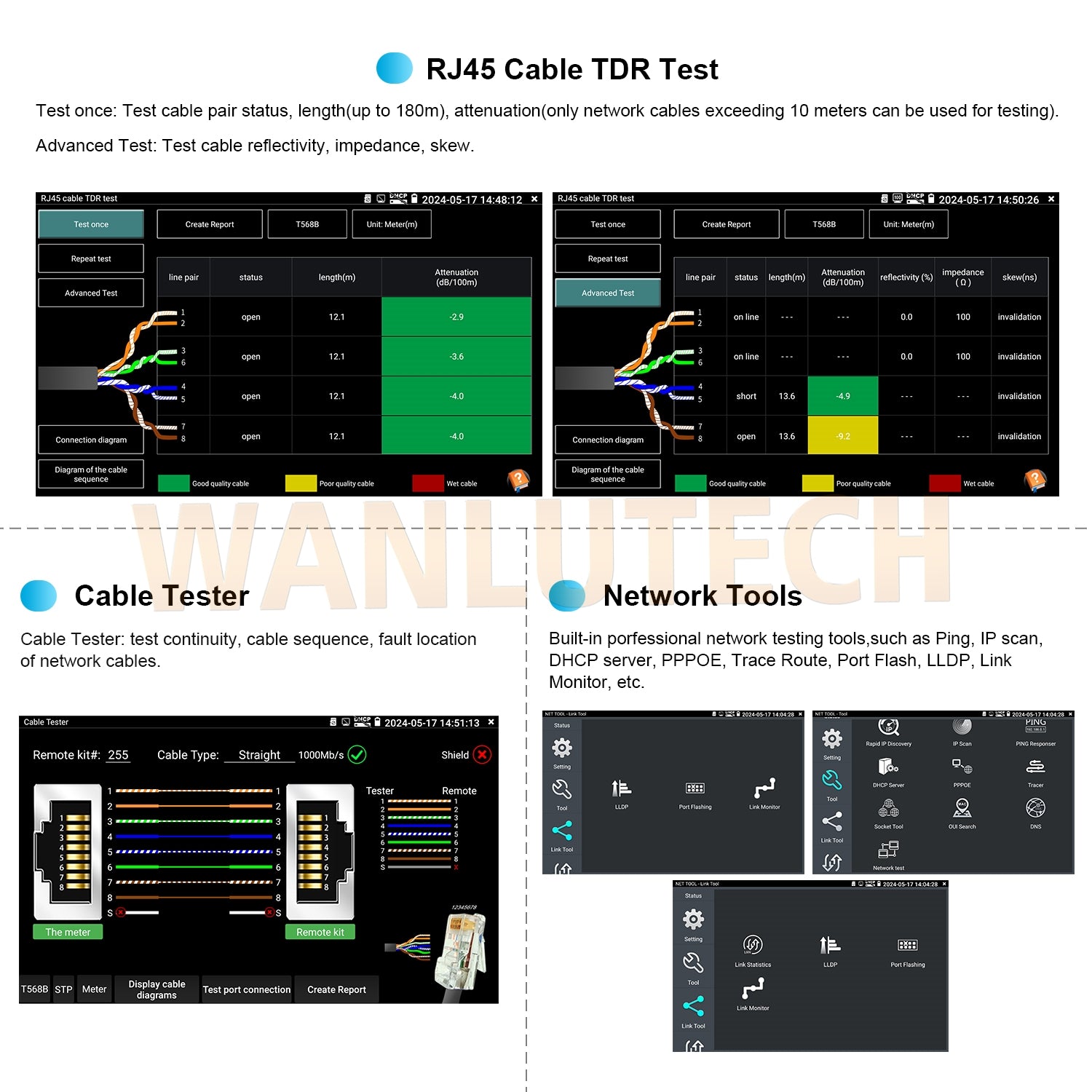

[ TDR Cable Tester & Network Tools ] TDR Cable Breakpoint Short Circuit Test: BNC cable, network cable, telephone cable, RVV cable and TVVB elevator cable, cat 5/6 cable’s length(up to1.2 KM ) and short circuit. Cable Tracer: Searching for BNC cable, network cable and telephone cable from cluttered cables,also can search shield cables. RJ45 Cable TDR Test: It can test cable pair status, length, attenuation, reflectivity, impedance, skew. Built-in network testing tools,such as Ping, IP scan, DHCP server, PPPOE, Trace Route, Port Flash, LLDP, Link Monitor, etc

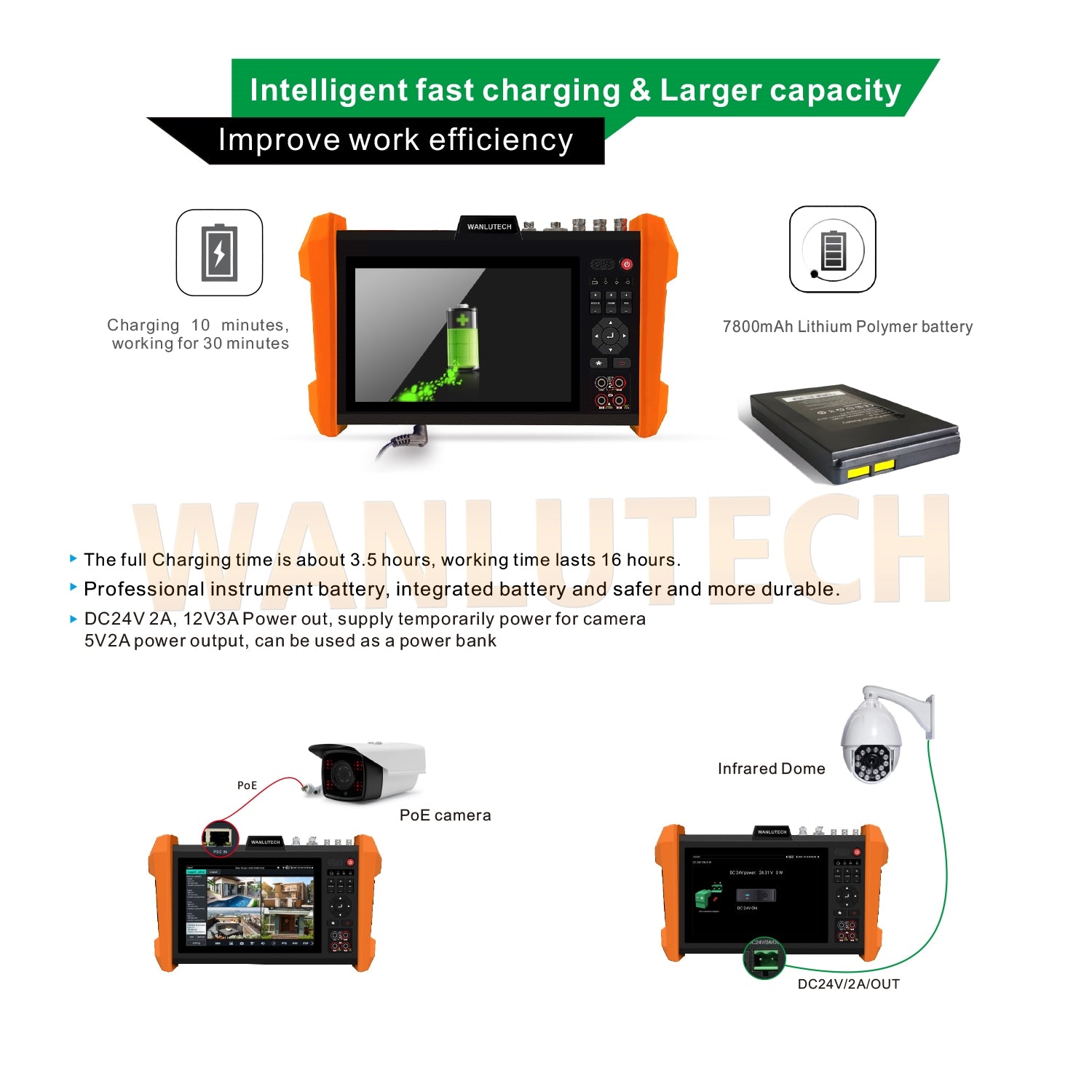

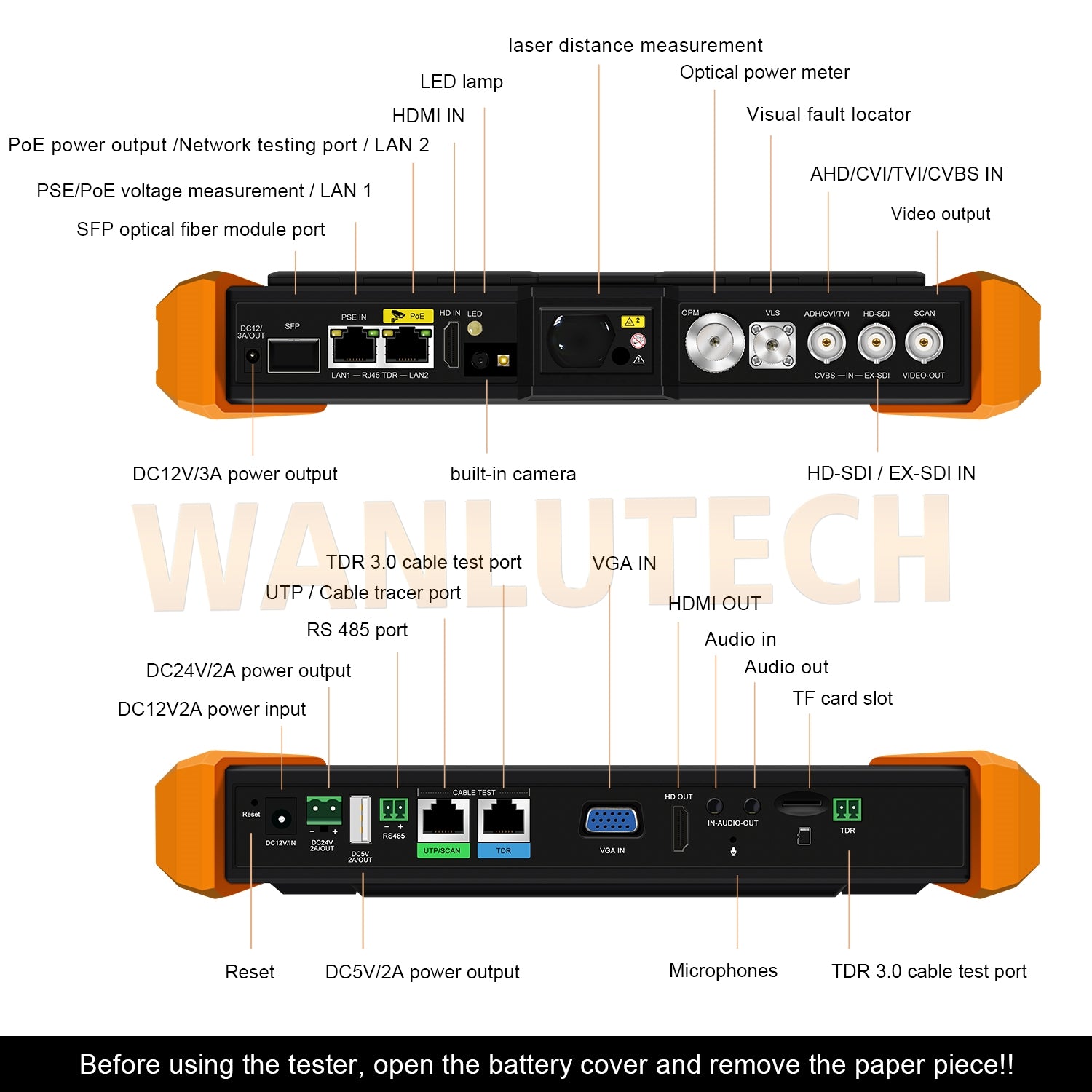

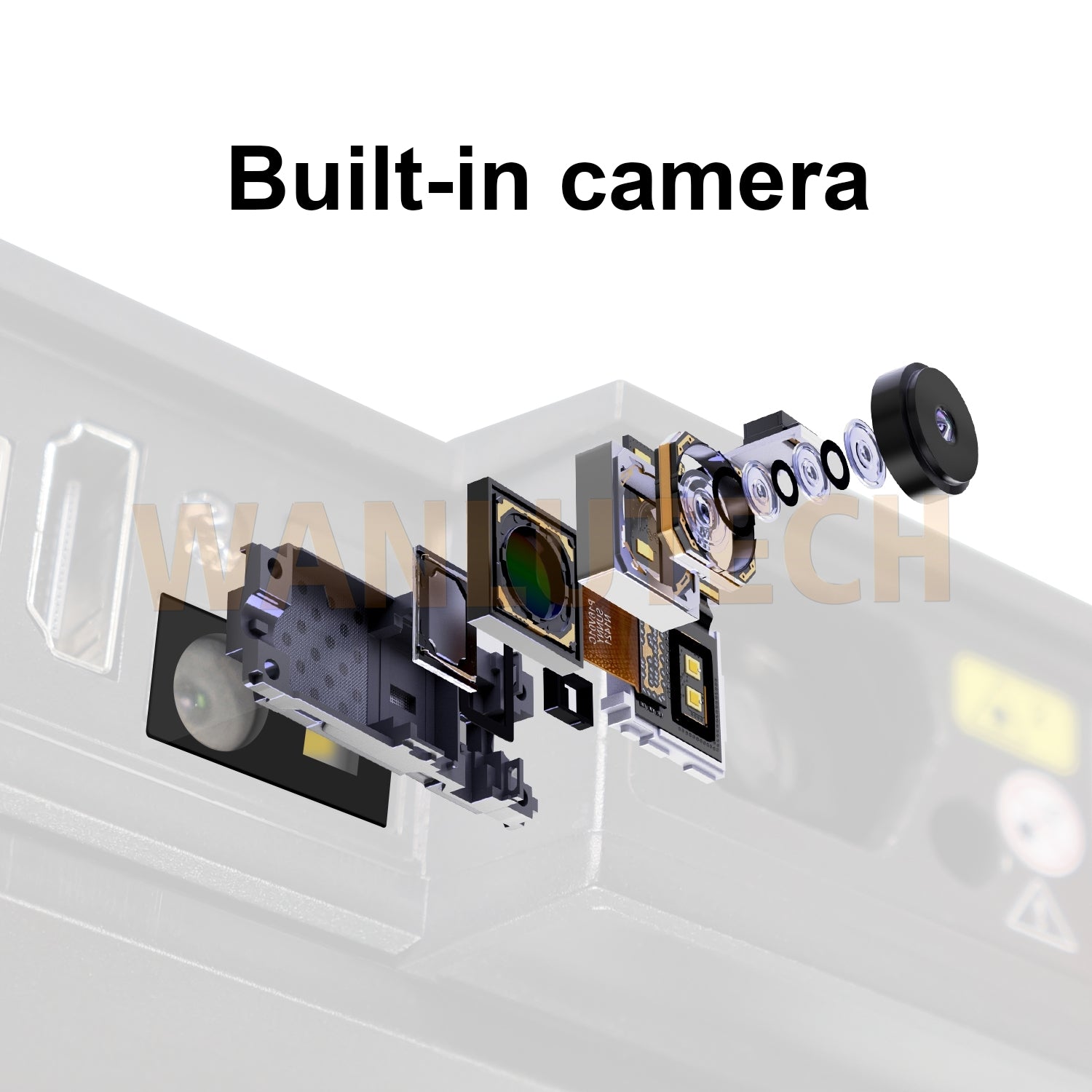

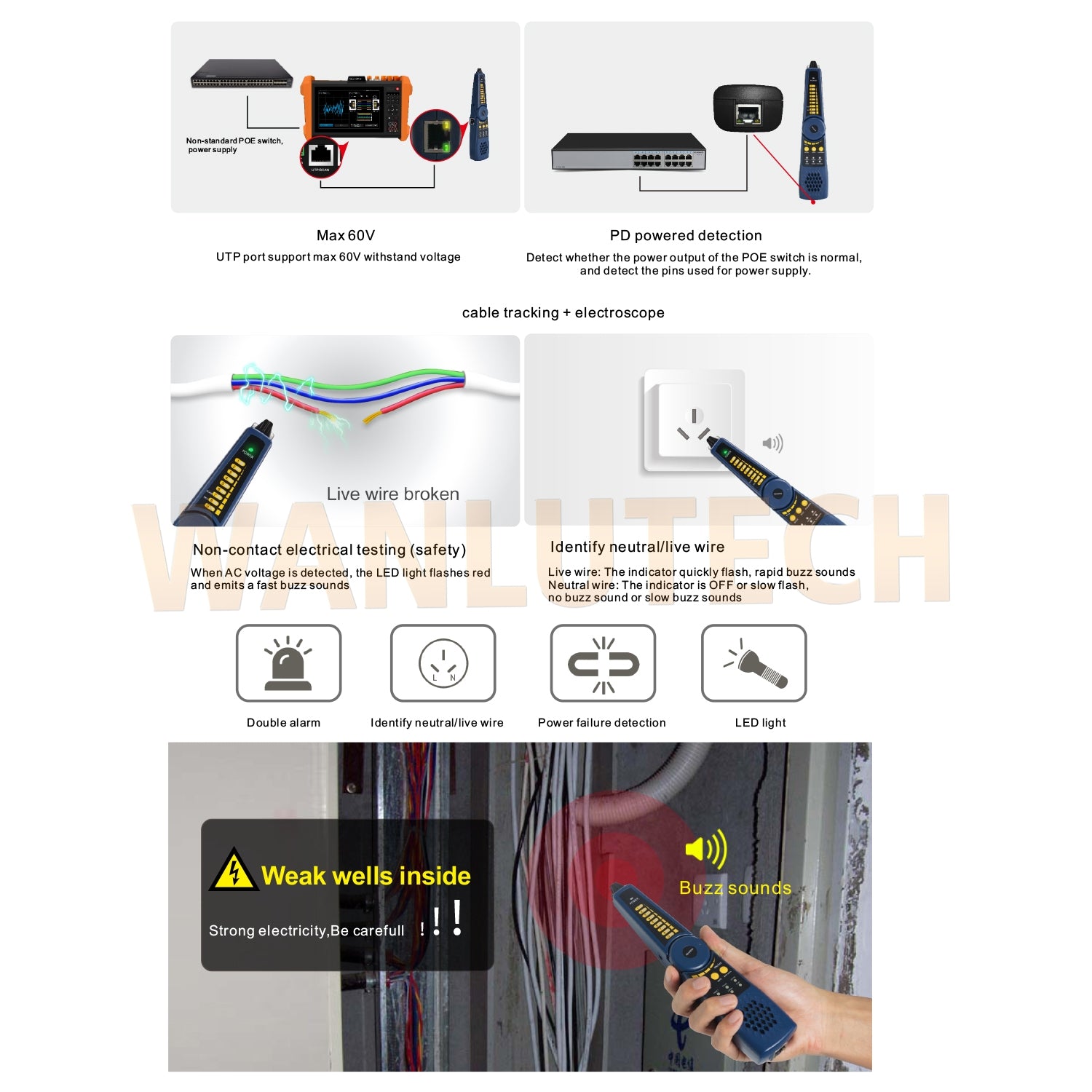

[ Multifunction CCTV Camera Tester ] Support 48V, Max 30W PoE power output. Measurement POE switch or PSE power supply voltage and cable connection status. WiFi analyzer: it support 2.4G/5G frequency band, and detect the surrounding WIFI signal and signal strength. Built-in camera,support camera focus detection. Dual Gigabit Ethernet Ports, HDMI in/out, VGA in, Audio I/O, RS485 port. USB 5V 2A, DC12V 3A, 24V 2A power output. 7.6 V /7800mAh Lithium Battery, 8GB TF card included
[ PLEASE NOTE ] There is a paper piece isolating the battery. Before using the tester, open the battery cover and remove the paper sheet. We are the manufacturer. Any questions, please let us know, We'll get back to you within 12 hours
