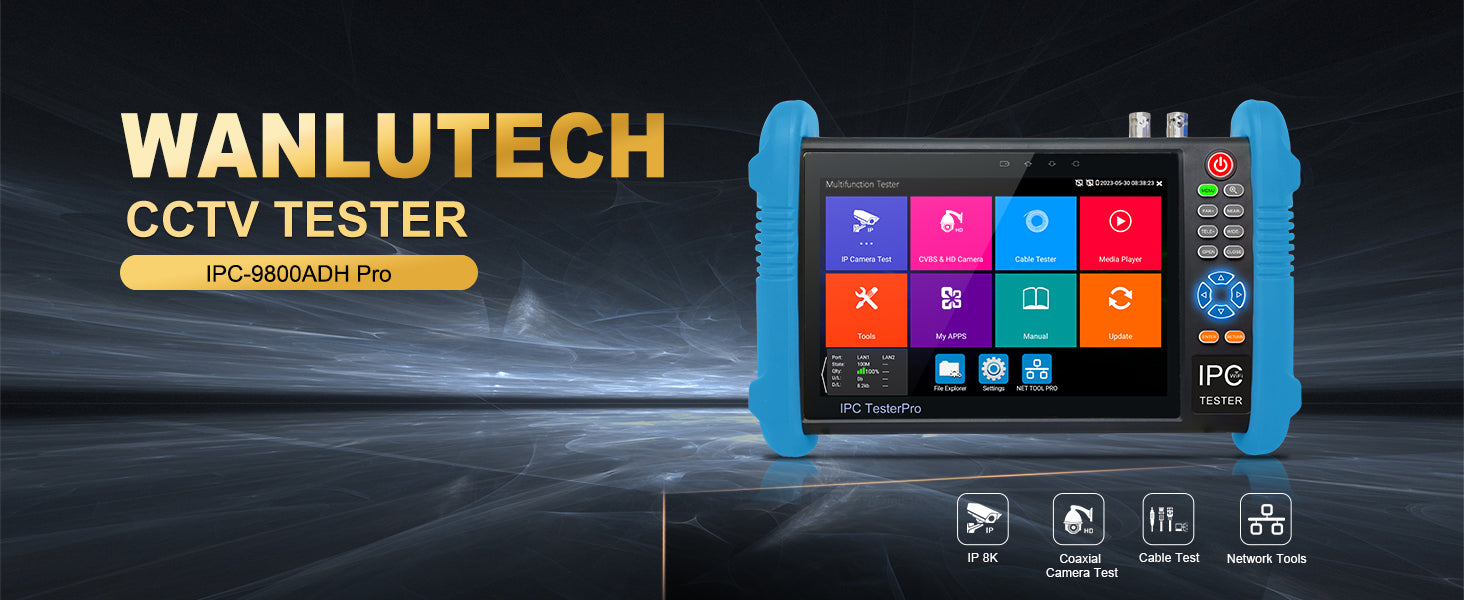

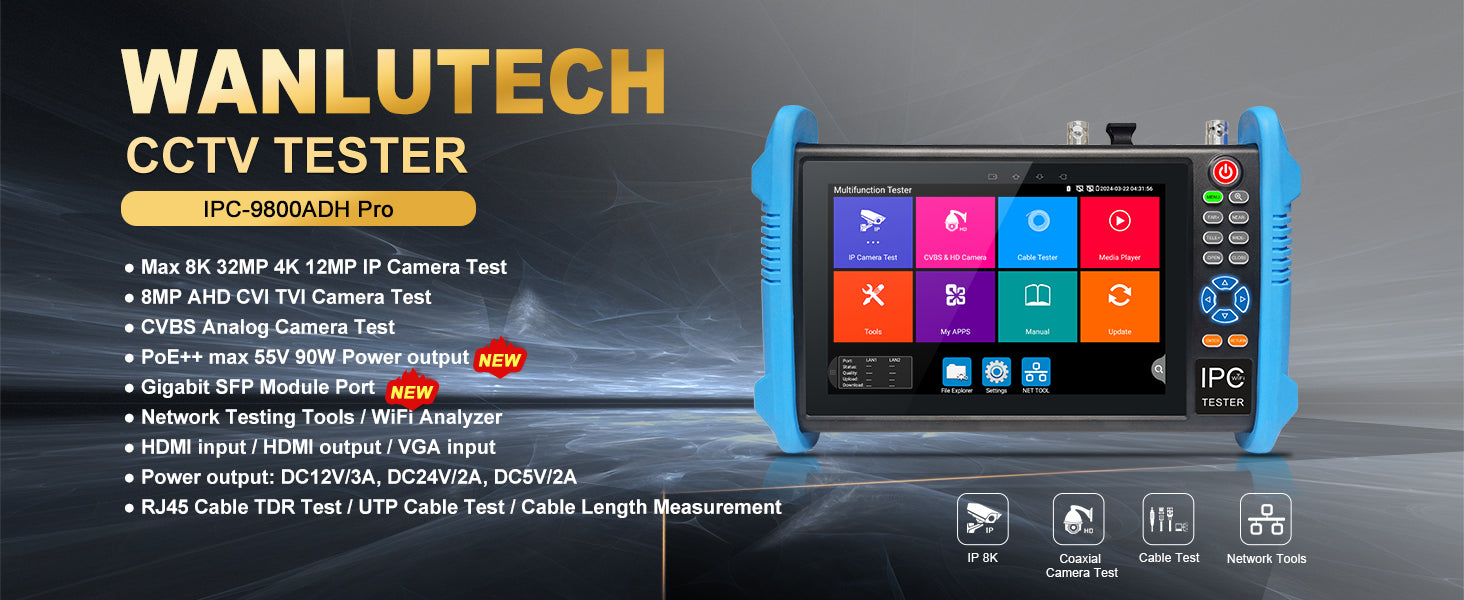

Camera installed but can't get a signal? Not sure which cable is which in that tangle of wires? The WANLUTECH IPC-9800ADH Pro is a security installer's essential field tool — camera testing across IP and analog formats, cable testing, and power diagnostics in one device.
Key Features
📹 Full-Format Camera Testing

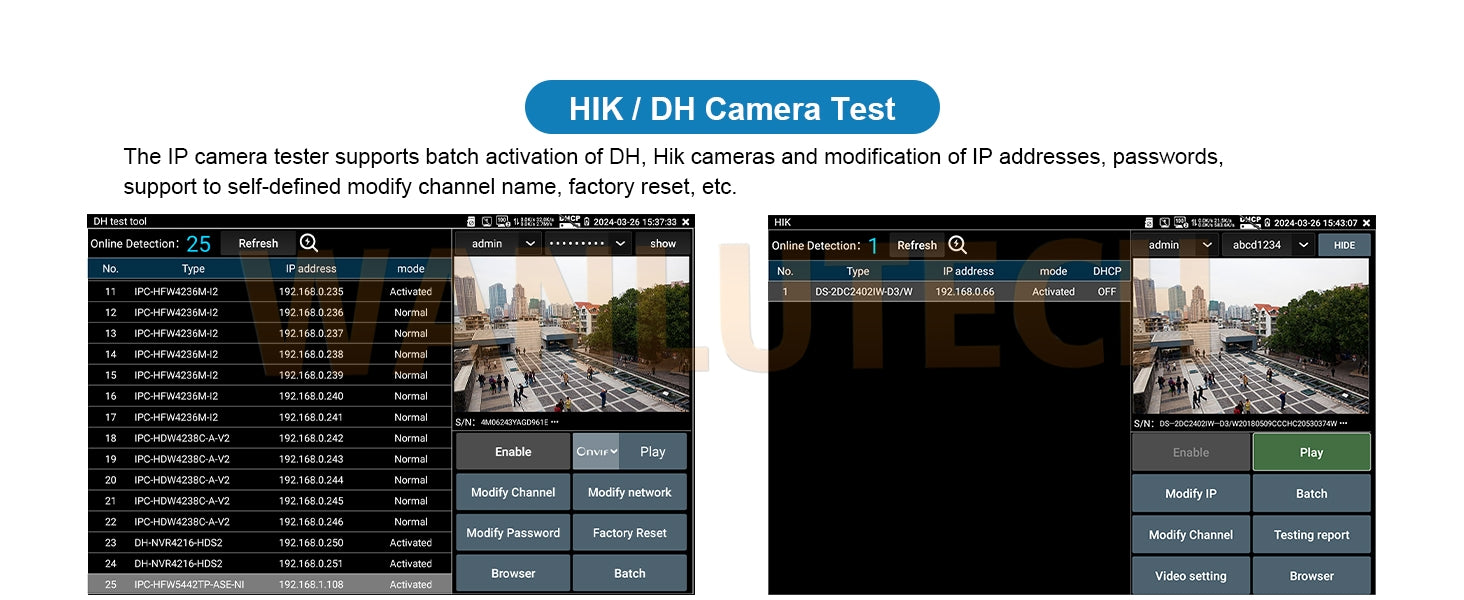

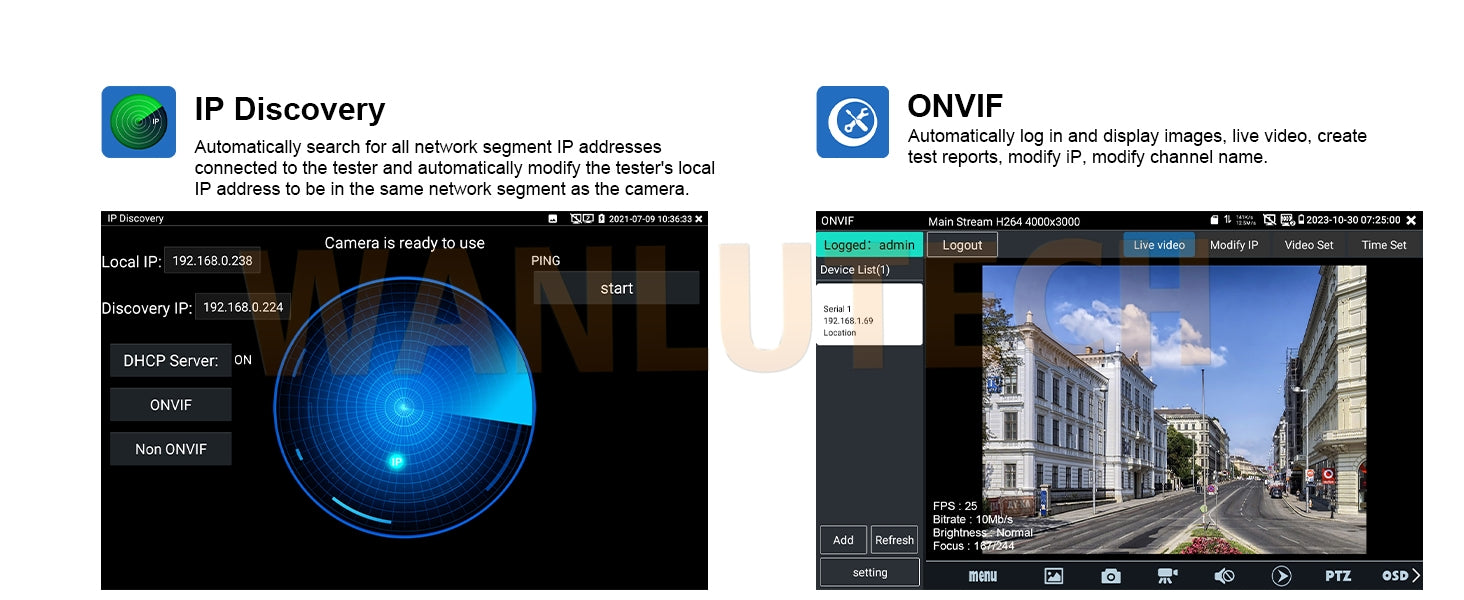

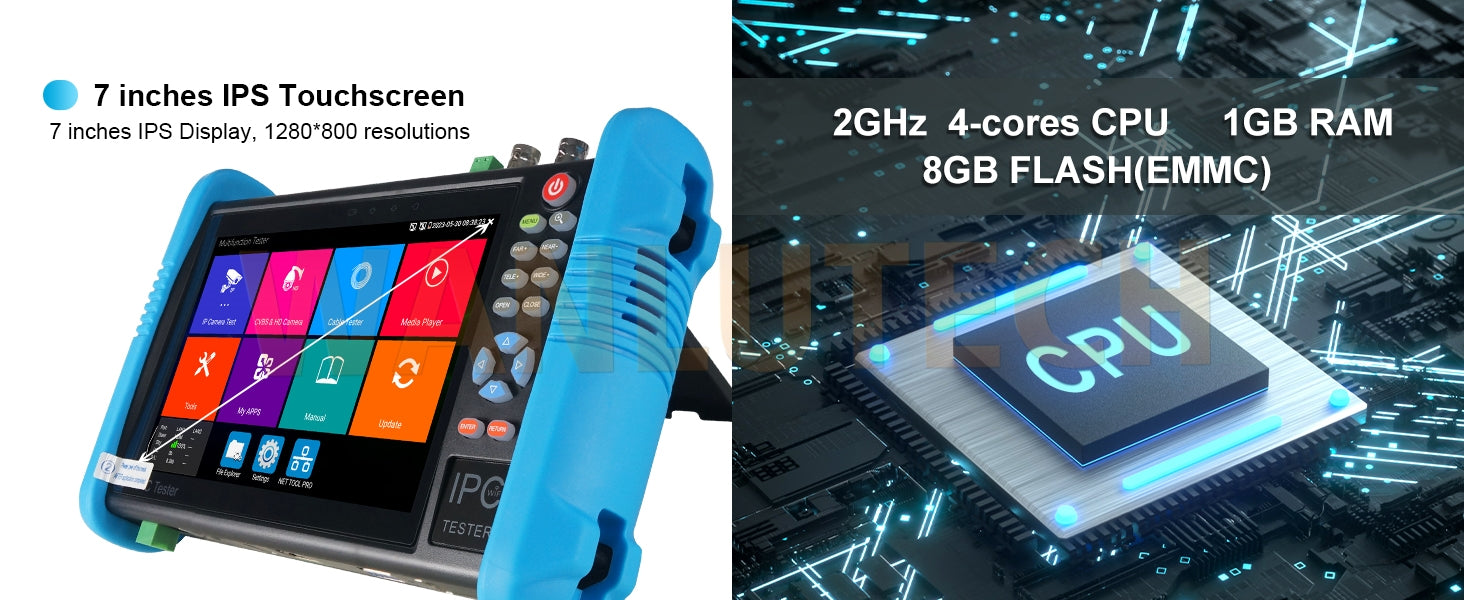

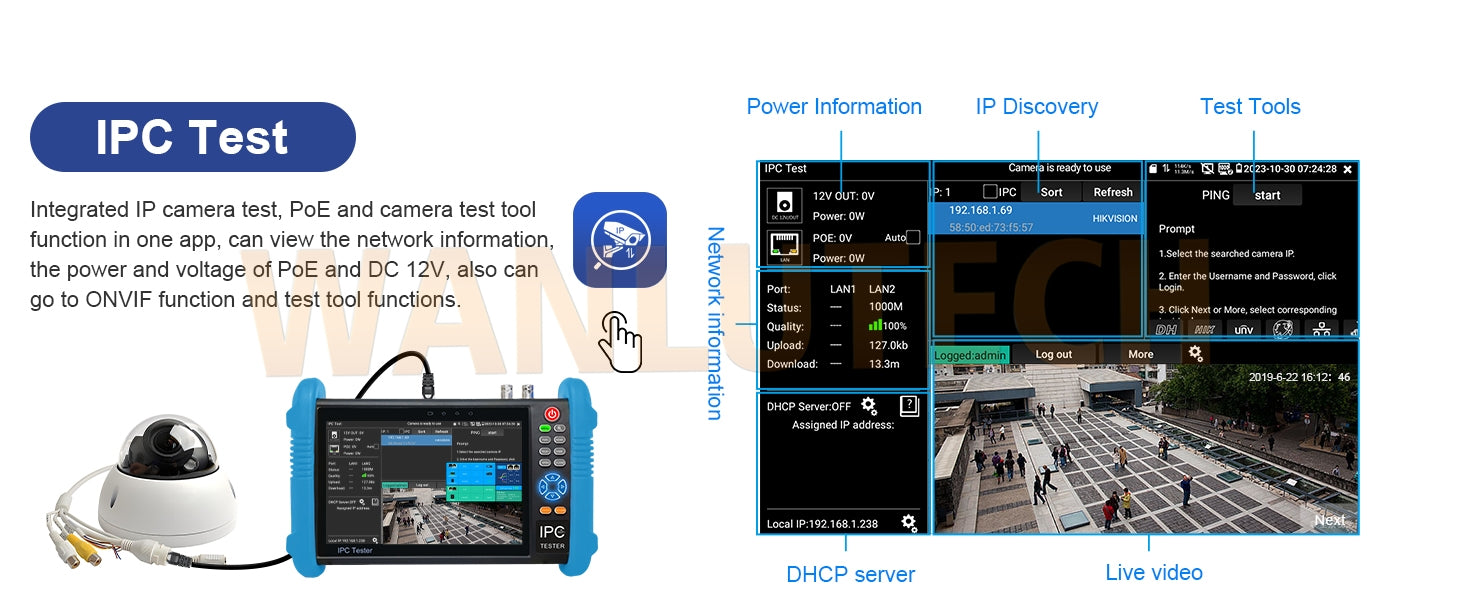

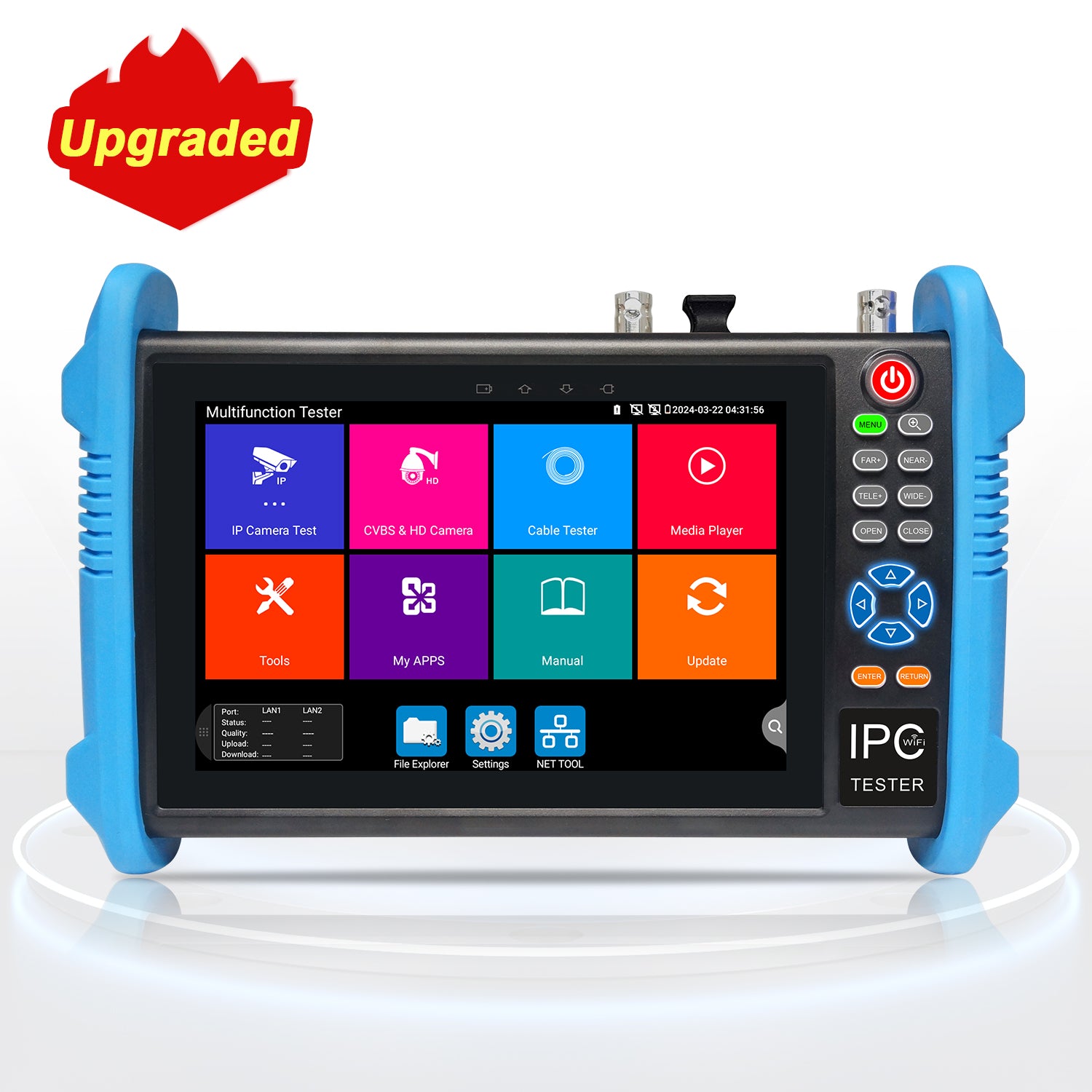

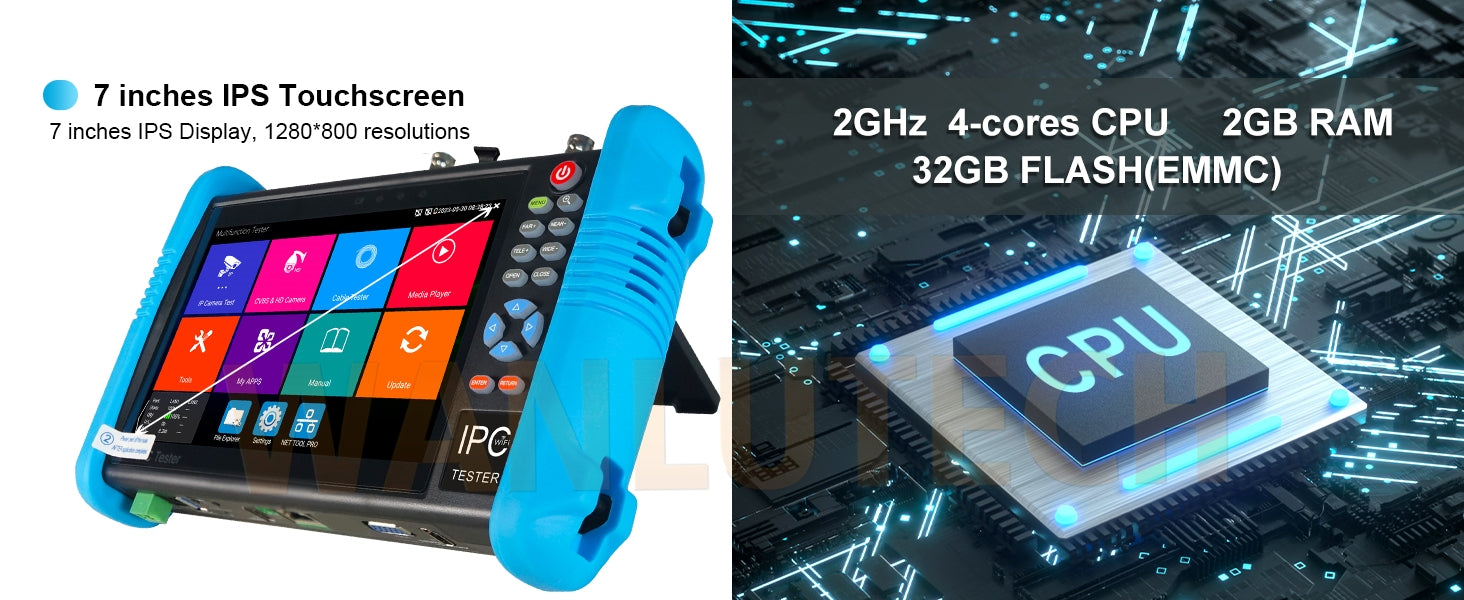

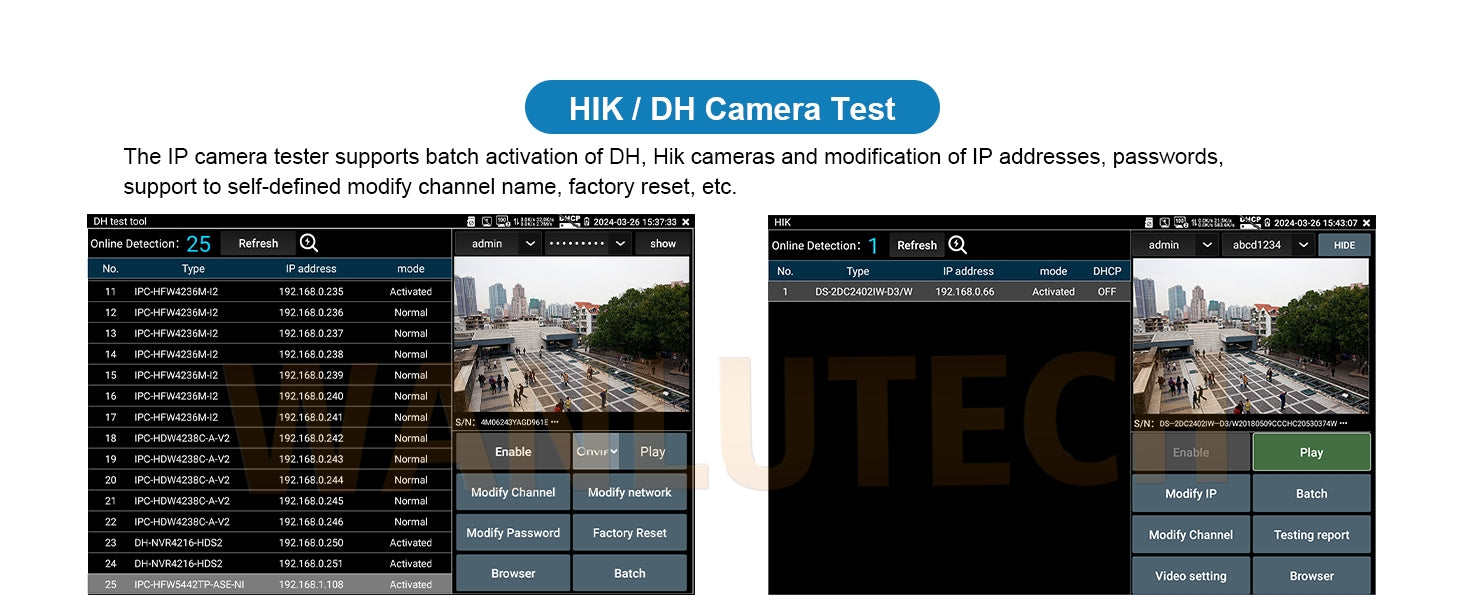

7" touchscreen with 1280x800 resolution, supports IP cameras up to 8K 32MP plus CVBS analog cameras. Batch activation and IP/password modification for Dahua and Hikvision cameras. Built-in IP Discovery, RTSP playback, and Quick ONVIF test. Supports CVBS loop test to check BNC cable integrity with a color bar signal.

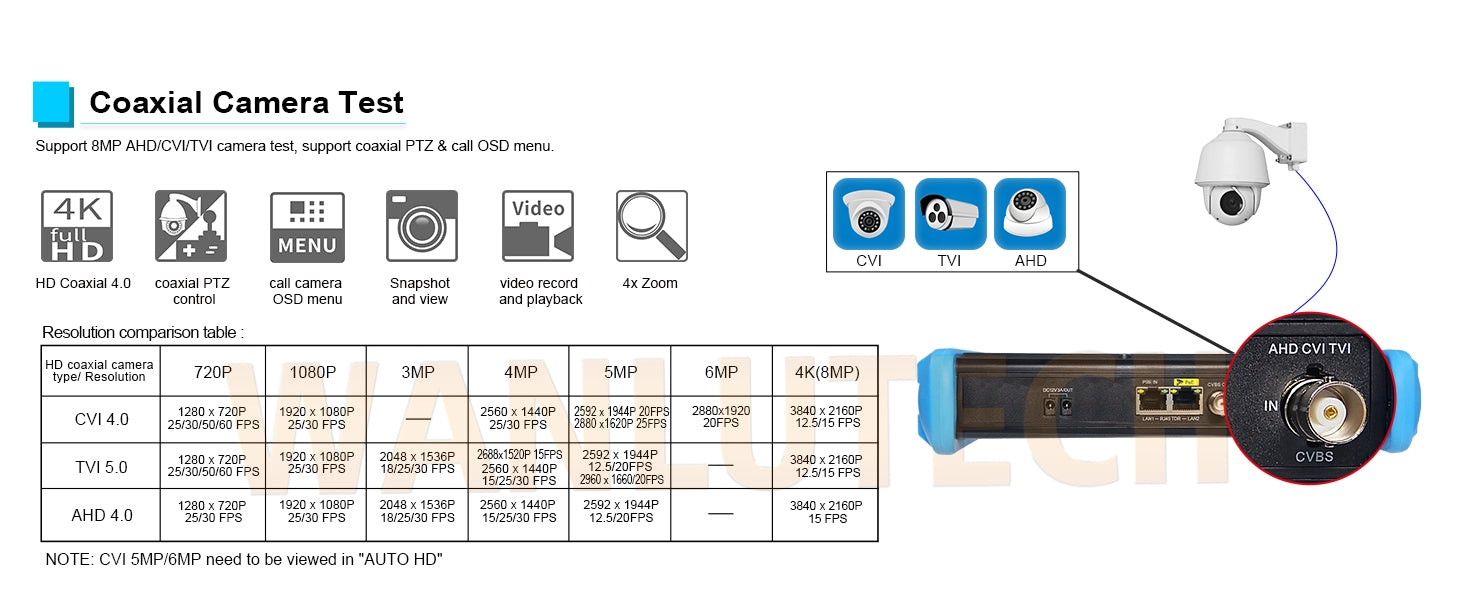

🎥 AHD / TVI / CVI Analog Testing

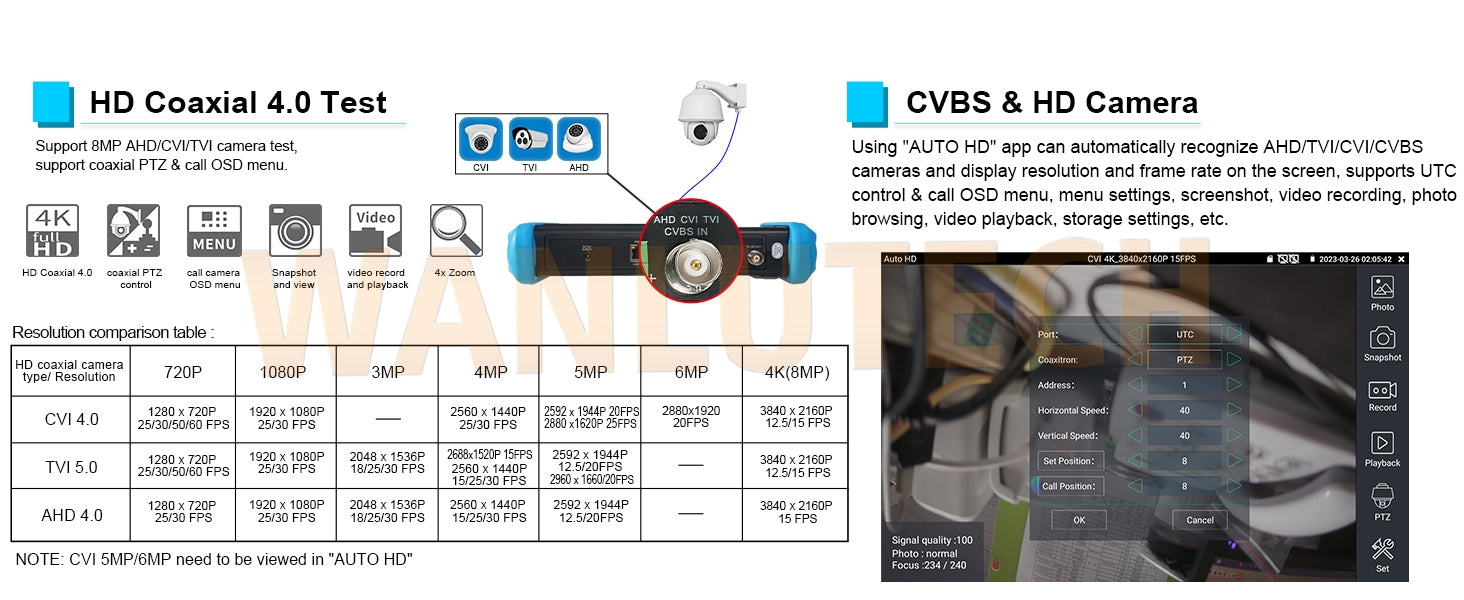

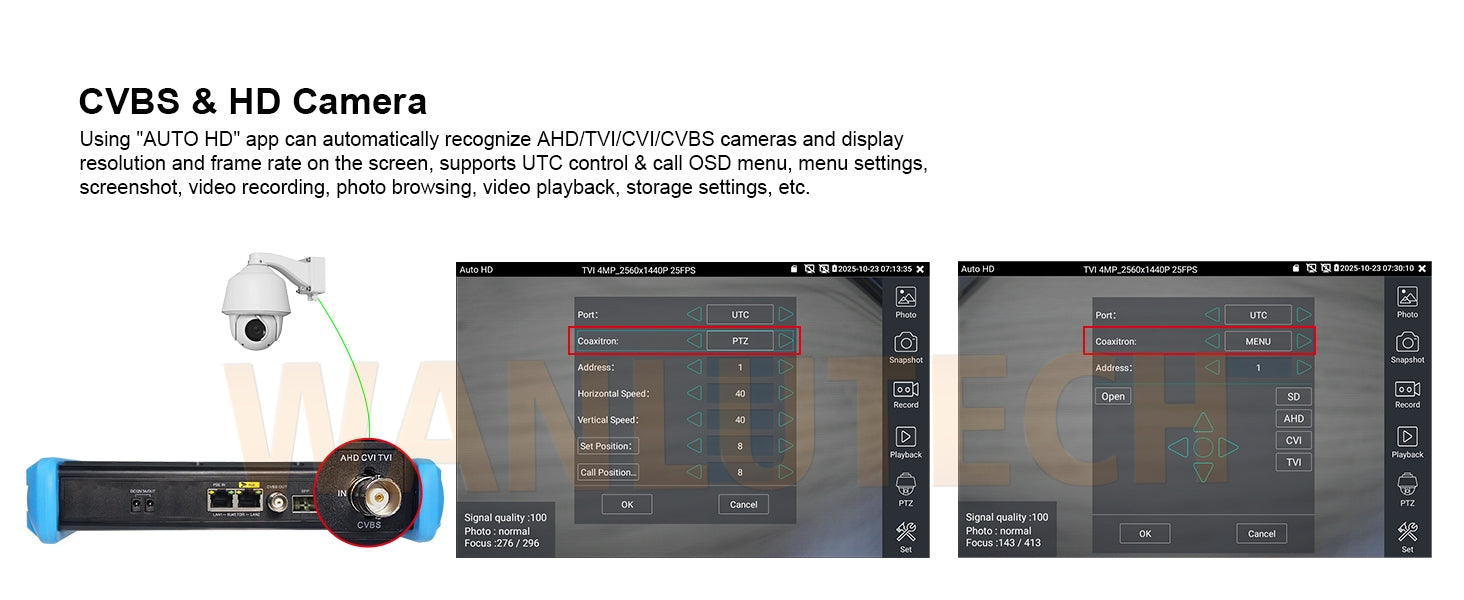

Tests up to 8MP AHD/TVI/CVI/CVBS analog cameras. The "Auto HD" mode automatically detects the camera format and displays resolution and frame rate on screen. Supports UTC control, OSD menu access, screenshots, video recording and playback, plus a built-in color bar generator (PAL/NTSC output).
🔌 Cable Fault Diagnosis

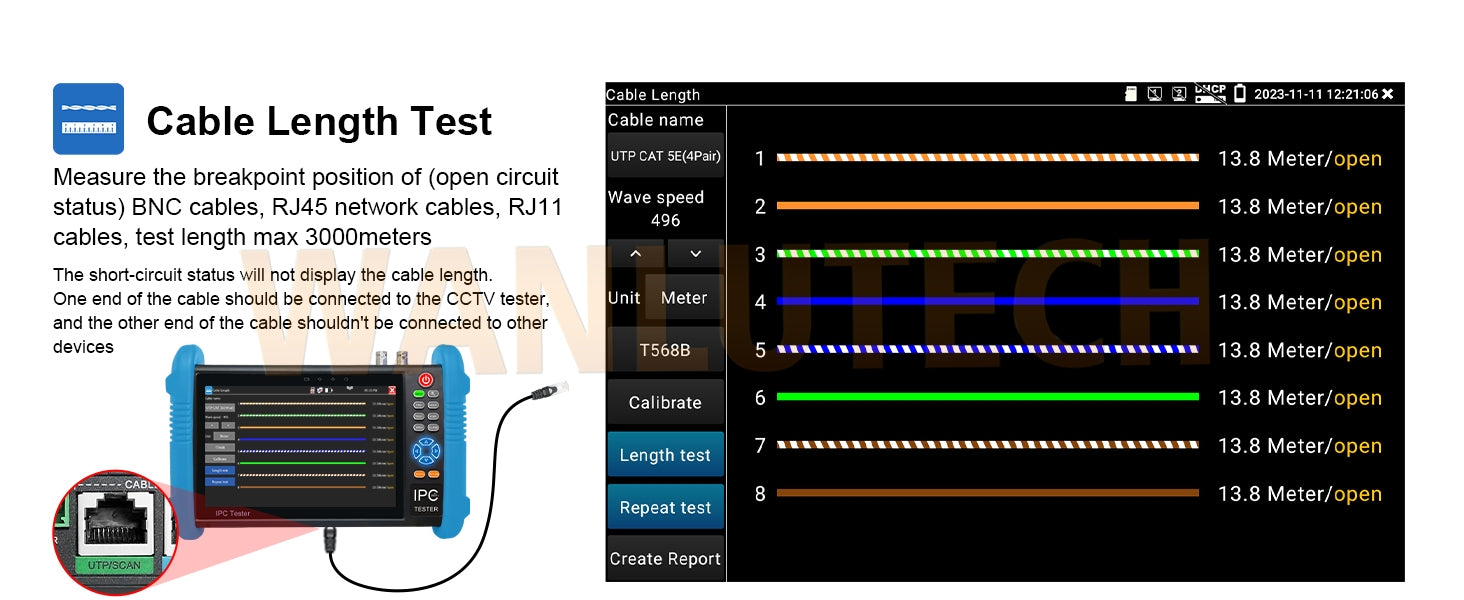

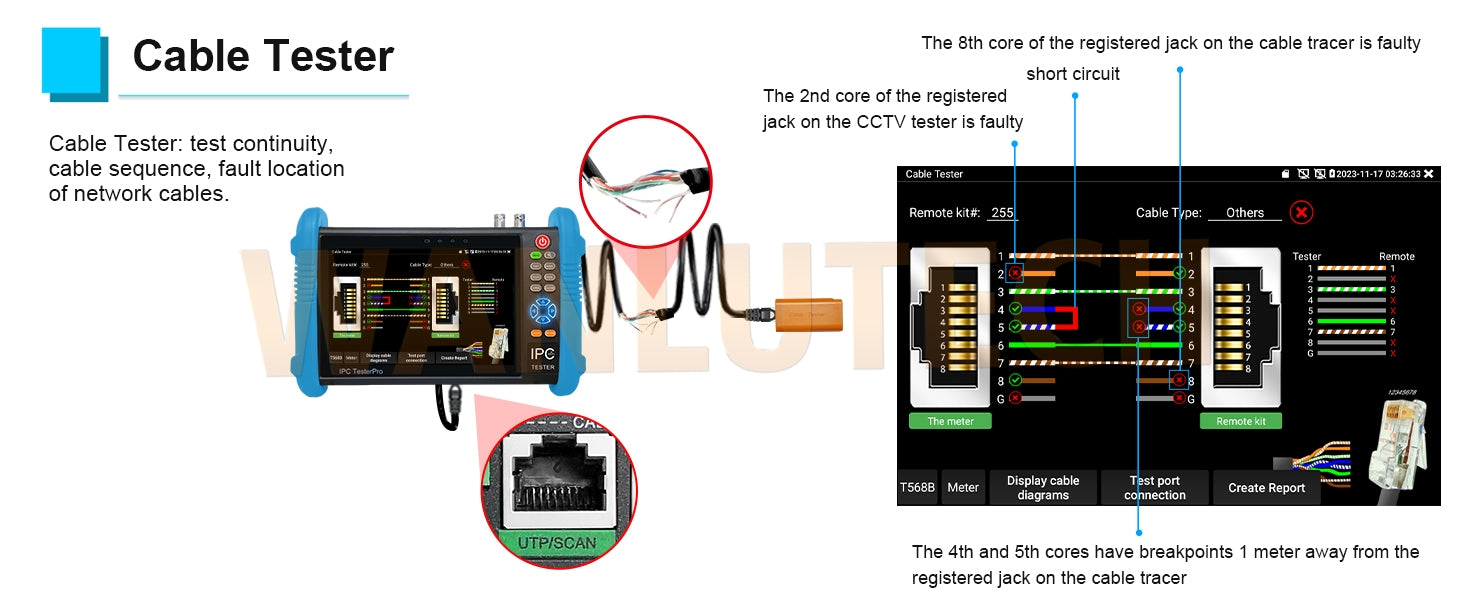

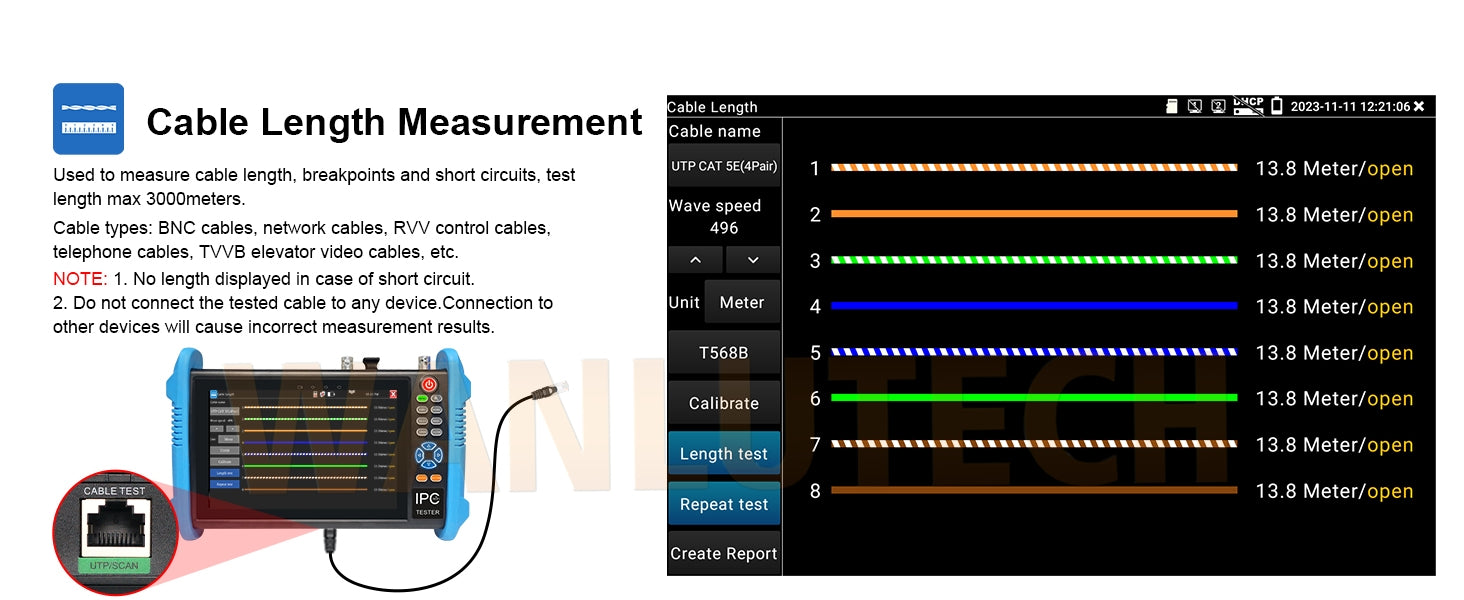

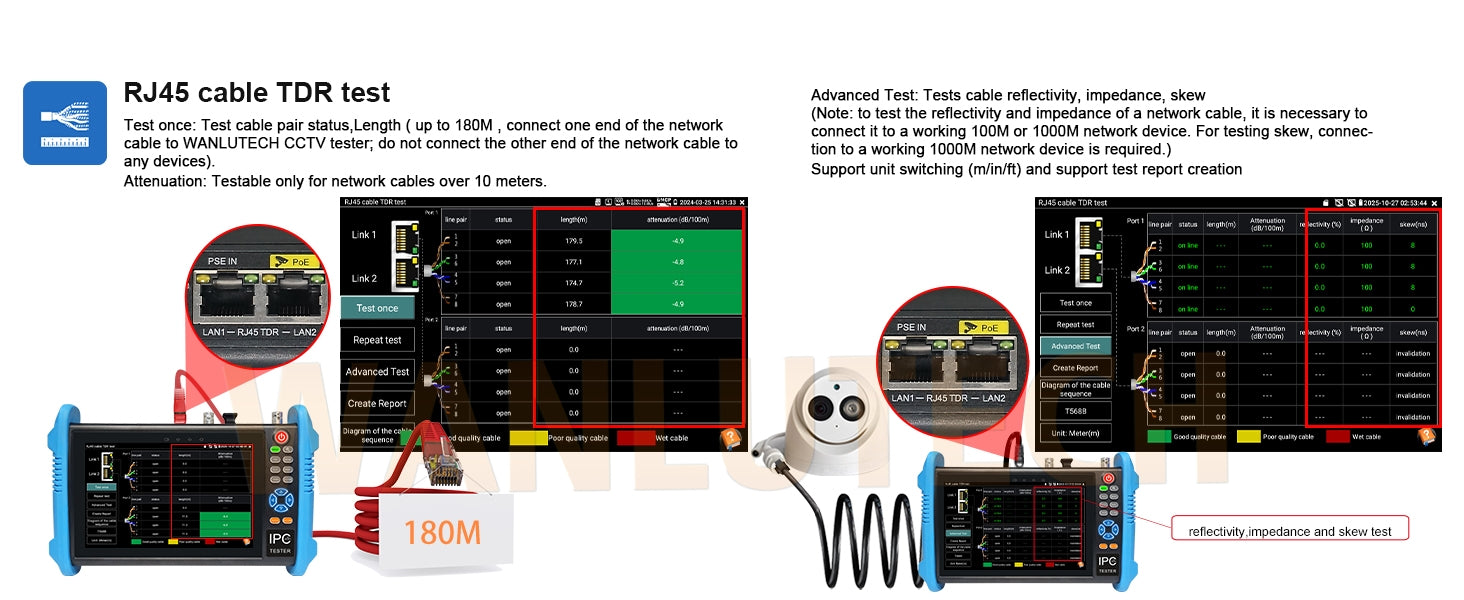

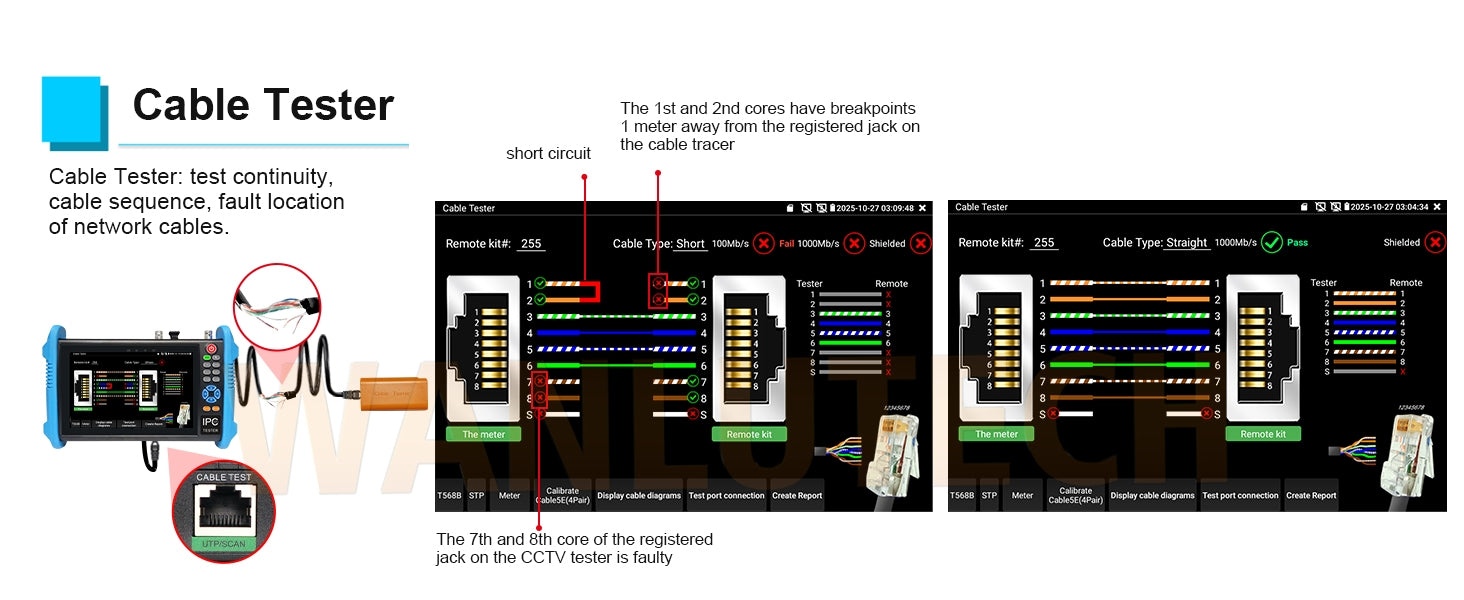

RJ45 cable TDR test: check pair status, length, attenuation, reflectivity, and impedance in one pass. Locate near-end, mid-end, and far-end fault points on RJ45/BNC/RJ11 cables — no more guessing where the break is.
⚡ PoE Power & Network Tools

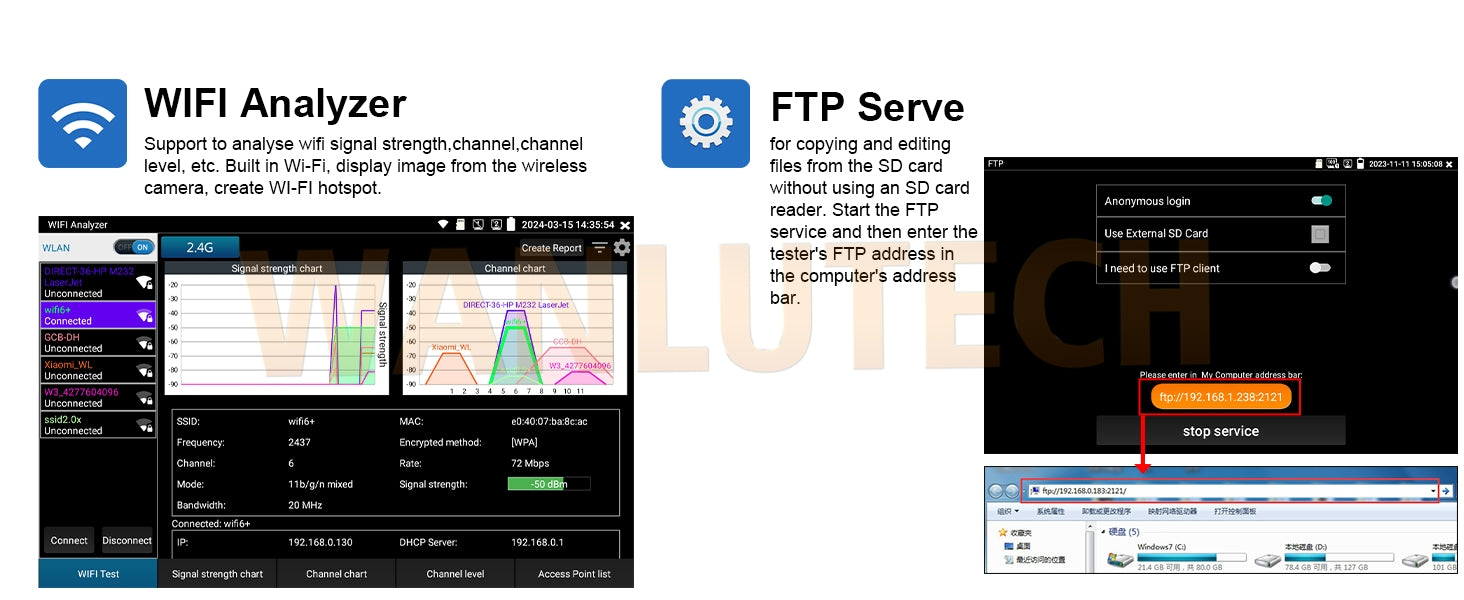

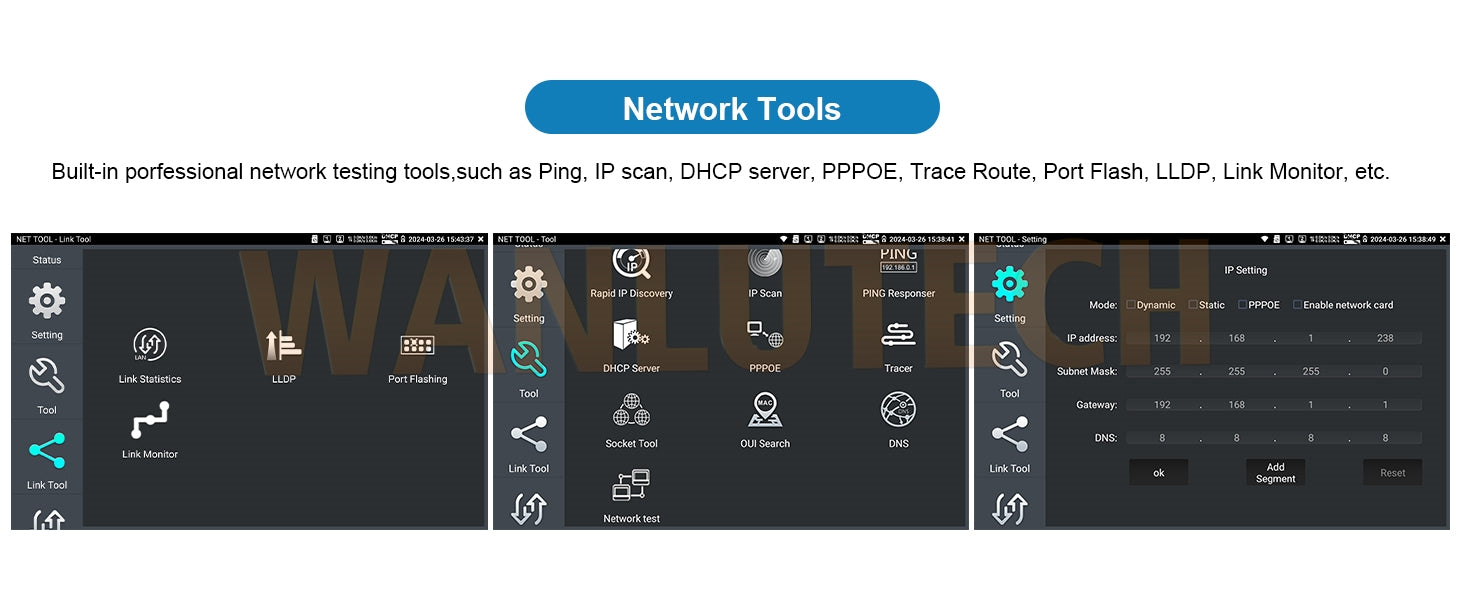

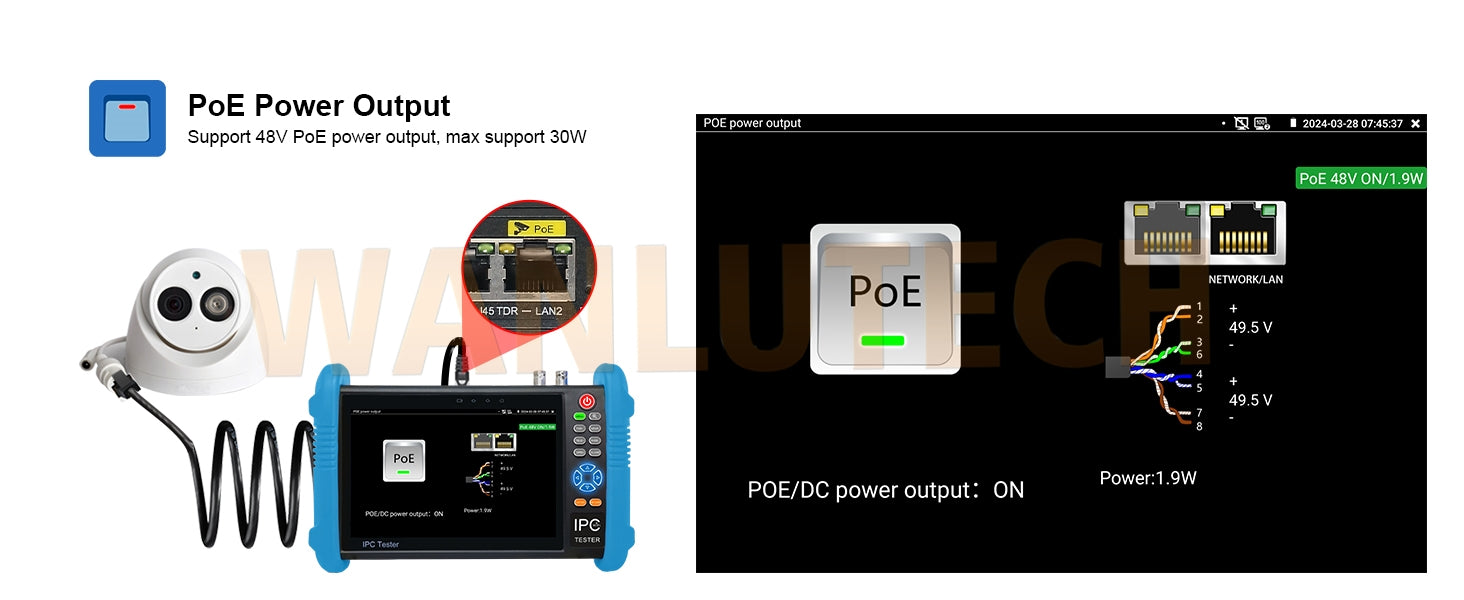

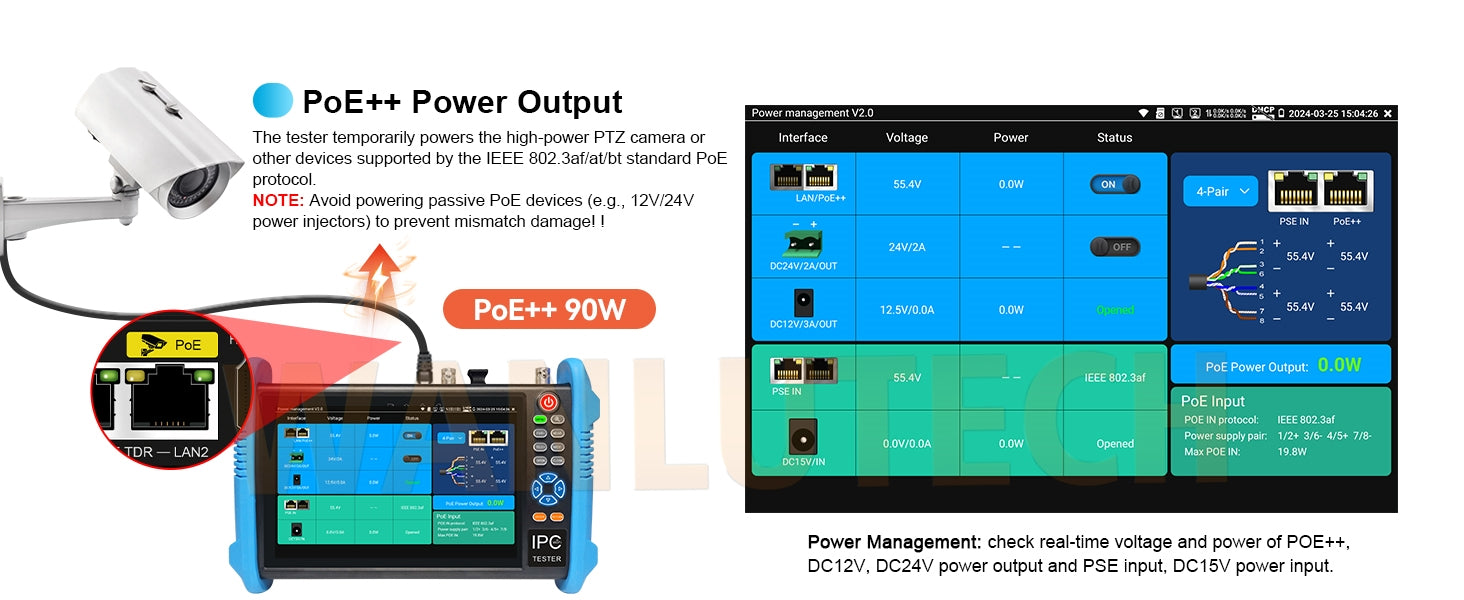

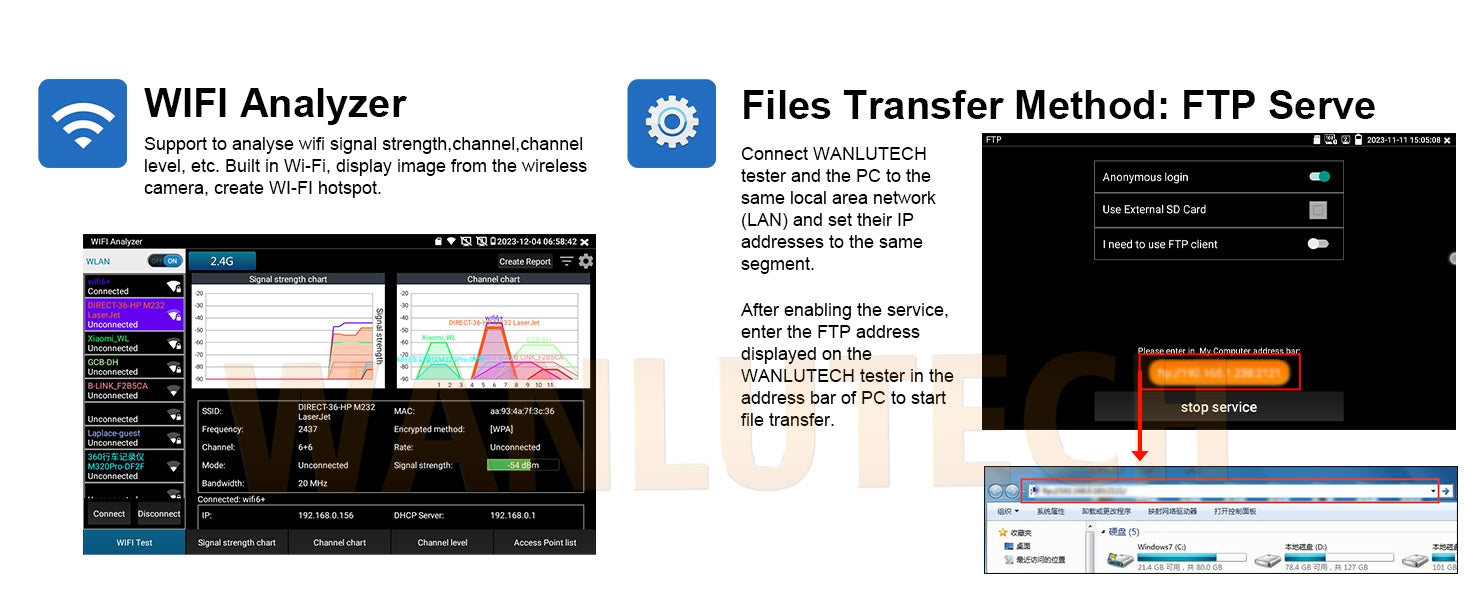

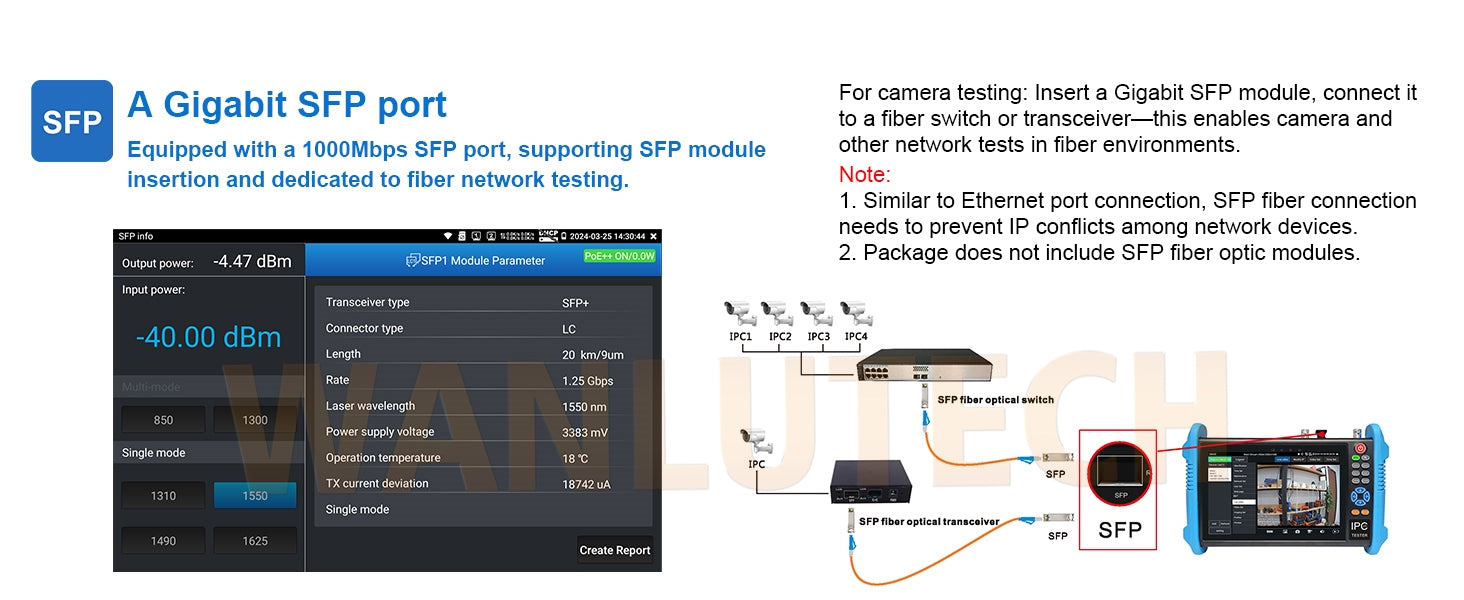

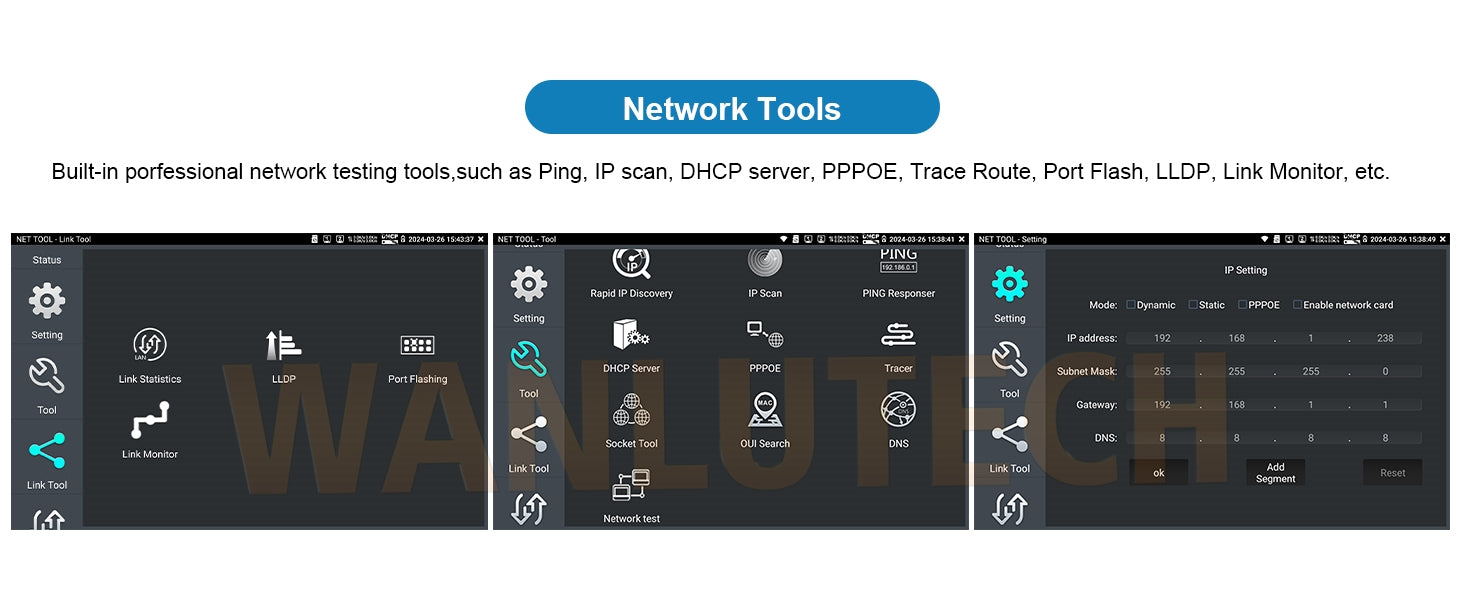

Up to 55V 90W PoE power output for temporarily powering high-power PTZ cameras. Built-in Gigabit SFP fiber module port for fiber network testing. Includes professional network tools — Ping, IP scan, DHCP server, Trace Route — plus 2.4GHz WiFi signal analysis.

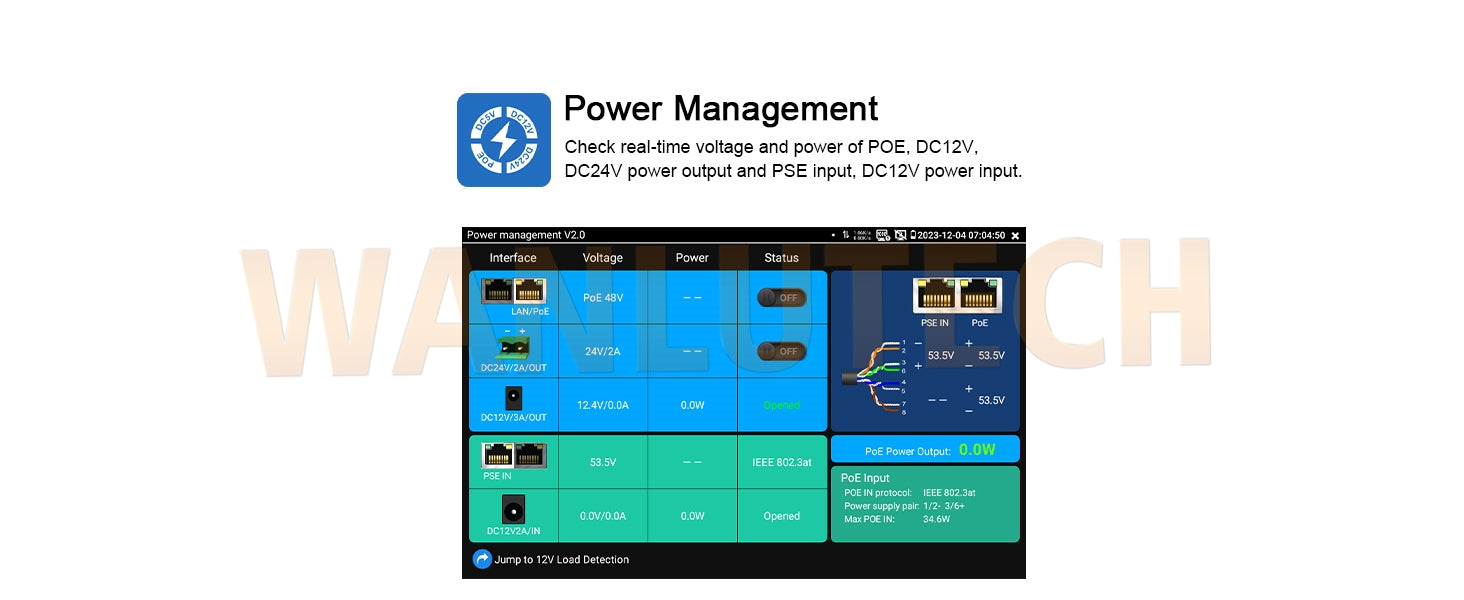

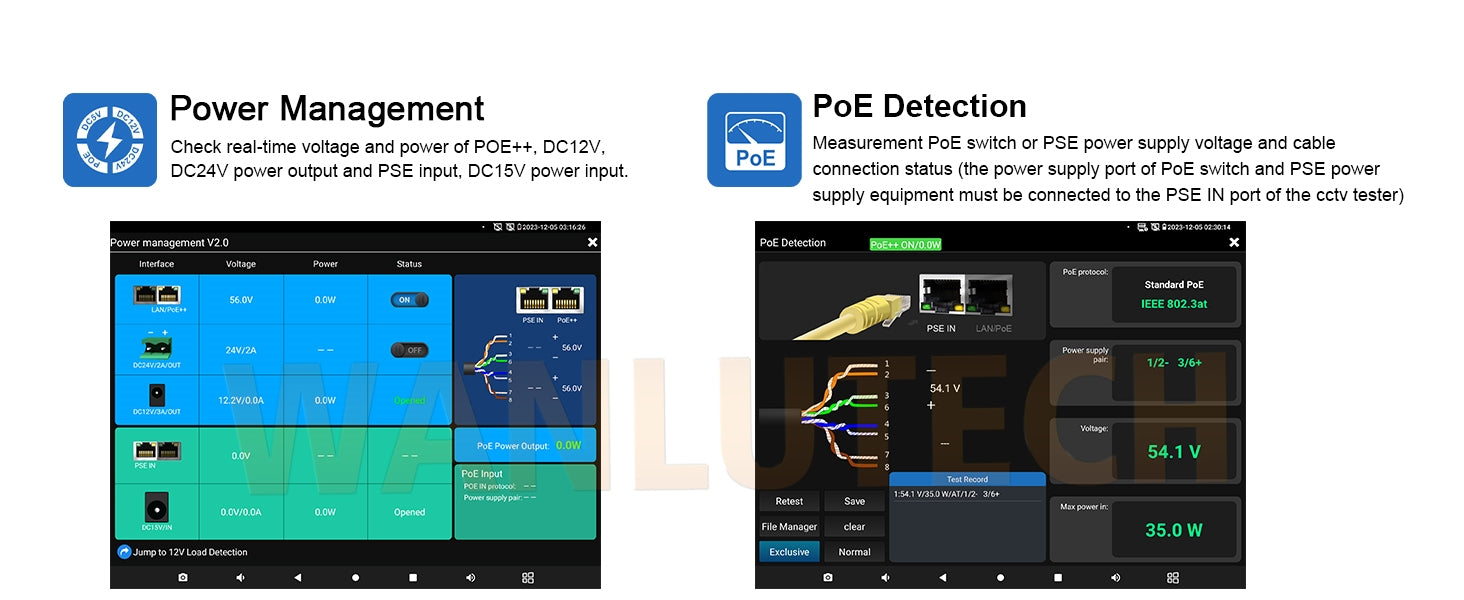

🔋 Integrated Power Management

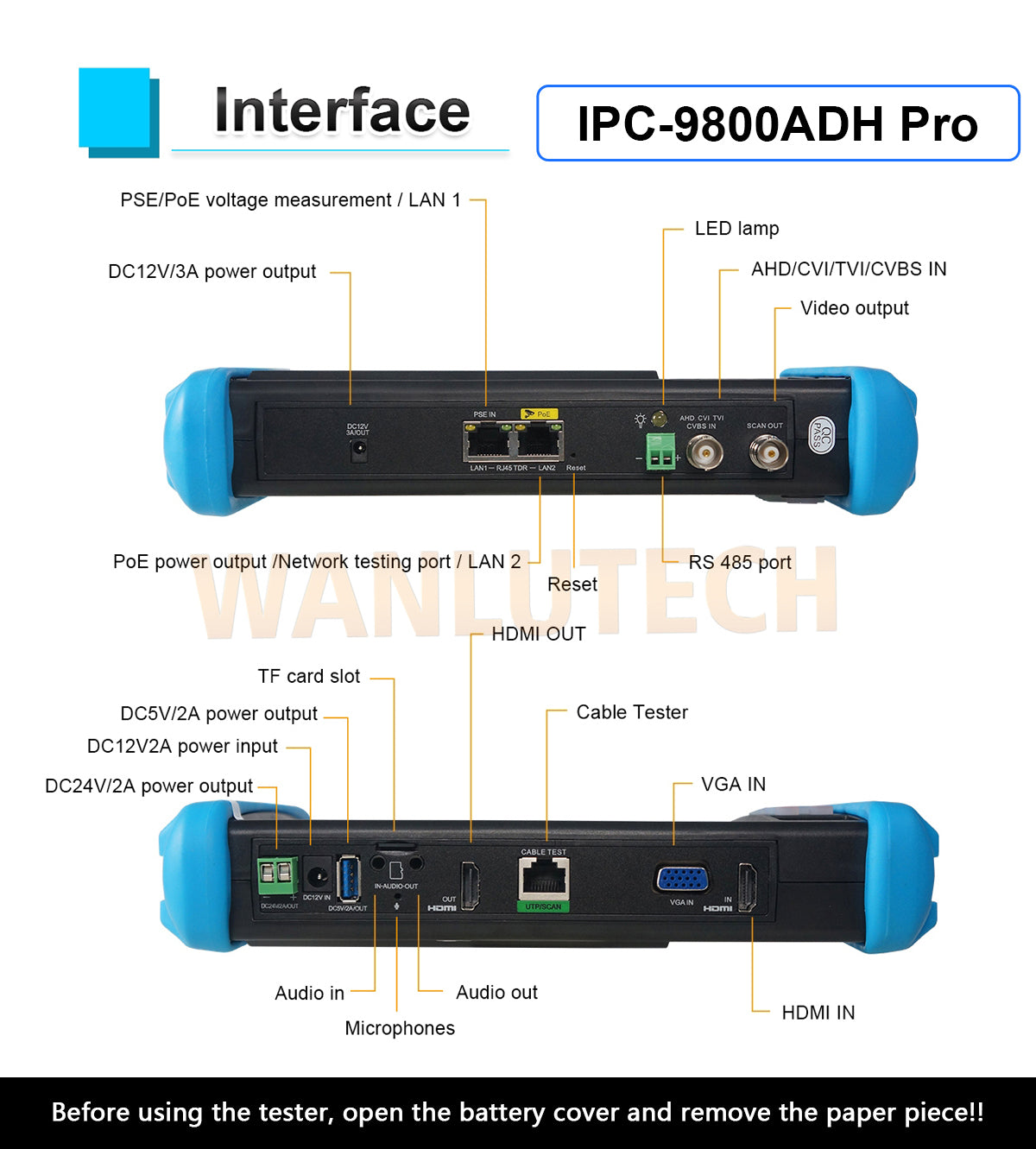

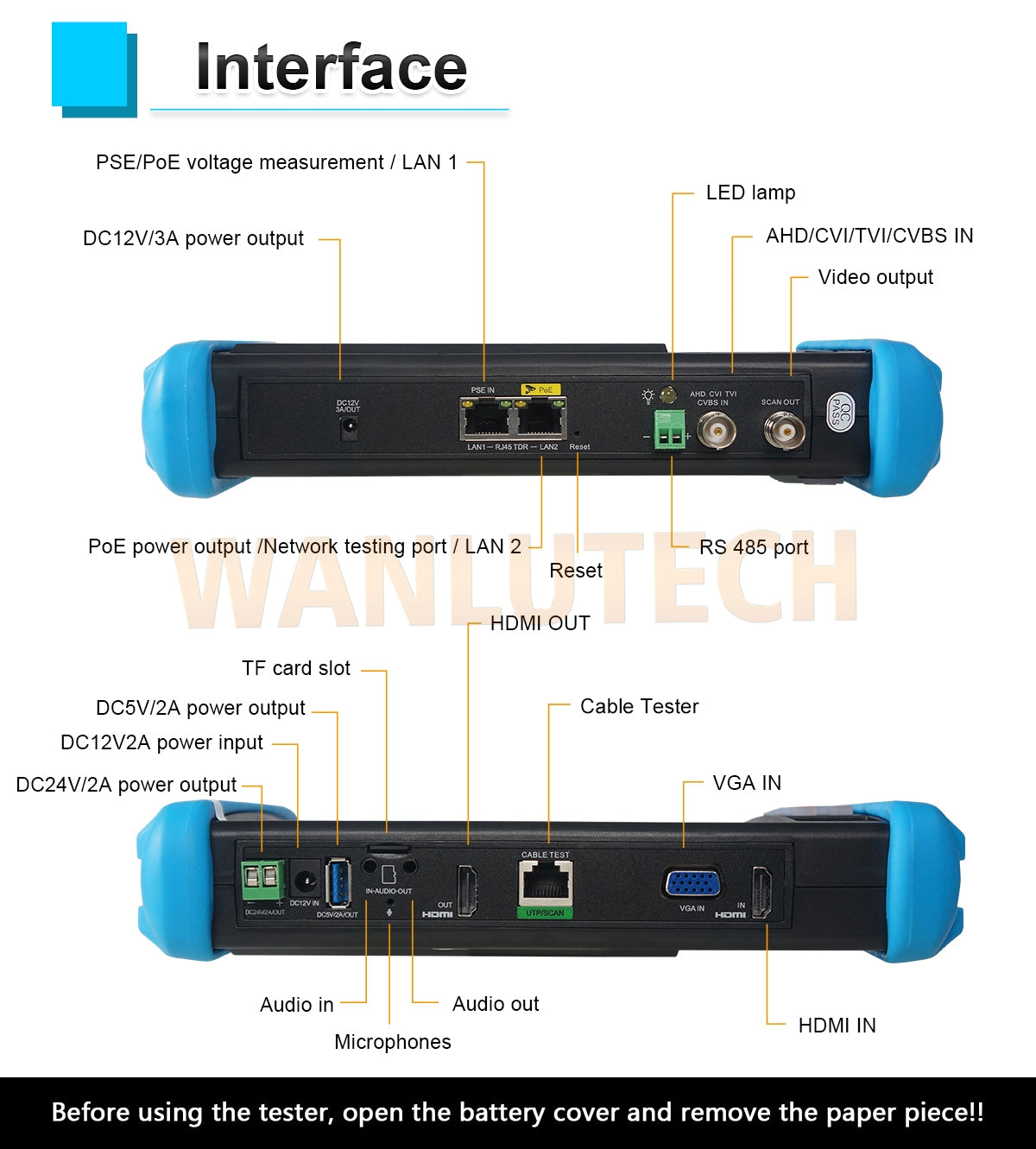

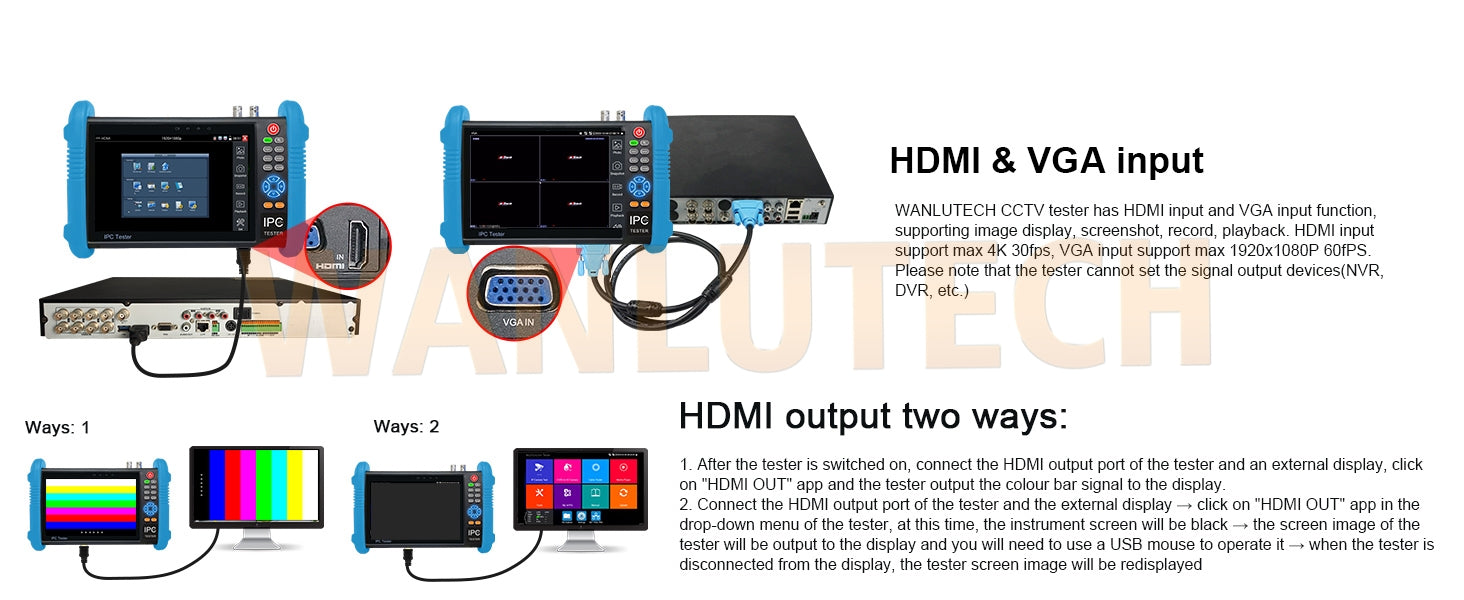

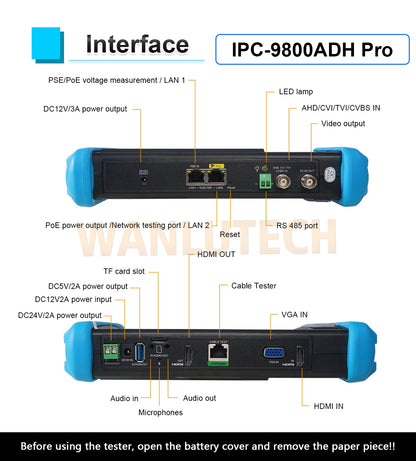

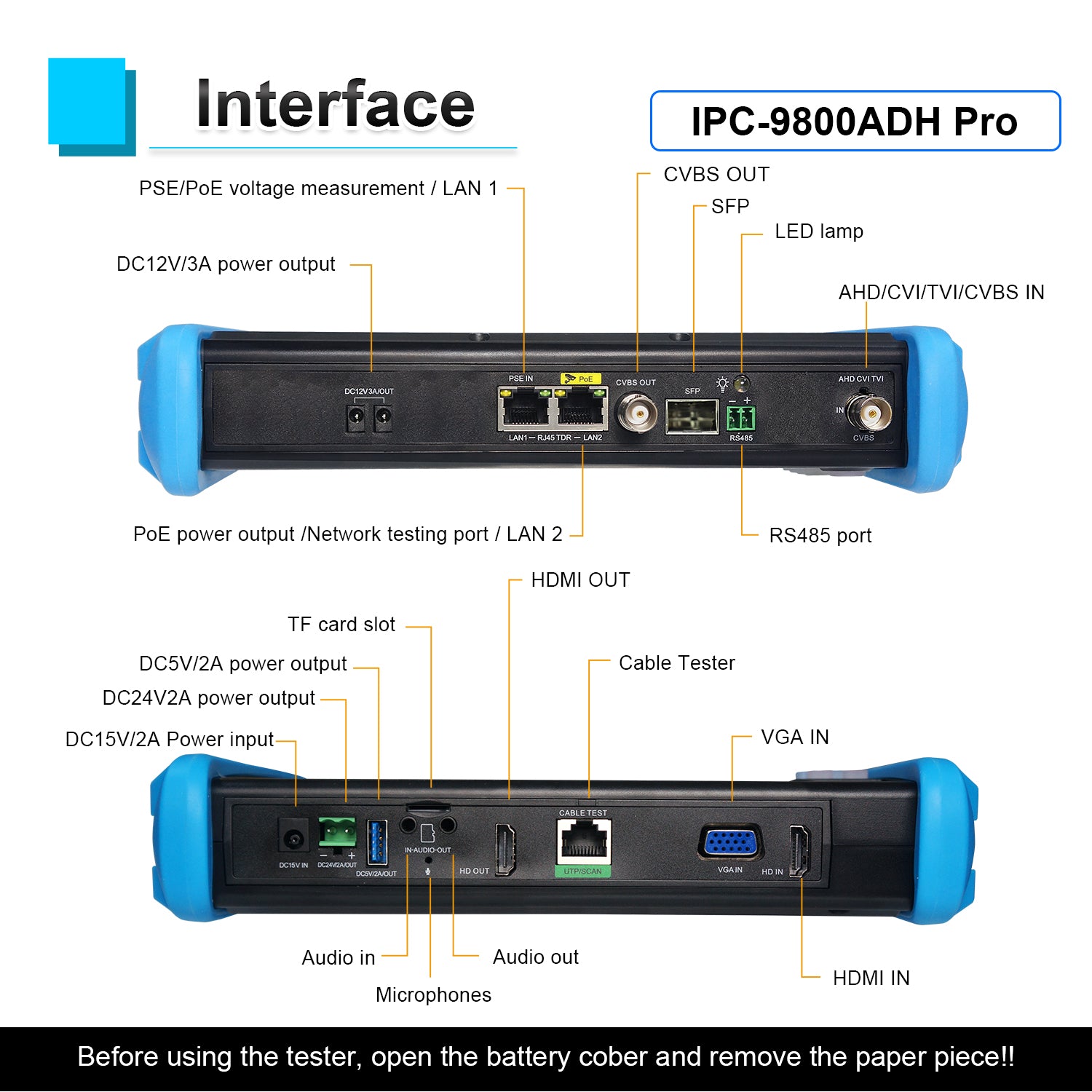

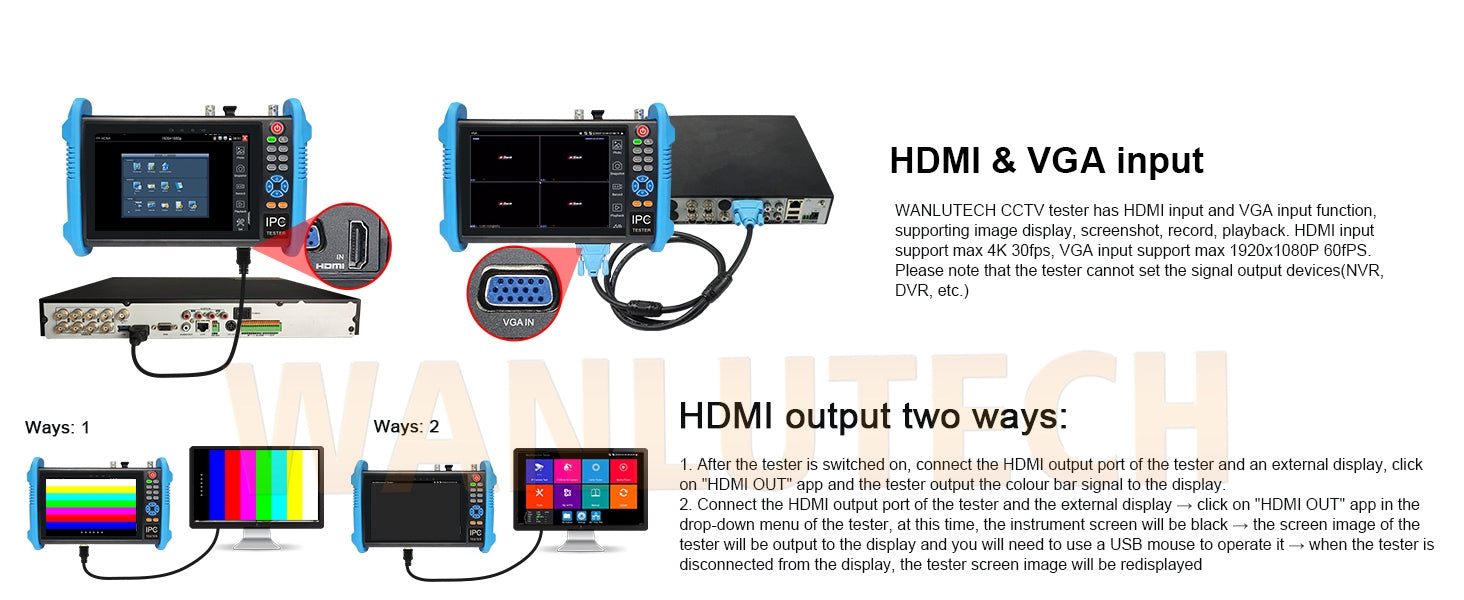

Real-time voltage, power, and port status display. 8GB TF card storage, dual Gigabit Ethernet ports, HDMI in/out, VGA in, audio in/out, RS485 port.
| Screen |
7" touchscreen, 1280x800 |
| Supported Formats |
IP (up to 32MP) / AHD, TVI, CVI (up to 8MP) / CVBS analog |
| PoE Output |
Up to 55V 90W |
| Power Input |
DC15V 2A |
| Power Output |
DC12V/3A, DC24V/2A, DC5V/2A |
📖 Which model do you need? The IPC-9800 series has 3 models:
· 9800 Pro — IP + CVBS only, our base model
· 9800ADH Pro (this model) — adds AHD/TVI/CVI analog camera support
· 9800CADHS Pro — adds SDI support + Cable Tracer for locating cables in cluttered bundles, most complete feature set
💡 Before first use: open the battery cover and remove the isolating paper strip. Download the full user manual here. We are the original manufacturer — any questions, we'll respond within 12 hours.
