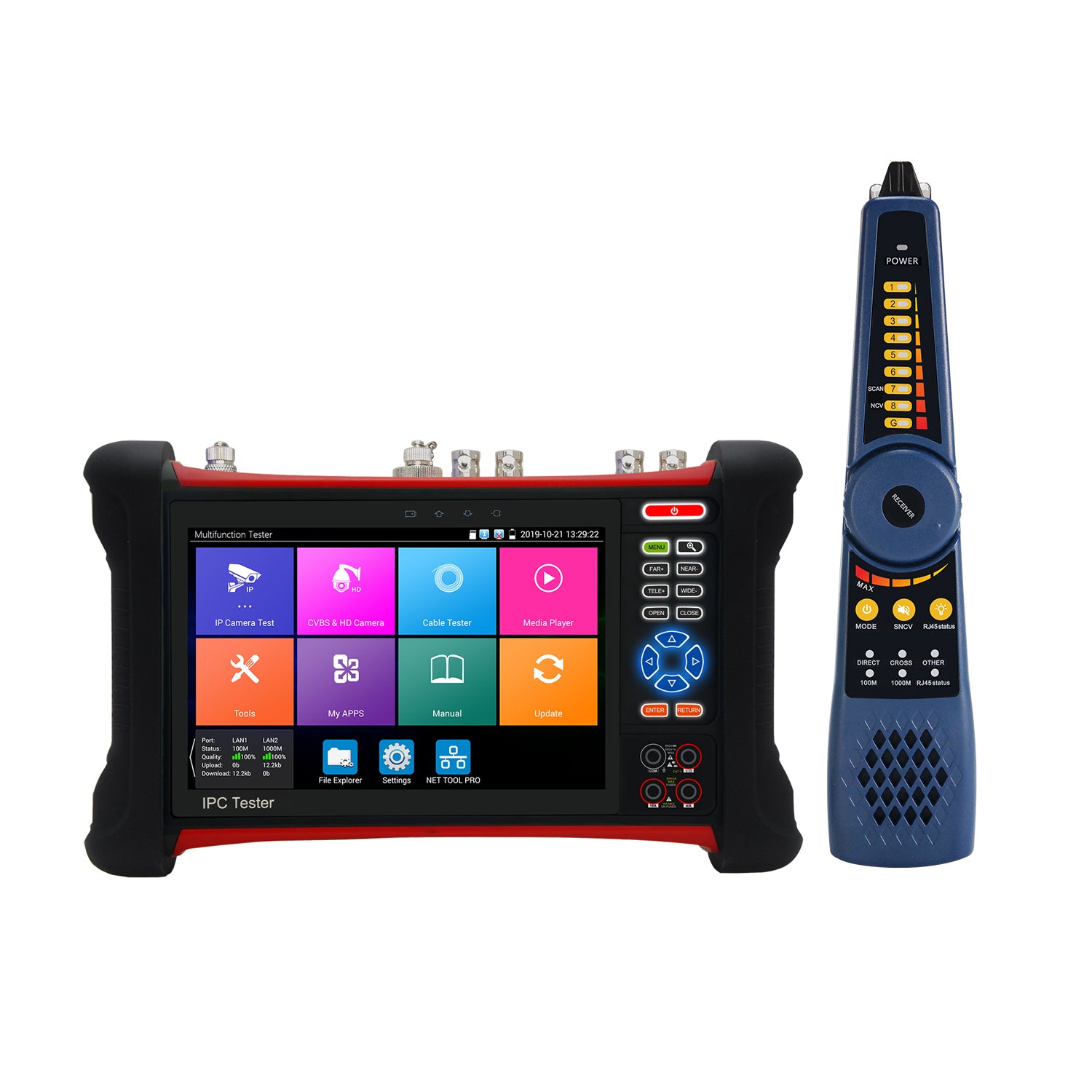

WANLUTECH 8K IP Camera Tester with PoE, CCTV Tester 8MP TVI CVI AHD SDI Camera Tester DMM OPM VFL WiFi Network Tools HDMI VGA (X7-MOVTADHS Pro)

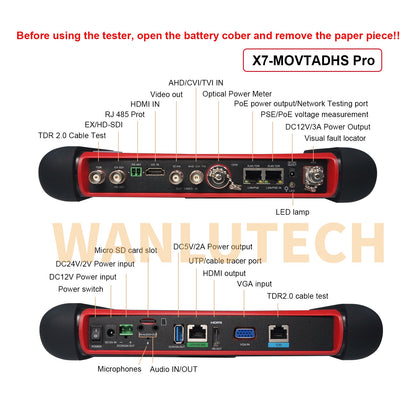

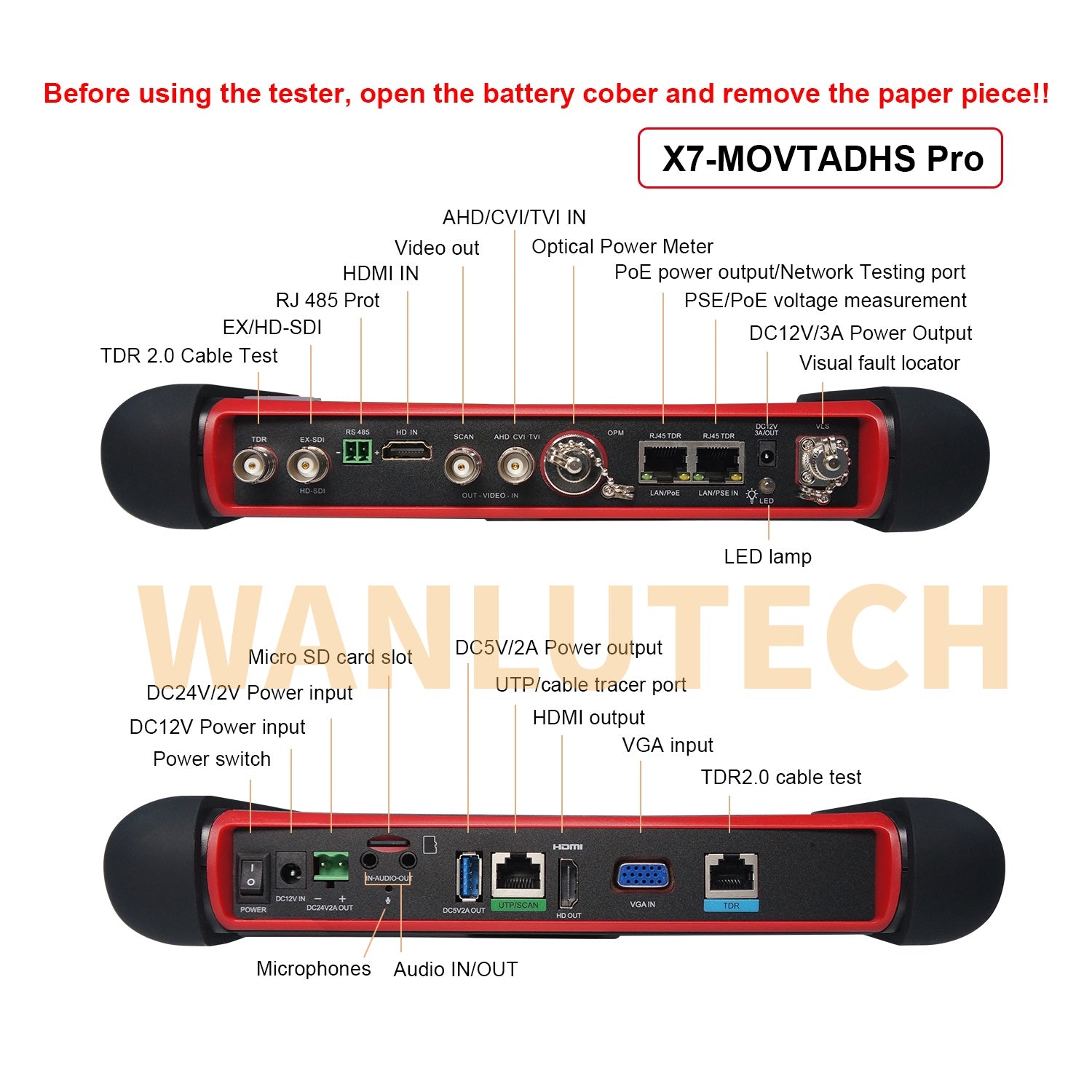

Model: X7-MOVTADHS Pro

Touchscreen: 7inches / 1920x1200 resolution

[IP camera test]: 8K video display via mainstream. IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK

[CVBS]: 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt). PTZ control,RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc. Support Analog camera testing.

[HIK/DH test tool]: Activate hikvision/Dahua camera , modify the user name, password and IP parameters, etc.

[Coaxial HD test]: Max 8MP TVI/CVI/AHD camera test, 3840 x 2160P 15FPS, UTC control/call OSD menu. Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu. Support HD SDI and EX SDI 2.0 camera testing.

[Cable Tracer/ Cable Tester]: Searching for BNC cable, network cable and telephone cable from cluttered cables,also can search shield cables. RJ45 Cable TDR Test: it can test cable pair status, length, attenuation, reflectivity, impedance, skew. TDR Cable Breakpoint Short Circuit Test: BNC cable, network cable, telephone cable, RVV cable and TVVB elevator cable, cat 5/6 cable’s length(up to1.2 KM ) and short circuit. Cable Length Test: Measure the breakpoint position of (open circuit status) BNC cables, RJ45 network cables, RJ11 cables.

[Digital Multimeter]: DC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement, support record data and create report

[Optical power meter]: Wavelength:850/980/1270/1300/1310/1490/1550/1577/1625/1650nm, measurement range ,-70 ～ +10 dBm, for optical power testing and Fiber link loss relative measurement

[Visual fault locator]: it is used to detect fiber for breakage, cracking, bending, test length max 8KM

[WIFI analyzer/WIFI hotspot]: WI-FI analyzer(2.4GHz frequency band) support to analyse wi-fi signal strength,channel,channel level, support create WI-FI hotspot

[Network Test Tools]: Built-in porfessional network testing tools,such as Ping, IP scan, DHCP server, PPPOE, Trace Route, Port Flash, LLDP, Link Monitor, etc.

4K 30 FPS HDMI input / 4K 60 FPS HDMI output / VGA input

[Power input /PoE power output]: DC12V 2A Power Input. / Power output: support max 48V 30W PoE power output, temporarily powers the high-power PTZ camera or other devices supported by the IEEE 802.3af/at/bt standard PoE protocol. Support DC5V/2A, DC12V/3A, DC24V/2A

[Tester Play]: Tester, android version mobile phone and PC display at the same time

Self -update software, you can install apps with android version

Media player, 4K video files and MKV/MP4 media files play

Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
