WANLUTECH 8K IP Camera Tester, CCTV Tester 90W PoE Power Output 8MP SDI TVI CVI AHD CVBS Camera Tester SFP Test RJ45 Cable TDR Tester Cable Tracer WiFi Network Tools HDMI I/O VGA in (H20-CADHSEF)
[ IP Camera Tester with PoE ] WANLUTECH 8K IP camera tester (Model:H20-CADHSEF) temporarily powers the high-power PTZ camera or other devices supported by the IEEE 802.3af/at/bt standard protocol, max 90W poe power output. It support to test max 8K 32MP 4K 12MP IP cameras. Support CVBS analog camera test,1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt). The CCTV tester supports batch activation of DH, Hik cameras and modification of IP addresses, passwords, etc. Support IP Discovery/4CH ONVF/IPC test /RTSP play /Client APK
[ SFP & Distance Meter & Built-in a Camera ] It has two gigabit SFP optical fiber module ports, support insert SFP optical fiber module, for optical fiber network testing. Distance Meter: It has several measurement modes, and support export data, support benchmark switch. Built-in camera,support focus detection
[ AHD CVI TVI SDI Coaxial Camera Test ] WANLUTECH IP camera tester with poe support to test max 8MP AHD TVI CVI SDI camera. Using "AUTO HD" app can automatically recognize AHD/CVI/TVI/CVBS cameras and display resolution and frame rate on the screen, supports UTC control & call OSD menu, menu settings, screenshot, video recording, video playback, etc. Support to measure video signal level (peak level, SYNC level, burst level). Support color bar generator. It has a multiple preview mode, and supports synchronized preview of multiple cameras, playback of the camera 2 to 3 frames per second, up to 16 simultaneous preview

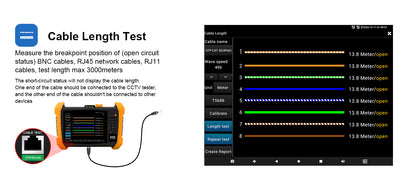

[ Cable Tester Network Tools ] Cable Tracer: Searching for BNC cable, network cable and telephone cable from cluttered cables,also can search shield cables. RJ45 Cable TDR Test: It can test cable pair status, length, attenuation, reflectivity, impedance, skew. Built-in porfessional network testing tools,such as Ping, IP scan, DHCP server, PPPOE, Trace Route, Port Flash, LLDP, Link Monitor, etc
[ Multifunction CCTV Monitor Tester ] 8'' touch screen, 2048x1536 resolution. WiFi analyzer: Support to analyse wifi signal strength,channel,channel level, built-in dual-band 2.4G/5G WIFI, max rate 433.3M, receive wireless network camera images, etc. Measurement POE switch or PSE power supply voltage and cable connection status. Dual Gigabit Ethernet Ports, HDMI in/out, VGA in, Audio I/O, RS485. Built-in 3350mAh battery, power input:DC15V 2.4A, power output:DC12V/3A, DC24V/2A, DC5V/2A
[ PLEASE NOTE ] There is a paper piece isolating the battery. Before using the tester, open the battery cover and remove the paper sheet. We are the manufacturer. Any questions, please let us know, We'll get back to you within 12 hours
