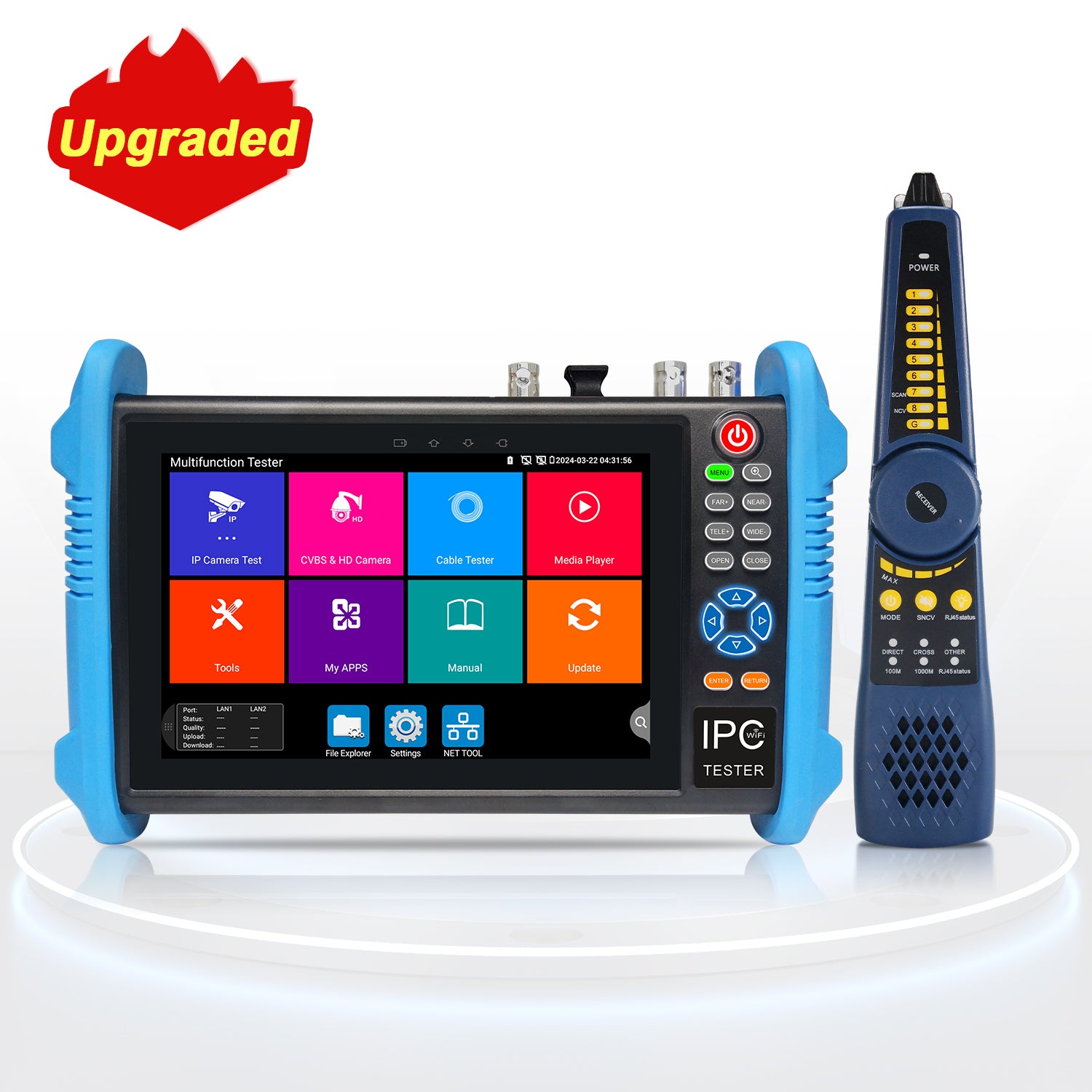

Camera installed but can't get a signal? Can't tell which cable is which in that tangle of wires? The WANLUTECH IPC-9800CADHS Pro is our most complete field tester — every major camera format, cable tracing, and power diagnostics in one device, so you don't have to run back to the van for another gadget.
Key Features
📹 Full-Format Camera Testing

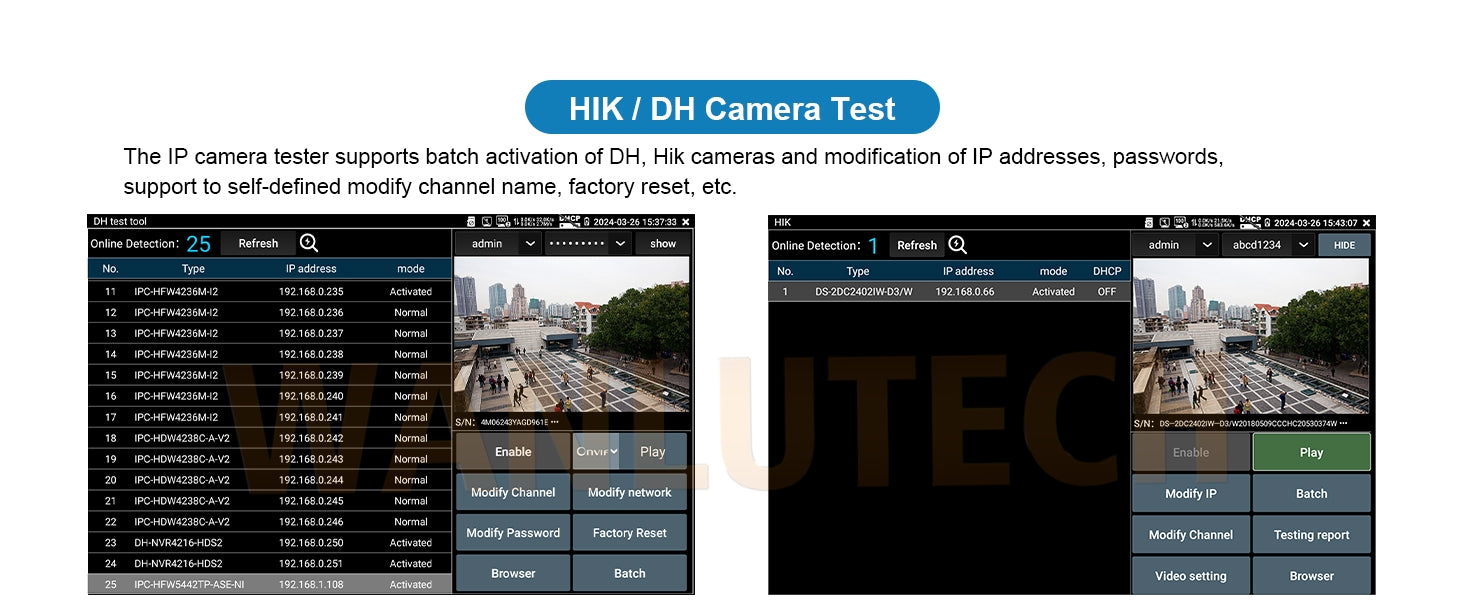

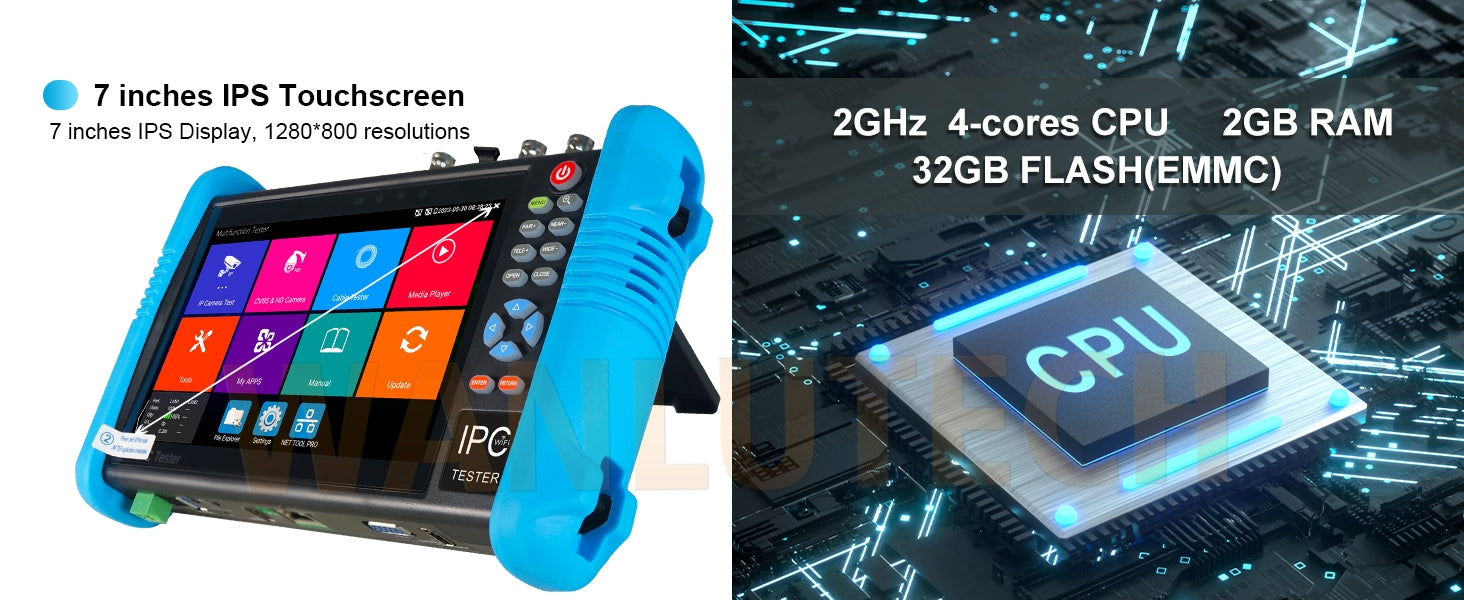

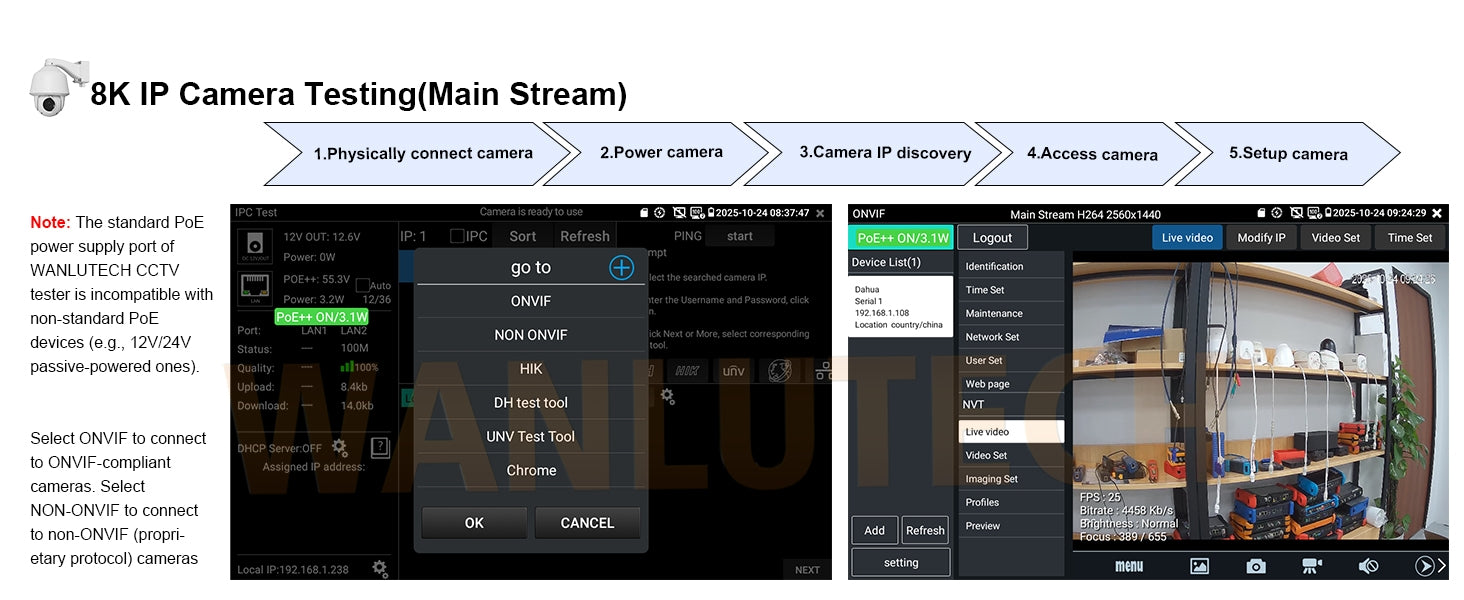

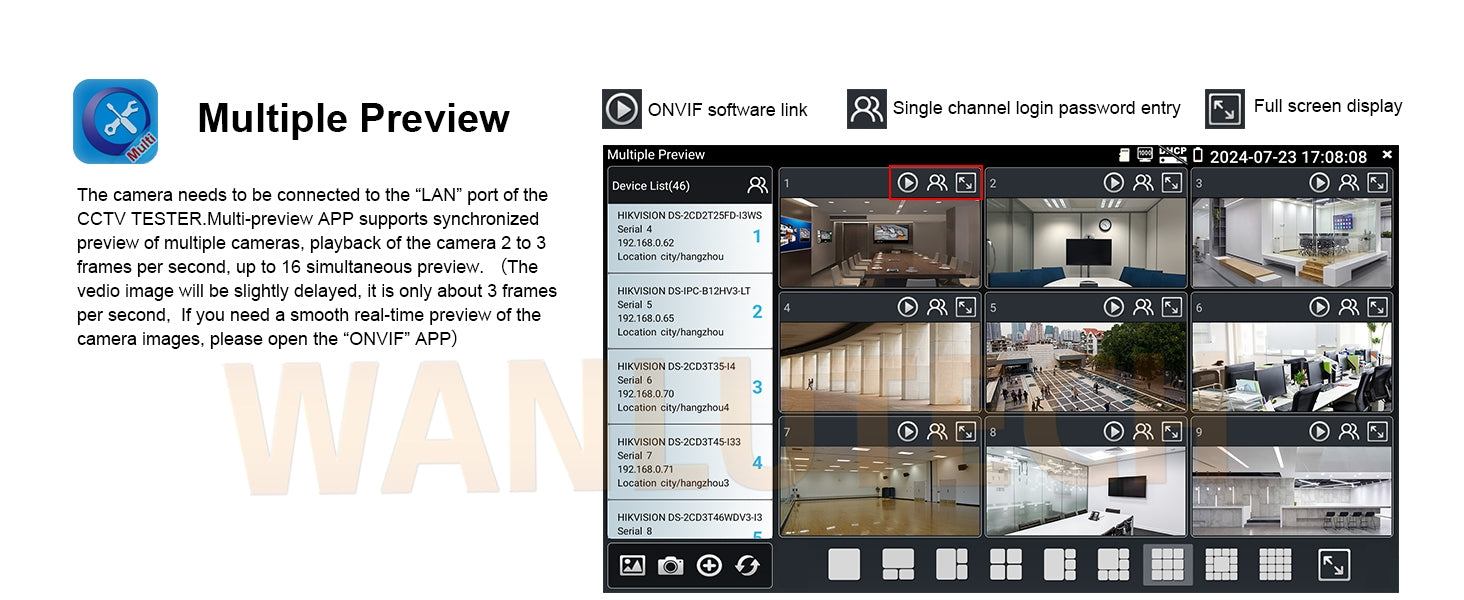

7" touchscreen with 1280x800 resolution, supports IP cameras up to 8K 32MP plus CVBS analog cameras. Batch activation and IP/password modification for Dahua and Hikvision cameras. Built-in IP Discovery, RTSP playback, and Quick ONVIF test. Supports CVBS loop test to check BNC cable integrity with a color bar signal.

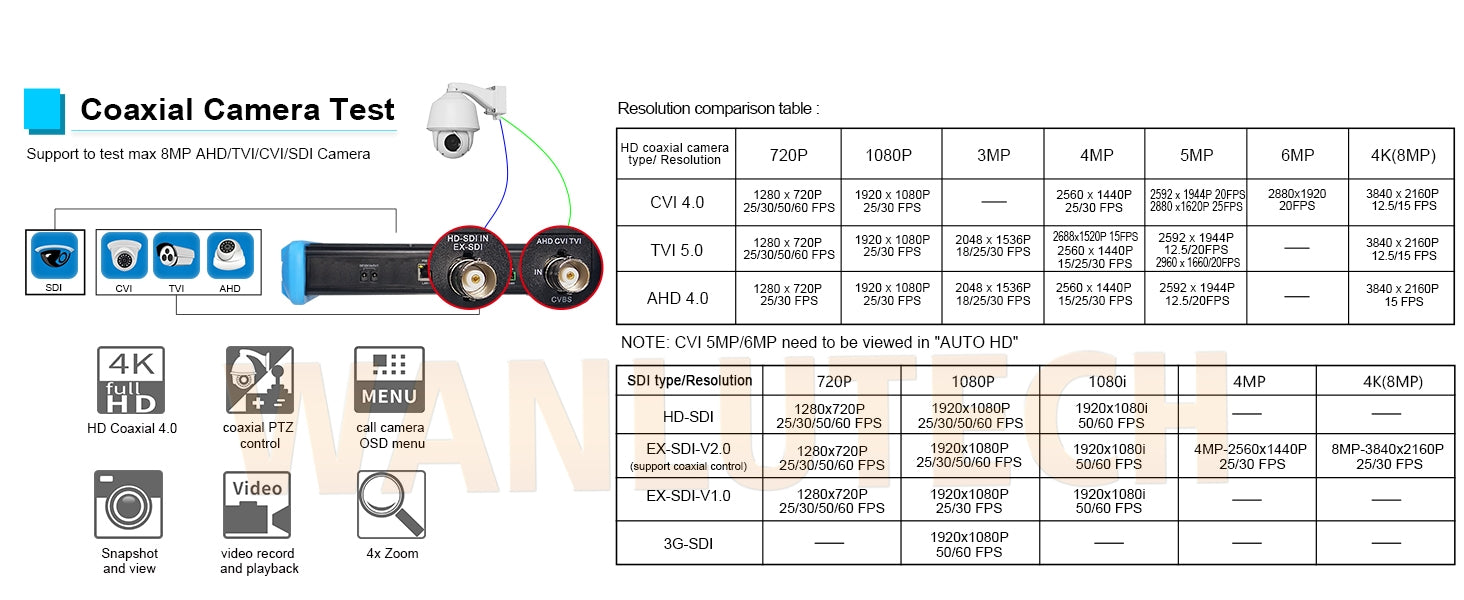

🎥 AHD / TVI / CVI / SDI Analog Testing
Tests up to 8MP SDI/AHD/TVI/CVI/CVBS analog cameras — the widest format coverage in the 9800 series. The "Auto HD" mode automatically detects the camera format and displays resolution and frame rate on screen. Supports UTC control, OSD menu access, screenshots, video recording and playback, plus a built-in color bar generator (PAL/NTSC output).
🔌 Cable Tracing & Fault Diagnosis

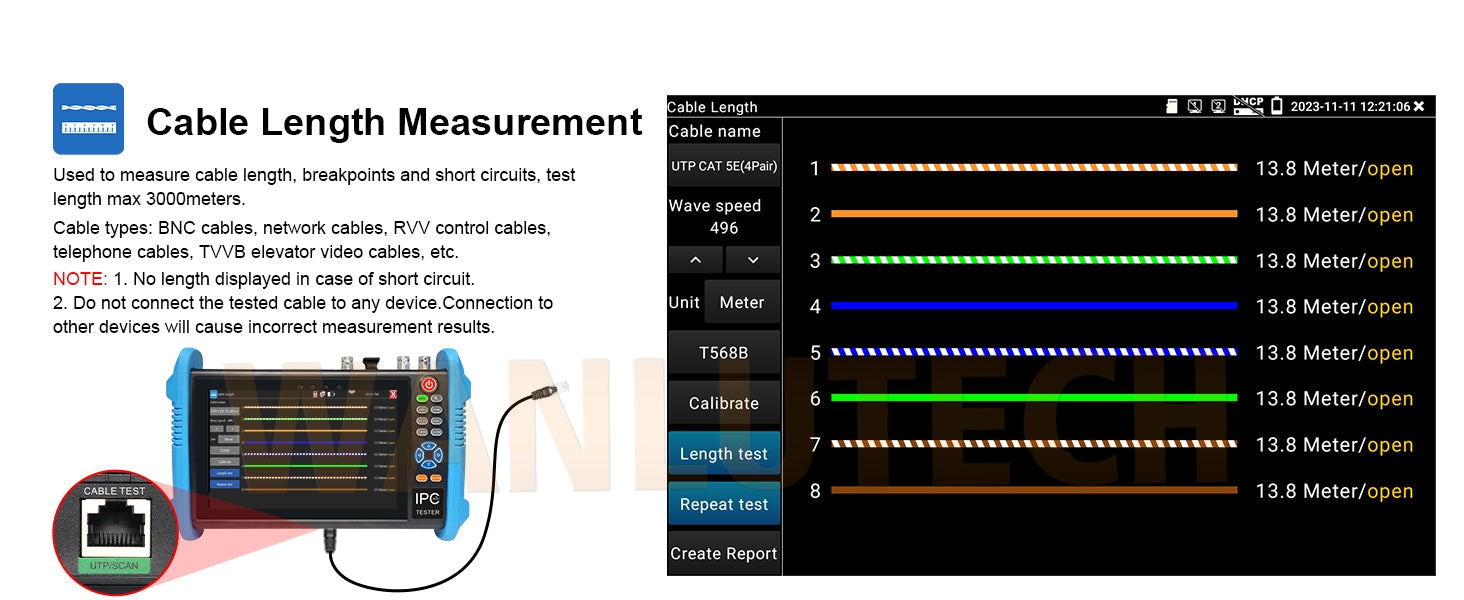

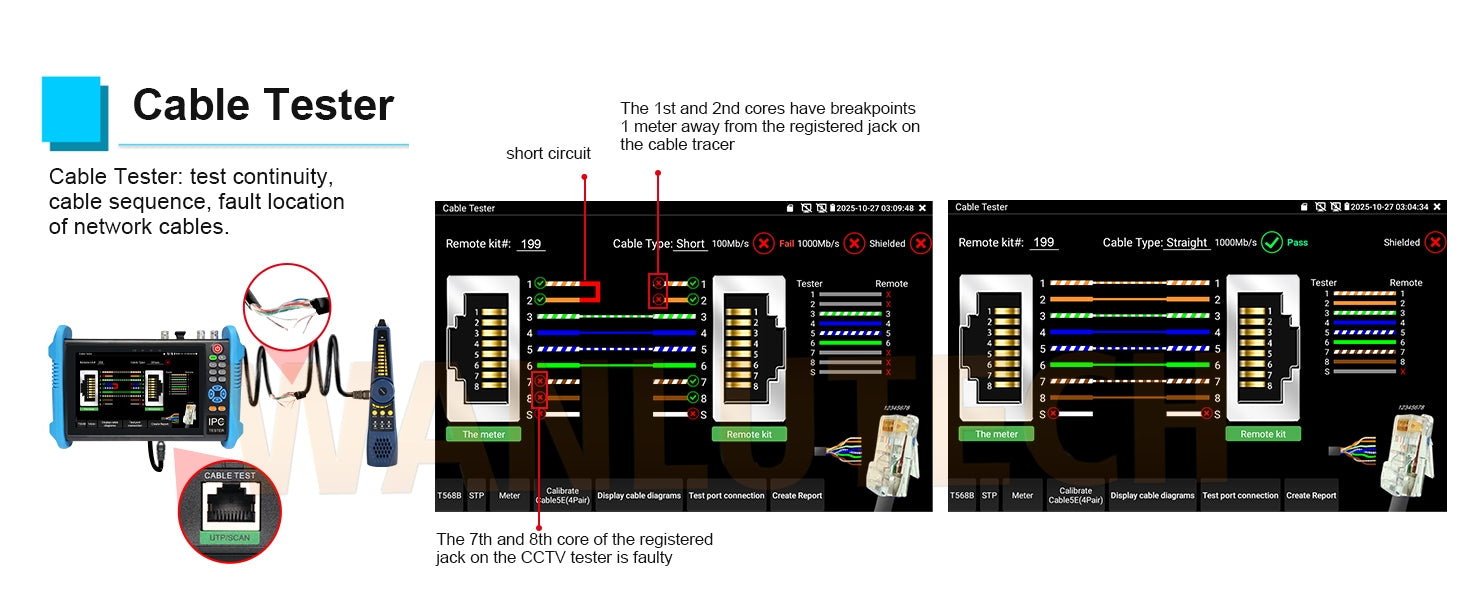

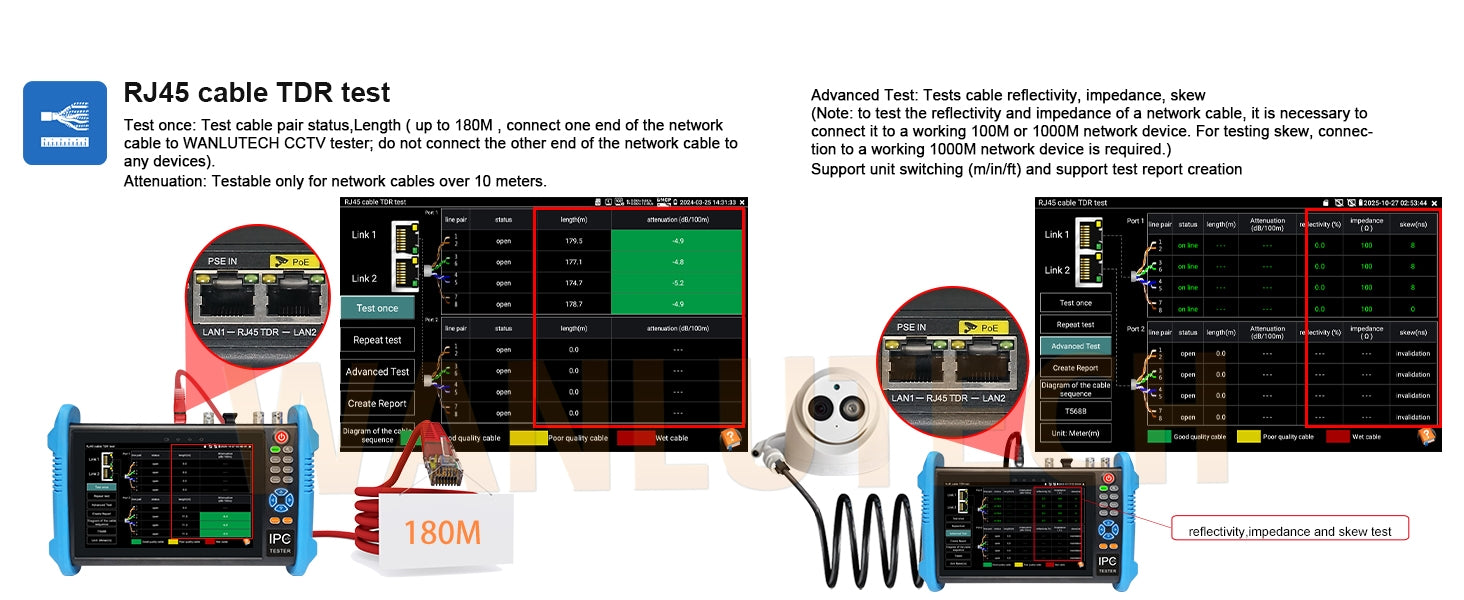

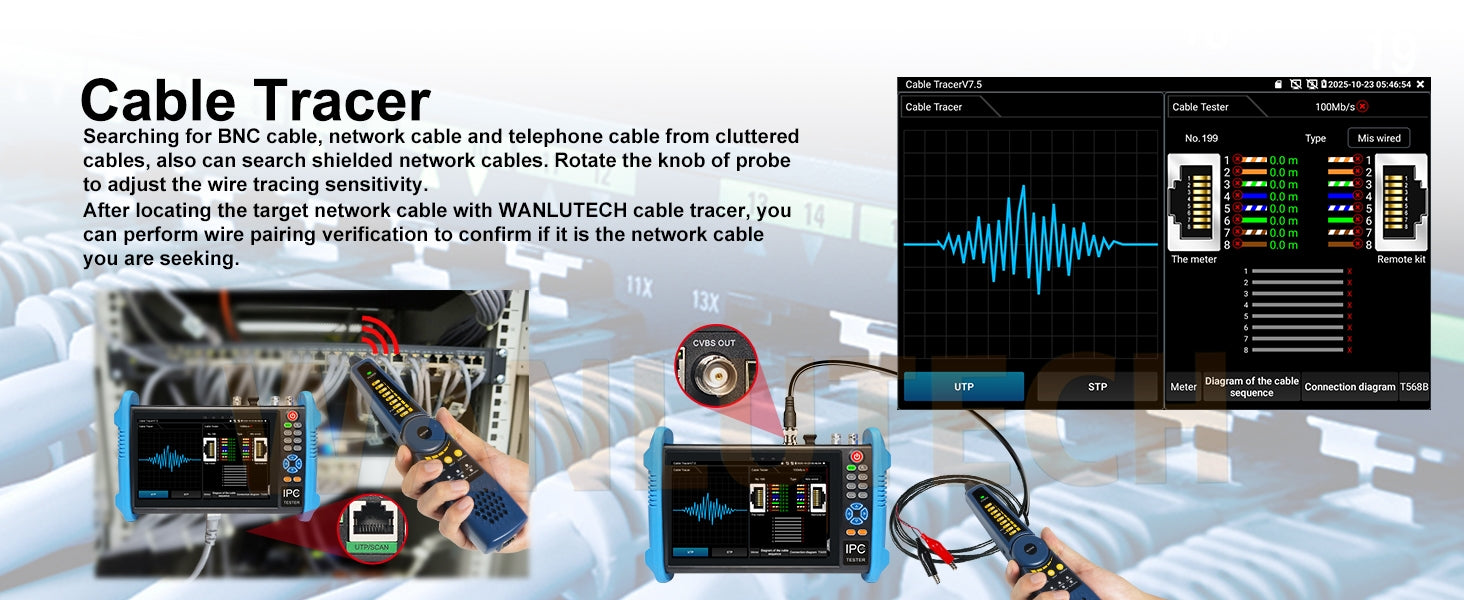

Cable Tracer: locate a specific BNC, network, or telephone cable — including shielded cables — inside a cluttered bundle. RJ45 cable TDR test: check pair status, length, attenuation, reflectivity, and impedance in one pass. Locate near-end, mid-end, and far-end fault points on RJ45/BNC/RJ11 cables.
⚡ PoE Power & Network Tools

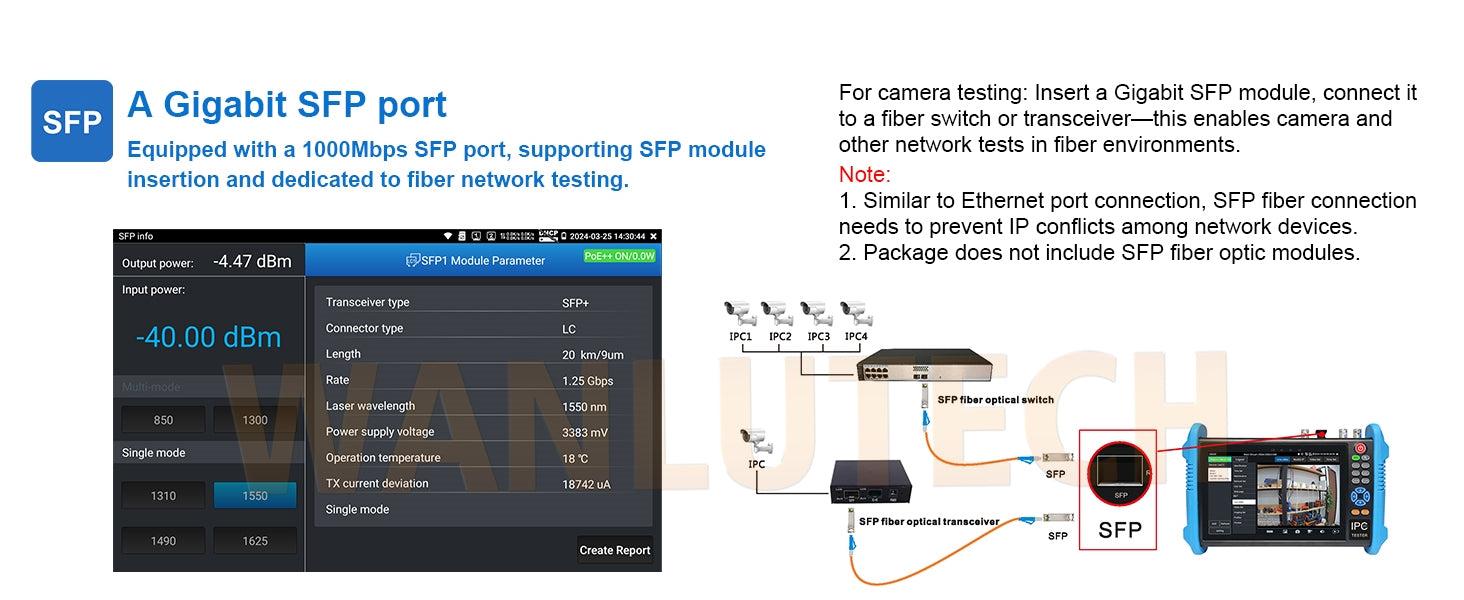

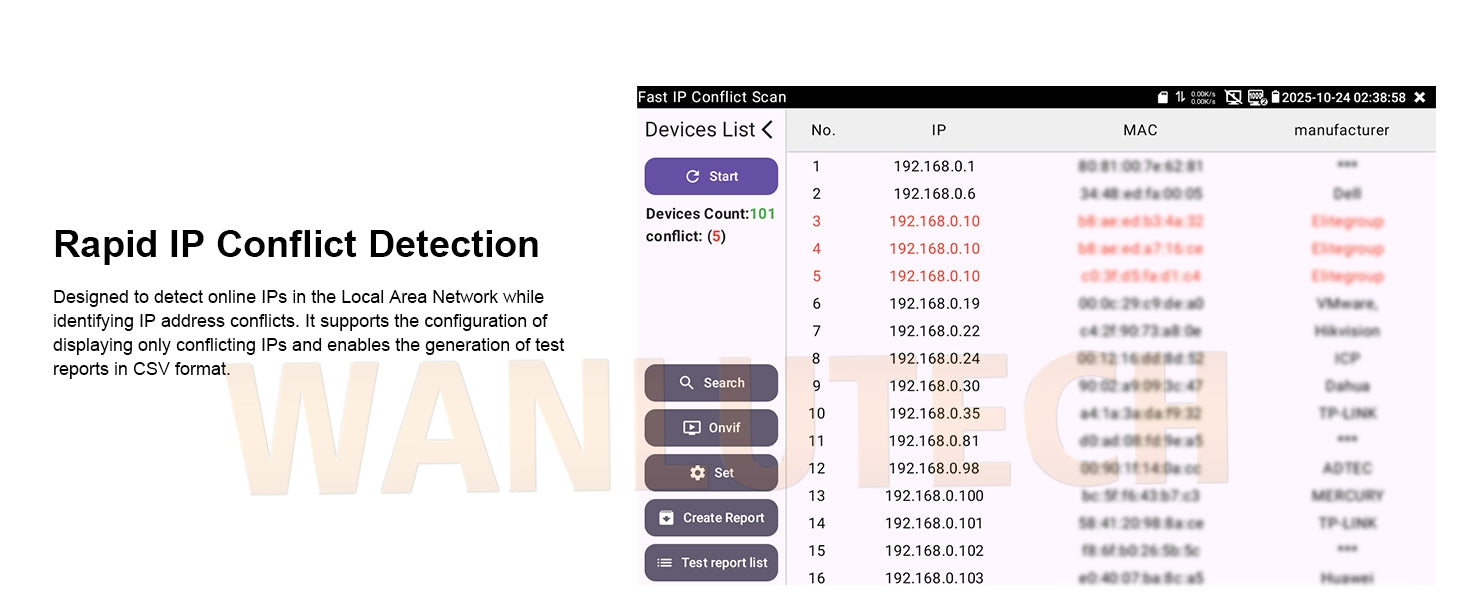

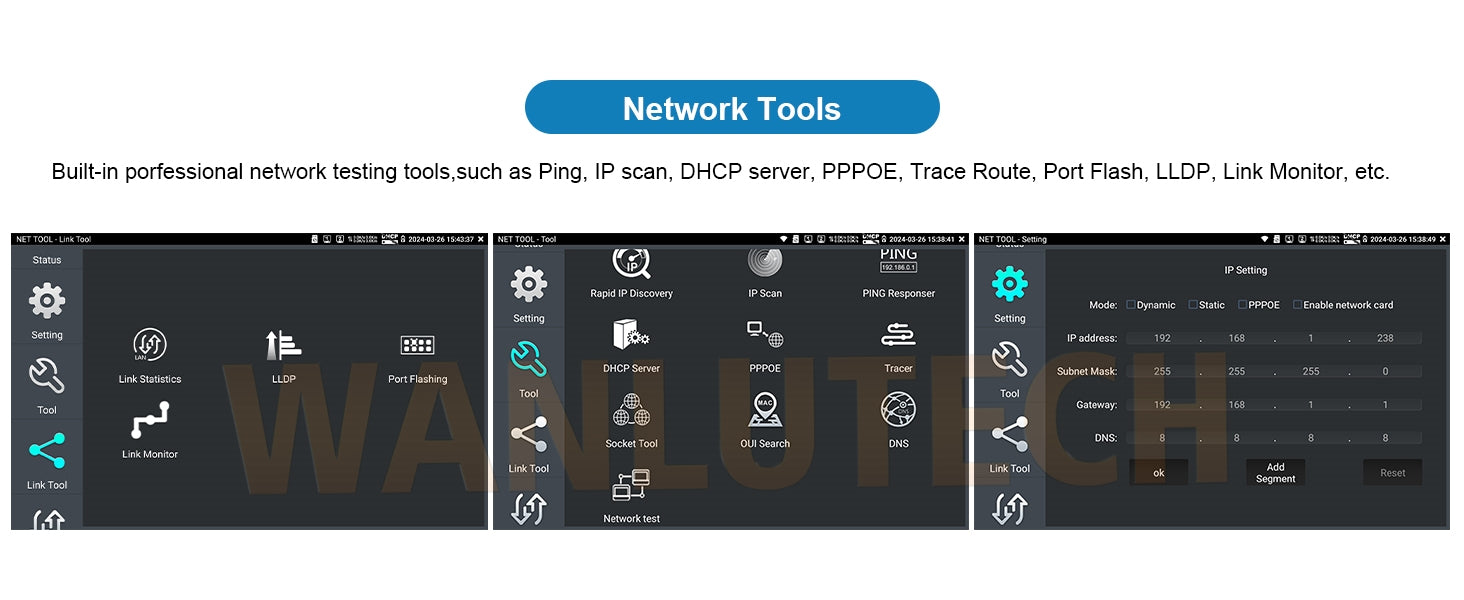

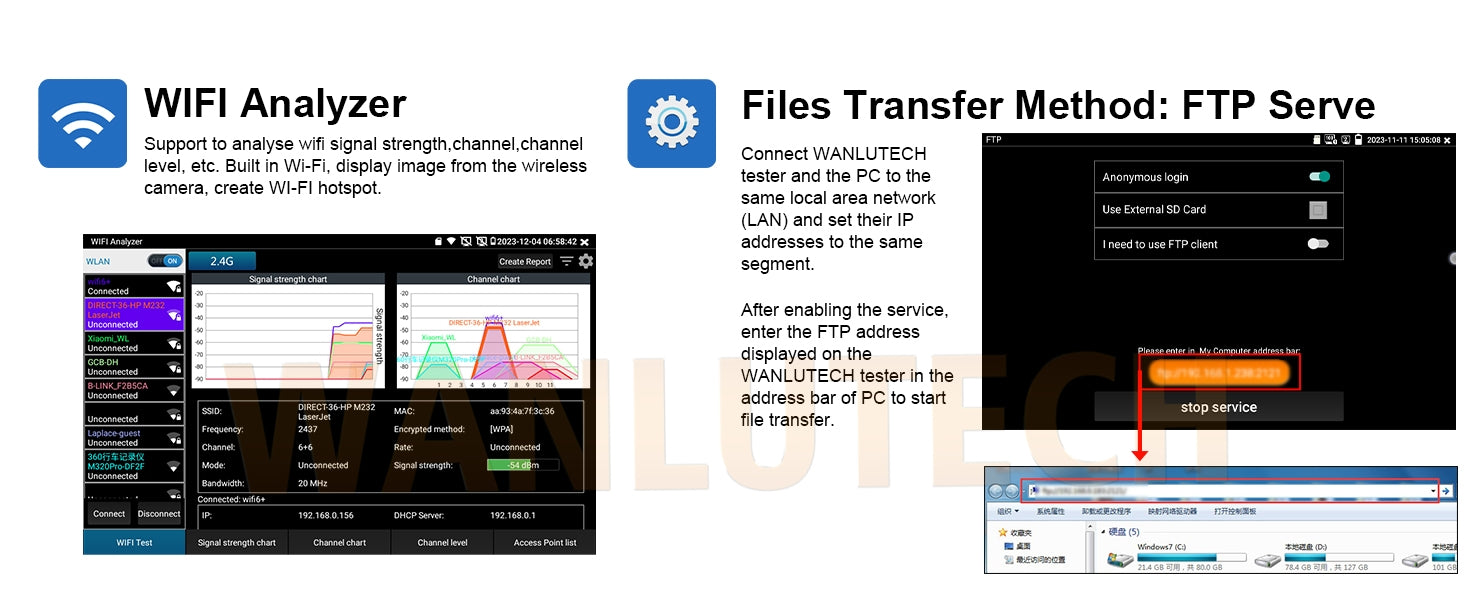

Up to 55V 90W PoE power output for temporarily powering high-power PTZ cameras. Built-in Gigabit SFP fiber module port for fiber network testing. Includes professional network tools — Ping, IP scan, DHCP server, Trace Route — plus 2.4GHz WiFi signal analysis.

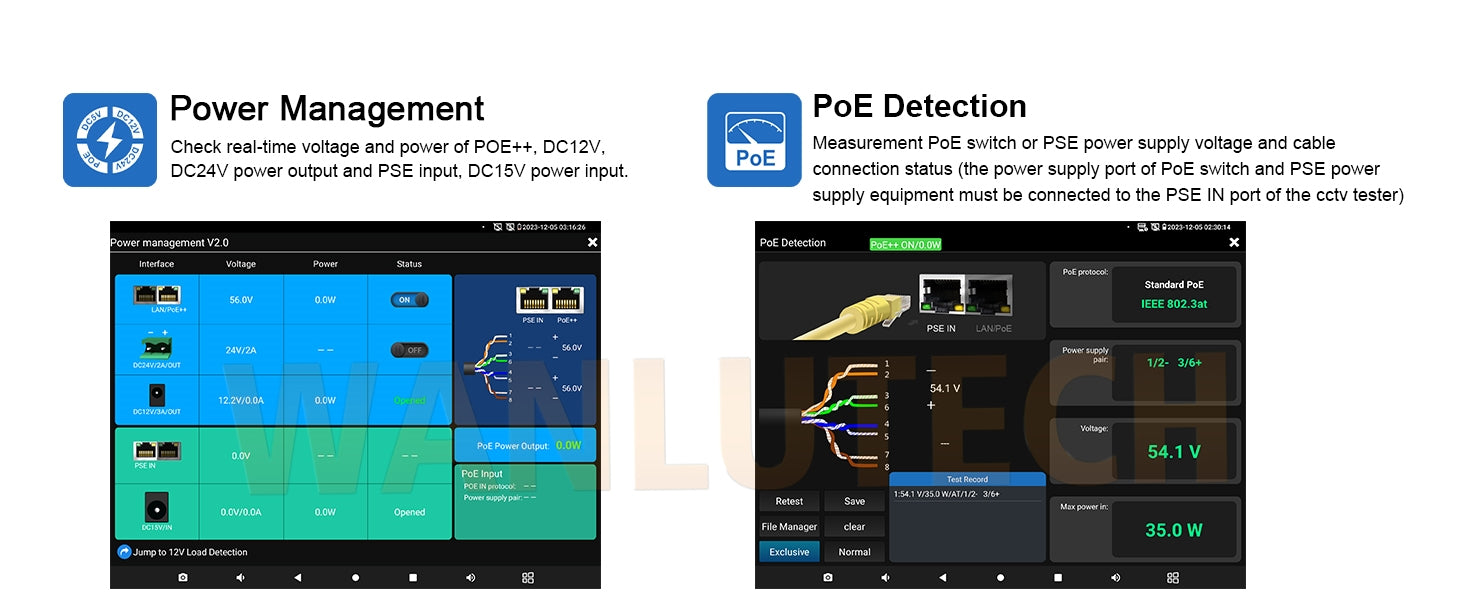

🔋 Integrated Power Management

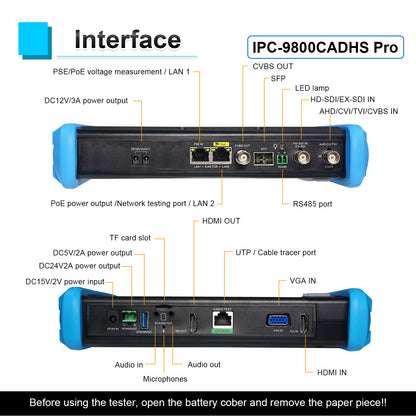

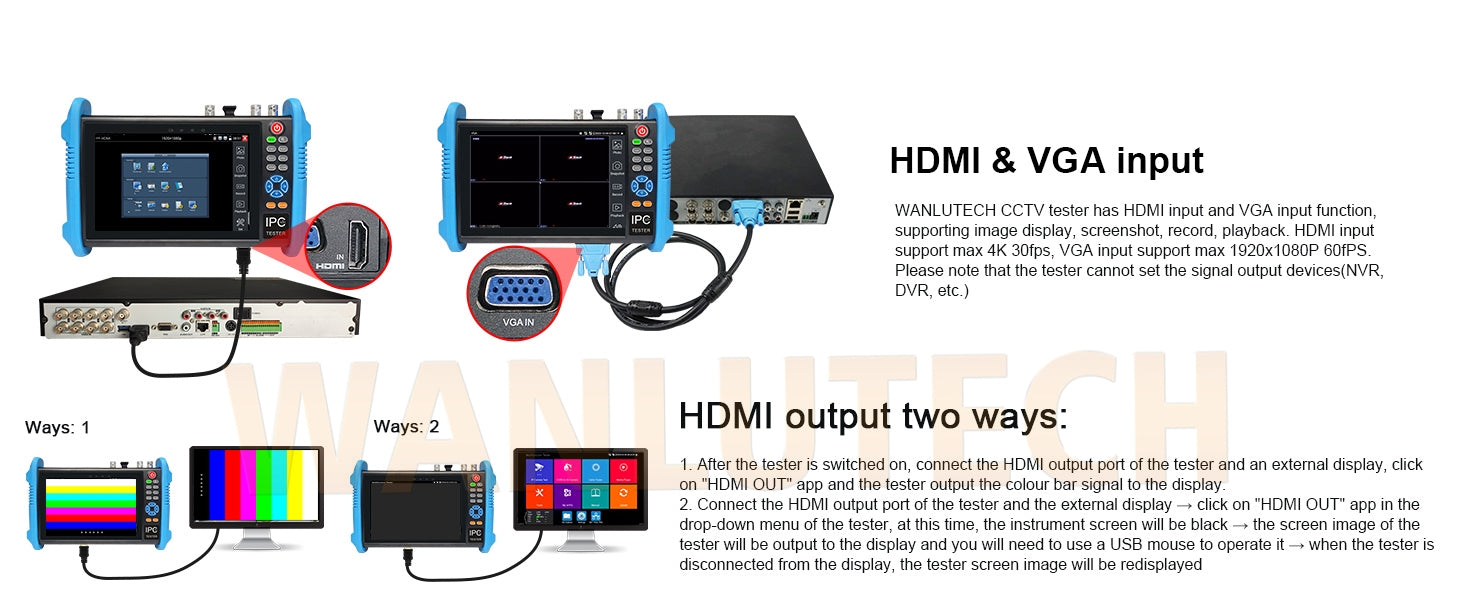

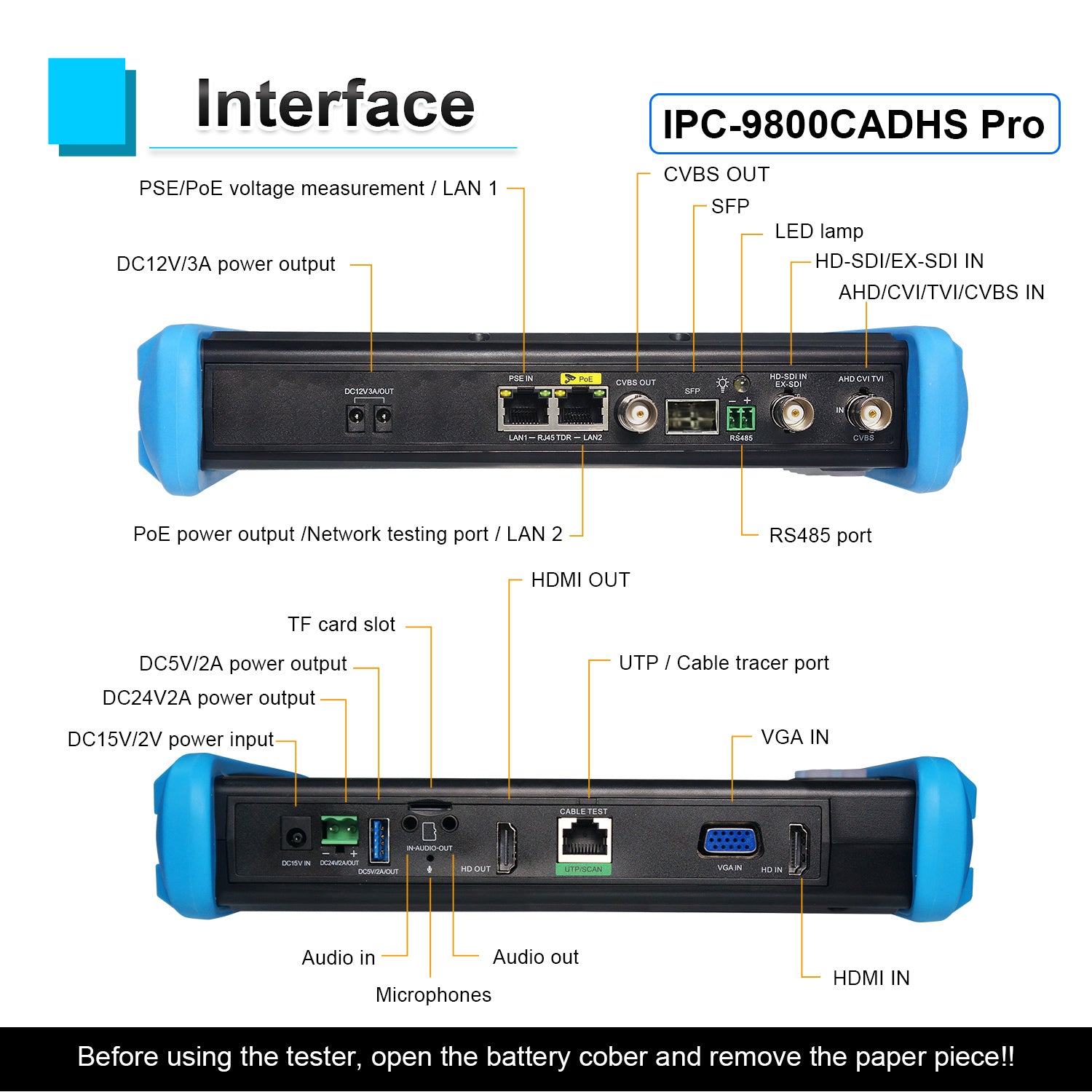

Real-time voltage, power, and port status display. 8GB TF card storage, dual Gigabit Ethernet ports, HDMI in/out, VGA in, audio in/out, RS485 port.
| Screen |
7" touchscreen, 1280x800 |
| Supported Formats |
IP (up to 32MP) / SDI, AHD, TVI, CVI (up to 8MP) / CVBS analog |
| PoE Output |
Up to 55V 90W |
| Power Input |
DC15V 2A |
| Power Output |
DC12V/3A, DC24V/2A, DC5V/2A |
📖 Which model do you need? The IPC-9800 series has 3 models:
· 9800 Pro — IP + CVBS only, our base model
· 9800ADH Pro — adds AHD/TVI/CVI analog camera support
· 9800CADHS Pro (this model) — adds SDI support + Cable Tracer, most complete feature set
💡 Before first use: open the battery cover and remove the isolating paper strip. Download the full user manual here. We are the original manufacturer — any questions, we'll respond within 12 hours.
