WANLUTECH 4K 12MP IP Camera Tester, IPC Tester 90W PoE Power Output 8'' Touchscreen CCTV Tester SFP Optical Fiber Module Port RJ45 Cable TDR Test WiFi Network Tools (E88)
WANLUTECH 4K 12MP IP Camera Tester, IPC Tester 90W PoE Power Output 8'' Touchscreen CCTV Tester SFP Optical Fiber Module Port RJ45 Cable TDR Test WiFi Network Tools (E88)
Regular price
$235.99 USD
Regular price
$299.99 USD
Sale price
$235.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Download the user manual Here

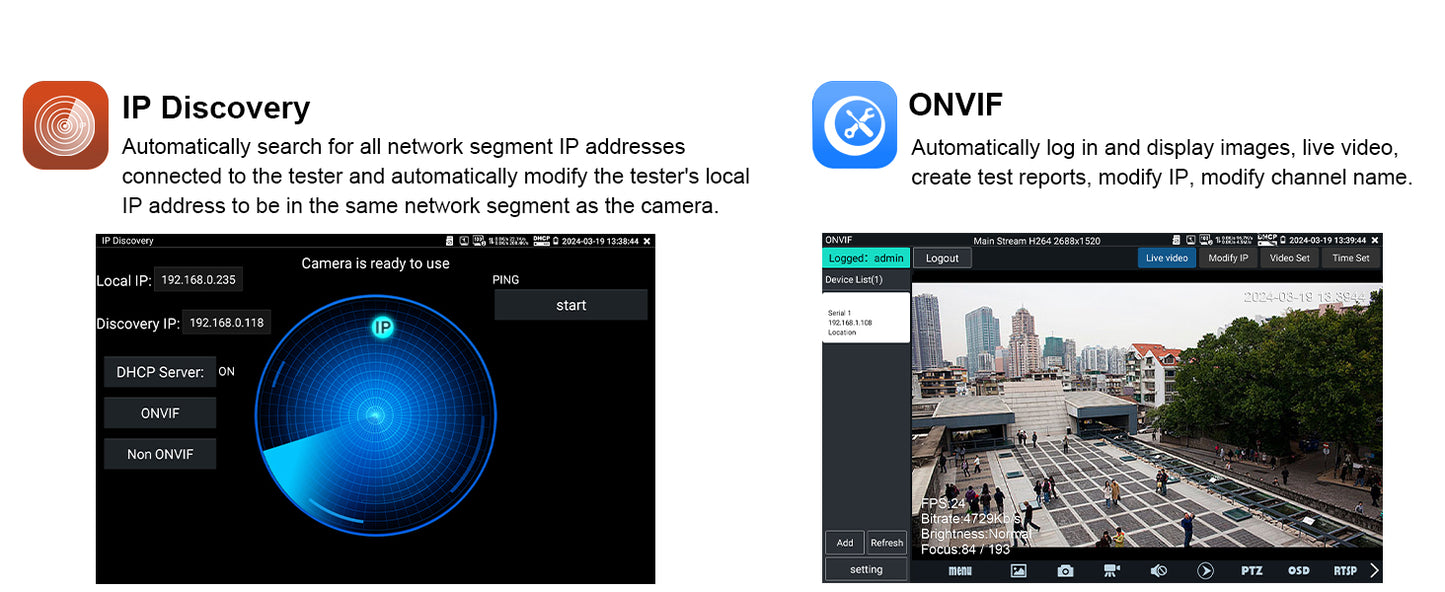

- [ IP Camera Tester ] WANLUTECH IP camera tester with PoE, it support max 90W POE power output, temporarily powers the high-power PTZ camera or other devices supported by the IEEE 802.3af/at/bt standard protocol. DC15V power intput. It has 8 inches touch screen. Support IP Discovery/Quick OVIF/IPC test/Rapid Video, auto view the video, create testing report. It has a gigabit SFP optical fiber module port, support insert SFP optical fiber module, for optical fiber network testing

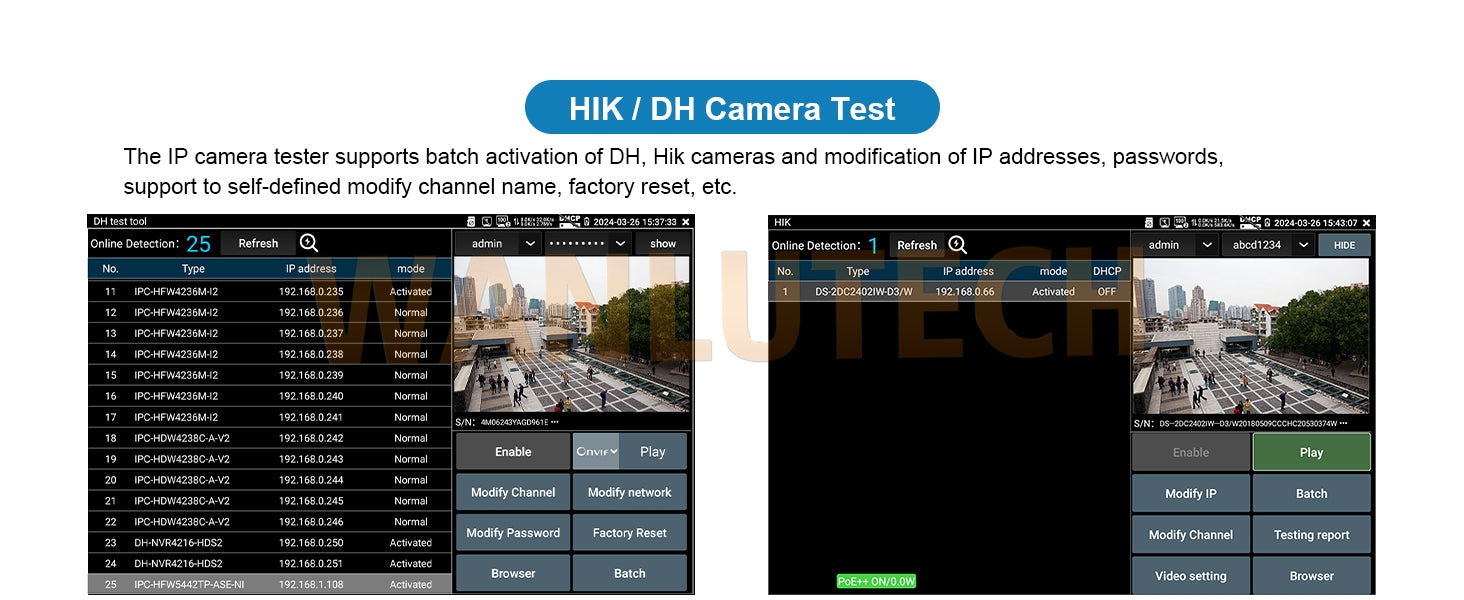

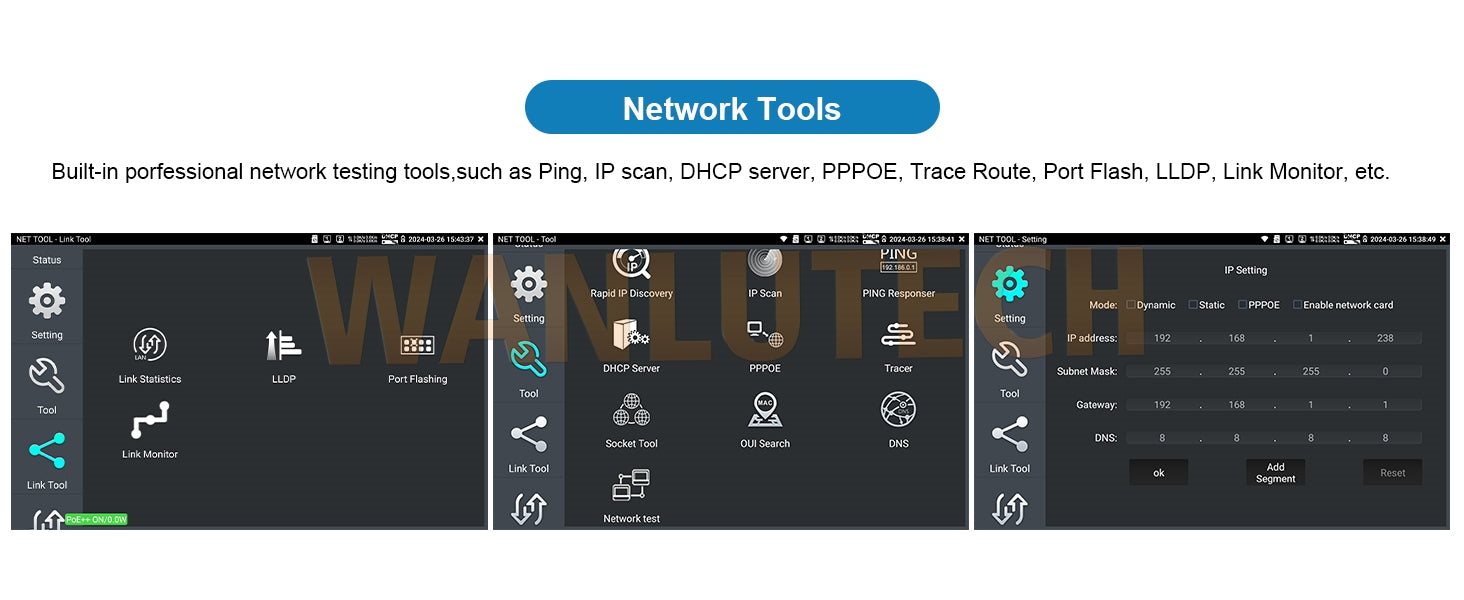

- [ Camera Test Tools & Network Tools ] The IP camera tester supports batch activation of DH, Hik cameras and modification of IP addresses, passwords, support to self-defined modify channel name, factory reset, etc. Network Tools: Ping, IP scan, DHCP server, PPPOE, Trace Route, Port Flash, LLDP, Link Monitor

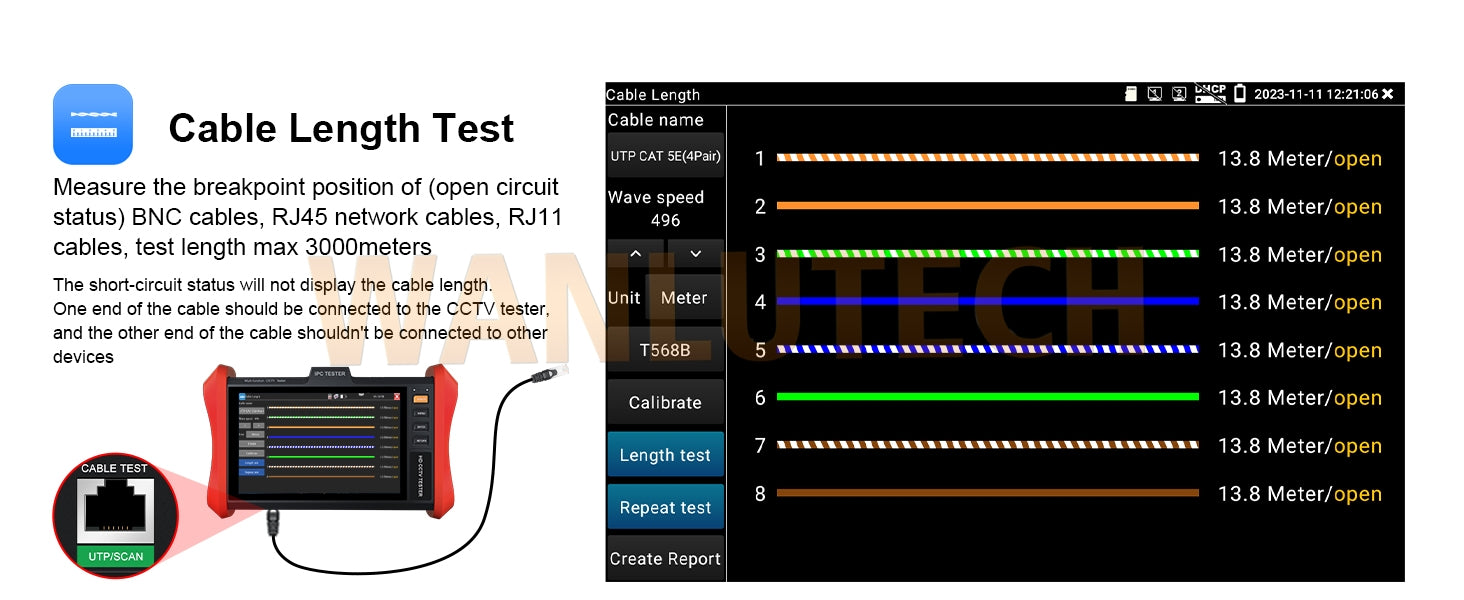

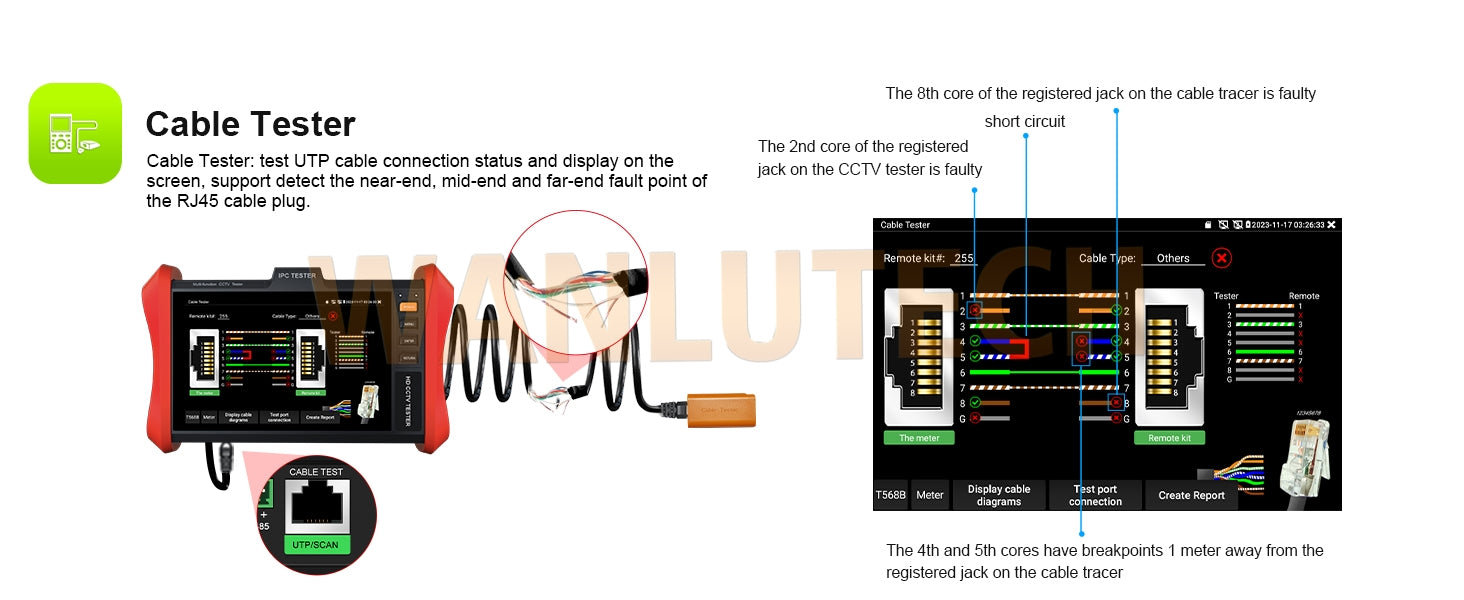

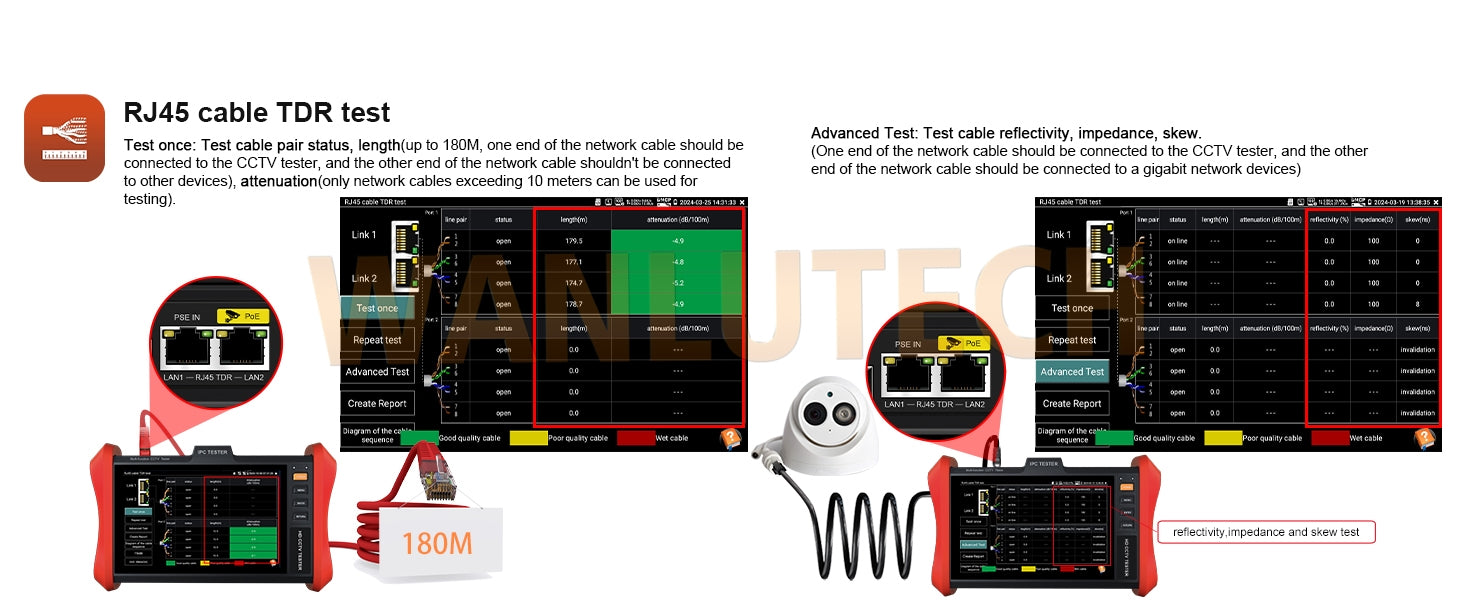

- [ Cable Tester ] RJ45 Cable TDR Test: it can test cable pair status, length (up to 180 meters), attenuation(only network cables exceeding 10 meters can be used for testing), reflectivity, impedance, skew. UTP Cable Tester: test UTP cable connection status and display on the screen, support detect the near-end, mid-end and far-end fault point of the RJ45 cable plug. Cable Length Test: Measure the breakpoint position of (open circuit status) BNC cables, RJ45 network cables, RJ11 cables, test length max 3000 meters

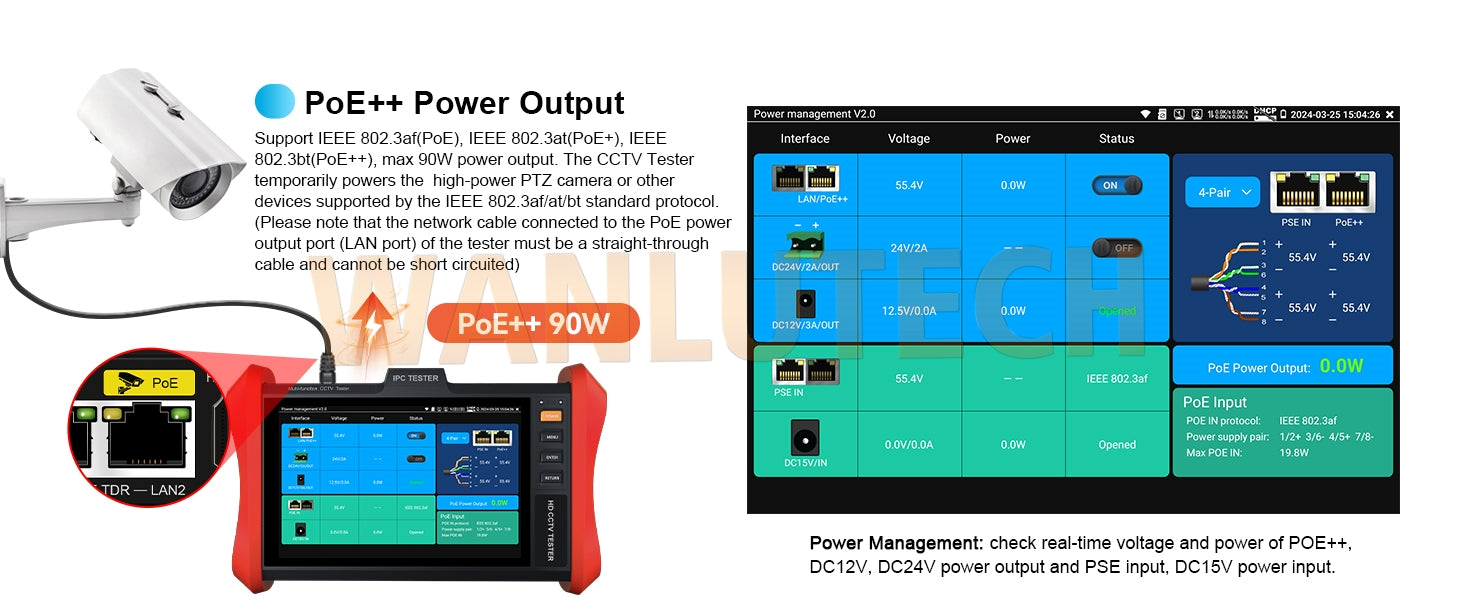

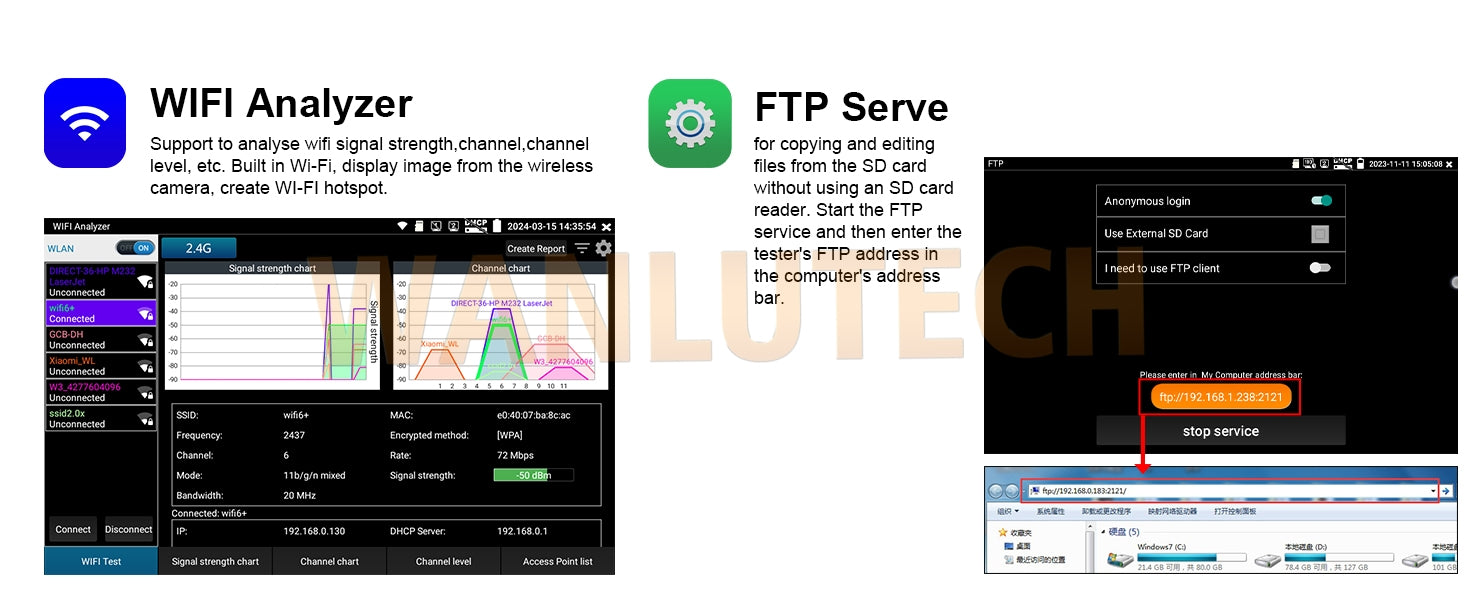

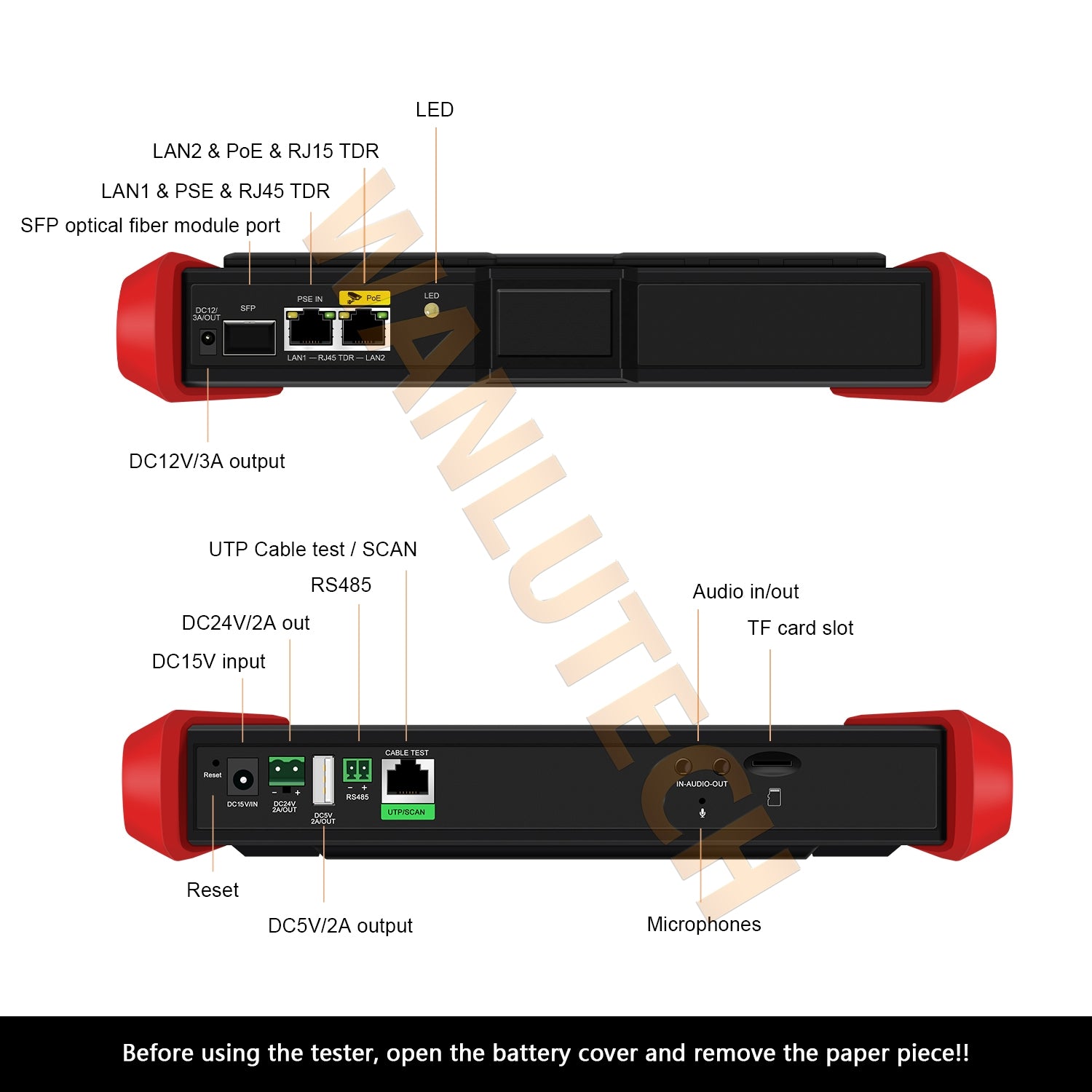

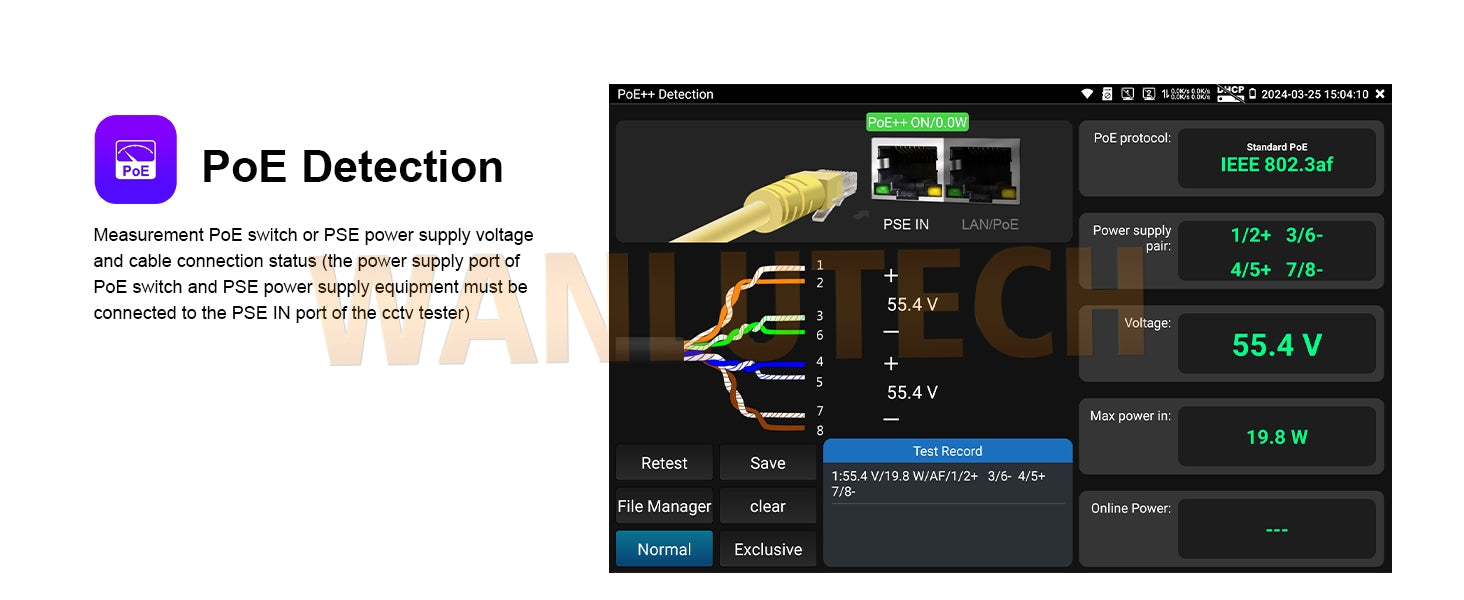

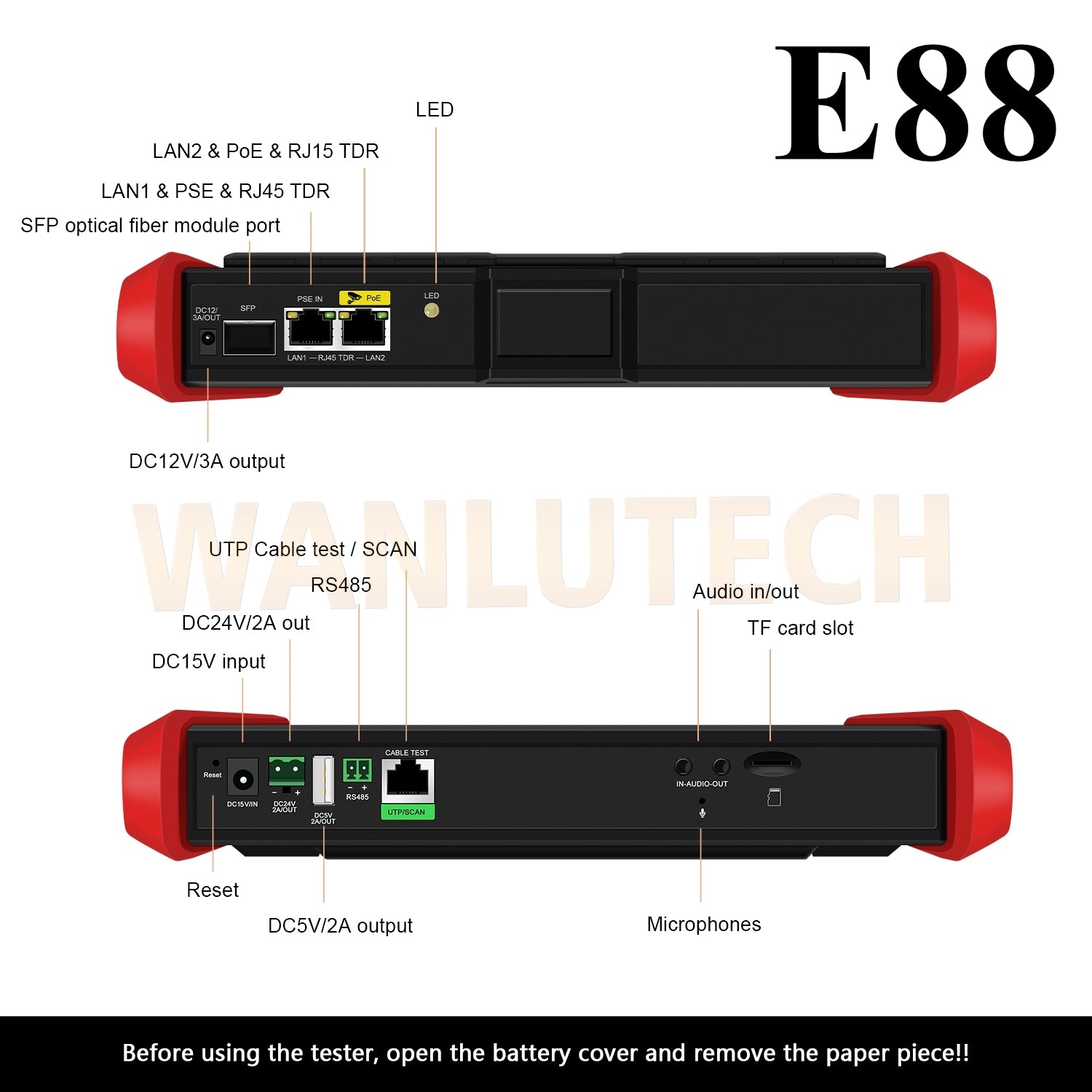

- [ Multifunctional CCTV Camera Tester ] The OS of IPC tester is Android. WIFI Analyzer: support to analyse wifi signal strength,channel,channel level, support to create WI-FI hotspot. PoE Detection: measurement POE switch or PSE power supply voltage and cable connection status. Power Management: check real-time voltage and power of POE, DC12V, DC24V power output and PSE input, DC15V power input. Data monitor: Captures and analyzes the command data from controlling device, also can send hexadecimal. Power input:DC15V, Power output:DC12V/3A, DC24V/2A, DC5V/2A
- [ PLEASE NOTE ] There is a paper piece isolating the battery. Before using the tester, open the battery cover and remove the paper sheet. We are the manufacturer. Any questions, please let us know, We'll get back to you within 12 hours
