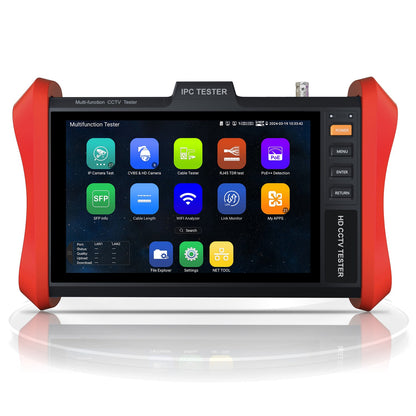

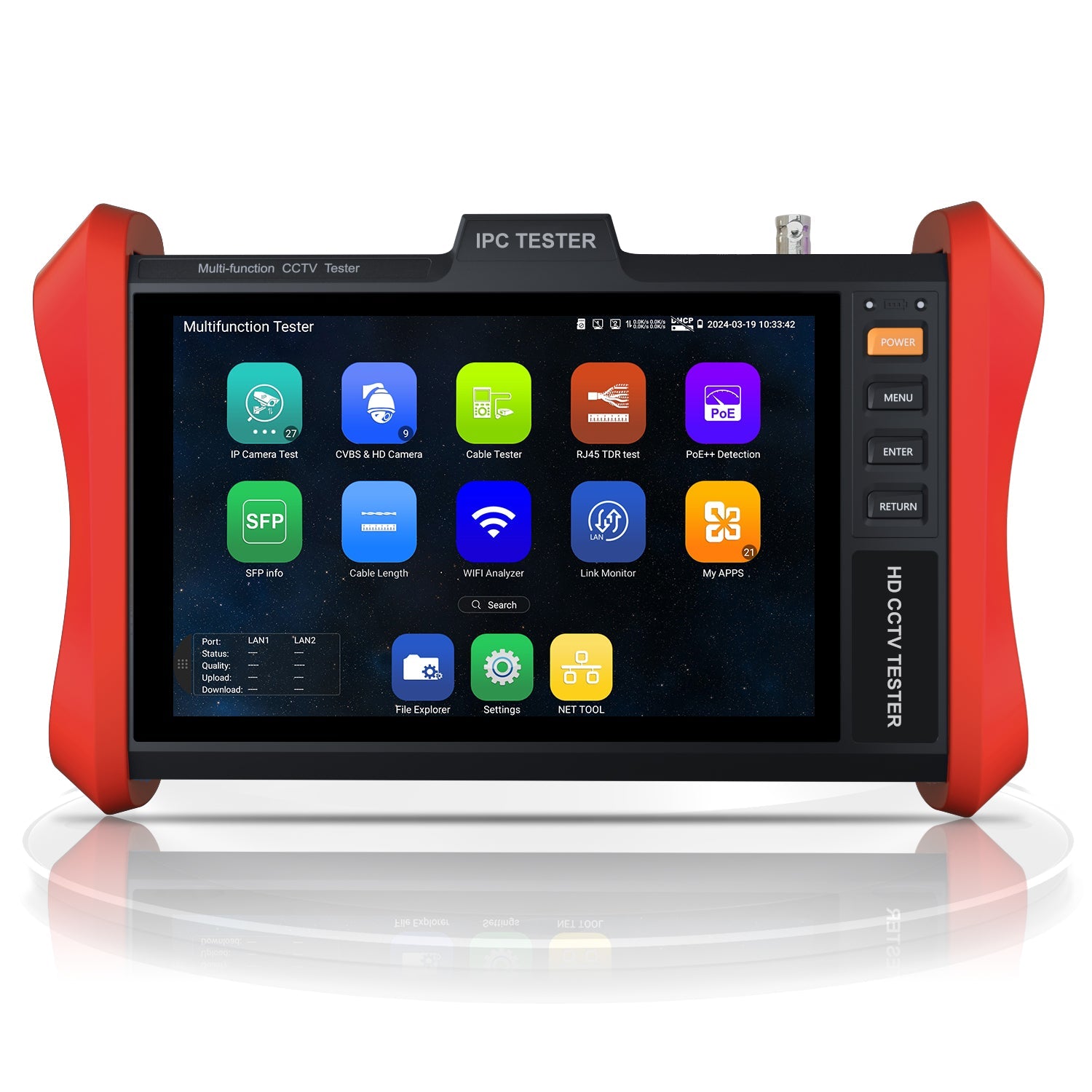

IP & Analog Camera Tester: Built-in PoE with up to 90W output, capable of temporarily powering high-power PTZ cameras and other IEEE 802.3af/at/bt devices (DC15V input). Features an 8'' touchscreen at 1920x1200 resolution. Tests up to 4K/12MP IP cameras plus CVBS analog cameras. Supports batch activation and IP/password changes for Dahua and Hikvision cameras, with IPC Test, IP Discovery, Rapid Video, RTSP Play, Quick ONVIF, Hik/Dahua test tools, and Client APK support. Includes a Gigabit SFP fiber module port for optical fiber network testing.
AHD / TVI / CVI Camera Tester: Tests up to 8MP AHD/TVI/CVI/CVBS cameras. "AUTO HD" auto-recognizes the camera format and displays resolution/frame rate, with UTC control, OSD menu access, screenshots, video recording and playback.
Cable Tester: RJ45 Cable TDR Test checks cable pair status, length (up to 180m), attenuation, reflectivity, impedance and skew. UTP Cable Tester displays connection status and detects near-end, mid-end, and far-end fault points on RJ45 plugs. Cable Length Test measures open-circuit breakpoints on BNC, RJ45, and RJ11 cables up to 3000m.

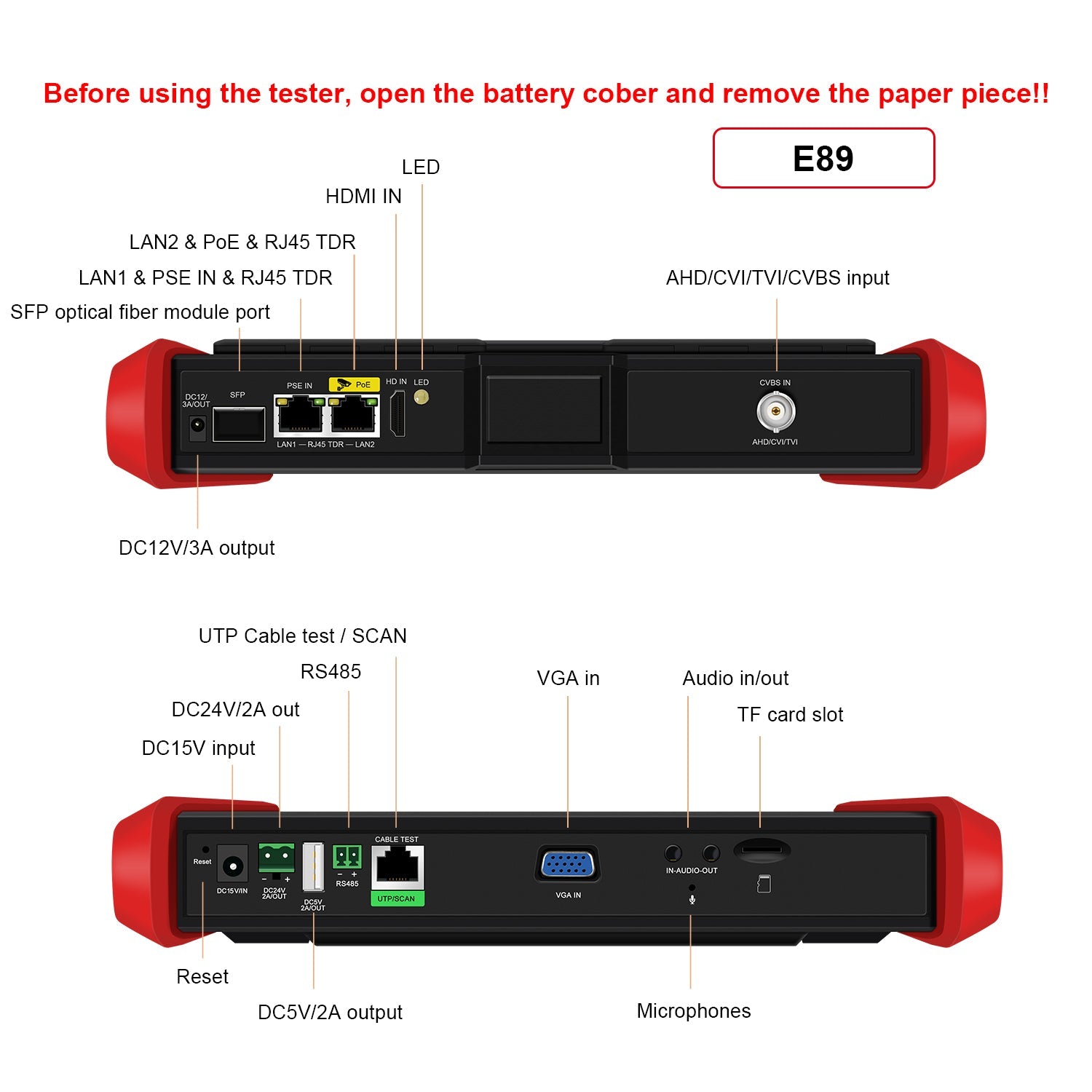

Multifunction CCTV Monitor Tester: Dual Gigabit Ethernet ports (10/100/1000Mbps adaptive), HDMI in, VGA in, audio I/O, RS485, and WiFi analyzer. Built-in network tools include IP Scan, Ping, PPPOE, Trace Route, Link Monitor, DHCP Server, and Port Flashing. PoE Detection measures PoE switch/PSE voltage and cable connection status. Power Management shows real-time voltage and power for PoE, DC12V, DC24V output, PSE input, and DC15V input.
Please Note: A protective paper sheet isolates the battery during shipping — open the battery cover and remove it before first use. We are the manufacturer and typically respond to any questions within 12 hours.
