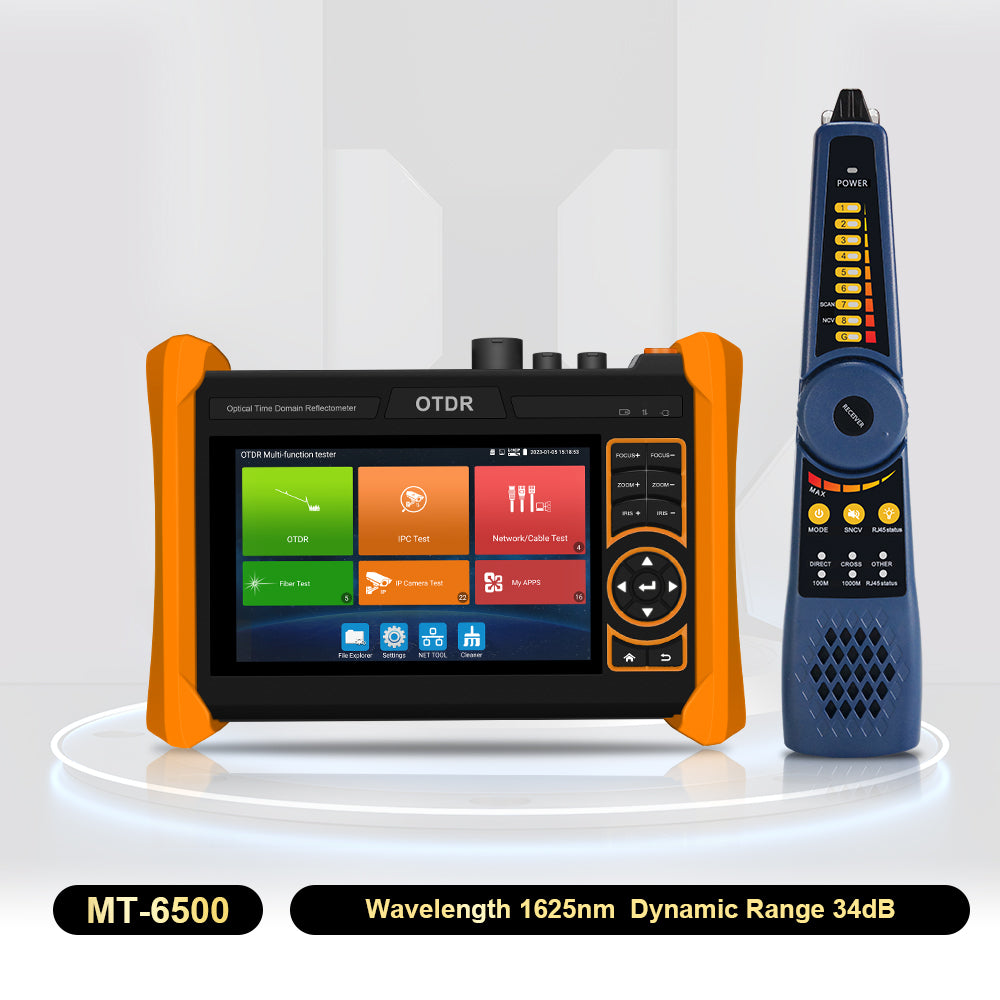

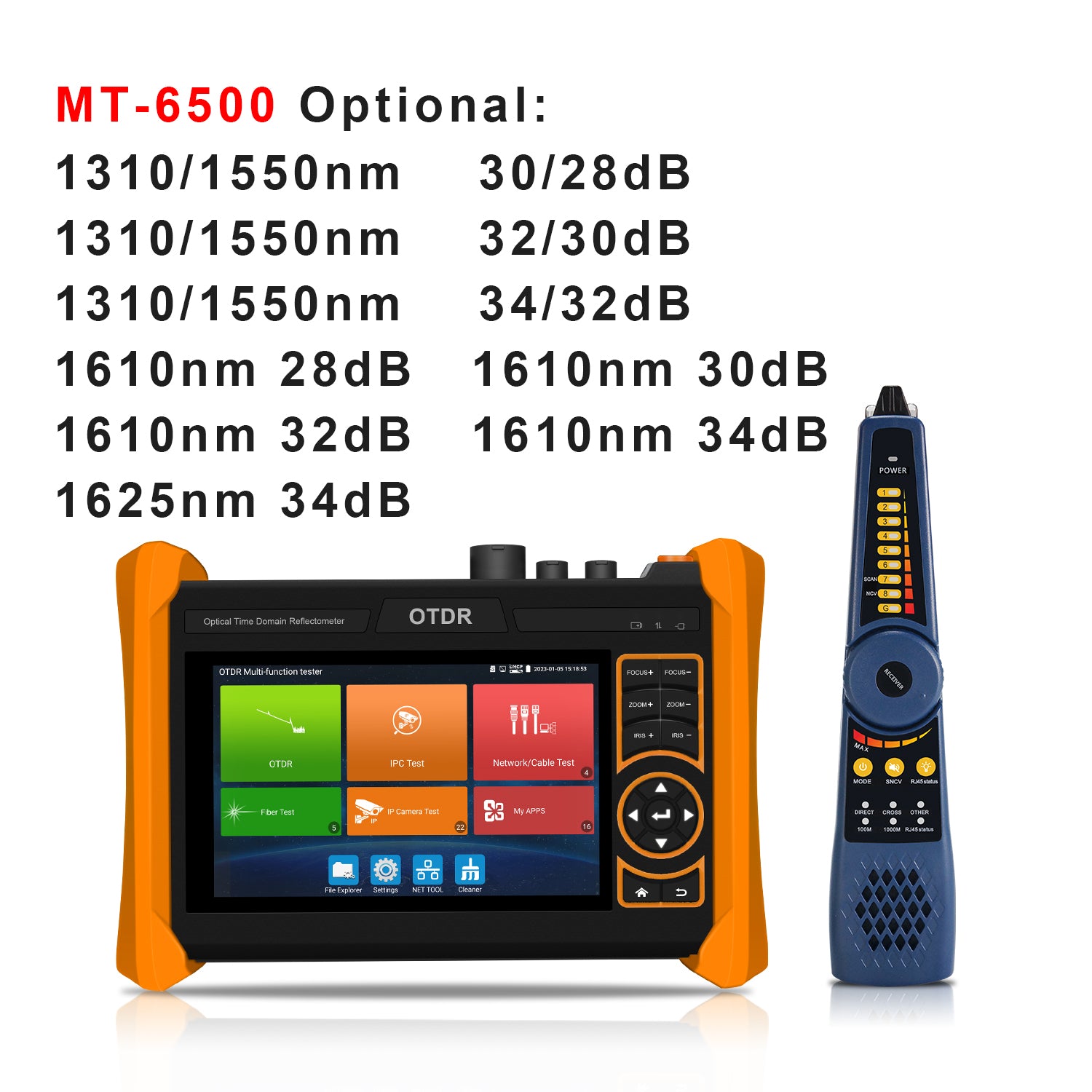

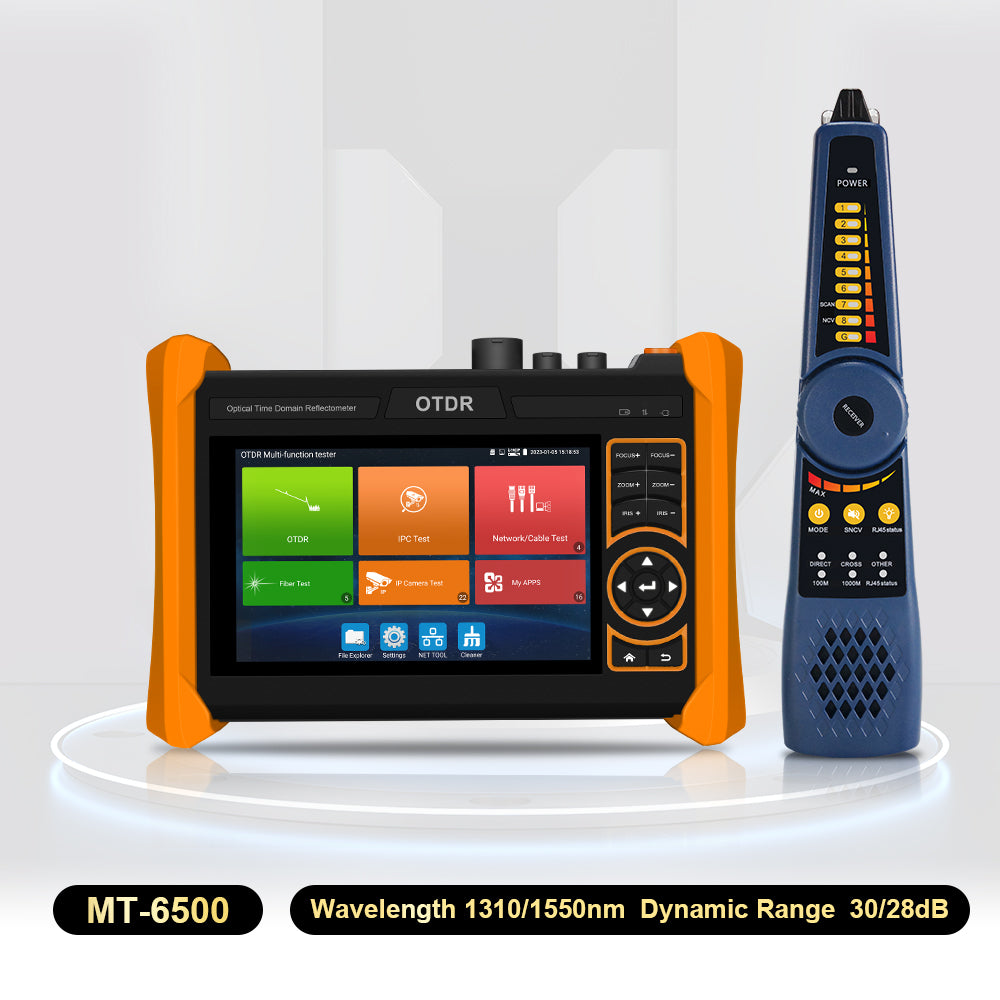

WANLUTECH Single Mode OTDR CCTV Tester, MT-6500 1310/1550nm 30/28dB，1310/1550nm 32/30dB，1310/1550nm 34/32dB ,1610nm 28dB , 1610nm 30dB , 1610nm 32dB , 1610nm 34dB ,1625nm 34dB Optional

To purchase OTDR with the specified wavelength and dynamic range, please contact our support team. Thank you.

• [ OTDR Fiber Optic Tester ] WANLUTECH OTDR combines necessary fiber optic testing in one handheld device. OTDR test: Optional Wavelength/Optional Dynamic Range : 1310/1550nm 30/28dB，1310/1550nm 32/30dB，1310/1550nm 34/32dB ,1610nm 28dB , 1610nm 30dB , 1610nm 32dB , 1610nm 34dB  ,1625nm 34dB.Quick Setup mode: quickly set wavelength, distance range, pulse width and measurement duration; Parameters Set mode: professional technicians can set the wavelength, distance range, pulse width, measurement mode, IOR, non-reflection threshold, end threshold and other parameters before testing, which will get more accurate curve results. As well, it is for maintenance and installation of 4K IP camera
• [ OPM VFL LS OLS Event map ] OPM (Optical Power Meter: Calibrated Wavelength 850/1300/1310/1490/1550/1625nm); VFL (Visual Fault Locator: 650nm wavelength, max test range 8KM); LS (Light Source:mode CW/270 Hz/330 Hz/1 kHz/2 kHz); OLS (Optical Loss Test: It is used to test the insertion loss of optical passive devices); EVENT MAP: Visualise the results of fibre optic link inspections. Save and view the testing curves, support zoom and move curves, view details ，(Event Dead Zone ≤0.8 m, Attenuation Dead Zone≤3 m).
• [ 4K 12MP IP Camera Tester & Cable Tester ] It support to test max 4K 12MP IP cameras.Support IP Discovery/Quick OVIF/IPC test/RTSP play/Client APK. It supports batch activation of DH, Hik cameras and modification of IP addresses, passwords, etc. RJ45 Cable TDR Test: RJ45 Cable TDR Test: it can test cable pair status, length, attenuation, reflectivity, impedance, skew. UTP Cable Tester: Test UTP cable connection status and display on the screen, support detect the near-end, mid-end and far-end fault point of the RJ45 cable plug. Cable Tracer: Support searching for BNC cable, network cable and telephone cable from cluttered cables
• [ Network Test Tools & PoE & Wifi Analyzer ] Built-in porfessional network testing tools,such as Ping, IP scan, DHCP server, PPPOE, Trace Route, Port Flash, LLDP, Link Monitor, etc. PoE Detection: measurement POE switch or PSE power supply voltage and cable connection status. Support PoE IEEE802.3af/at , max 48V, power output 30W. Wifi Analyzer, Support 2.4G frequency band, wifi connection, wifi list, wifi information, wifi signal strength detection
• [ Multi-function Fiber Tester ] More feature: 5.4'' IPS touch screen, 1920x1152 resolution, 12V Load Detection, power management, one gigabit Ethernet 10/100/1000M Port, audio in/out, RS485 port, 8GB TF card, etc. Power output: DC24V/2A, DC12V/3A,DC5V/2A
• [ PLEASE NOTE ] There is a paper piece isolating the battery. Before using the tester, open the battery cover and remove the paper sheet.
